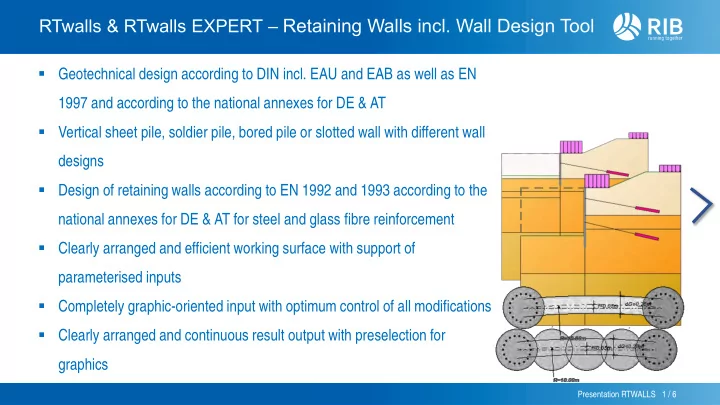

RTwalls & RTwalls EXPERT – Retaining Walls incl. Wall Design Tool

▪ Geotechnical design according to DIN incl. EAU and EAB as well as EN 1997 and according to the national annexes for DE & AT ▪ Vertical sheet pile, soldier pile, bored pile or slotted wall with different wall designs ▪ Design of retaining walls according to EN 1992 and 1993 according to the national annexes for DE & AT for steel and glass fibre reinforcement ▪ Clearly arranged and efficient working surface with support of parameterised inputs ▪ Completely graphic-oriented input with optimum control of all modifications ▪ Clearly arranged and continuous result output with preselection for graphics

Presentation RTWALLS 1 / 6

SLIDE 2

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 2

Efficient and Innovative Geotechnical Software System

Consideration of different excavation and retreating stages Different forms of earth pressure redistribution as well as user-defined redistributions Integration of former and new standards

Presentation RTWALLS 2 / 6

SLIDE 3

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 3

Optimal Performance and High Functionality

Completely graphical working environment Easy editing of anchor properties The anchors can be designed as strand, individual or Ischebeck TITAN

Presentation RTWALLS 3 / 6

SLIDE 4

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 4

Integrated Wall Design

Different wall types available Dialog to modify the properties of the anchors Dialog for selecting the type of Wall

Presentation RTWALLS 4 / 6

SLIDE 5

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 5

Clear Output of Results

Configurable result output Direct output of design results

Presentation RTWALLS 5 / 6

SLIDE 6

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 6

Verifiable result list with graphics

Scaled pictures Output documentation with graphics and numerical data Clearly organized verifications for retaining walls

Presentation RTWALLS 6 / 6
