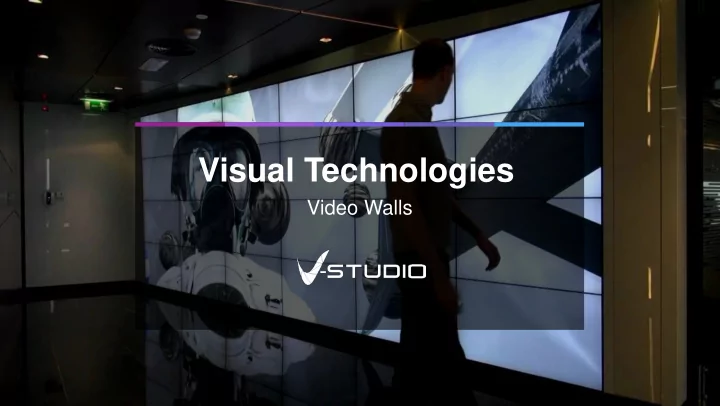

Visual Technologies Video Walls
Vi Vide deo o walls lls A video wall is any large electronic display of an image or images being displayed in a presentation format. Typically multiple display devices are tiled together as close as possible in a matrix to create a single logical screen (The Video Wall). With special video processor devices, an image is scaled across the logical screen or multiple images are spread out over the logical screen. Video walls are available in fixed or curved shape. www.v-studio.co
Curved video wall www.v-studio.co
Watch the video Fixed video wall
App Appli lica cations tions These large, eye-catching displays make them ideal for a wide range of industries and installations. These days, video walls are popping up in a surprising number of locations, including retail stores, hospitality venues, outdoor advertising, stadiums and concert halls, transportation locations, and even police and security control rooms, video walls are mainly used for: Marketing & products display Data monitoring Intelligent traffic systems Events Defense Power & utilities Broadcast Energy Public & emergency services Surveillance & security Telecommunications Video walls are a great option for customers who require a large-scale display but want to avoid a single large screen. Single screens limit the size and shape of the display, often can fall short in pixel density and can be cost-prohibitively expensive.
Ha Hardwar rdware e & so & software ftware With the right hardware, video walls can be built in nearly any size and configuration customers can imagine. Most often, a video wall is a rectangle of LCD or LED screens, but a growing number of creatively-shaped video walls are emerging around the world. Beyond the screens, each project will need a video wall Video wall processors are available at many different price processor, which directs the content to the appropriate points, all with very different feature sets. Customer screens at the appropriate time to correctly display the should be sure to opt for a processor that is able to handle images and video. the number of screens in each particular installation. Some newer video wall technology is “software - centric,” which means all it needs is an ordinary PC, digital screens and networking equipment to operate.
Vid Video eo wal wall l mo mounting unting ki kit t typ types es Floor to ceiling Ceiling mount Base standalone stand
Vid Video eo wal wall l mo mounting unting ki kit t typ types es Front service pop out Wall mount
The unique considerations go into video wall projects Bez One of of the bigg iggest consid iderations is is bezel wid idth, el which ich refers to to th the widt idth of of each display’s fr frame. Modern vid ideo wall ll dis ispla lays have in increasin ingly ly The result lt is is a more flu luid id, more narrow bezels ls, whic ich creates a small ller mull llio ion, se seamle less vid video wall ll disp ispla lay. the gap betw th tween areas of of acti tive disp ispla lay. www.v-studio.co
Di Displ splay y co cont ntent ent In In addit itio ion, th the content for vid video walls lls is is much dif ifferent th than th that of of sm small ller-scale le dig igit ital sig signage. The large scale should be taken into account 1 when designing video, text and audio for a video wall, High-quality content is a must. Images and text should be right- 2 sized. Avoid certain effects and keep any text as 3 accessible as possible. 4 Make the most of the technology. 5 Carefully weigh simple vs. complex messaging. www.v-studio.co
1.8mm Bezel 3 . 5 mm Bezel www.v-studio.co
www.v-studio.co
Di Displ splay y Mo Mode des Video wall processor supports various display modes www.v-studio.co
Scr Scree een n ty type pes s & si & size zes www.v-studio.co
Scr cree een n Spec ecifi ifications cations Samsung 3.5mm ultra-thin bezel seamless video wall 1920x1080 full HD, LED backlight Fea eatur tures: es: • 500 cd/ ㎡ high brightness, • 46" industrial grade A plus TFT LCD display, LED backlight • 1.7mm plus 1.8mm inter-screen gap, 3.5 mm screen to screen gap in total • Over 100,000 hours above lifespan, 7x24 hours working • 1920x1080 full HD resolution (16:9) • Multi-windows, PIP & POP, one image across multiple screens www.v-studio.co
Scr cree een n Spec ecifi ifications cations LG 3.5mm ultra-thin bezel seamless video wall 1920x1080 full HD, LED backlight Fea eatur tures: es: • 500 cd/ ㎡ high brightness, • 49" industrial grade A plus TFT LCD display, LED backlight • 1.7mm plus 1.8mm inter-screen gap, 3.5 mm screen to screen gap in total • Over 100,000 hours above lifespan, 7x24 hours working • 1920x1080 full HD resolution (16:9) • Multi-windows, PIP & POP, one image across multiple screens www.v-studio.co
Scr cree een n Spec ecifi ifications cations Samsung 3.5mm ultra-thin bezel seamless video wall 1920x1080 full HD, LED backlight Fea eatur tures: es: • 500 cd/ ㎡ high brightness, • 55" industrial grade A plus TFT LCD display, LED backlight • 1.7mm plus 1.8mm inter-screen gap, 3.5 mm screen to screen gap in total • Over MTBF 100,000 hours above lifespan, 7x24 hours working • 1920x1080 full HD resolution (16:9) • Multi-windows, PIP & POP, one image across multiple screens www.v-studio.co
Scr cree een n Spec ecifi ifications cations LG 1.8mm ultra-thin bezel seamless video wall 1920x1080 full HD, LED backlight Fea eatur tures: es: • 500 cd/ ㎡ high brightness, • 55" industrial grade A plus TFT LCD display, LED backlight • 1.8mm gap, 2,2mm screen to screen gap in total • Over MTBF 100,000 hours above lifespan, 7x24 hours working • 1920x1080 full HD resolution (16:9) • Multi-windows, PIP & POP, one image across multiple screens www.v-studio.co
www.v-studio.co P.O. Box 40 4053 538 Jed Jeddah 21 2151 511, Sa Saudi Arabia Tel: (+ (+966 966) 12 12- 283 283 4088 4088 E-mail il: in info@v-studio.co co
