RTfooting – RC footing as plate or prefabricated components

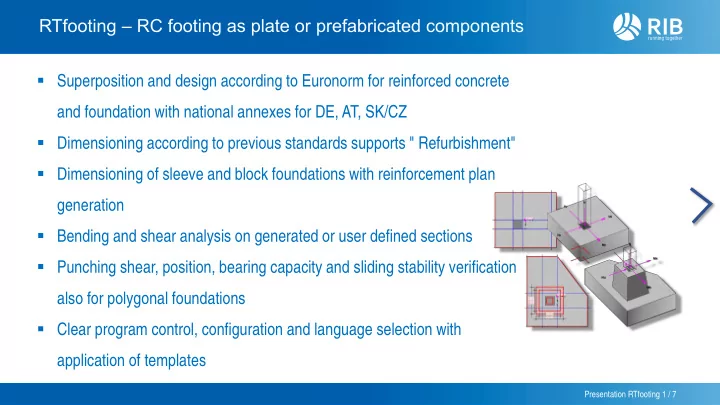

▪ Superposition and design according to Euronorm for reinforced concrete and foundation with national annexes for DE, AT, SK/CZ ▪ Dimensioning according to previous standards supports " Refurbishment" ▪ Dimensioning of sleeve and block foundations with reinforcement plan generation ▪ Bending and shear analysis on generated or user defined sections ▪ Punching shear, position, bearing capacity and sliding stability verification also for polygonal foundations ▪ Clear program control, configuration and language selection with application of templates

Presentation RTfooting 1 / 7

ZWAX 2

RTfooting EXPERT – modern software ergonomics for structural engineers

New Program Environment 2-D / 3-D Graphic Display Table of Properties

Presentation RTfooting 2 / 7

ZWAX 3

RTfooting EXPERT – efficient generation of load combinations

Input of loads in the column connection as well as arbitrary point or area loads on the slab Combination of load cases

Presentation RTfooting 3 / 7

ZWAX 4

RTfooting EXPERT – sleeve and block footings as prefabricated components

Design according to DIN 1045, DIN 1045-1 or EN 1992-1 with national annexes for DE, AT, SK/CZ and UK

Presentation RTfooting 4 / 7

ZWAX 5

RTfooting EXPERT – circular and polygonal footings

Graphic-interactive design

• f circular and polygonal

foundations

Presentation RTfooting 5 / 7

ZWAX 6

RTfooting EXPERT – configurable output list

The report can be easily configured using the markers in the table of contents Office-specific results

Presentation RTfooting 6 / 7

ZWAX 7

RTfooting EXPERT – clear result list with graphics

Sleeve Foundation Result Report Clear and comprehensible

• utput of results

Reinforcement and bending design
