RPIDS Henning Schulzrinne Columbia University 1 July 2003 SIMPLE - IETF 57 (Vienna) Issues Changes since last IETF Organization Predictive items Informational items Completeness Capabilities proposal 2 July 2003

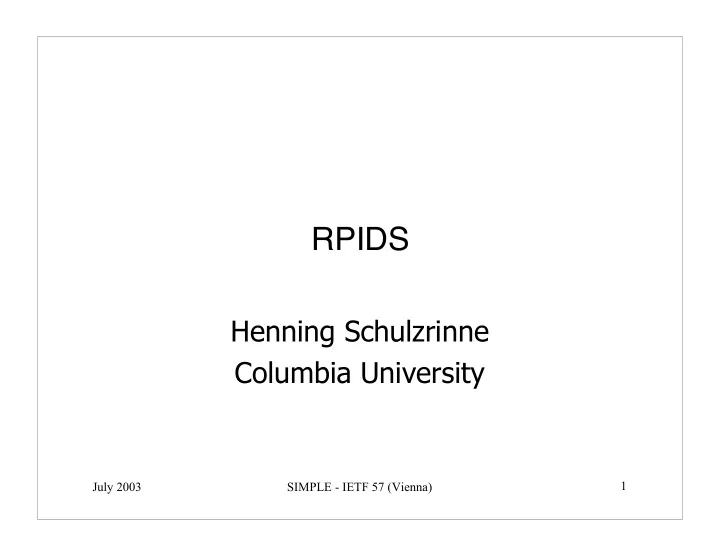

SLIDE 1

July 2003 SIMPLE - IETF 57 (Vienna) 1

RPIDS

Henning Schulzrinne Columbia University

SLIDE 2

July 2003 SIMPLE - IETF 57 (Vienna) 2

Issues

Changes since last IETF
Organization
Predictive items
Informational items
Completeness
Capabilities proposal

SLIDE 3

July 2003 SIMPLE - IETF 57 (Vienna) 3

Changes since last IETF

Removed group notion
Removed capabilities again (to avoid

blocking on caller preferences)

Renamed some elements
Added <card>, <info>, <class>,

<icon>

Merged idle notion into one element

SLIDE 4

July 2003 SIMPLE - IETF 57 (Vienna) 4

Additions: class parameter

Allows grouping of elements by same name,

assigned by PUA, PA or composer

No specific meaning attached to values
No uniqueness requirements
Similar to HTML parameter used for

cascading style sheets (CSS)

Uses:

– Rendering (e.g., for CSS or XSLT) – Filtering by watcher – Composition rules – Restrictions by presentity

SLIDE 5

July 2003 SIMPLE - IETF 57 (Vienna) 5

Changes: <idle>

Used for hinting at likelihood of finding

presentity at device

For some devices (e.g., cell phones),

works best for short durations

Change: empty element indicates some

presentity-defined threshold of idle time

SLIDE 6

July 2003 SIMPLE - IETF 57 (Vienna) 6

Logical groupings of elements

Basic status indications: <activity>,

<idle>, <until>

Environment indications: <placetype>,

<privacy>

Rendering hints: <icon> (tuple), class
Relationship indication: <relationship>
Presentity description: <icon>, <card>
Timed status: <timed-status>

SLIDE 7

July 2003 SIMPLE - IETF 57 (Vienna) 7

Information about tuples/presentities: info, card, icon

<info>: typically, home page, but could be

ldap: or (future) CRISP reference

By external reference (could be cid)
Allows more useful rendering of tuples

– E.g., some existing systems (GAIM) allow to assign icons to users, not just status

Cannot be readily replicated in SIP Info

headers if at tuple level (multiple!)

– Also, with third-party publication, not clear if Call- Info refers to SIP entity or PIDF entity

SLIDE 8

July 2003 SIMPLE - IETF 57 (Vienna) 8

Predictive presence

SLIDE 9

July 2003 SIMPLE - IETF 57 (Vienna) 9

Document structure options

Leave as is
Split into

– <activity>, <idle>, <until>, <placetype>, <privacy>, <class> – predictive presence: <timed-status> – presentity description: <icon>, <card>, <info> – capabilities

SLIDE 10

July 2003 SIMPLE - IETF 57 (Vienna) 10

Open issue: DND

In previous version, used priority

indication: “only for urgent calls”

Gone with removal of capabilities, but

very common in commercial IM systems

Proposal: either revive/revise callee

capabilities quickly or import directly

SLIDE 11

July 2003 SIMPLE - IETF 57 (Vienna) 11

Capabilities

Old mechanism was syntactically clumsy and

unnecessarily different from other descriptions ‡ makes filtering and restrictions more difficult than necessary

Treating labels as values violates XML design

principles of tagged data, would be the same as doing

<x tag=“body”><x tag=“h1”>Heading</x>

New tags need to be registered with IANA

anyway ‡ might as well automatically ‘translate’ into XML element at the same time

SLIDE 12

July 2003 SIMPLE - IETF 57 (Vienna) 12

Capabilities proposal

<c:audio>true</c:audio>
