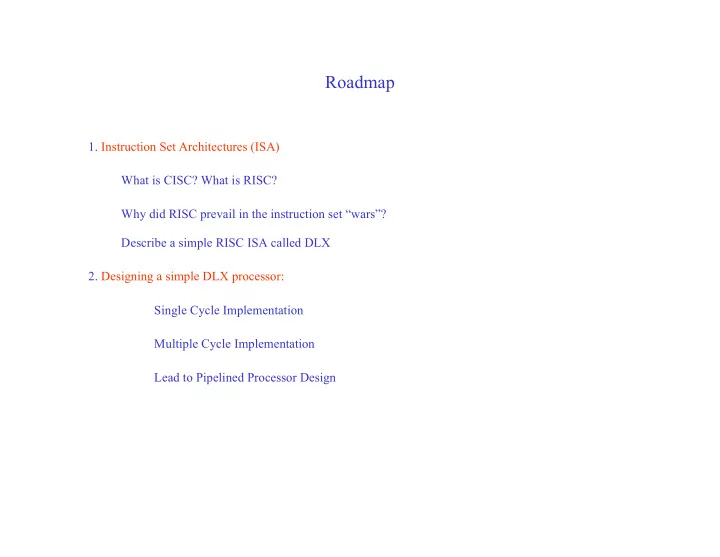

Roadmap

• 1. Instruction Set Architectures (ISA)

What is CISC? What is RISC? Why did RISC prevail in the instruction set “wars”? Describe a simple RISC ISA called DLX

• 2. Designing a simple DLX processor:

Single Cycle Implementation Multiple Cycle Implementation Lead to Pipelined Processor Design

Simplified Integer DLX Instruction Set

DLX: Idealized RISC processor similar to MIPS

Load/Store architecture using displacement addressing 32 bit word size aligned at word boundaries 32-bit memory addresses (aligned)

Registers:

• 32 32-bit Integer GPRs (Register 0, (R0), fixed at zero) R0 …. R31
• R0 is a dummy register: hardwired to value zero
• 32 32-bit Floating Point Registers F0, .. F31
• Can also be treated as 16 Double Precision Registers F0, F2, …F28, , F30
• No condition codes

Instructions:

1. ALU instructions: (ADD, SUB, AND, OR, …. ) RR mode: operands and results in registers RI mode: immediate 16-bit operand sign-extended to 32 bits 2. Memory reference instructions: Load (ld) and Store (sd) 3. Control instructions: conditional branch (beq, bne, bgt, ble, …….) Branch Target Address: PC+ 4 + (adjusted) 16-bit offset

PC is the address of the Branch instruction

Simplified Integer DLX Instruction Set 1. ALU instructions: (ADD, SUB, AND, OR, XOR, ….)

RR mode: ADD Rd, Rs, Rt | [Rd] = [Rs] + [Rt] Example:: ADD R2, R4, R5

– Rd: 5-bit field with destination register id – Rs: 5-bit field with a register id of source operand 1 – Rt: 5-bit field with a register id of source operand 2

• The 32-bit contents of registers Rs and Rt are added, and the sum is written to register Rd.

RI mode: ADDI Rt, Rs, d | [Rt] = [Rs] + EXT(d) Example: ADDI R2, R4, 1000

– Rt: 5-bit field with destination register id – Rs: 5-bit field with a register id of source operand 1 – d: 16-bit immediate field holding the (constant) source operand 2

• The 16-bit value d is sign-extended to 32 bits and added to the 32 bit contents of register Rs. The sum

is written to register Rt.

Simplified Integer DLX Instruction Set

• 2. Memory reference instructions: Load (LW) and Store (SW)

LW Rt, d(Rs) | ea = EXT(d) + (Rs); (Rt) = MEM[ea]

Example: LW R5, 0(R2) | Load into R5 the word whose address is stored in R2 SW R5, 1000(R2) | Address of word is 1000 + value in R2

• Reads a word from Memory at effective address [ea] and writes it to register Rt
• 16-bit displacement d is sign-extended to 32 bits and added to the contents of base register Rs to get the effective
• address. Read memory word at effective address and load into Rt

Simplified Integer DLX Instruction Set 3. Control instructions:

Branch on condition:

If condition is TRUE goto Target Address; else continue with next in-line instruction

• Comparison between values in two registers (e.g. beq, bne, bgt, blt, bge, ble, )
• Compare with 0 (e.g. beqz, bnez, bgtz, bltz, bgez, blez, )

beq Rs, Rt, d(PC) | Goto Target Address if contents of registers Rs and Rt are equal beqz Rs, d(PC) | Goto Target Address if contents of register Rs equals zero

Target Address = PC + 4 + Extended-and-Scaled(d) 16-bit displacement d is sign-extended to 32 bits and shifted left by 2 bits (word address)

Instruction Format Examples

R-R Instructions: ADD rd, rs, rt

• p code 1 rs rt rd op code 2
• p code 1 rs rt immediate value

R-I Instructions: ADDI rt, rs, d Load/Store/Branch Instructions: LW rt, d(rs), SW rt, d(rs), BEQ rs, rt, d(PC)

• p code 1 rs rt displacement

16 16 5 5 6 5 5 6 5 5 5 6

DLX Implementation

Functional Units

• Register File (REG)
• Instruction Memory (IM)
• Data memory (DM)
• Arithmetic Logic Unit (ALU)
• Decoder, Program Counter

DataPaths

Path of information in executing an instruction: sequence of FUs

Timing

Enforcing sequencing in the datapath

Functional Units Multi-ported Register FILE (REG) :

32 Registers 2 Read Ports (a, b) 1 Write port (c)

a b c

R0 R1 R2 R31

ra rb rc (ra) (rb)

a b

(DATA)

c

REGWrite

• 5-bit id of register to be read is placed on ra (rb). Value stored in the register appears on the output port after some delay Tread
• 5 -bit id of register to be written placed on rc, the 32-bit data to be written put on DATA lines and the Write signal is enabled. At the rising edge of the

clock the value in DATA is written to the specified destination register.

• Up to 2 reads and 1 write can occur simultaneously in the same cycle
• Increasing number of ports:
• Greater concurrency in register access (+)
• Area, power and access time increases (-)
• Speculative register read is good for performance but has power/energy cost

Functional Units Instruction Memory (IM) and Data Memory (DM)

ADDR DATAOUT DATAin MEMWrite

• READ: Provide Memory Address on address lines ADDR. And enable MEMRead. Word at that address output on DATAOUT

after delay Tmem

• WRITE: Provide Memory Address on address lines ADDR, Data to be stored is put on lines DATAin and write signal
• MEMWrite. Word stored into memory location at clock edge. Signals should be stable at least Tmem before the clock edge.
• Assume Single Ported Memory in base design

IM

• r

DM

MEMRead

Functional Units ALU

A RESULT B ALUop

• Input Ports A, B for source operands
• Output port provides results after delay TALU
• Provides single operand and two-operand ALU instructions (+, -, &, !, etc)
• Function to be performed provided in control input ALUop

ALU

Decoder: Combinatorial Circuit that generates control signals from instruction PC: Register holds address of current instruction. Changes value at next clock edge

Hypothetical Single-cycle Implementation of DLX

Assume Each instructions completes in 1 (LONG!!) clock cycle

• Registers have stable values following rising clock edge

During clock cycle: 1. Instruction is read from Instruction memory (IM) 2. Decoded and control signals for use during the cycle are generated 3. Register values are read 4. ALU outputs are generated 5. Data Memory is read or written for Load or Store 6. New PC value is computed

• All registers and memory are updated at next rising clock edge.

Datapaths

R-R Instruction:

PC

IM ALU Register File

Decode

ALUop RWrite

ALUop RWrite

DATA

a b c rs rt rd (rs) (rt)

+

4 p q

add Rd, Rs, Rt

a, b: Read port c: Write port

Datapath: Register-Immediate

R-Imm:

PC

IM ALU Register File

Decode

ALUop RWrite

ALUop RWrite

DATA

a b c rs rt (rs)

+

4

EXT

p q

addi Rt, Rs, Imm

rt

a, b: Read port c: Write port d: Imm data a, b: Read port c: Write port

d (16) d (32)

Datapaths

lw Instruction:

PC

IM ALU Register File

Decode

ALUop RWrite

ALUop RWrite

DATA

a b c rs rt rt (rs) d(32)

+

4

EXT

p q

DM

MREAD MREAD

lw Rt, d(Rs)

d(16)

ADDR

Datapaths

R-R, R-Imm, lw:

PC

IM ALU Register File

Decode

ALUop RWrite

ALUop Rwrite ALUSel RDataSel WSel

DATA

a b c rs rt (rs) d

+

4

EXT

p q

DM

MREAD MREAD MUX

(rt)

ALUSel

MUX

RDataSel

MUX

rd

WSel

Datapaths

R-R instruction:

PC

IM ALU Register File

Decode

ALUop RWrite DATA

a b c rs rt (rs) d

+

4

EXT

p q

DM

MREAD MUX

(rt)

ALUSel

MUX

RDataSel

MUX

rd

WSel

ALUop Rwrite ALUSel RDataSel WSel

MREAD

add Rd, Rs, Rt

Datapaths

Reg-Immediate :

PC

IM ALU Register File

Decode

ALUop RWrite DATA

a b c rs rt (rs) d

+

4

EXT

p q

DM

MREAD MUX

(rt)

ALUSel

MUX

RDataSel

MUX

WSel

MREAD

ALUop Rwrite ALUSel RDataSel WSel

addi Rt, Rs, Imm

Datapaths

lw Instruction:

PC

IM ALU Register File

Decode

ALUop RWrite DATA

a b c rs rt (rs) d

+

4

EXT

p q

DM

MREAD MUX

(rt)

ALUSel

MUX

RDataSel

MUX

WSel

ALUop Rwrite ALUSel RDataSel WSel

MREAD

lw Rt, d(Rs)

Datapaths

sw Instruction:

PC

IM ALU Register File

Decode

ALUop

ALUop a b c rs rt (rs) d

+

4

EXT

p q

DM

MWRITE

(rt)

DATA ADDR

d(16)

MWRITE

sw Rt, d(Rs)

Datapaths

R-R, R-Imm, lw, sw:

PC

IM ALU Register File

Decode

ALUop RWrite DATA

a b c rs rt (rs) d

+

4

EXT

p q

DM

MREAD MUX

(rt)

ALUSel

MUX

RDataSel

MWRITE

ALUop Rwrite ALUSel RDataSel WSel

MREAD MWRITE

MUX

WSel

rd

ADDR DATA

Datapaths

beq Instruction:

PC

IM ALU Register File

Decode

ALUop

ALUop a b c rs rt (rs) (rt)

+

4 p q z <<

EXT

+

MUX PCSel

PCSel

Branch

d(16)

beq Rs, Rt, d
