RigLock The FHE RigLock safely and quickly connects your pressure control equipment to the wellhead. With a unparalleled design, the RigLock makes rigging up and down more effjcient while adding unmatched safety measures to protect operators

SLIDE 1

SLIDE 2

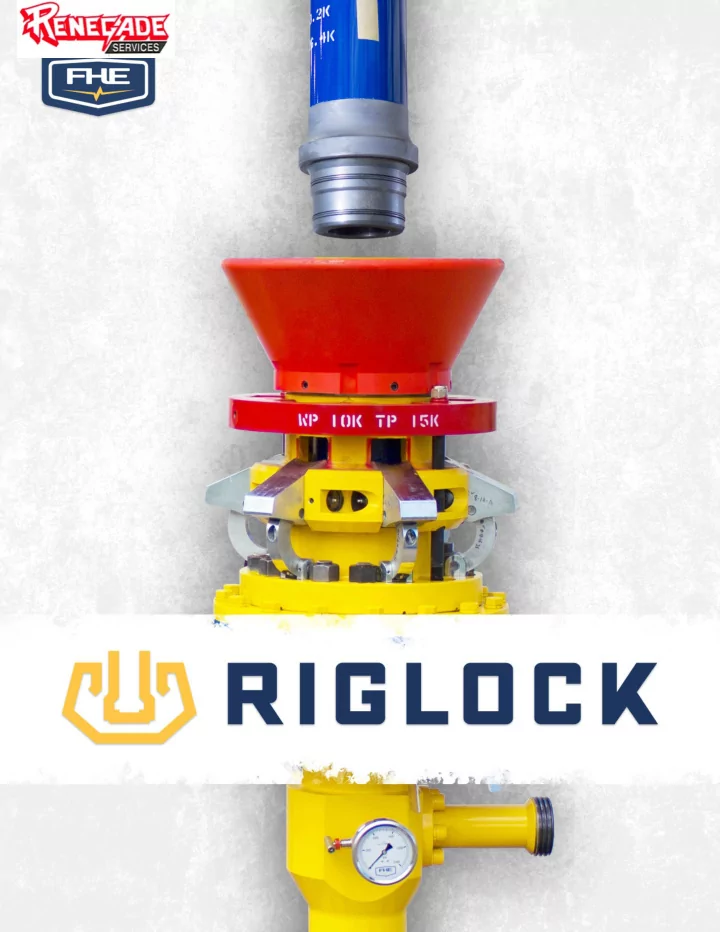

RigLock

The FHE RigLock safely and quickly connects your pressure control equipment to the

wellhead. With a unparalleled design, the

RigLock makes rigging up and down more effjcient while adding unmatched safety measures to protect operators from costly injuries.

IMPROVED SAFETY THROUGH INNOVATION

Safety is the core value at FHE. Every piece of equipment we design, engineer, and manufacture is created to ensure the safety of those working at the well site. The RigLock is no

exception. Through our research, FHE

calculated a high number and frequency

f injuries that occurred during rigging

up and down processes. In order to make this procedure more safe and save your team from devastating and costly injuries, FHE developed the RigLock, a safe, quick wellhead connection. The RigLock separates the operator from the dangerous and compromised position of connecting by hand unsecured equipment to the

wellhead. The RigLock securely

attaches this equipment

SLIDE 3

remotely with custom-designed hydraulic control system. The locking connection maintains the pressure during wireline operations.

TREMENDOUS GAINS IN EFFICIENCY

The RigLock speeds up all well work by quickly connecting and disconnecting your equipment string and the

wellhead. The RigLock adapter drops in easily to the
versized, highly visible entry guide. The six hydraulic

cams seals the connection remotely. The locking ring drops to mechanically secure the cams locks. This innovative process eliminates time consuming activities including carefully positioning a operator in place to make this diffjcult and dangerous connection.

FHE RIGLOCK

FHE RIGLOCK:

Six hydraulic cam locks connect

your equipment to the well head.

The ring lock drops down to secure

the cams even without hydraulic pressure.

Oversized, highly visible entry

guide ensures proper placement.

Remote actuation keeps

technicians from danger.

Speeds up all well work with quick

connections.

Integrated 2” 1502 pump in sub to

bleed off well fluids and gas.

1 2 4 5 3 6 7

FHE RIGLOCK FEATURES

OVERSIZED, HIGHLY VISIBLE ENTRY GUIDE

LOCKING RING MECHANICALLY LOCKS CAMS

CAM LOCKS SECURES EQUIPMENT CONNECTION

MANIFOLD TO TEST INTEGRITY OF THE JOINT

ACCESSIBLE HYDRAULIC HOOKUPS

FLANGE CONNECTION TO THE WELLHEAD

INTEGRATED 2” 1502 PUMP IN SUB PORT

SLIDE 4

PRIMARY CAM LOCKS SECURE THE CONNECTION WHICH ARE SECURED WITH A SECONDARY RING. THE FHE RIGLOCK INTEGRATES A 2” 1502 PUMP IN SUB PORT TO DELIVER HELPFUL ADDITIVES. THE RIGLOCK MECHANISMS ARE CONTROLLED WITH A CUSTOM-DESIGNED HYDRAULIC CONTROL UNIT. ALL THE NECESSARY ACCESSORIES ARE STORED CONVENIENTLY IN THE RIGLOCK TOOLBOX. SPEED UP YOUR WIRELINE OPERATIONS BY USING MULTIPLE RIGLOCKS ON THE SAME WELL PAD. AN INTEGRATED MANIFOLD ALLOWS YOU TO VERIFY THE INTEGRITY OF THE RELEASED CONNECTION.

FHE RIGLOCK

A HARD DAY’S WORK GOES SO MUCH BETTER WITH TOP-QUALITY TOOLS AND EQUIPMENT.
