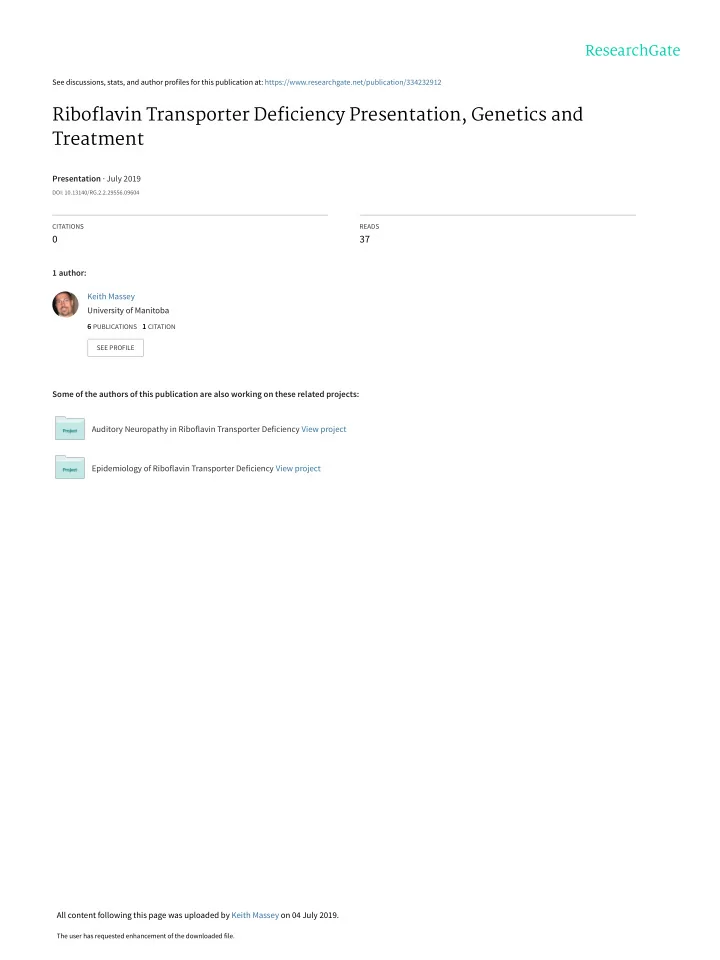

See discussions, stats, and author profiles for this publication at: https://www.researchgate.net/publication/334232912

Riboflavin Transporter Deficiency Presentation, Genetics and Treatment

Presentation · July 2019

CITATIONS READS

37

1 author: Some of the authors of this publication are also working on these related projects: Auditory Neuropathy in Riboflavin Transporter Deficiency View project Epidemiology of Riboflavin Transporter Deficiency View project Keith Massey University of Manitoba

6 PUBLICATIONS 1 CITATION

SEE PROFILE

All content following this page was uploaded by Keith Massey on 04 July 2019.

The user has requested enhancement of the downloaded file.

Riboflavin Transporter Deficiency

Presentation, Genetics and Treatment

Keith Massey

Science Director, Cure RTD Foundation

Email: Keith.Massey@curertd.org

Riboflavin Transporter Deficiency (RTD)

• Early onset, life shortening, neurodegenerative

disorder.

• Autosomal recessive inheritance.
• Previously known as Brown-Vialetto-Van Laere

(BVVL) and Fazio-Londe syndromes.

• Sensory and/or motor neuropathy and cranial

neuropathy.

Brown, 1894

Gene Discovery

• 2008

2008-2010 2010 The SLC52A1, SLC52A2 and SLC52A3 genes first identified to code for riboflavin (Vitamin B2) transporters (RFVT1, RFVT2 and RFVT3) in humans.

• 2010

2010 SLC52A3 gene was found to cause BVVL. Daily high dose riboflavin found to help stabilize or improve clinical symptoms.

• 2012

2012 SLC52A2 gene was also found to cause BVVL and patients responded to riboflavin therapy.

RTD Disease Types

RTD Type 2

Riboflavin Transporter Deficiency, Type 2 SLC52A2-associated disease RFVT2 riboflavin transporter

RTD Type 3

Riboflavin Transporter Deficiency, Type 3 SLC52A3-associated disease RFVT3 riboflavin transporter

Flying under the radar?

Daughter SLC52A2 biallelic mutations c.155 C>T and c.935 T>C First Cousins Once Removed SLC52A2 biallelic mutations c.155 C>T and c.916 G>A

Prevalence

SLC5

C52A2 (R (RTD Type 2) 125 cases (biallelic mutations) 1 1 case e (heterozygous mutation)

• 21 deceased, 19 untreated
• Mean age of onset: 3.0

3.0 year ears SD=3.0, Range: 0-19 19 yea ears

• 55% Female

SLC5 C52A3 (R (RTD TD Type e 3) 3) 83 cases es (biallelic mutations) 12 12 cas ases es (heterozygous mutation - RF Responsive)

• 17 deceased, all untreated
• Mean age of onset: 7.6

7.6 year ears SD=8.2, Range: 0-34 34 yea ears

• 59% Female

Untreated: Mean age of death: 12.6 years (SD=14, Range: 0.9 - 55 years, n=31) Cause of death: Respiratory insufficiency

Cu Cure RTD D - Patie tients Reported sin ince ce 2010

• Carrier rate: ~1 in 500 people (single SLC52A2 or SLC52A3 known pathogenic mutation)
• Estimated Prevalence: ~1 in 1 million births (based on recessive inheritance)
• Estimated 50-100 new cases per year

Riboflavin (Vitamin B2)

• Precursor to flavin mononucleotide (FMN)

and flavin adenine dinucleotide (FAD) (active coenzyme)

• Riboflavin acquired via intestinal absorption with little storage in the

body.

• Human genome contains 90 genes encoding for flavin-dependent

proteins.

• FAD and FMN crucial for cell regulation and energy metabolism.

RVFT Human Tissue Expression

Yonezawa 2010

RVFT Function: Intestine and Blood Brain Barrier

RVFT: Transmembrane Protein (Apical or Basolateral Facing) Transports Riboflavin (RF) and small amounts of FMN/FAD Active Saturable Transporter

Transporter Kinetics

• RF

RFVT2 (S (SLC52A2) Km 0.33 +- 0.07 uM (330nM) Vmax 5.2 5.2 +- 0.7 0.7 pmol×mg protein-1×min-1

• RF

RFVT3 (S (SLC52A3) Km 0.98+- 0.11 uM Vmax 63 63.8 .8 +- 9.3 9.3 pmol×mg protein-1×min-1

Jin et. al 2017

Human Brain Gene Expression

GTEX Portal Cer Cerebellum

Clinical Features of RTD Untreated

SLC52A2

(RTD Type 2)

SLC52A3

(RTD Type 3)

N=38 N=18

Auditory Neuropathy

98% 95%

Pontobulbar Involvement

80% 82%

Respiratory Compromise

72% 82%

Muscle Weakness

87% (UL UL) 95%

Optic Atrophy w/o Nystagmus

100% 29%

Sensory Involvement / Gait Ataxia

100% 29% Untreated patients with over 10 years from onset of first symptom.

UL UL = Upper limb and axial predominant muscle weakness Other common feature: GI Distress, aggressive scoliosis (type 2), Upper motor neuron and cerebellar signs (type 3), Severe facial weakness (type 3)

Presenting Features

SL SLC5 C52A2 0-5 year ears SL SLC5 C52A2 6-19 19 years SL SLC5 C52A3 0-5 5 year ears SL SLC5 C52A3 6-33 years

N=77 N=16 N=31 N=28 Auditory Neuropathy

29% 63% 26% 75%

Pontobulbar Involvement

9%

• 61%

32%

Sensory Involvement / Ataxia

62% 32% 6% 4%

Optic Atrophy w/o Nystagmus

27% 38% 6%

• Muscle Weakness

29% (UL)

• 39%

11%

Respiratory Compromise

12% 6% 55% 7%

Megaloblastic Anemia

5%

• Symptoms, age at onset, time interval between symptoms, and severity and rate of

decline are all highly variable – even between siblings.

Laboratory Findings

Blo Blood

• Acylcarnitine profile abnormalities in 50-60% of patients. Selective

accumulation of selective short- and medium-chain acylcarnitines.

• Riboflavin (+FAD, FMN) levels may be low or normal.
• Signs of mild mitochondrial dysfunction in some patients.
• >10% - Low hemoglobin and serum iron and/or ferritin levels
• Anemia (macrocytic or normocytic)

Urin rine Organic ic Acid cid

• Elevated ethylmalonic acid in <50% of patients indicative of a defect in

riboflavin metabolism

Neurodiagnostic Tests

Ele lectromyogram (E (EMG) an and nerve con

• nduction stu

tudies (NC (NCS)

• chronic partial denervation
• conduction velocities are normal or mildly reduced
• indicative of axonal motor / sensory neuropathy

Brai ain mag agnetic resonance im imagin ing

• Most often unremarkable
• ~25% with RTD type 3 have cerebellar and brainstem

abnormalities Auditory ry brai ainstem resp sponse (AB (ABR / / BAEP)

• absent or abnormal

Audiologic Test Findings in RTD

Hearing loss consistent with auditory neuropathy pattern

• Absent or abnormal auditory brainstem response (ABR) with

cochlear microphonic present

• Otoacoustic emissions (OAE) are often present but found to

disappear over time in many patients.

• Acoustic reflexes often absent
• Magnetic resonance imaging (MRI) is generally normal without any

evidence of VIII cranial nerve hypoplasia

• fMRI with an auditory stimulation protocol showed integrity of the

central auditory pathways in patient (Salmina et al 2014)

Audiology Clinical Characteristics Reported in RTD

• Progressive hearing loss can occur from early infancy to 25+ years in age
• Pure tone thresholds ranging from mild to profound loss
• Hearing loss may progress to profound in months or slowly progressive over

decades

• Loss is bilateral but often asymmetric
• Disproportionately poor speech recognition abilities for the degree of hearing loss
• Difficulty hearing in noise and hearing fluctuation
• Patient with poor speech recognition have reported limited or no benefit from

hearing aids

• Vestibular deficits are rare

Cochlear Implantation

Over 40 RTD patients have received cochlear implants. (Age of implant: 2 to 45 years old) Results are variable but the large majority have received significant benefit and very pleased with CI decision. The few cases with less than optimal outcomes had:

• Long-term profound deafness
• Extended period of prelingual deafness

Cannot discount how much sound awareness can add to quality of life when dealing with multiple disabilities

RTD Type 2: Cochlear Implant Case Example

AGE

3mths – 2 years Vision loss, anemia, muscle weakness, sensory gait ataxia, feeding difficulties 2 years Language development normal and first sign of hearing loss became apparent 2.5 years RTD diagnosis and started riboflavin treatment (75mg/kg QID + mitococktail) 3.8 years Received unilateral cochlear implant. ~10-20% accuracy on close word speech set 5.7 years ~95% accuracy on closed word set in CI ear / still ~10-20% in non-implanted ear 7.4 years Received bilateral cochlear implants. 8.0 years ~95% accuracy on open word set using both CIs 2.8 years old

• ld

4 months on Riboflavin 3.7 years old

• ld

1.5 years on Riboflavin 5.7 years old

• ld

3.5 years on Riboflavin

Pathogenic Mutations

SLC52A2 (RTD Type 2)

• 53 Mutations

SLC52A3 (RTD Type 3)

• 52 Mutations
• Mutations distributed throughout all coding exons (2 to 5)
• Mostly missense mutations where RFVT retains some function
• Combined >15% of mutations across both SLC52A2 and SLC52A3

are:

• Nonsense mutations
• Single/double nucleotide insertions/deletions causing

frameshift

• Biallelic “Loss of Function” mutations generally not compatible with

life.

Impact of Pathogenic Mutations on RVFT Function

• Reduced RFVT cell surface expression
• RFVT ability to transport riboflavin is

impaired

• Reduction in mRNA stability (1 mutation)

Overall consequence is reduced riboflavin transport across the cell membrane.

WT SLC52A2 Mutations

Foley et al. 2013 Riboflavin Cellular Uptake

SLC52A2 Gene Structure

~50% of patients identified have 1 or 2 mutations in: c.9 c.916 G> G>A (Population frequency 14 / ~250,000) c.1 c.1016 T> T>C (Population frequency 18 / ~250,000)

Transmembrane Topology Of RFVT2

Predicted Using TMHMM

Pathomechanisms?

Mitochondria Dysfunction

• ETC complex 1 and 2 deficiency (Fibroblasts, Muscle, Animal models)
• Reduced mitophagy and fusion (human iPSc-derived motor neurons)
• Abnormal mitochondrial morphology (human iPSc MN, Drosophila knockdown)
• Impaired mitochondrial β-oxidation of fatty acids (A3 Mouse knockout)

Other:

• Cytoskeletal abnormities (human iPSc MN)
• Neurite outgrowth / axon guidance gene expression changes (human iPSc MN)

Protein-Protein Interaction?

STRING Consortium

SLC52A2 SLC52A1 SLC52A3

Riboflavin Treatment

• Early treatment can slow disease progression and

improve symptoms.

• Oral Riboflavin – 20 to 80mg/kg/day (2-6 per day)
• Optimal dosing and frequency unknown.

Plasma Riboflavin profile after large oral dose of riboflavin

Riboflavin levels peak 1-2 hours after oral dose. Rapidly expelled in Urine. Back near baseline in 6-9 hour after oral dose.

Complementary Treatments

Given evidence of mitochondrial dysfunction:

• Coenzyme Q10 / Idebenone
• L-Carnitine
• Alpha Lipoic Acid
• Vitamin C/E
• B Complex

Flavin mononucleotide (FMN) Esterified derivative of riboflavin?

Formal studies of effectiveness of complimentary

treatments have not yet been performed

Treatment Outcome

• Treatment with high dose oral riboflavin is both effective and

lifesaving in many patients.

• Short-term: 75%+ have clinical improvement or stabilization of

symptoms.

• The most positive responses are when treatment is received

shortly after disease onset.

• Long-term: Many patients still report new or worsening

symptoms on riboflavin treatment alone.

• More research and complementary novel therapeutic strategies

are needed.

Keith Massey

Science Director, Cure RTD Foundation

Email: Keith.Massey@curertd.org

2 year old patient with RTD type 2 with severe phenotype on 100mg/kg RF/FMN QID. Riboflavin is reactive under UV light. Discolored patches suggests that the pigment is within the stratum corneum, which is mostly keratin
