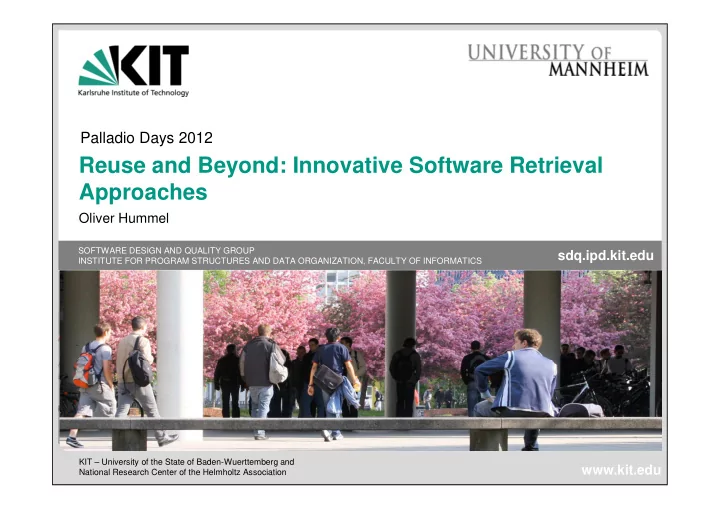

Reuse and Beyond: Innovative Software Retrieval Approaches

Oliver Hummel

Palladio Days 2012

Software Design and Quality Group Institute for Program Structures and Data Organization 2 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Three Problems I

ssdfsd „I was having three problems: No job, no money, and no clue how to continue.

Otto – The Movie (1986)

Photo: [Andreas Reiner, Wikipedia]

Software Design and Quality Group Institute for Program Structures and Data Organization 3 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Three Problems II

“Software reuse is the process of creating software systems from existing software rather than building software systems from scratch.” [Krueger 92] “A software component is a unit of composition with contractually specified interfaces and explicit context dependencies only. A software component can be deployed independently and is subject to composition by third parties.” [Szyperski 02] „[…] And there they were again, my three problems…“

No repository structure,

no reusable software, and no clue how to retrieve something.

The Reuse Community (1999)

Software Design and Quality Group Institute for Program Structures and Data Organization 4 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Overview

I’m going to share some insights on software search & retrieval with you –

1.

Using the web as a reuse repository

2.

How to build a software search engine with Lucene

• and how to use it

3.

How to add functional semantics to software searches

4.

A Word on proactive reuse recommendations in Eclipse

5.

Can we utilize the wisdom of the crowd in software development?

6.

Outlook, summary and conclusion

Software Design and Quality Group Institute for Program Structures and Data Organization 5 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Solution Idea I

Using the Web (and Google) as a Reuse Repository (2006)

with some additional keywords

filetype:java „class stack“ „void push“ „Object pop“

+ simple, easy to use + no overhead + precise for simple requests

• still too imprecise
• „dark web“ not covered anymore
• no reliable API

for IDE integration

Stack +push(o:Object):void +pop():Object

Software Design and Quality Group Institute for Program Structures and Data Organization 6 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Solution Idea II

Build a specialized software search engine (2008)

with google-like interface and IDE integration and suport for programming languages, signatures, interfaces etc.

Use Database or Lucene or both?

relational model vs. field-based approach

„De-Normalizing“ allows effective software searches in Lucene

10 million files (~40 GB) in < 3 seconds with

Stack +push(o:Object):void +pop():Object

name stack method push method pop msign 1_pt:object_rt:void msign 1_pt:void_rt:object minter 1_mn:push_pt:object_rt:void minter 1_mn:pop_pt:void_rt:object

.com

Software Design and Quality Group Institute for Program Structures and Data Organization 7 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Simple Applications

What can we do with such a software search engine?

Keyword Searches Name Matching Signature Matching Interface Matching Open Source Lookup Library Identification Calculator lang:java method:push $(float,float):float; isLeapYear(int):boolean; java.util.Stack findjar:org.apache.lucene.search.Query

Software Design and Quality Group Institute for Program Structures and Data Organization 8 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Simple Applications II

Searches for full object interfaces are also possible

… even in Java/C# syntax

Only test cases „refuse“ to deliver test cases..?

public class Matrix { public Matrix add(Matrix) {} public Matrix multiply(Matrix) {} } import junit.framework.TestCase; public class CalculatorTest extends TestCase { public void testAdd() { Calculator calc = new Calculator(); assertEquals(calc.add(2, 1), 3); } }

Software Design and Quality Group Institute for Program Structures and Data Organization 9 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Precision from a Reuse Perspective

Preliminary comparison of retrieval approaches has shown limited top 25 precision

results for 13 method queries

even a full syntax matching is not precise enough

how can we support semantics in searches?

Software Design and Quality Group Institute for Program Structures and Data Organization 10 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Semantic Software Retrieval

And what about „contractually specified interfaces“?

and a seamless integration in modern development processes and tools?

test-driven development

Test-Driven Reuse candidate selection based on interface of C.U.T.

assessment of semantics based on test cases very precise more candidates by ignoring names in interface expensive, but still precise

[Hummel, 2008]

Software Design and Quality Group Institute for Program Structures and Data Organization 11 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Success Examples & Discussion

[Hummel, 2008]

Software Design and Quality Group Institute for Program Structures and Data Organization 12 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Eclipse Integration

Precise reuse recommendations on the fly…

[CodeConjurer.org]

Software Design and Quality Group Institute for Program Structures and Data Organization 13 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

The Wisdom of the Crowd

API Recommendations with ParseWeb

(Thummalapenta & Xie, 2007)

Book Recommendations @ Amazon

Software Design and Quality Group Institute for Program Structures and Data Organization 14 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

The Wisdom of the Crowd

Towards crowd-based design

recommendations (2010)

via intersecting interfaces of search result

• r attributes
• r dependencies etc.

„Developers who have coded a Stack have implemented a push, pop and isEmpty method…“

Software Design and Quality Group Institute for Program Structures and Data Organization 15 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Ongoing & Future Work

Component recognition

tracing dependencies -> e.g. delivered a full-grown FTP Client

goal is to get this into the Merobase index

[Kakarontzas & Stamelos] have been working on Facade detection

in Open SME EU project

Test case recommendation

[Janjic & Atkinson subm.]

Software Design and Quality Group Institute for Program Structures and Data Organization 16 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Conclusion

Numerous applications for software retrieval beyond reuse

Code Recommendations Design Recommendations Snippet Reuse Component Reuse Library Reuse Back-to-Back Testing Test Recommendation Program Understanding Impact Analysis Defect information Open Source Lookup Libray Lookup

concrete searches explorative searches [Janjic et al., 2010]

Software Design and Quality Group Institute for Program Structures and Data Organization 17 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

The End.

Thank you for your attention! Time for some questions?

… or maybe you want to contact me later

Software Design and Quality Group Institute for Program Structures and Data Organization 18 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

References

• C. Atkinson, O. Hummel, W. Janjic, "Search-enhanced testing: NIER track", in Software Engineering (ICSE),

2011 33rd International Conference on, 2011. p. 880--883.

• O. Hummel, C. Atkinson, "Extreme harvesting: Test driven discovery and reuse of software components", in

Information Reuse and Integration, 2004. IRI 2004. Proceedings of the 2004 IEEE International Conference

• n, 2004. p. 66--72.
• O. Hummel, C. Atkinson, "Using the web as a reuse repository", Reuse of Off-the-Shelf Components, p. 298-
• 311. 2006.
• O. Hummel, W. Janjic, C. Atkinson, “Evaluating the Efficiency of Retrieval Methods for Component

Repositories” , Proceedings of the Int. Conf on Software Engineering & Knowledge Engineering, 2007.

• O. Hummel, W. Janjic, C. Atkinson, "Code conjurer: Pulling reusable software out of thin air", IEEE Software,
• vol. 25, no. 5 p. 45--52. 2008.

O.Hummel, „Semantic Component Retrieval in Software Engineering“, PhD thesis, University of Mannheim, 2008.

• O. Hummel, W. Janjic, C. Atkinson, "Proposing software design recommendations based on component

interface intersecting", in Proceedings of the 2nd International Workshop on Recommendation Systems for Software Engineering, 2010. p. 64--68.

• W. Janjic, O. Hummel, C. Atkinson, "More archetypal usage scenarios for software search engines", in

Proceedings of 2010 ICSE Workshop on Search-driven Development: Users, Infrastructure, Tools and Evaluation, 2010. p. 21--24.

• G. Kakarontzas, I. Stamelos, S. Skalistis, A. Naskos, "Extracting Components from Open Source: The

Component Adaptation Environment (COPE) Approach", in Software Engineering and Advanced Applications (SEAA), 2012 38th EUROMICRO Conference on, 2012. p. 192--199.

• S. Thummalapenta, T. Xie, "Parseweb: a programmer assistant for reusing open source code on the web", in

Proceedings of the twenty-second IEEE/ACM international conference on Automated software engineering,

• 2007. p. 204--213.

Software Design and Quality Group Institute for Program Structures and Data Organization 19 2012-10-16 Software Retrieval Beyond Reuse Jun.-Prof. Dr. Oliver Hummel

Three Problems Again

Otto: „There they were again, my three problems.“

Sylvia: „Are you going to make me happy tonight?" Otto: „Yeah." Sylvia: „Are you going to make me happy twice?“ Otto: „Yeah.“ Sylvia: „Even three times?“ Otto: „There they were again, my three problems.“
