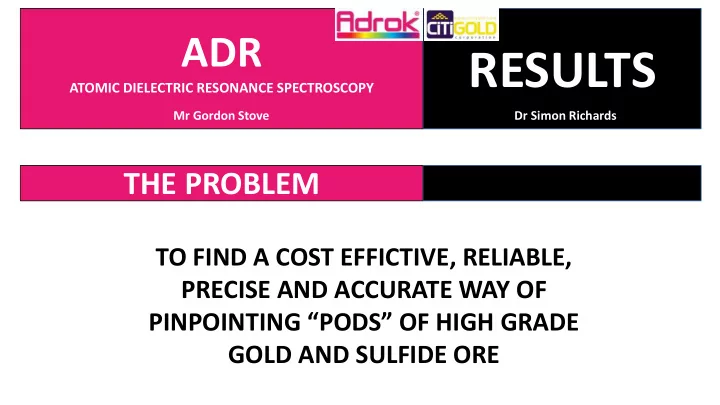

ADR RESULTS ATOMIC DIELECTRIC RESONANCE SPECTROSCOPY Mr Gordon Stove Dr Simon Richards THE PROBLEM TO FIND A COST EFFICTIVE, RELIABLE, PRECISE AND ACCURATE WAY OF PINPOINTING PODS OF HIGH GRADE GOLD AND SULFIDE ORE CHARTERS TOWERS

SLIDE 1

ADR

ATOMIC DIELECTRIC RESONANCE SPECTROSCOPY

RESULTS

Mr Gordon Stove Dr Simon Richards

THE PROBLEM

TO FIND A COST EFFICTIVE, RELIABLE, PRECISE AND ACCURATE WAY OF PINPOINTING “PODS” OF HIGH GRADE GOLD AND SULFIDE ORE

SLIDE 2

Tonalite host rocks

>1000m

CHARTERS TOWERS DEPOSIT STYLE

SLIDE 3

THE PROBLEM GEOLOGY

150m

SLIDE 4

THE PROBLEM TECHNICAL

LOCATED IN THE MIDDLE OF A CITY

DRILLING (NOISE, CLEARING PADS, LOCATIONS UNAVAILABLE, DEEP DRILL HOLES, COST) TEM & SEM, MAGNETICS, GRAVITY and IP & DHIP (size & depth of gold-bearing pods)

TIME AND COST ARE EXCESSIVE

15M/DAY, $130/M, average 500m deep holes, 20 drill holes for 6 positive returns = $1.3 million and over 2 years of drilling.

SLIDE 5

TCU - Transmitter Control Unit RCU – Receiver Control Unit Tx - Transmitting Antenna Rx – Receiving Antenna PC – data acquisition PC WS – Workstation Gimbal platform

THE SETUP FIELD & LAB

SLIDE 6

LINE OF TRANSMITTERS IN WARR CREATES BEAM (SYNTHETIC APERTURE RADAR, SAR) NOTE: IN ANIMATION PULSE WAVELET STAYS COHERENT

THE MODEL RESULTS

SLIDE 7

ELECTRIC FIELD ANIMATED IN TOP GRAPH

WE OBSERVE PULSE TRAVELING DOWN (LEFT TO RIGHT) SMALL IRREGULARITIES IN DC CAUSE BACKSCATTER BIG REFLECTION AT JUMP IN DC - PROPAGATES BACK TO SURFACE

Dielectric Constant (DC)

Water Lab measured DC of Charters Towers Rocks (CSIRO) Granite av; 3 samples = 7.99 @ 1Mhz Pyrite ore; 1sample = 73.63 @ 1Mhz

THE MODEL RESULTS

SLIDE 8

A84 and A62 targeting

N-dipping E03 structure A30, A56, A34 and A22 targeting NE-dipping E07 structure

ADR SCAN LOCATION SELECTION

3. CENTRAL
1. WARRIOR
2. IMPERIAL

REAL WORLD RESULTS

NARROW VEIN GOLD A84 – WARRIOR A56 – IMPERIAL A63 – CENTRAL

A63 targeting C05 – Brilliant East

SLIDE 9

Lowest value assigned a value of 0.001 resulting in artificial exaggeration of apparent anomaly when plotted

300 400 500 600 700 0.0001 0.01 1

e.g. A34 E LOG

0.01 considered “anomalous and significant” Lowest value(s) considered major anomalies

REAL WORLD RESULTS

SCAN INTERPRETATION

SLIDE 10

100 200 300 400 500 0.0001 0.01 1

A09 ELOG

100 200 300 400 500 600 700 800 900 1000 0.0001 0.01 1

A48 ELOG

100 200 300 400 500 0.0001 0.01 1

A84 ELOG

100 200 300 400 500 600 700 800 900 1000 0.0001 0.01 1

A30 ELOG

100 200 300 400 500 0.0001 0.01 1

A56 ELOG

100 200 300 400 500 600 700 800 900 1000 0.0001 0.01 1

A34 ELOG

100 200 300 400 500 600 700 0.0001 0.01 1

A22 ELOG

100 200 300 400 500 600 700 800 0.0001 0.01 1

A50 ELOG

Training scan

1. WARRIOR AREA
2. IMPERIAL AREA

REAL WORLD RESULTS

SCANS

3. CENTRAL AREA

SLIDE 11

Portal E03 east (-250m) E03 (-150m) Surface trace of E05 structure Surface trace of E03 structure A09

A84

A62

REAL WORLD RESULTS

WARRIOR MINE

SLIDE 12

DIAMOND DRILL HOLE CT3067 E05 INTERCEPT = 0.9m @ 20.4 g/t Au 0.8m @ 13.7 g/t Au

SLIDE 13

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 0.0001 0.01 1

A84 ELOG

ADR A84

+6.5m E03

Secondary structure

381.55m

A84 Scan

Lode parallel diamond drill hole CT3067

CT3067

SLIDE 14

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 0.0001 0.01 1

A84 E log

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 0.0001 0.01 1

A62 E log Warrior pit Interpreted E03 structure E05 underground workings (NE-dipping) E03 underground workings (N-dipping)

381.5m
344.29m

* Anomaly = unmined structure

ADR A84

SLIDE 15

N-dipping E07 structure

A56

CT8205

REAL WORLD RESULTS

IMPERIAL PROJECT

75m

POST-ADR DIAMOND DRILL HOLE CT8205

SLIDE 16

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 0.0001 0.01 1

Meters below surface

A56

Energy response (E log)

440 450 460 470 480 490 20 40

CT8205 Au

440 450 460 470 480 490 5000 10000

CT8205 Pb

37.9 g/t Au 7200ppm Pb ~40cm thick intercept at -463m

467.91m

CT8205 assay results

ADR A56

SLIDE 17

Cross reefs

REAL WORLD RESULTS

CENTRAL MINE

A63 DD93QF5

TESTING THE BRILLIANT EAST (C05E) STRUCTURE

SLIDE 18

100 200 300 400 500 600 700 800 0.001 0.01 0.1 1

A63 Elog

DD93QF5 series drill holes

Scan A63

SECTION OF ADR ELOG plot

664.77m 695.15m

Intercept - 664m 183 g/t Au 12700 ppm Pb Intercept – 696m 15.8 g/t Au 8150 ppm Pb

~30m

Brilliant (C05) Hanging wall Brilliant (C05) Foot wall

Intercept - 483.1m 858 g/t Au 7230 ppm Pb Vis gold in 5cm thick intercept

ADR A63

+0.8m and -0.9m
