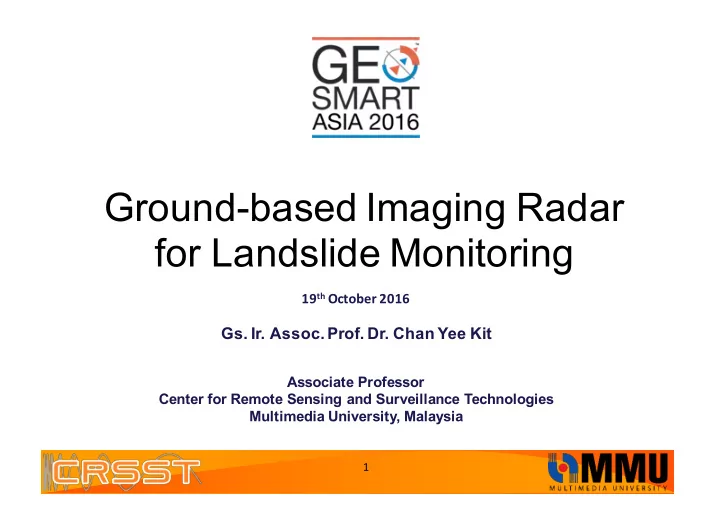

Ground-based Imaging Radar for Landslide Monitoring

19th October 2016

  • Gs. Ir. Assoc. Prof. Dr. Chan Yee Kit

Associate Professor Center for Remote Sensing and Surveillance Technologies Multimedia University, Malaysia

1

slide-2
SLIDE 2

Facts & Figures

> 1 mil people exposed to landslide hazards every year > 21,000 landslide-prone areas in Malaysia (16,000 in Peninsular, 3,000 in Sabah, 2,000 in Sarawak) > 120,000 high-rise buildings over 12 stories tall > 48,000 dams over 15 m high > 250 long bridges over 2 km long, hundreds of thousands

  • f bridges, high risk mining sites, …

Rana Plaza, Bangladesh, collapsed in 2013 (killed 1,129) China Banqiao dam’s failure, killed > 171,000 people in 1975 Highland Tower collapsed in 1993, Ulu Klang, Selangor, 48 killed Landslides in KL, 2011, 12 people killed Bridge collapsed in Penang, 2013, 1 killed

2

slide-3
SLIDE 3

3

Existing Ground-Truth Monitoring Systems

3D Laser Scanner Total Station Inclinometer Extensometer Tiltmeter These are ground-truth measurement instruments: q Labor intensive q Require maintenance on-site, thus increasing hazards to personnel re-entering potentially high risk areas

slide-4
SLIDE 4

Urgent Need for Preventive Monitoring of Structural Health and Earth Environments

ü Non-destructive – remote sensing ü High resolution – change detection in cm-mm ü Wide area coverage – complete 3D model ü All weather – 24/7 periodic monitoring ü Real-time online retrieval – early warning ü Low cost – affordable for developing countries

4

slide-5
SLIDE 5

5

Use synthetic aperture processing technique to produce high resolution temporal InSAR images

Remote Monitoring using GBSAR system

slide-6
SLIDE 6

6

GBSAR System Parameter

Design Parameter Design Value Operating Frequency 17.2 GHZ Bandwidth 400 MHz Waveform FMCW Polarization single Transmit Power 1 W Antenna Gain 16 dBi 3dB beamwidth 10° (azimuth), 10° (elevation) Synthetic Length 1.5 m Range Resolution 0.5 m Azimuth Resolution 5.8 mrad Maximum Sensing Distance 2000 m Sigma naught −20 dB SNR > 10 dB

slide-7
SLIDE 7

7

Functional Block Diagram of GBSAR

!

slide-8
SLIDE 8

8

GBSAR Prototype

slide-9
SLIDE 9

Raw SAR Signal Processing:

9

Pre-sum filter range compression

100 200 300 400 500 600 700 800 900 1000 30 35 40 45 50 55 60 65 1 2 3 4 5 x 10 −3 −0.5 −0.4 −0.3 −0.2 −0.1 0.1 0.2 0.3 0.4 0.5 1 2 3 4 5 x 10 −3 −0.5 −0.4 −0.3 −0.2 −0.1 0.1 0.2 0.3 0.4 0.5 0.5 1 1.5 2 2.5 x 10 4 −1.5 −1 −0.5 0.5 1 0.5 1 1.5 2 2.5 x 10 4 −1.5 −1 −0.5 0.5 1

Raw I&Q FMCW received signals

100 200 300 400 500 600 700 800 900 1000 30 35 40 45 50 55 60 65

Combining multiple range lines and perform azimuth compression

5 10 15 20 25 30 35 10 20 30 40 50 60 70 80 10 15 20 25 30 35 5 10 15 20 25 30 35
slide-10
SLIDE 10

10

!

! !

Preliminary Tests

slide-11
SLIDE 11 5 6 7 8 9 10 11 2 4 6 8 10 12 14 16 18 20 Range Change Detection (mm)

Azimuth Range −2.5 −2 −1.5 −1 −0.5 0.5 1 1.5 2 2.5 5 6 7 8 9 10 11 −2 2 4 6 8

Change Detection in mm

5 10 15 20 25 30 35 40 45 50 −0.045 −0.04 −0.035 −0.03 −0.025 −0.02 −0.015 −0.01 −0.005 0.005 Step mm

Measured Accuracy < 5 mm

dR = λ dφ / 4π

11

slide-12
SLIDE 12

System Verification and Field Test

12

slide-13
SLIDE 13

13

2014-08-19 5:58 PM 2014-08-19 10:59 AM 5-15 mm change detected within a day!

Change Detection:

slide-14
SLIDE 14

Actual Test Site (Gunung Pass, Cameron Highland)

14

slide-15
SLIDE 15

Installation at Test Site

15

slide-16
SLIDE 16

Test Site: TS001 Gunung Pass

−200 −190 −180 −170 −160 −150 −140 −130 −120 −110 −100

slide-17
SLIDE 17

Mosaic : VV, -4~4 degrees

Satellite Image from Google GBSAR Image

17

slide-18
SLIDE 18

Trihedral Location

Trihedral T2 (Small, Adjustable): [4.5919913487, 101.3429884556] Altitude = 1316.69 m Trihedral T1(Large, Fixed): [4.5919070143, 101.3433433900] Altitude = 1320.83 m Distance from GBSAR to T1 = 1259 m Distance from GBSAR to T2 = 1244 m

slide-19
SLIDE 19

Sample data set: 150523-110419L

Background, No Trihedral

slide-20
SLIDE 20

Sample data set: 150822-174259R

Observed T1 at (27.35 m, 1268.10 m) Observed T1 at (27.35 m, 1268.10 m)

slide-21
SLIDE 21

Sample data set: 150822-184126R

Observed T2 at (-1.59 m, 1253.25 m)

slide-22
SLIDE 22

Measured Displacement (0.5 mm/step)

Fine adjustment of the trihedral T2 with 0.5 mm per step

slide-23
SLIDE 23

Measured Displacement (0.5 mm/step)

slide-24
SLIDE 24

24

0.5 mm change detection

10 20 30 40 50 60 70 80 90 −0.3 −0.2 −0.1 0.1 0.2 0.3 0.4 0.5 Sample Displacement (mm)

0.5 mm change

  • 0.1 mm (before)

+0.4 mm (after)

slide-25
SLIDE 25

Study Area TS02: MeiHua School, TW

Sensing Distance: 500-1000 m Swath Width: 150-200 m Altitude: ~485-610 m

slide-26
SLIDE 26

3D Optical View

slide-27
SLIDE 27

3D Optical + GBSAR Image

slide-28
SLIDE 28

3D Optical + GBSAR + LiDAR Image

slide-29
SLIDE 29

Taipei Measurement Campaign (02-08 June, 2016)

測點1:潮境中心 (KeeLong Test Site. 02-04 Jun) 測點2:火炎山 (Fire Hill Test Site, 05 Jun) 測點3:石門水庫大壩 (Simon Water Dam, 06 Jun)

29

slide-30
SLIDE 30

測點4:烏來 (WuLai Test Site, 07 Jun) 測點5:青埔捷運棒球場站 (CP LRT Station, 08 Jun)

Taipei Measurement Campaign (02-08 June, 2016)

30

slide-31
SLIDE 31
  • 10mm

10mm

Sample Results: Detection of Vibration at LRT Station

31

slide-32
SLIDE 32

Taiwan Tao Yan Train Station

32

slide-33
SLIDE 33

Changes Detection

4mm

  • 4mm

SRD

slide-34
SLIDE 34

T1 T2 Observation Across Two Different Time

slide-35
SLIDE 35

2016/8/3 35

T1 T2

Observation Across Two Different Time Zone

slide-36
SLIDE 36

36

§ Ground movements and instabilities such as landslides, falling rocks can lead to considerable human and economic losses. § Continuous monitoring on high risk area is important to give insight into the mechanisms of land deformation. § In Malaysia, there are 21,000+ landslide-prone areas to be monitored. § A mmW GBSAR has been developed. It has 0.5 m × 5.8 mrad spatial resolutions, and change detection capabilities up to 5 mm. § The GBSAR is suitable tool for the land deformation detection, landslide monitoring as well as man made structure monitoring.

Summary

slide-37
SLIDE 37

37

THANK YOU
