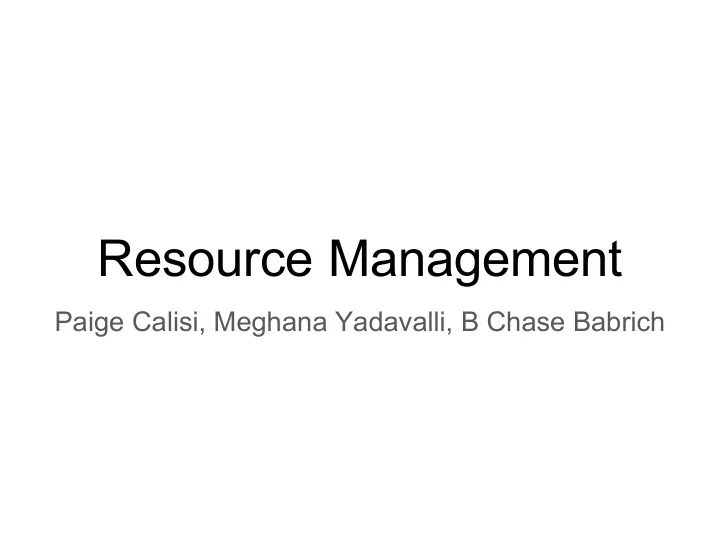

Resource Management Paige Calisi, Meghana Yadavalli, B Chase Babrich - - PowerPoint PPT Presentation
Resource Management Paige Calisi, Meghana Yadavalli, B Chase Babrich Why is Resource Management Important? Companies pay for time and resources Important to understand workloads Traditional big-data analytics workloads vary from
○ Introduced to relieve Hadoop of resource management and job scheduling ○ Takes job and distributes it among slave nodes
○ Resource offer - low demands pick first ○ Delegates scheduling to framework - not centralized
○ Packs tasks onto clusters based on requirements ○ Favors small resource jobs
○ Hours - weeks vs milliseconds to hours
1) GPUs are a monolithic resource that cannot be shared in a fine-grained manner across all
users
2) Multi-tenant clusters 3) With respect to workload, DL frameworks utilize gang-scheduling which decreases the
flexibility of scheduling
4) Synchronization of parameters -> locality
Study 3 Things:
1. Queueing delays: 1. Delay incurred by users waiting for their fair share of resources 2. Waiting for locality constraints to be met 2. How GPU utilization is affected by placement decisions for distributed training jobs 1. Distribution of individual jobs across servers, ignoring locality constraints, increasing synchronization overheads 2. Colocation, or packing of different jobs on the same server leads to contention of shared resources 3. Jobs might fail to complete successfully 1. Programming errors early in the training process 2. Failures due to cluster components happen later in training
synchronized updates
multiple racks (ethernet)
○ YARN scheduler logs ○ stdout and stderr ○ Ganglia monitoring system
1) Fair-share delay is when a VC uses up its GPUs, so jobs are waiting for GPUs to become available 2) Fragmentation delay, which happens when large jobs are spread across many racks (low locality)
delay, so sometimes locality constraints need to be relaxed to mitigate delays
according to locality and colocation scenarios that could occur in the cluster
disproportionate amount of host memory and isolate memory used by jobs colocated on the same server
training for longer than necessary
failure
with a higher number of GPUs because they need to communicate and synchronize model parameters
1) Schedulers should trade queuing delay for adhering to locality constraints
a) Retry jobs without relaxing locality constraints
2) Aim to isolate the jobs on dedicated servers and implement migration for defragmentation to support locality constraints 3) Early failures should be caught on a smaller pool of GPUs before being scheduled on larger clusters
a) Lots of user errors can be caught without deploying on large clusters b) Classify errors and don’t retry errors that won’t pass (syntax errors)
Pros:
how scheduling jobs affects runtime
cycles
Cons:
Themis image taken from https://en.wikipedia.org/wiki/Themis#/media/File:00 29MAN-Themis.jpg
algorithms:
○ Do not account for the long-running length of ML tasks ○ No attention is paid to the placement of the ML tasks ○ Example: DRF
○ Violates Pareto Efficiency and envy-freedom ○ “Even with existing fair sharing schemes, we do find users frustrated with the inability to get their work done in a timely way…”
https://www.economicshelp.org/blog/glossary/pareto-efficiency/
○ One or more training jobs ■ Each job has several tasks that process a minibatch of data
■ 10 task GPU mins ■ 10*2=20 job GPU mins ■ 10*2*2=40 app GPU mins
○ Analyzation of workload traces from a large internet company
○ Least Attained Service
measures of services
○ Addresses starvation of jobs and therefore fairness
jobs
○ Treats all GPU configurations as absolute
Image taken from http://01greekmythology.blogspot.com/2014/06/teiresias.html
○ Again we see heterogeneity
○ Instance 1 violates SI ○ Instance 2 violates PE and EF
by exploiting the cyclic nature of SGD
○ Uses a greedy scheduling policy that continuously optimizes for cluster efficiency
they become available
○ Scheduling policy is built around early feedback and
○ “The primary design goal of the Gandiva scheduler is to provide early feedback to jobs” ○ “Cluster level fairness is not a design goal in Gandiva”
○ (1) An auction mechanism that allows apps to bid for resources ■ “Partial Allocation auction” incentivizes truth telling ○ (2) Two-level scheduling architecture ■ Allows for hyper-parameter optimization (1) (2)
○ SI Achieved if ρ ≤ 1
■ Wider interface between app and allocation engine
○ In this case, TSh is calculated differently Slowdown to account for system
Rc = # of GPUs left in cluster
(why?)
greatest ρ value are filtered
○ Why do we do this? ○ What happens as we vary ⨏? ■ Fairness vs Efficiency
from hidden payments
○ E.g. Mesos, Omega ○ Entirely pessimistic or entirely optimistic
○ Top level offers optimistic, bottom offers pessimistic
design is that it requires the app to be able to see all other resources but only able to use is own resources
○ Accomplished with this app/agent idea ○ Agents are able to see all resources and apps can
existing hyper-parameter optimizers
○ Introduces an overhead into the app writer’s process ■ Negligible?
○ “Real” experiment using a 64 GPU, 20 Machine Cluster ○ Simulation of a much larger system (256 GPUs)
○ Tiresias: Ideal fairness ■ Uses LAS ○ Gandiva: Ideal Efficiency ○ Optimus: Ideal time ○ SLAQ: Ideal Model Quality
○ Finish-time fairness, GPU time, and Placement score
○ Tiresias “treats long apps and short apps as the same” ○ Themis only architecture to maintain ~1 max ρ vals ○ Does our fair play mechanism actually work?
○ Workload 1 had jobs that each required only one or two GPUs
○ Again, Themis and Gandiva is the only one that pays attention to placement so it does very well here
○ Strives for fairness ○ Built on top of YARN
○ Moderate amount of overhead ○ Some amount of cherry picking in baselines
○ Chooses to define “fair” itself. Do we agree with the ρ definition? ○ Is there any other measure of fairness that we might want to use?
○ Necessary to support partial auctions ○ Leases and partial auctions combat the effects of ML apps being so long-running
○ Leads to great speed up but only for specific ML models ○ How does Themis’ placement compare to that of Gandiva’s?
○ Are there any drawbacks to this? ○ Worth the extra overhead?
○ Also doesn’t mention inference… but what difference would this make?
training time
training
maximize utilization of expensive resources (e.g. GPUs and RDMA networks)
○ Resource Allocation ○ Task Placement
a. The model training is usually carried out in an iterative fashion b. Dataset divided into chunks, chunks divided into mini-batches c. Epoch
a. Tens to hundreds of epochs b. Performance metric stabilizes
Synchronous - parameter server updates parameters after it collects gradients from all workers, before any worker moves onto the next step Asynchronous - parameter server updates its parameters every time it receives gradients from a worker. Workers can progress onto different steps
steps/epochs can be calculated and the number of steps remaining
training speed based on computation and comm. patterns
with different combinations of parameters and workers
parameters
Resource Allocation and Task Placement
server is added based on which term is larger
*Continues until resource is cluster has been used up or marginal gains of all jobs are all negative
Goal: reduce training time by reducing time spent on parameter exchange among workers Algorithm steps:
○ Increment k until there are enough servers to place the job
Synchronous Training
to finish before moving onto the next step
server and calculate gap between arrivals Asynchronous Training
parameters assigned to a job changes
Indicators of performance:
makespan by 1.6x
adjustment
within 5 seconds on a cluster of 16,000 nodes
compared to DRF (a)
○ More resources != higher training speed
workers and parameter servers (b&c)
○ Utilizes resources more efficiently
Strengths:
Weaknesses:
○ Auctioning vs Computing marginal gains (optimization)
resource allocation for the maximum number of jobs to be completed
Introduction Existing scheduling algorithms for clusters do not optimize for GPU workloads, only big-data workloads which differ. Themis serves to address a lot of the issues by supporting incentive sharing, Pareto efficiency, and envy-freedom. Multiplexes GPU cluster across ML
ratio of running in a shared cluster of N by the running time of running alone in a 1/N cluster. Goal is to minimize the maximum finish- time fairness across all ML apps. Do this in 2 ways: 1. Widen the API between ML apps and the scheduler. Introduce the notion of a round-by-round auction where jobs bid on more allocation based on their finish-time first metric. The worse the number, the better their chance of getting a good GPU placement. 2. 2 level scheduling 1. Centralized inter-app scheduler at the bottom 2. Narrow API to integrate with existing hyper-parameter tuning frameworks at the top level System Design Go over the image at a high level and step through how jobs are auctioned and allocated. Can have a single ML training job. That one is straight forward. You do the calculations to calculate rho. In the multiple ML jobs case, this is when a hyperparameter search is going
Finish Time Fair Allocation Timely completion means that given N MP apps, they should not run slower on the shared cluster compared to a dedicated cluster with 1/N of the resources. This is the sharing incentive property. Pareto Efficiency: a Pareto Efficient allocation is one where no app’s allocation can be improved without hurting some other app Envy Freeness: envy-freeness means that no app should prefer the resource allocation of another app In big data analytics jobs where task durations are short, redistribution of resources can happen quickly and often. Blindly applying the same approach to ML apps isn't smart because jobs run for much longer amount of time, which can mean other jobs are waiting in the queue for a long time. Another algorithm, Least Attained Service, redistributes services based on leases, but this avoids starvation, but doesn't prioritize locality. ML models with lots of parameters may prefer better locality than models without so many parameters because of the overhead involved in synchronizing parameters and updating gradients. They make the argument that existing fair schemes violate SI, PE, and EF for ML apps, and ignore placement preference. That's why they introduce a new fairness metric and algorithm. Finish-Time Fairness: To summarize, in THEMIS we propose a new finish-time fairness metric that captures fairness for long-running, placement sensitive ML apps. To perform allocations, we propose using a multi-round partial allocation auction that incentivizes truth telling and provides pareto efficient, envy free allocations. By filtering the apps considered in the auction, we maximize sharing incentive and hence satisfy all the properties necessary for fair sharing among ML applications.
Evaluation Since bid values are affected by placement, Themis does well with globally optimal placement compared to Gandiva, which takes greedy locally optimal decisions. Themis had better rho values compared to all of the benchmarks also. This means that the finish time fairness metric was better than the other scheduling algorithms, and indicates that Themis would perform better as a scheduler. Themis offers better sharing incentive to apps and introduces a more altruistic behavior for long apps and shorter apps participate in the auction
Regarding system overheads, it looks like computing bids and computing partial allocations don't take too much time, compared to a lease time of 10 minutes. However, allocating and relinquishing control over GPU resources does take a long time at 5-10 seconds. In terms of cluster utilization, Themis does about the same as the other apps when the apps are mostly compute intensive. However,
Concluded that there is a point where the fairness knob maxes out because after a certain point, only one app can participate in the auction (because everything has been filtered out). Also, smaller lease times promote better fairness because apps can quickly be scheduled again. However, smaller lease times makes it worse for system overhead time because during every one of these "context switches", a model checkpoint has to be generated and the app needs to communicate with the HDFS.
Introduction Current limitations of schedulers are that a job gets submitted with the resource requirements that are supplied by the job owner. These are static allocations, and cannot use new resources if available, and also perhaps these jobs don't need all the resources that were allocated for it, reducing the available resources for other jobs. Build accurate performance models of the DL job while online. Can calculate through learning rate, resource utilization. Optimus requires no knowledge of the model and hardware configuration of the cluster. Their goal is to minimize job completion time. (This goal may not mean it's fair to other jobs that are also contending for resources. Perhaps all the short jobs finish quickly, and 1 long job takes forever. The rate of jobs completing quickly is still high. This favors short jobs.)
Background and Motivation This paper focuses on using convergence as a metric to measure training time/completion of a DL job. The parameter-server architecture is that the parameters are split across multiple servers, and the training data is split across multiple workers. Each worker computes gradients based on its subset of training data and pushes the gradients to the parameter servers. Once the parameter servers collect all of the gradients, they perform the update and send the new parameter values back to the workers. Optimus tries to maximally exploit varying runtime resource availability and adjust the number and placement of parameter servers and workers. To perform
curve (for SGD). The prediction error for this computation decreases as the number of training steps increases. They build a Resource-to-Speed model based on the number of workers, parameter servers, speed of the network, bandwidth, model size, etc. Training speed in a job depends on if they are using asynchronous or synchronous training. Important to note that for synchronous training, blindly increasing the number of parameter servers and workers doesn't decrease training time because the mini-batch size will decrease which can lead to underutilization of the GPU/CPU, and more workers means more synchronization related communication. Resource Allocation: Assign one worker and one parameter server. Sort all the jobs based on maximum marginal gain if they were to run like that. Then based on that order, add either a worker or a parameter server based on which one would add to the marginal gain the most. Keep doing this for each job until some resource in the cluster is used up, or until marginal gain is negative. This process happens each scheduling interval. They add a little bit about job placement and basically say they can reduce training time by specifically placing jobs (parameter servers and workers) on the same server. This would reduce training time, which would indirectly change the optimization problem and attempt to give preference to colocated jobs.
System Implementation Use HDFS. They identify stragglers that can slow the system down and deploy a new worker. They also attempt to keep the load the same on all parameter servers. They checkpoint model parameters during each scheduling iteration. Evaluation They compare Optimus to a DRF (Dominant Resource Fairness) scheduler, and the scheduler Tetris which prioritizes jobs with low duration and resources, and low fragmentation. They use average Job Completion Time as their metric for performance. They also use makespan: the time since the first job arrived to the completion of all jobs. It seems like Optimus has a smaller throughput of jobs compared to DRF. Optimus prioritizes finishing jobs quickly, while DRF wants to take on as many jobs as it can and treats them equally fairly, which means they may not complete as quickly as a job on Optimus. Their conclusions: (1) Testbed experiments show that Optimus improves average job completion time and makespan by 139% and 63% compared to the fairness scheduler. Further, Optimus can scale to schedule 100,000 tasks on 16,000 nodes in 5 seconds, and its resource adjustment overhead is small, i.e., 2.54%. (2) Further improvement of estimation accuracy will not increase Optimus’s performance much (15%) and Optimus performs better than DRF and Tetris under various workloads. (3) The resource allocation algorithm, the task placement scheme and the parameter server load balancing algorithm contribute to Optimus’s performance improvement by about 62%, 17%, 20% respectively.
