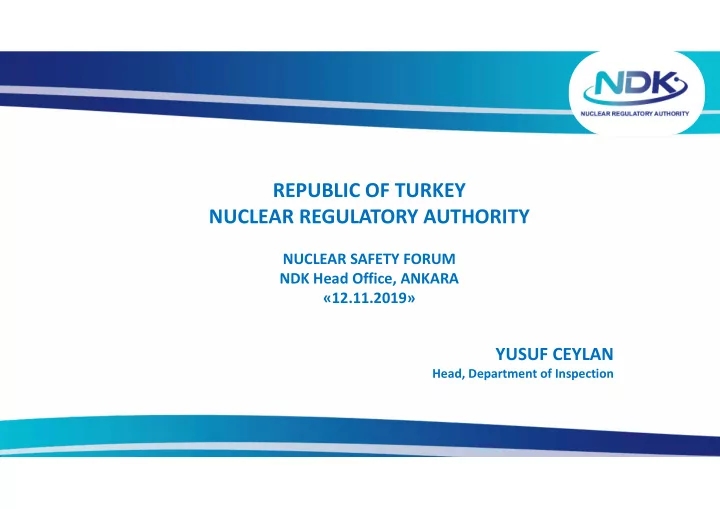

REPUBLIC OF TURKEY NUCLEAR REGULATORY AUTHORITY NUCLEAR SAFETY - - PowerPoint PPT Presentation

REPUBLIC OF TURKEY NUCLEAR REGULATORY AUTHORITY

NUCLEAR SAFETY FORUM NDK Head Office, ANKARA «12.11.2019»

YUSUF CEYLAN

Head, Department of Inspection

Content Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

DEPARTMENT OF RADIATION PRACTICES

Member Second President

President

Member Member Vice President

Office of Press and Public Relations Counsellor

Nuclear Regulatory Authority (NDK)

Vice President

DEPARTMENT OF INSPECTION

DEPARTMENT OF RADIATION PROTECTION DEPARTMENT OF NUCLEAR SECURITY AND SAFEGUARDS DEPARTMENT OF EXTERNAL RELATIONS DEPARTMENT OF SUPPORT SERVICES DEPARTMENT OF STRATEGY DEVELOPMENT DEPARTMENT OF LEGAL SERVICES

Office of Board Services Office of Directorial Counsellors

DEPARTMENT OF NUCLEAR FACILITIES

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

MANUFACTURING INSPECTION GROUP RADIATION INSPECTION GROUP CONSTRUCTION INSPECTION GROUP

Nuclear Facilities

Regulations and Guides Review and Assessment Authorization Inspections Enforcements

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Regulation on Safety Inspections and Sanctions on Activities Related to Nuclear Energy and Ionizing Radiation

Procedures and Principles for Inspections Directive for Qualification of Inspectors Inspection Guide for Nuclear Facilities Inspection Guide for Radiation Applications Directive for Inspections Procedures, Checklists and Other Documents Akkuyu NPP– Site&Construction Inspections: # 60 Akkuyu NPP‐Manufacturing Inspections : # 45 Inspections of Radiation Applications: # 63

Inspection Department «Management System Handbook»

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

• To define Scope of Inspection Activities, type of

ınspections, responsibility

• f

the facilities

• r

companies, preparation

• f

inspection programs Qualification, training and requirements for inspectors in brief,

• Inspection Planning,
• Preparation to inspection,
• Execution of Inspection,
• Reporting of the inspection results,
• Follow up of the inspection results.
• Enforcement actions,
• Classification of Findings,
• Graded aproach for SSC,
• Technical Support Organisations,

Draft Inspection Regulations;

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Inspection Program

• An Annual Inspection Program is developed within the frame
• f a determined inspection strategy.
• In preparation of the Annual Inspection Programs, the

following issues are taken into consideration:

• Category of the facility or outside facility to be inspected,
• The subject areas and scope of inspection,
• Resources and manpower needs,
• Results of previous inspections,
• Regulatory review and assessment results,
• Work schedules of organizations to be inspected,
• Performance indicators of organizations to be inspected,
• Operation experience and lessons learned.

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Inspection Plan

For a specific nuclear safety inspection mission; an inspection plan consistent with the annual program is prepared by Inspection Department and with participation of related departments of NDK

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Notification of Inspections For annouced inspections, the authority notify the organization to be inspected with an official letter, in advance about the date and plan of inspection, so its documentation, records and personnel be available and can facilitate inspection activities. Announced follow up inspections are notified as well in advance of five (5) workday.

Reporting

Individual Inspector Reports are compiled by inspectors joined the inspection, dating from the end of mission, in five (5) working days at the latest An Inspection Report is compiled by Inspection Team leader three (3) working days at the latest, dating from delivery of Inspector Reports. Authority Report is approved by Department Head. Approved Authority Report is send to inspected organization by an official letter.

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation

• f Inspection

Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

TSO Inspection Organisation for Manufacturing

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Main Equipment Manufacturer

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Construction Inspection Coordinator QA/QC Senior Expert Civil Engineer (Geotechnical) Geophysical Eng. Geologist On‐Shore Senior Civil Eng. Civil Eng. Civil Eng. Mechanical Eng. Electric Eng. Off‐Shore Senior Civil Eng. QA/QC Expert Survey Eng. Civil Eng.

Project Manager Assistant Project Man.

NDK

Akkuyu Permanant Site Team

TSO Inspection Organisation Construction Inspections

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Pictures from Manufacturing Inspections

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Pictures from Site Inspections

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Pictures from Construction Inspections

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

INSPECTION ORGANISATION IN NUCLEAR FACILITIES

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Main nuclear island facilities of Power Unit 1 Reactor building 10UJA Current status:

• Arrangement of the

tendon gallery walls is completed

• The reinforcement block
• f the reactor cavity is

installed up to the elevation of +2.754

• The core catcher vessel

is installed

• Installation of the metal

structures at the 1-st level

• f the internal

containment is commenced

• Reinforcement of the

internal walls up to the elevation of -0.500 is completed Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

To improve the competency of NDK a TSO, NÜTED (Nuclear Technical Support Joint Stock Company), has been established by the new nuclear law as a government owned company. NÜTED has the responsibility to provide all necessary TSO services to

• NDK. Hiring staff and capacity building for NÜTED will be implemented in

parallel to the needs of NDK.

19

Establishment of NÜTED 09.07.2018 Presidentail Decision about NÜTED

• rganisational

09.09.2019 18.10.2019 NÜTED’s Strategical and Organisational Structure preperation is going on with profecional company

Start to work 31/12/2019

New Technical Support Model for Inspections

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

Signing of Contract with TSO on Construction, Site and Manufacturing Inspections 19.03.2018 ve 31.12.2018 14.05.2018 Assignment of work order by TAEK (Construction and Site) 25.05.2019 Assignment of work order by NDK (for manufacturing) 1 8 85 83 344 480 500 1000 Construction&Site Manufacturing

Akkuyu NPP Inspections (NDK) & Observations (TSO)

NDK Inspections (2019 last 6 mont) TSE&BV Observations 2019(last 6 mo.) 2020 (planned)

INSPECTIONS FOR AKKUYU NPP

Establishment of Inspection Department 02.05.2019 Providing Inspection Services through NÜTED 14.05.2020

Organization of Inspection Department Issues Under NDK’s Regulatory Control Draft of Secondary Legislations Implementation of Inspection Activities Regulatory Oversight Program for Manufacturing and Construction Stages of Akkuyu Current Status of Akkuyu Project Technical Support for Inspections

NDK+ TSO Inspection Activities For Construction Side: 6+16 (3 Resident now, in 2020 will be 6 resident) For Manufacturin:, 6+25 (4 residentnow, in 2020 will be 7 resident)

Thank you for your atttention!

YUSUF CEYLAN

Head, Department of Inspection E‐mail:yusuf.ceylan@taek.gov.tr
