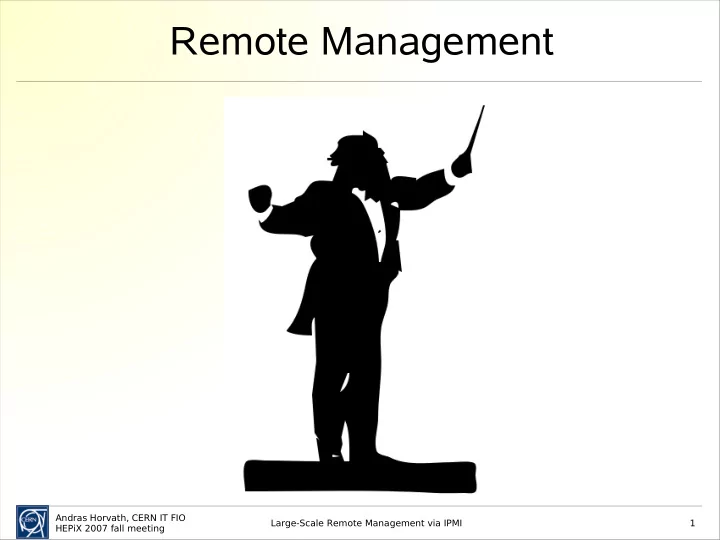

SLIDE 1
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 1 Large-Scale Remote Management via IPMI
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 2 Large-Scale Remote Management via IPMI
Remote Management Andras Horvath, CERN IT FIO Large-Scale Remote - - PowerPoint PPT Presentation
Remote Management Andras Horvath, CERN IT FIO Large-Scale Remote - - PowerPoint PPT Presentation
Remote Management Andras Horvath, CERN IT FIO Large-Scale Remote Management via IPMI 1 HEPiX 2007 fall meeting IMAGE: trolley Andras Horvath, CERN IT FIO Large-Scale Remote Management via IPMI 2 HEPiX 2007 fall meeting IMAGE: racks Andras
SLIDE 2
SLIDE 3
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 3 Large-Scale Remote Management via IPMI
IMAGE: racks
SLIDE 4
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 4 Large-Scale Remote Management via IPMI
CERN History
2003
serial consoles with logging SLAC example and software remote restart SysRq affordable but cabling is an issue
SLIDE 5
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 5 Large-Scale Remote Management via IPMI
IMAGE: serial cabling
SLIDE 6
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 6 Large-Scale Remote Management via IPMI
CERN History (cont'd)
2007
serial console for ~5000 hosts IPMI power control for ~900 most future deliveries to use IPMI console, power (ACPI!), reset, SysRq
SLIDE 7
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 7 Large-Scale Remote Management via IPMI
Free Extras?
Orderly (ACPI) emergency shutdown Switch off unneeded capacity Bootup in service order ...
SLIDE 8
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 8 Large-Scale Remote Management via IPMI
Monitoring via IPMI
Available remotely...
...but we do this in-band
What we monitor:
thermal and voltage alarms failed PSUs (PSU support required) ECC errors, PCI parity errors
SLIDE 9
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 9 Large-Scale Remote Management via IPMI
IPMI tips, tricks, magic
Add-on card (BMC): motherboard support req'd Don't believe the vendors: TEST
some blades have IPMI within the chassis only
What to look for:
IPMI 2.0 – encrypted authentication (no 1.5 please) RMCP+ – encrypted wire transfer (for console)
Physical interface
shared with host or separate?
Management
firmware, access control, own IP+MAC addresses...
SLIDE 10
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 10 Large-Scale Remote Management via IPMI
Integration
iCow: wrapper for consoles
also integrates XEN VM consoles solves logging, keeps user interface
SysRq (Break) different
Password management
per-host generated random passwords user interface for power control
Power control:
could integrate with VM ”virtual power button”?
SLIDE 11
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 11 Large-Scale Remote Management via IPMI
Future?
IPMI for several years Intel Active Management Technology?
too complex, security concerns
KVMs and/or HTTP in BMC?
too complex, no added functionality (for us)
Would like: authentication options in BMC
SLIDE 12
Andras Horvath, CERN IT FIO HEPiX 2007 fall meeting 12 Large-Scale Remote Management via IPMI
