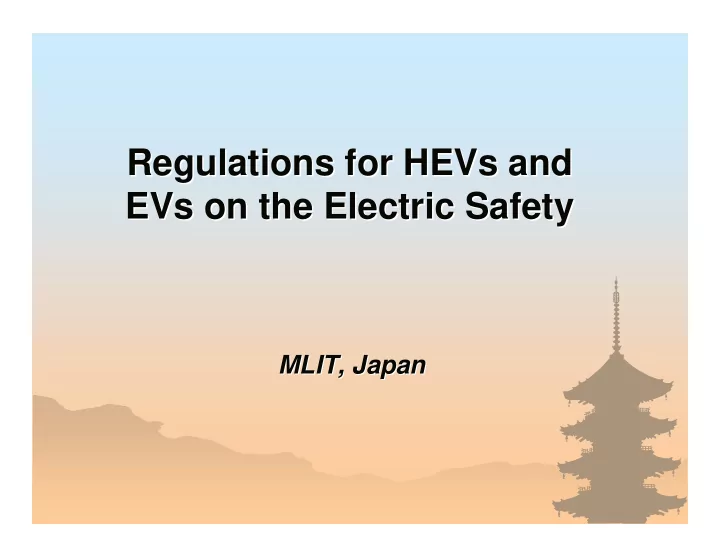

Regulations for HEVs HEVs and and Regulations for EVs on the - - PowerPoint PPT Presentation

Regulations for Regulations for HEVs HEVs and and EVs EVs on the Electric Safety

• n the Electric Safety

MLIT, Japan MLIT, Japan

50,000 100,000 150,000 200,000 250,000 300,000

HEV 3,696 22,450 37,380 50,400 74,600 91,200 132,500 196,800 256,600 EV 2,500 2,400 2,600 3,800 4,700 5,600 7,700 8,500 9,900 1997 1998 1999 2000 2001 2002 2003 2004 2005 （

（FY FY） ） （Number of Vehicles)

EV EV HEV HEV

• In Japanese market, the number of HEVs and EVs is increasing

rapidly for several years.

The number of The number of H HE EVs Vs and and EVs EVs in 97 in 97’ ’-

• 05

05’ ’

The background of the new regulations establishment

• Since the electric safety regulation of FCVs is already

established in Japan, establishment of that of HEVs-EVs is pressing need.

• Although ECE-R100 is existing, it is difficult to introduce it

into the Japanese regulations with the following reasons.

• The scope of ECE-R100 is limited to Battery EVs．
• The technical range of ECE-R100 does not correspond to the

current new technology.

• As we have announced in the previous GRSP meeting, we

are planning to establish the new safety regulation on the Electric Safety and Crash Safety for HEVs and EVs.

• The new safety regulation on the Electric Safety will be

created based on ECE-R100.

• The new Electric Safety regulation leads to the ECE-R100

amendment which we will propose from now on.

The Outline of the Electric Safety Regulation (based on the ECE-R100) about HEVs and EVs

• Protection against electric shock at usually usage
• Protection against direct contacts with live part.
• ex. Barrier, enclosure, etc.
• Protection against indirect contact.
• ex. Electrical connection between exposed conductive parts

(barrier, enclosure, etc.) and electrical chassis (vehicle flame, etc.) to prevent outbreak of high voltage

• Insulation resistance.
• ex. Keep not less than 100Ω/V of the nominal voltage

between live parts and electrical chassis.

• System Safety Requirement
• ex. The safety of the operation method and the charge state.

Draft of Discussion Schedule

• April 06’
• March 07’
• April 07’
• Autumn 07’
• December 07’

Kick off discussion about this issue Established draft regulation about crash safety of HEV and EV Collected public comments Enter into enforce this regulation Proposed amendment of ECE-R100 at GRSP/GRPE
