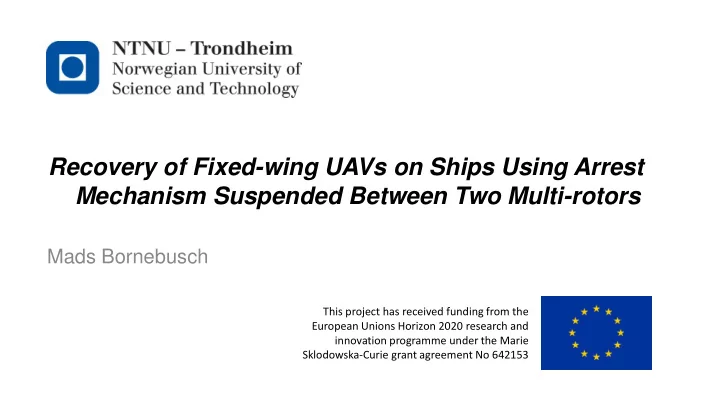

Recovery of Fixed-wing UAVs on Ships Using Arrest Mechanism Suspended Between Two Multi-rotors

Mads Bornebusch

This project has received funding from the European Unions Horizon 2020 research and innovation programme under the Marie Sklodowska-Curie grant agreement No 642153

slide-2
SLIDE 2

Norwegian University of Science and Technology

2

Outline

  • Motivation
  • Existing systems
  • Netcatch
  • Operation scenario
  • Simulation
  • Linecatch
  • Practical challenges
  • Future work
slide-3
SLIDE 3

Norwegian University of Science and Technology

3

Motivation

  • Fixed wing UAV ship operations

– Long range – Heavy payload – Challenging to land the UAV

slide-4
SLIDE 4

Norwegian University of Science and Technology

4

Existing systems

  • Landing in net

Source: http://rep13.lsts.pt/en/blog/sanity-tests-and-wavy-first-trial

slide-5
SLIDE 5

Norwegian University of Science and Technology

5

Existing systems

  • Landing in net
  • VTOL

Source: http://www.top-enggroup.com/images/pigeon-V_01.jpg

slide-6
SLIDE 6

Norwegian University of Science and Technology

6

Existing systems

  • Landing in net
  • VTOL
  • ScanEagle

Source: https://www.youtube.com/watch?v=NY1Y9LBATHo

slide-7
SLIDE 7

Norwegian University of Science and Technology

7

Existing systems

  • Landing in net
  • VTOL
  • ScanEagle
  • Darpa Sidearm

Source: https://www.darpa.mil/news-events/2017-02-06

slide-8
SLIDE 8

Norwegian University of Science and Technology

8

Existing systems

  • Landing in net
  • VTOL
  • ScanEagle
  • Darpa Sidearm
  • ZipLine

Source: https://www.youtube.com/watch?v=3AZF1TTDdEM

slide-9
SLIDE 9

Norwegian University of Science and Technology

9

Netcatch

slide-10
SLIDE 10

Norwegian University of Science and Technology

10

Netcatch

By Kristian Klausen, Thor I. Fossen and Tor Arne Johansen

slide-11
SLIDE 11

Norwegian University of Science and Technology

11

Operation scenario

slide-12
SLIDE 12

Norwegian University of Science and Technology

12

Operation scenario

slide-13
SLIDE 13

Norwegian University of Science and Technology

13

Operation scenario

slide-14
SLIDE 14

Norwegian University of Science and Technology

14

Simulation

slide-15
SLIDE 15

Norwegian University of Science and Technology

15

Simulation

slide-16
SLIDE 16

Norwegian University of Science and Technology

16

Linecatch

slide-17
SLIDE 17

Norwegian University of Science and Technology

17

Linecatch

slide-18
SLIDE 18

Norwegian University of Science and Technology

18

Linecatch

slide-19
SLIDE 19

Norwegian University of Science and Technology

19

Linecatch

Figures by Aksel Haukanes

slide-20
SLIDE 20

Norwegian University of Science and Technology

20

Practical challenges

  • Tuning of formation controllers
  • Time lag of RTKGPS
  • Telemetry link
slide-21
SLIDE 21

Norwegian University of Science and Technology

21

Future work

  • Automatic takeoff and landing of multirotors
  • Development and test
  • Up-scale to be able to catch X8
