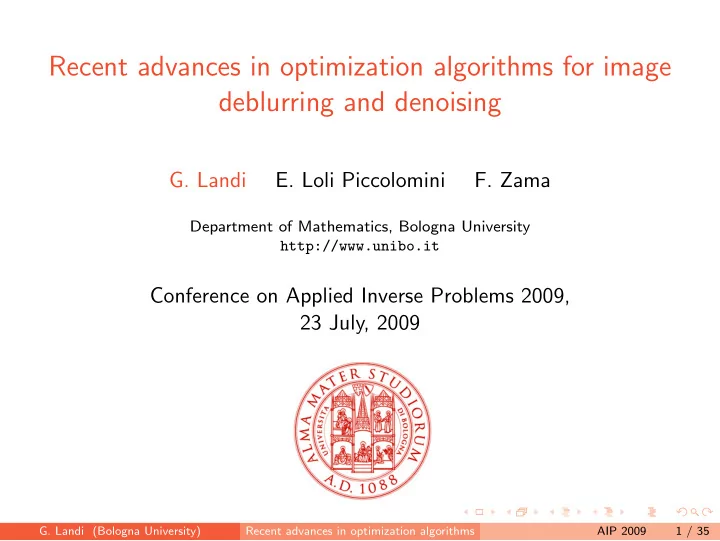

SLIDE 1

Recent advances in optimization algorithms for image deblurring and denoising

G. Landi
E. Loli Piccolomini
F. Zama

Department of Mathematics, Bologna University http://www.unibo.it

Conference on Applied Inverse Problems 2009, 23 July, 2009

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 1 / 35

SLIDE 2

Outline

Newton-like projection methods for a nonnegatively constrained minimization problem arising in astronomical image restoration Convergence results Numerical results

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 2 / 35

SLIDE 3

Image formation model

The mathematical model for image formation is Af + bg + w = g where g ∈ Rn is the detected image A ∈ Rn×n is a block-Toeplitz matrix describing the blurring bg ∈ Rn is the expected value (usually constant) of the background w ∈ Rn is the value of the noise f ∈ Rn is the unknown image to be recovered

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 3 / 35

SLIDE 4

Image restoration problem

The problem of image restoration is to determine an approximation

f f given g, bg, A and statistics for w.

The noise w

◮ is not given ◮ is the realization of an independent Poisson process

the pixel values of the image f are nonnegative A is an ill-conditioned matrix

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 4 / 35

SLIDE 5

Image restoration problem

By using a maximum-likelihood approach 1, the image restoration problem can be reformulated as the nonnegatively constrained optimization problem min J (f ) = J0(f ) + λJR(f ) s.t. f ≥ 0, where J0(f ) is the Csiz´ ar divergence: J0(f ) =

n

j=1
gj ln

gj (Af )j + bg + (Af )j + bg − gj

JR(f ) is the Tikhonov regularization functional:

JR(f ) = 1 2f 2

2

λ is the regularization parameter

1M. Bertero and P. Boccacci, Introduction to Inverse Problems in Imaging, 1998
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 5 / 35

SLIDE 6

Image restoration problem

By using a maximum-likelihood approach 1, the image restoration problem can be reformulated as the nonnegatively constrained optimization problem min J (f ) = J0(f ) + λJR(f ) s.t. f ≥ 0, where J0(f ) is the Csiz´ ar divergence: J0(f ) =

n

j=1
gj ln

gj (Af )j + bg + (Af )j + bg − gj

JR(f ) is the Tikhonov regularization functional:

JR(f ) = 1 2f 2

2

λ is the regularization parameter

1M. Bertero and P. Boccacci, Introduction to Inverse Problems in Imaging, 1998
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 5 / 35

SLIDE 7

Image restoration problem

By using a maximum-likelihood approach 1, the image restoration problem can be reformulated as the nonnegatively constrained optimization problem min J (f ) = J0(f ) + λJR(f ) s.t. f ≥ 0, where J0(f ) is the Csiz´ ar divergence: J0(f ) =

n

j=1
gj ln

gj (Af )j + bg + (Af )j + bg − gj

JR(f ) is the Tikhonov regularization functional:

JR(f ) = 1 2f 2

2

λ is the regularization parameter

1M. Bertero and P. Boccacci, Introduction to Inverse Problems in Imaging, 1998
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 5 / 35

SLIDE 8

Image restoration problem

By using a maximum-likelihood approach 1, the image restoration problem can be reformulated as the nonnegatively constrained optimization problem min J (f ) = J0(f ) + λJR(f ) s.t. f ≥ 0, where J0(f ) is the Csiz´ ar divergence: J0(f ) =

n

j=1
gj ln

gj (Af )j + bg + (Af )j + bg − gj

JR(f ) is the Tikhonov regularization functional:

JR(f ) = 1 2f 2

2

λ is the regularization parameter

1M. Bertero and P. Boccacci, Introduction to Inverse Problems in Imaging, 1998
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 5 / 35

SLIDE 9

Proposed Newton-like Projection methods

The proposed Newton-like projection methods have the general form f k+1 = [f k − αkpk]+ where [·]+ denotes the projection on the positive orthant αk is the step-length pk is the search direction

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 6 / 35

SLIDE 10

Search direction computation

Define the set of indices Ik = {j = 1, . . . , n | f k

j = 0 and ∂J (f k)

∂fj > 0} The computation of the search direction pk takes the following steps:

1

Computation of the reduced gradient g k

I:

g k

I

j =
∂J (f k)

∂fj

, if j / ∈ Ik; 0,

therwise;

j = 1, . . . , n.

2

Computation of the solution z of the linear system ∇2J kz = g k

I

3

Computation of pk such as: pk

j =

zj,

if j / ∈ Ik;

∂J (f k) ∂fj

,

therwise;

j = 1, . . . , n.

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 7 / 35

SLIDE 11

Search direction computation

Define the set of indices Ik = {j = 1, . . . , n | f k

j = 0 and ∂J (f k)

∂fj > 0} The computation of the search direction pk takes the following steps:

1

Computation of the reduced gradient g k

I:

g k

I

j =
∂J (f k)

∂fj

, if j / ∈ Ik; 0,

therwise;

j = 1, . . . , n.

2

Computation of the solution z of the linear system ∇2J kz = g k

I

3

Computation of pk such as: pk

j =

zj,

if j / ∈ Ik;

∂J (f k) ∂fj

,

therwise;

j = 1, . . . , n.

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 7 / 35

SLIDE 12

Search direction computation

Define the set of indices Ik = {j = 1, . . . , n | f k

j = 0 and ∂J (f k)

∂fj > 0} The computation of the search direction pk takes the following steps:

1

Computation of the reduced gradient g k

I:

g k

I

j =
∂J (f k)

∂fj

, if j / ∈ Ik; 0,

therwise;

j = 1, . . . , n.

2

Computation of the solution z of the linear system ∇2J kz = g k

I

3

Computation of pk such as: pk

j =

zj,

if j / ∈ Ik;

∂J (f k) ∂fj

,

therwise;

j = 1, . . . , n.

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 7 / 35

SLIDE 13

Search direction computation

Define the set of indices Ik = {j = 1, . . . , n | f k

j = 0 and ∂J (f k)

∂fj > 0} The computation of the search direction pk takes the following steps:

1

Computation of the reduced gradient g k

I:

g k

I

j =
∂J (f k)

∂fj

, if j / ∈ Ik; 0,

therwise;

j = 1, . . . , n.

2

Computation of the solution z of the linear system ∇2J kz = g k

I

3

Computation of pk such as: pk

j =

zj,

if j / ∈ Ik;

∂J (f k) ∂fj

,

therwise;

j = 1, . . . , n.

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 7 / 35

SLIDE 14

Search direction computation

Define the set of indices Ik = {j = 1, . . . , n | f k

j = 0 and ∂J (f k)

∂fj > 0} The computation of the search direction pk takes the following steps:

1

Computation of the reduced gradient g k

I:

g k

I

j =
∂J (f k)

∂fj

, if j / ∈ Ik; 0,

therwise;

j = 1, . . . , n.

2

Computation of the solution z of the linear system ∇2J kz = g k

I

3

Computation of pk such as: pk

j =

zj,

if j / ∈ Ik;

∂J (f k) ∂fj

,

therwise;

j = 1, . . . , n.

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 7 / 35

SLIDE 15

Step-length computation

The step-length αk is computed with the modified Armijo rule2: αk is the first number of the sequence {2−m}m∈N such that J (f k) − J (f k(2−m)) ≥ η  2−m

j / ∈Ik

∇J k

j pk j +

j∈Ik

∇J k

j

f k

j − f k j (2−m)



 where

◮ f k(2−m) = [f k − 2−mpk]+ ◮ η ∈ (0, 1

2)

2D. P. Bertsekas, Nonlinear Programming, Athena Scientific, 2003
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 8 / 35

SLIDE 16

Step-length computation

The step-length αk is computed with the modified Armijo rule2: αk is the first number of the sequence {2−m}m∈N such that J (f k) − J (f k(2−m)) ≥ η  2−m

j / ∈Ik

∇J k

j pk j +

j∈Ik

∇J k

j

f k

j − f k j (2−m)





◮ if j /

∈ Ik ⇒ Armijo rule

◮ if j ∈ Ik ⇒ Armijo rule along the projection arc

2D. P. Bertsekas, Nonlinear Programming, Athena Scientific, 2003
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 8 / 35

SLIDE 17

Algorithm: Newton-like Projection methods

Given f 0 ≥ 0 and η ∈ (0, 1

2), the basic algorithm is as follows:

Repeat until convergence

1. Computation of the search direction pk

1.1 Compute the reduced gradient gk

I ;

1.2 Solve ∇2J kz = gk

I ;

1.3 Compute pk

j =

zi, if j / ∈ Ik; ∇J k

j ,

therwise;

j = 1, . . . , n;

2. Computation of the steplength αk

Find the smallest number m ∈ N satisfying J (f k) − J (f k(2−m)) ≥ η  2−m

j / ∈Ik

∇J k

j pk j +

j∈Ik

∇J k

j

f k

j − f k j (2−m)





3. Updates

Set f k+1 = [f k − αkpk]+ end

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 9 / 35

SLIDE 18

The computational kernel of the proposed Newton-like projection methods is the solution of the linear system ∇2J kz = gk

I

Different solution strategies gives different Newton-like projection methods In order to develop efficient methods, we look for a a Block Circulant with Circulant Blocks (BCCB) approximation to ∇2J (f )

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 10 / 35

SLIDE 19

The computational kernel of the proposed Newton-like projection methods is the solution of the linear system ∇2J kz = gk

I

Different solution strategies gives different Newton-like projection methods In order to develop efficient methods, we look for a a Block Circulant with Circulant Blocks (BCCB) approximation to ∇2J (f )

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 10 / 35

SLIDE 20

The computational kernel of the proposed Newton-like projection methods is the solution of the linear system ∇2J kz = gk

I

Different solution strategies gives different Newton-like projection methods In order to develop efficient methods, we look for a a Block Circulant with Circulant Blocks (BCCB) approximation to ∇2J (f )

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 10 / 35

SLIDE 21

A BCCB approximation to ∇2J

The Hessian matrix of J is given by ∇2J (f ) = ATC kA + λI where A is a Block Toeplitz with Toeplitz Blocks (BTTB) matrix C k =    ck

1

. . . . . . ... . . . . . . ck

n

   , ck

i =

(∇J k)i (Af k + b)i I is the identity matrix

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 11 / 35

SLIDE 22

A BCCB approximation to ∇2J

The Hessian matrix of J is given by ∇2J (f ) = ATC kA + λI where A is a Block Toeplitz with Toeplitz Blocks (BTTB) matrix C k =    ck

1

. . . . . . ... . . . . . . ck

n

   , ck

i =

(∇J k)i (Af k + b)i I is the identity matrix

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 11 / 35

SLIDE 23

A BCCB approximation to ∇2J

The Hessian matrix of J is given by ∇2J (f ) = ATC kA + λI where A is a Block Toeplitz with Toeplitz Blocks (BTTB) matrix C k =    ck

1

. . . . . . ... . . . . . . ck

n

   , ck

i =

(∇J k)i (Af k + b)i I is the identity matrix

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 11 / 35

SLIDE 24

A BCCB approximation to ∇2J

Consider Q a BCCB approximation to A C

k =

   ck . . . . . . ... . . . . . . ck    , ck = mean(ck

1 , . . . , ck n )

then Hk = QTC

kQ + λI

is a BCCB approximation to ∇2J Hk ∼ ∇2J (f ) The BCCB matrix Hk can be easily inverted by FFTs

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 12 / 35

SLIDE 25

A BCCB approximation to ∇2J

Consider Q a BCCB approximation to A C

k =

   ck . . . . . . ... . . . . . . ck    , ck = mean(ck

1 , . . . , ck n )

then Hk = QTC

kQ + λI

is a BCCB approximation to ∇2J Hk ∼ ∇2J (f ) The BCCB matrix Hk can be easily inverted by FFTs

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 12 / 35

SLIDE 26

The inexact Newton Projection method

In the Inexact Newton Projection (INP) method the linear system ∇2J kz = gk

I

is inexactly solved by

◮ the Conjugate Gradient (CG) method ◮ the Preconditioned Conjugate Gradient (PCG) method where the PCG

preconditioner is the matrix Hk

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 13 / 35

SLIDE 27

The quasi-Newton Projection method

In the Quasi-Newton Projection (QNP) method the linear system ∇2J kz = gk

I

is approximated by the linear system Hkz = gk

I

z is computed by inverting Hk by means of FFTs

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 14 / 35

SLIDE 28

Bertsekas’ Newton-like Projection methods

Bertsekas 3 proposed a class of Newton-like projection methods of the general form f k+1 = [f k − αkpk]+ where αk is the step-length computed with the modified Armijo rule pk = Dk∇J k where Dk is diagonal with respect to Ik

Definition

The matrix Dk is diagonal with respect to Ik if: Dk

ij =

δij, if either i ∈ Ik or j ∈ Ik; dk

ij ,

therwise;
3D. P. Bertsekas, SIAM J. Control Optim., 20 (1982), 221-245
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 15 / 35

SLIDE 29

Convergence

For both the INP method and the QNP method it can be proved that45 There exists a matrix Dk diagonal with respect to Ik such that the search direction pk of the INP and QNP methods can be expressed as pk = Dk∇J k = ⇒ The INP and QNP methods belong to the class

f Bertsekas’ Newton-like projection methods
4G. Landi and E. Loli Piccolomini, Num. Alg., 48:279-300, 2008
5G. Landi and E. Loli Piccolomini, Tech. Rep.
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 16 / 35

SLIDE 30

Convergence

For both the INP method and the QNP method it can be proved that45 There exists a matrix Dk diagonal with respect to Ik such that the search direction pk of the INP and QNP methods can be expressed as pk = Dk∇J k = ⇒ The INP and QNP methods belong to the class

f Bertsekas’ Newton-like projection methods
4G. Landi and E. Loli Piccolomini, Num. Alg., 48:279-300, 2008
5G. Landi and E. Loli Piccolomini, Tech. Rep.
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 16 / 35

SLIDE 31

Convergence

Theorem (D. P. Bertsekas, SIAM J. Control Optim., 20 (1982), 221-245)

If there exist two positive scalars µ1 and µ2 such that µ1||y2 ≤ yTDky ≤ µ2||y2, ∀y ∈ Rn, k = 0, 1, . . . then every limit point of a sequence {fk} generated by the iteration f k+1 = [f k − αkDk∇J k]+ is a critical point with respect to the problem min J (f ) = J0(f ) + λJR(f ) s.t. f ≥ 0

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 17 / 35

SLIDE 32

Convergence

For both the INP method and the QNP method it can be proved that67 There exist two positive scalars µ1 and µ2 such that µ1||y2 ≤ yTDky ≤ µ2||y2, ∀y ∈ Rn, k = 0, 1, . . . = ⇒ Following the convergence analysis of Bertsekas’ Newton-like projection methods it can be proved that: Every limit point of a sequence {fk} generated by the INP method or by the QNP method is a critical point with respect to the problem min J (f ) = J0(f ) + λJR(f ) s.t. f ≥ 0

6G. Landi and E. Loli Piccolomini, Num. Alg., 48:279-300, 2008
7G. Landi and E. Loli Piccolomini, Tech. Rep.
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 18 / 35

SLIDE 33

Convergence

For both the INP method and the QNP method it can be proved that67 There exist two positive scalars µ1 and µ2 such that µ1||y2 ≤ yTDky ≤ µ2||y2, ∀y ∈ Rn, k = 0, 1, . . . = ⇒ Following the convergence analysis of Bertsekas’ Newton-like projection methods it can be proved that: Every limit point of a sequence {fk} generated by the INP method or by the QNP method is a critical point with respect to the problem min J (f ) = J0(f ) + λJR(f ) s.t. f ≥ 0

6G. Landi and E. Loli Piccolomini, Num. Alg., 48:279-300, 2008
7G. Landi and E. Loli Piccolomini, Tech. Rep.
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 18 / 35

SLIDE 34

Numerical experiments

Compare the Inexact Newton Projection (INP) method

INP

where the linear system ∇2J kz = gk

I is solved by

◮ the CG method (INP-CG) ◮ the PCG method where Hk is the preconditioner (INP-PCG)

the Quasi Newton Projection (QNP) method

QNP

the original Bertsekas’ Newton Projection (BNP) method

BNP

where the linear system (Dk)−1pk = ∇J k is solved by the CG method the Gradient Projection (GP) method

GP

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 19 / 35

SLIDE 35

Stopping criteria

Defined the projected gradient of J at f k: {gk

P}i =

   gk

i ,

if f k

i > 0;

gk

i ,

if f k

i = 0 and gk i < 0;

0,

therwise.

the iterations of the previous algorithms are terminated according to the following stopping criteria:

1

gk

P2

g0

P2

≤ 10−6

2

f k+1 − f k2 f k+12 ≤ 10−5

3 k > 100

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 20 / 35

SLIDE 36

Stopping criteria

Defined the projected gradient of J at f k: {gk

P}i =

   gk

i ,

if f k

i > 0;

gk

i ,

if f k

i = 0 and gk i < 0;

0,

therwise.

the iterations of the previous algorithms are terminated according to the following stopping criteria:

1

gk

P2

g0

P2

≤ 10−6

2

f k+1 − f k2 f k+12 ≤ 10−5

3 k > 100

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 20 / 35

SLIDE 37

CG stopping criteria

At each iteration of both the INP and BNP methods, it is necessary to solve a linear system with the CG method The CG method is stopped with a relative precision of τCG = 0.9 and a maximum number of KCG = 5 iterations allowed These values have been chosen in order to optimize the performance

f the INP and BNP methods
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 21 / 35

SLIDE 38

CG stopping criteria

At each iteration of both the INP and BNP methods, it is necessary to solve a linear system with the CG method The CG method is stopped with a relative precision of τCG = 0.9 and a maximum number of KCG = 5 iterations allowed These values have been chosen in order to optimize the performance

f the INP and BNP methods
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 21 / 35

SLIDE 39

CG stopping criteria

At each iteration of both the INP and BNP methods, it is necessary to solve a linear system with the CG method The CG method is stopped with a relative precision of τCG = 0.9 and a maximum number of KCG = 5 iterations allowed These values have been chosen in order to optimize the performance

f the INP and BNP methods
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 21 / 35

SLIDE 40

CG stopping criteria

At each iteration of both the INP and BNP methods, it is necessary to solve a linear system with the CG method The CG method is stopped with a relative precision of τCG = 0.9 and a maximum number of KCG = 5 iterations allowed These values have been chosen in order to optimize the performance

f the INP and BNP methods
G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 21 / 35

SLIDE 41

Initialization

The regularization parameter λ is chosen euristically The initial iterate f 0 is chosen such that f 0 =

Nx

i=1

Ny

j=1

(gij − bg) NxNy where Nx × Ny is the image size

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 22 / 35

SLIDE 42

Astronomical image restoration experiment

The VLT image of the Crab Nebula: = * + g

bserved image

f true image A Adaptive Optic PSF w Poisson noise SNR=44.23

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 23 / 35

SLIDE 43

Relative reconstruction error

Rel. Err.

k FFTs QNP 0.161266 3 12 INP-PCG 0.163328 16 194 INP-CG 0.163513 61 774

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 24 / 35

SLIDE 44

Relative reconstruction error

Rel. Err.

k FFTs QNP 0.161266 3 12 INP-PCG 0.163328 16 194 INP-CG 0.163513 61 774 BNP 0.163770 60 754 GP 0.166881 291 580

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 25 / 35

SLIDE 45

Projected gradient behavior

gP k FFTs QNP 0.001949 54 470 INP-PCG 0.000883 51 698 INP-CG 0.003690 61 774 BNP 0.004071 60 754 GP 0.041237 291 580

G. Landi (Bologna University)

Recent advances in optimization algorithms AIP 2009 26 / 35

SLIDE 46
