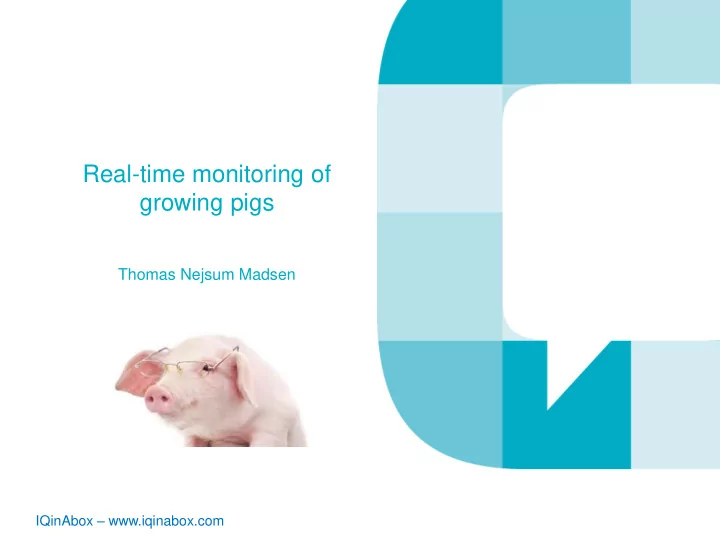

Real-time monitoring of growing pigs

Thomas Nejsum Madsen

IQinAbox – www.iqinabox.com

slide-2
SLIDE 2

2

IQinAbox

IQinAbox

  • Bridges the gap between scientific research and modern pig production
  • Work with universities, research organizations and suppliers to the pig industry
  • Our aim is to increase productivity and animal welfare by better use of data
  • We provide sensors and software for monitoring pigs
slide-3
SLIDE 3

3

IQinAbox

Software in pig production

Management Equipment Monitoring

  • Monitoring – general trends in industrial production
  • Experience from Industry 4.0 and Machine learning?
  • Challenges with biological data
  • Monitoring examples
  • Merging several data sources
slide-4
SLIDE 4

4

IQinAbox

Internet of Things – new opportunities

slide-5
SLIDE 5

5

IQinAbox

Industry 4.0 – the 4th industrial revolution

slide-6
SLIDE 6

6

IQinAbox

Machine learning in industrial production

Data that’s not used

”Machine learning: the science of making computers make decisions without being explicitly programmed to perform the task”

slide-7
SLIDE 7

7

IQinAbox

Example: Vibrations on an industrial machine

slide-8
SLIDE 8

8

IQinAbox

Production unit - weaners

slide-9
SLIDE 9

9

IQinAbox

Water flowmeter

slide-10
SLIDE 10

10

IQinAbox

Water consumption per hour (7 days)

4-5 a.m. 5–6 p.m. 12 a.m

slide-11
SLIDE 11

11

IQinAbox

A change in drinking behaviour 10 20 30 40 50 7 8 9 10 11 Dag

Liter vand pr time

Change in behaviour

Day

slide-12
SLIDE 12

12

IQinAbox

Forecast vs. observation 10 20 30 40 50 7 8 9 10 11 Dag

Liter vand pr time Observeret Model

Change in behaviour

Day

slide-13
SLIDE 13

13

IQinAbox

Software for monitoring water and feed consumption - challenges

  • Pigs change drinking behavior as they grow
  • Drinking patterns vary between herds / housing systems
  • Research and modelling is based on data from very few test herds
  • Expensive equipment for data collection
slide-14
SLIDE 14

14

IQinAbox

Dynamic estimation of daily gain

  • Development project with Danish Crown
  • Launched in DK september 2019

Check it out…

slide-15
SLIDE 15

15

IQinAbox

Example – batch production

Delivery date

slide-16
SLIDE 16

16

IQinAbox

Example of deviation weekly

slide-17
SLIDE 17

17

IQinAbox

Daily gain estimates converted to growth curves

Age (days)

slide-18
SLIDE 18

18

IQinAbox

Examples with different deviation in growth rate(30-110 kg)

  • Feeding strategy
  • Delivery strategy
  • ‘Looser pigs’

Age (days) Age (days)

slide-19
SLIDE 19

19

IQinAbox

Growth estimation based on feed intake

  • Investigation indicates that growth rate can be estimated based on feed intake
  • Need to know feed composition and continues feed consumption

Growth curve

slide-20
SLIDE 20

20

IQinAbox

New joint development project with researchers

  • We use technologies from the production industry in combination with results from

Herd Management research (e.g. PigIT)

  • IoT based sensors
  • Cloud based data analysis and Machine Learning
slide-21
SLIDE 21

21

IQinAbox

The concept

Cloud IoT box IoT hub Output Data Modelling Researchers Implement

slide-22
SLIDE 22

22

IQinAbox

IoT – Farm monitoring, OEM

Cloud IoT hub Output Feeding and ventilation equipment Feeding and ventilation User interface

slide-23
SLIDE 23

23

IQinAbox

Central alarm facilitation

Centralized surveillance

slide-24
SLIDE 24

24

IQinAbox

Modular IoT-box

slide-25
SLIDE 25

25

IQinAbox

Trial farms

  • Establishment of 5 trial farms
  • Test and experimental work with various sensor types
  • Logbook on diseases and disorders
  • Playground for new ideas
slide-26
SLIDE 26

26

IQinAbox

Measuring dry feed in silos

slide-27
SLIDE 27

27

IQinAbox

Complex and difficult to mount load cells on existing silos

slide-28
SLIDE 28

28

IQinAbox

Strain gauge sensors

  • Sensors mounted on silo legs
  • Measure compression on silo legs
  • Converts signal to weight estimate
slide-29
SLIDE 29

29

IQinAbox

Load cells vs. strain gauge sensors

Load cell data Strain gauge data

slide-30
SLIDE 30

30

IQinAbox

Growth estimation based on feed intake

  • Studies indicate that growth rate can be estimated based on feed intake.
  • Need to know the feed composition and the continuous feed consumption

Growth curve

slide-31
SLIDE 31

31

IQinAbox

slide-32
SLIDE 32

32

IQinAbox

Cough Pen

Directional sound recognition

slide-33
SLIDE 33

33

IQinAbox

IQinAbox

  • cloud based data science

Cloud Output Data Modelling Researchers Implement
