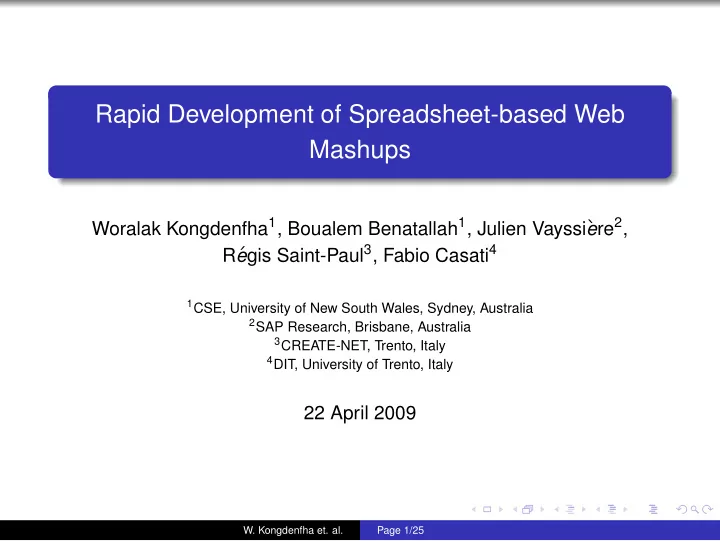

Rapid Development of Spreadsheet-based Web Mashups

Woralak Kongdenfha1, Boualem Benatallah1, Julien Vayssi` ere2, R´ egis Saint-Paul3, Fabio Casati4

1CSE, University of New South Wales, Sydney, Australia 2SAP Research, Brisbane, Australia 3CREATE-NET, Trento, Italy 4DIT, University of Trento, Italy

22 April 2009

• W. Kongdenfha et. al.

Page 1/25

Service Oriented Architecture (SOA)

Integrated Applications

Applications and data sources are autonomously developed and deployed Proprietary technologies (communication protocols, data formats, business and presentation logic) Costly development and maintenance of integrated applications especially in large and dynamic environments

SOA - Main Principles

Compliance to standards (protocols and languages) Virtualisation (functionality, data) Composition (reuse)

• W. Kongdenfha et. al.

Page 2/25

Web2.0, Mashups

SOA: connects systems by process-based composition Web 2.0 enables communities and sharing among users Mashups: Proliferation of creating websites by composing other websites as seen in ProgrammableWeb.com (novel form of composition) Key Enabler of Web 2.0 is the APIs (e.g., SOAP , REST) Mashups are typically developed by professional programmers (using AJAX and HTML) Needs to bring benefits of composition to end-users

• W. Kongdenfha et. al.

Page 3/25

Spreadsheet-based Web data mashups

Aim: to bring the benefits of composition to end-users How: provide a spreadsheet-based framework for Web mashups development Why: spreadsheets is one of the most successful end-user programming environment [SSM05, EAKC06, NM90, JBB03]

flexible data model, incremental approach for building fairly complex applications with immediate feedback, analysis and manipulation functions spanning various application domains, e.g., financial, statistics.

• W. Kongdenfha et. al.

Page 4/25

Spreadsheet-based Web Data Mashups

Data Repository CRM Google News Nasdaq

Challenges Accessing and representing complex data within spreadsheets Synchronization of spreadsheet data and Web data Reuse-driven of spreadsheet-based Web mashups Easy-manipulation of complex data in spreadsheets

• W. Kongdenfha et. al.

Page 5/25

Spreadsheet-based Web Mashups Development Framework

Spreadsheet-based Mashup Patterns Spreadsheet-based Mashup Patterns Presentation Components Presentation Components Presentation Components Presentation Components Presentation Components Interaction Components Presentation Components Presentation Components Data View Components Spreadsheet-based Mashup Patterns

Component Model

Data Repository CRM Google News Nasdaq

Contributions Mapping language between data services/spreadsheet presentation (EDBT’08) Component model for spreadsheet-based Web data mashups Spreadsheet-based Web mashup patterns Drag-and-drop reorganization of structured data in spreadsheets

• W. Kongdenfha et. al.

Page 6/25

Outline

Background and Challenges SpreadATOR approach

Mapping language between data services/spreadsheet presentation (EDBT’08) Component model for spreadsheet-based Web data mashups Spreadsheet-based Web mashup patterns Drag-and-drop reorganization of structured data in spreadsheets

Related Work Conclusion and Future Work

• W. Kongdenfha et. al.

Page 7/25

Mapping language between data services/spreadsheet presentation (EDBT’08)

interposes an ER-based data model (data services [CN08]) between spreadsheets and heterogeneous data sources; thus enables uniform data access proposes a mapping language between data service and spreadsheet data models; thus allows accessing and representing structured data within spreadsheets

Data Sources News Suppliers Orders Contacts Company Stock Physical Model Data Services on Logical Model Data model (EDM) Data access API (REST) Service Client on Spreadsheet Application

Spreadsheet application A B C D 1 2 3 4 40.5% http://www.nasdaq.com.. 21.59% RATE Symbol Volume%Change Price%Change

Data model : grid Stock News Company

JDBC SOAP JSON Custom B1 = http://www.nasdaq.com/Stock[001] B2 = <<1.B1>>/#symbol B3 = <<1.B1>>/#Volumn%Change B4 = <<1.B1>>/#Price%Change C2 = <<1.B1>>/_symbol C3 = <<1.B1>>/_Volumn%Change C4 = <<1.B1>>/_Price%Change

Data service/Spreadsheet Mappings SpreadATOR (Mappings) Repository

• W. Kongdenfha et. al.

Page 8/25

Component model for spreadsheet-based Web data mashups

Services Operations

• RefreshView()
• ModifyAttr()

Events

• ViewUpdated()

Data View Component

Data View Operations

• RefreshTable()

Events

• Modified()

Presentation Component Interaction Component

Data to Tabular Interaction rules Tabular to Data Interaction rules Render the presentation Handles user interactions Pull/Subscribe Data access Inter-component Synchronization Presentation Mapping Specification

• W. Kongdenfha et. al.

Page 9/25

• 1. Data view components

allow accessing data from external data sources accessible through data services use a variant of the ER model to describe structure of underlying data sources

NasdaqStock(Symbol, Volume, Price, News, *GoogleNews) GoogleNews(title, link, guid, category, pubDate, description)

adapters are required when accessing data from non-data service sources two types of data view components: push component and pull component consist of a set of operations and events that allows its interactions with other components of the model

• perations: dv:RefreshView(), dv:ModifyAttr()

events: D_ViewUpdated()

• W. Kongdenfha et. al.

Page 10/25

• 2. Presentation components

allow displaying data in the tabular grid of spreadsheets presentation specification

describes how the contents of a data view component is mapped to the tabular display of spreadsheet is modeled with the following constructs: ATTRIBUTE, VALUE, RECORD, SET, SHEET

user-defined label

…

VALUE<Cx, Cy+2>

…

VALUE<Cx+k, Cy+2>

…

ATTRIBUTE<Cx, Cy+1> ATTRIBUTE<Cx+k, Cy+1> VALUE<Cx, Cy+j+1>

…

VALUE<Cx+k, Cy+j+1>

consists of a set of operations and events

• perations: modifyVALUE(), insertATTR()

events: P_VALUEChanged(), P_VALUEDeleted()

• W. Kongdenfha et. al.

Page 11/25

• 3. Interaction components

the role of interaction components is to synchronize data view and presentation components Data-to-Tabular Mappings (DTM) definition

binds contents of a data view component to presentation specification

〈 Cx , Cy 〉 = dv:getObjects() 〈 Cx+k, Cy+1 〉 = dv:getAttrName(o1,ak) ; 0 < k < dv:countAttrs(o1) 〈 Cx+k , Cy+2+j 〉 = dv:getAttrValue(oj,ak) ; 0 < j < dv:countObjs( 〈Cx ,Cy〉 ) 0 < k < dv:countAttrs(oj) (1) (2) (3)

Interaction rules establish publish/subscribe relationships between data view and presentation components

Presentation-data interaction rule <interaction publisher=“StockTable” event=“P_VALUEChanged” subscriber=“StockDataView”

• peration=“dv:modifyValue()” ”>

Data-presentation interaction rule <interaction publisher=“StockDataView” event=“D_ViewUpdated()” subscriber=“StockTable”

• peration=“ui:Refresh()” ”>
• W. Kongdenfha et. al.

Page 12/25

Outline

Background and Challenges SpreadATOR approach

Mapping language between data services/spreadsheet presentation (EDBT’08) Component model for Web data mashups Spreadsheet-based Web mashup patterns Drag-and-drop reorganization of structured data in spreadsheets

Related Work Conclusion and Future Work

• W. Kongdenfha et. al.

Page 13/25

Spreadsheet-based Web mashup patterns

Benefits of the proposed component model

enables the synchronization of spreadsheet data and Web data enables different tabular presentations enables bulk loading

However, it is difficult for non-professional users to build such a component model We propose the notion of spreadsheet-based Web mashup patterns

each pattern captures default behavior for creating Web data mashups (default data access method, presentation, and interaction features) shifts the development efforts from scratch to reuse

• W. Kongdenfha et. al.

Page 14/25

Spreadsheet-based Web mashup patterns (characterization)

CAISE’08: analysis of tabular presentations frequently found in spreadsheet applications WWW’09: captures common spreadsheet data presentations as presentation components

1 A 41.35% 21.4% LHCG 7 34.68% 19.3% NTLS 8 18.78% 27.0% THOR 6 32.17% 37.0% BEAT 5 21.59% 40.5% RATE 4 Price%Change Volumn%Change Symbol 3 StockTable 2 D C B 6 StockDetails 1 RATE Symbol 2 40.5% Change in Volumn 3 21.5% Change in Price 4 News News 5 … … 15 Price%Change Volumn%Change Symbol Price%Change Volumn%Change Symbol StockList C 32.17% Price%Change 14 37.0% Volumn%Change 13 BEAT Symbol 12 11 21.5% Price%Change 10 40.5% Volumn%Change 9 RATE Symbol 8 StockList 7 B A SK SK Cell Culture… Plasma … Name D N/A Alex Brian Mcnamee Elizabeth Alex… ACC_Owner E N/A Alex Brian Mcnamee Elizabeth Alex… ACC_Mngr F … 8 555444 444555 56388 ID C N/A 2222222 7 61293856288 1111111 BEAT 6 5 (03) 9389 1434 4 (03) 9389 1911 3088299 RATE 3 Phone Prospect 2 Contacts 1 G B A THORnews 4 LHCGnews 5 NTLSnews 6

Worksheet 1

BEATnews RATEnews NewsIndex B A 3 1 2 Selected stock’s ID

WorkSheet2

<table bc… <table bc… <table bc… <table bc… <table bc… description E Fri,17.. http://new. Sculpture… 6 Wed,01.. http://new. RATE hap.. 7 Thu,16.. http://new. American… 5 Wed,15.. http://new. Filmmaking.. 4 Mon,29.. http://new. BBB warns.. 3 pubDate link title 2 NewsTable 1 D B A

Side-by-side comparison of stock quotes (Table pattern)

THOR 4 LHCG 5 NTLS 6

Worksheet 1

B BEAT RATE StockInfo A 3 1 2 21.5% Price%Change 4 news News 5

Worksheet 2

3 2 1 B A 40.5% Volumn%Change RATE Symbol StockDetails Selected stock’s ID

Detail of a particular stock in another worksheet Summary of stock quotes Stock information with user- defined labels (Content pattern) A list of news related to a particular stock in another worksheet (Relationship Index pattern) Fast access to detailed information of an item of interest (index pattern) Stock details shown in a list (Repeater pattern) A list of stocks and their related contact information

• rganized in a nested structure (Hierarchical pattern)
• W. Kongdenfha et. al.

Page 15/25

Spreadsheet-based Web mashup patterns (Patterns usage and tool support)

3 4 5 6 7

• 1. provide URL of data

service

• 2. browse schema of data service
• 4. select a presentation

component to display data

• 3. specify query

conditions

• 5. specify sorting condition on

the query result

• 7. specify how the data should

be refreshed

• 6. specify the number of content

should be displayed at a time

• W. Kongdenfha et. al.

Page 16/25

Spreadsheet-based Web mashup patterns (Table Mashup Pattern)

Contents displayed on the spreadsheet

user-defined label

…

VALUE<Cx, Cy+2>

…

VALUE<Cx+k, Cy+2>

…

ATTRIBUTE<Cx, Cy+1> ATTRIBUTE<Cx+k, Cy+1> VALUE<Cx, Cy+j+1>

…

VALUE<Cx+k, Cy+j+1>

NasdaqStock(Symbol, Volume, Price, News) Data view component Presentation component 〈 Cx , Cy 〉 = dv:getObjects() 〈 Cx+k, Cy+1 〉 = dv:getAttrName(o1,ak) ; 1 ≤ k ≤ dv:countAttrs(o1) 〈 Cx+k , Cy+1+j 〉 = dv:getAttrValue(oj,ak) ; 1 ≤ j ≤ dv:countObjs( 〈Cx ,Cy〉 ) 1 ≤ k ≤ dv:countAttrs(oj)

1 A 41.35% 21.4% LHCG 7 34.68% 19.3% NTLS 8 18.78% 27.0% THOR 6 32.17% 37.0% BEAT 5 21.59% 40.5% RATE 4 Price%Change Volumn%Change Symbol 3 StockTable 2 D C B

Interaction component

<<1.B2>>.[3]/_ Price%Change <<1.B2>>.[3]/_ Volumn%Change <<1.B2>>.[3]/_symbol 7 <<1.B2>>.[2]/_ Price%Change <<1.B2>>.[2]/_ Volumn%Change <<1.B2>>.[2]/_symbol 6 <<1.B2>>.[1]/_ Price%Change <<1.B2>>.[1]/_ Volumn%Change <<1.B2>>.[1]/_symbol 5 <<1.B2>>.[0]/_ Price%Change <<1.B2>>.[0]/_ Volumn%Change <<1.B2>>.[0]/_symbol 4 <<1.B2>>.[4]/_ Price%Change <<1.B2>>.[0]/#Price%Change D <<1.B2>>.[4]/_ Volumn%Change <<1.B2>>.[0]/#Volumn%Change C <<1.B2>>.[4]/_symbol <<1.B2>>.[0]/#symbol http://www.nasdaq.com.. B 8 3 2 1 A

Formulas generated from Table Mashup Pattern

• W. Kongdenfha et. al.

Page 17/25

Spreadsheet-based Web mashup patterns (Runtime Behavior)

<interaction publisher=“StockTable” event=“P_VALUEChanged” subscriber=“StockDataView”

• peration=“dv:modifyValue()”>

<interaction publisher=“StockDataView” event=“D_ViewUpdated()” subscriber=“StockTable”

• peration=“ui:Refresh()”>

StockTable Interaction Component StockDataView (2) process cell manipulation internally by calling operation ModifyVALUE (1) user edits content

• f cell B4

(3) fires event P_VALUEchanged (B4,RATE,RATECorp) (4) Invoke operation modifyValue (symbol,RATE,RATECorp)

At runtime, when user edits contents of a VALUE cell, the interaction component performs the following tasks:

Capturing event from the presentation component Invoking operations of subscribing components

• W. Kongdenfha et. al.

Page 18/25

Spreadsheet-based Web mashup patterns (Tool support)

Service Browser Query Folders Object Browser Formula Editor

• W. Kongdenfha et. al.

Page 19/25

Outline

Background and Challenges Integration of spreadsheets with SOA SpreadATOR approach

Mapping language between data services/spreadsheet presentation (EDBT’08) Component model for Web data mashups Spreadsheet-based Web mashup patterns Drag-and-drop reorganization of structured data in spreadsheets

Example Application Related Work Conclusion and Future Work

• W. Kongdenfha et. al.

Page 20/25

Drag-and-drop reorganization of structured data

Spreadsheet paradigm supports data manipulation When introducing new abstractions in spreadsheets, SpreadATOR also considers providing data manipulation operators for such abstractions

• W. Kongdenfha et. al.

Page 21/25

Related Work (1/2)

Existing tools in Spreadsheets (Excel) XML mapping tool, SQL importation, Web data importation, Analysis Services No support for complex types as they are converted to Excel’s supported types. Hence it is not possible to access the original document Lose of the nested structure of data as the tool denormalizes the hierarchical structure into flat-table Adherence to various tools dealing with external data importation in spreadsheets gives us hope that SpreadATOR will be adopted Spreadsheet Data Presentations Lakshmanan’s Tabular Data Model [LSGK98, GLS96] provides a powerful data model to present broad classes of tables (relation/spreadsheets) the specification of presentations needs to be done manually Gencel [ACKE, EAKC06, EE] a specific table presentation (since the purpose is to ensure spreadsheet correctness) supports for the specification of presentation through templates SpreadATOR approach is in between the two by defining a small set of frequently used spreadsheet data presentations and provides support for their specifications

• W. Kongdenfha et. al.

Page 22/25

Related Work (2/2)

Inferring spreadsheet data presentation templates infer templates from existing spreadsheets [AE06] (enables data exportation) SpreadATOR’s data presentation templates can be adopted by such approach Data-driven Web application development ASP .Net, PHP , JSF provide widgets for data presentation require web development skills WebML [CFB00] provide presentation patterns for Web applications development SpreadATOR follows spreadsheet paradigm and provide interactive importation and presentation with immediate results

• W. Kongdenfha et. al.

Page 23/25

Conclusion

SpreadATOR brings the benefits of SOA (Data Services) to end-users by providing a spreadsheet-based framework for Web data mashups development The integration of data services and spreadsheets raise challenges in the difference in their data models By enabling spreadsheet cells to contain object reference and queries, SpreadATOR allows the user to access structured data within spreadsheets SpreadATOR proposes a new component model that supports the synchronization between spreadsheet data and Web data SpreadATOR introduces a set of common spreadsheet-based Web mashup patterns that simplifies mashups development by shifting the development efforts from scracth to that of reuse

• W. Kongdenfha et. al.

Page 24/25

Future Work

Presentation components

We observed that Web data are frequently displayed using visualization components such as timeline, maps, etc. We are investigating how to integrate common visualization components into SpreadATOR, while preserving spreadsheet paradigm

Composition patterns

SpreadATOR currently focuses on the integration at the data layer To enable service composition within spreadsheets, more complex patterns such as workflow patterns need to be considered

• W. Kongdenfha et. al.

Page 25/25

Robin Abraham, Irene Cooperstein, Steve Kollmansberger, and Martin Erwig. Automatic generation and maintenance of correct spreadsheets.

• Proc. ICSE’05.

Robin Abraham and Martin Erwig. Inferring templates from spreadsheets. In ICSE ’06: Proceedings of the 28th international conference on Software engineering, pages 182–191, New York, NY, USA, 2006. ACM. Stefano Ceri, Piero Fraternali, and Aldo Bongio. Web modeling language (webml): a modeling language for designing web sites. In Proc. WWW’00, pages 137–157, 2000. Pablo Castro and Anil Nori. Astoria: A programming model for data on the web. Data Engineering, 2008. ICDE 2008. IEEE 24th International Conference on, pages 1556–1559, April 2008. Martin Erwig, Robin Abraham, Steve Kollmansberger, and Irene Cooperstein. Gencel: a program generator for correct spreadsheets.

• J. Funct. Program., 16(3):293–325, 2006.

Gregor Engels and Martin Erwig. Classsheets: automatic generation of spreadsheet applications from object-oriented specifications. In Proc. ASE ’05. Marc Gyssens, Laks V. S. Lakshmanan, and Iyer N. Subramanian. Tables as a paradigm for querying and restructuring (extended abstract).
