SLIDE 1

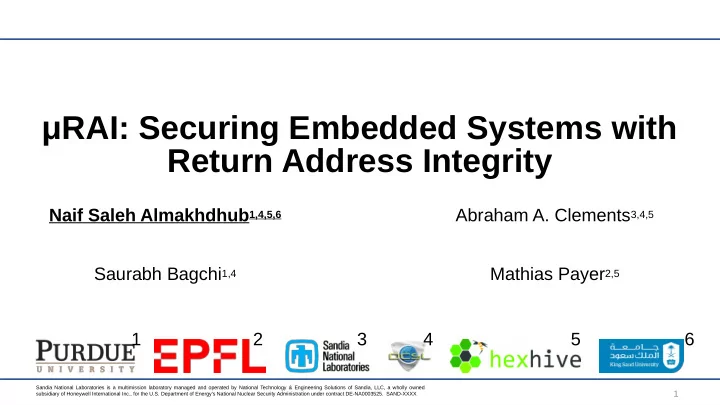

μRAI: Securing Embedded Systems with Return Address Integrity

1

1 2 3 4 5 6 Abraham A. Clements3,4,5 Saurabh Bagchi1,4 Mathias Payer2,5 Naif Saleh Almakhdhub1,4,5,6

Sandia National Laboratories is a multimission laboratory managed and operated by National Technology & Engineering Solutions of Sandia, LLC, a wholly owned subsidiary of Honeywell International Inc., for the U.S. Department of Energy’s National Nuclear Security Administration under contract DE-NA0003525. SAND-XXXX

SLIDE 2

Current State of Security

[1] https://www.wired.com/story/broadpwn-wi-fi-vulnerability-ios-android/ [2] https://keenlab.tencent.com/en/2020/01/02/exploiting-wifi-stack-on-tesla-model-s/ [3] https://www.securityweek.com/rise-ics-malware-how-industrial-security-threats-are-becoming-more-surgical

2

[1] [2] [3]

Target:

Embedded and IoT devices Running Microcontroller Systems (MCUS)

Attack:

Control-flow Hijacking

SLIDE 3

MCUS Challenges

3

Desktop MCUS

… … … … Code

Flash (code)

Stack … Heap … Data

RAM (Data)

… Stack … … … Heap … … Data … Code

Memory

0x08055555 0x08022222 0x08011111 0x08000000 0x08999555 0x08777222 0x08555111 0x08111000 0x08000000 0x02000000 0x02050000

 Large virtual memory (GBs)  Basic defenses (e.g., ASLR)  DEP  Small physical memory (MBs Flash, KBs RAM)  Basic defenses (e.g., ASLR)  Smaller code  DEP (Disabled  Fixable) Larger code

SLIDE 4

MCUS Defenses for Return Addresses (Conceptual)

4

Security Runtime Overhead 10%

Usage Location Integrity

μRAI

Return Address Integrity + Low runtime overhead + No special hardware Limited Security Guarantees High Overhead

Shadow Stack + TEE Randomized Safe Stack Safe Stack + Software Fault Isolation Shadow Stack + MPU CFI

Special hardware required Without extra hardware

SLIDE 5

MCUS Defenses for Return Addresses (Related Work)

5

Security Runtime Overhead 10%

Usage Location Integrity

μRAI

Return Address Integrity + Low runtime overhead + No special hardware Limited Security Guarantees High Overhead

EPOXY

(SafeStack) [S&P17]

CFI CaRE

(Shadow stack) [RAID17]

ACES

[SEC18]

Minion

[NDSS18]

SCFP

[EuroS&P18]

C-FLAT

[CCS16]

LiteHAX

[ICCAD18]

uXOM

[SEC19]

RECFISH

[ECRTS 2019]

μArmor

[EuroS&P19]

Special hardware required Without extra hardware

Symbiote

[RAID11]

SLIDE 6

Return Address Integrity (RAI)

Every attack requires corrupting a return addresses by overwriting it
Main limitation of defenses  return addresses are in writable memory
Example: Information hiding
Key solution is to prevent an attacker from corrupting return addresses.

6

RAI Property:

Ensure the return address is never writable except by an authorized instruction.
Return addresses are never pushed to the stack or any writable memory by an adversary.

SLIDE 7

Threat Model & μRAI Protection

7

Normal application

Func2 main Func3 Func1 Func6 Func4 Func7 Func5

Unprivileged Privileged

MPU, VTOR

Corrupt return address

r corrupt sensitive

Memory Mapped IO (MMIO) Corrupt return address

μRAI

Func2 main Func3 Func1 Func6 Func4 Func7 Func5 MPU, VTOR : Normal function : Callable within exception handler : MMIO : State register encoding : Software-Fault Isolation (SFI)

Reads from memory
Writes to memory
Knows the code layout
Targets backward-edges

SLIDE 8

8

μRAI: Overview

State Register Read + eXecute Jump Table

Jump return_location1 Jump return_location2 …

1

Enforces the RAI property

3

Low runtime overhead

2

Protects exception handlers and privileged execution Exception handler software-fault isolation Relative jump target lookup routine

SLIDE 9

9

μRAI: Overview

State Register Read + eXecute Jump Table

Jump return_location1 Jump return_location2 …

1

Enforces the RAI property

3

Low runtime overhead

2

Protects exception handlers and privileged execution Exception handler software-fault isolation Relative jump target lookup routine

SLIDE 10

μRAI and the State Register

State Register (SR):
Can be any general-purpose register  exclusively used by μRAI
Never spilled  cannot be overwritten through a memory corruption
Does not contain a return address  encoded values to resolve the return location
Example call graph:
Each edge  call
How encode SR?
An XOR chain

10

Func2 Func1 main

SR SR SR SR

Func2 reads the SR to resolve the correct return location

SLIDE 11

μRAI: Terminology

11

Address <Func1>: … SR[Enc] = SR[Enc] key1 … Call Func2 Func1_1 SR[Enc] = SR[Enc] key1 … … … SR[Enc] = SR[Enc] key2 … Call Func2 Func1_2 SR[Enc] = SR[Enc] key2 … … Address <Func2>: … … … … … … … … … … … … … … … …

Function Keys (FKs): Hard-coded keys used to encode the SR

SR[Recursive] SR[Encoded] C

SLIDE 12

μRAI: Terminology

12

Address <Func1>: … SR[Enc] = SR[Enc] key1 … Call Func2 Func1_1 SR[Enc] = SR[Enc] key1 … … … SR[Enc] = SR[Enc] key2 … Call Func2 Func1_2 SR[Enc] = SR[Enc] key2 … … Function ID (FID) Return Target C Jump return_location1 ELSE Jump ERROR Address <Func2>: … … … … … … … … … … … … … … … … Function ID (FID) Return Target C key1 ⊕ Jump Func1_1 C key2 ⊕ Jump Func1_2 ELSE Jump ERROR

SR[Recursive] SR[Encoded] C

Function IDs (FIDs): Possible values of the SR for the function

SLIDE 13

μRAI: Terminology

13

Address <Func1>: … SR[Enc] = SR[Enc] key1 … Call Func2 Func1_1 SR[Enc] = SR[Enc] key1 … … … SR[Enc] = SR[Enc] key2 … Call Func2 Func1_2 SR[Enc] = SR[Enc] key2 … … Function ID (FID) Return Target C Jump return_location1 ELSE Jump ERROR Address <Func2>: … … … … … … … … … … … … … … … … Function ID (FID) Return Target C key1 ⊕ Jump Func1_1 C key2 ⊕ Jump Func1_2 ELSE Jump ERROR

SR[Recursive] SR[Encoded] C

Function Lookup Table (FLT): List of FIDs for the function.

SLIDE 14

μRAI: Transformation

14

Address <Func1>: … SR[Enc] = SR[Enc] key1 … Call Func2 Func1_1 SR[Enc] = SR[Enc] key1 … … … SR[Enc] = SR[Enc] key2 … Call Func2 Func1_2 SR[Enc] = SR[Enc] key2 … … Function ID (FID) Return Target C Jump return_location1 ELSE Jump ERROR Address <Func2>: … … … … … … … … … … … … … … … … Function ID (FID) Return Target C key1 ⊕ Jump Func1_1 C key2 ⊕ Jump Func1_2 ELSE Jump ERROR

SR[Recursive] SR[Encoded] C

Encode the SR and call Func2

SLIDE 15

μRAI: Transformation

15

Address <Func1>: … SR[Enc] = SR[Enc] key1 … Call Func2 Func1_1 SR[Enc] = SR[Enc] key1 … … … SR[Enc] = SR[Enc] key2 … Call Func2 Func1_2 SR[Enc] = SR[Enc] key2 … … Function ID (FID) Return Target C Jump return_location1 ELSE Jump ERROR Address <Func2>: … … … … … … … … … … … … … … … … Function ID (FID) Return Target C key1 ⊕ Jump Func1_1 C key2 ⊕ Jump Func1_2 ELSE Jump ERROR

SR[Recursive] SR[Encoded] C key1 SR[Recursive] SR[Encoded]

Func2 reads the SR and executes the corresponding direct jump

SLIDE 16

μRAI: Transformation

16

Address <Func1>: … SR[Enc] = SR[Enc] key1 … Call Func2 Func1_1 SR[Enc] = SR[Enc] key1 … … … SR[Enc] = SR[Enc] key2 … Call Func2 Func1_2 SR[Enc] = SR[Enc] key2 … … Function ID (FID) Return Target C Jump return_location1 ELSE Jump ERROR Address <Func2>: … … … … … … … … … … … … … … … … Function ID (FID) Return Target C key1 ⊕ Jump Func1_1 C key2 ⊕ Jump Func1_2 ELSE Jump ERROR

SR[Recursive] SR[Encoded] C key1 SR[Recursive] SR[Encoded]

Func2 returns correctly and the SR is decoded

SLIDE 17

μRAI: Transformation

17

Address <Func1>: … SR[Enc] = SR[Enc] key1 … Call Func2 Func1_1 SR[Enc] = SR[Enc] key1 … … … SR[Enc] = SR[Enc] key2 … Call Func2 Func1_2 SR[Enc] = SR[Enc] key2 … … Function ID (FID) Return Target C Jump return_location1 ELSE Jump ERROR Address <Func2>: … … … … … … … … … … … … … … … … Function ID (FID) Return Target C key1 ⊕ Jump Func1_1 C key2 ⊕ Jump Func1_2 ELSE Jump ERROR

SR[Recursive] SR[Encoded] C

The previous SR value is restored

SLIDE 18

μRAI: Transformation

18

Address <Func1>: … SR[Enc] = SR[Enc] key1 … Call Func2 Func1_1 SR[Enc] = SR[Enc] key1 … … … SR[Enc] = SR[Enc] key2 … Call Func2 Func1_2 SR[Enc] = SR[Enc] key2 … … Function ID (FID) Return Target C Jump return_location1 ELSE Jump ERROR Address <Func2>: … … … … … … … … … … … … … … … … Function ID (FID) Return Target C key1 ⊕ Jump Func1_1 C key2 ⊕ Jump Func1_2 ELSE Jump ERROR

SR[Recursive] SR[Encoded] C

The same happens for other calls. Func1 can then return correctly

SLIDE 19

19

μRAI: Overview

State Register Read + eXecute Jump Table

Jump return_location1 Jump return_location2 …

1

Enforces the RAI property

3

Low runtime overhead

2

Protects exception handlers and privileged execution Exception handler software-fault isolation Relative jump target lookup routine

SLIDE 20

μRAI: Enforce RAI for exception handlers

Exception handlers execute with privileges
Can disable the MPU  enable code injection
Can corrupt exception stack frame  break RAI property
Solution:
Apply SFI only to functions callable by exception handlers
Limit SFI overhead compared to full-SFI

20

Func1 Func2 Func3 Func5 Func4 main Exception Handler Func6

MPU VTOR Safe region Privileged Software-Fault Isolation

SLIDE 21

21

μRAI: Overview

State Register Read + eXecute Jump Table

Jump return_location1 Jump return_location2 …

1

Enforces the RAI property

3

Low runtime overhead

2

Protects exception handlers and privileged execution Exception handler software-fault isolation Relative jump target lookup routine

SLIDE 22

Target Lookup Routine (TLR)

How can we find the correct direct jump in the FLT efficiently?
Use a relative jump before the FLT
Resolve the correct return location efficiently regardless of FLT size

22

Address<Func1>: … … … … … … … Jump PC+SR FID Return Target 1 Jump location1 2 Jump location2 3 Jump ERROR 4 Jump location4 5 Jump location5 Use SR as an index

f a jump table

Align the FLT  make SR = 4 Assume the correct return location is location4 Comparing all FID can be slow!

SLIDE 23

23

μRAI: Overview

State Register Read + eXecute Jump Table

Jump return_location1 Jump return_location2 …

1

Enforces the RAI property

3

Low runtime overhead

2

Protects exception handlers and privileged execution Exception handler software-fault isolation Relative jump target lookup routine

SLIDE 24

Evaluation

Five MCUS applications on Cortex-M4:
PinLock
FatFs_uSD
FatFs_RAM
LCD_uSD
Animation
CoreMark benchmark[1]
Standard MCUS performance benchmark

[1] EEMBC, “Coremark - industry-standard benchmarks for embedded systems,” http://www.eembc.org/coremark

24

SLIDE 25

RX Memory

Security Evaluation Using PinLock: Unlock The Lock

25

… … … … … …

RW Memory

buffer … … … … … …

RW Memory

ptr … … … … … …

RW Memory

buff

Jump Table

Jump return_location1 …

Buffer overflow Arbitrary write Stack pivot

buffer No return address to write to…

SP SP

Sensitive MMIO and Safe region Privileged

State Register

 μRAI prevents all control-flow hijacking attack scenarios targeting return addresses

No return address to pop from the stack No return address to

verflow…

SLIDE 26

Performance results

Requiring full-SFI results in high overhead  average of 130.5%
μRAI results in low overhead  average of 0.1%

26

SLIDE 27

μRAI: Conclusion

Control-flow hijacking on MCUS is a threat
μRAI secures MCUS against control-flow hijacking
Enforces the RAI property for MCUS  protects backward edges
Complemented with type-based CFI  end-to-end code pointer protection
Presents a portable encoding scheme
Does not require special hardware features (only a register and an MPU)
Applicable to other systems
Low runtime overhead

https://github.com/embedded-sec/uRAI

27

SLIDE 28

Backup Slides

28

SLIDE 29

Challenge: Path Explosion

29

Func3 Func1 Func2 main

SR[Rec] SR[Enc] [ ] SR[Rec] SR[Enc] SR[Rec] SR[Enc] SR[Rec] SR[Enc] SR[Rec] SR[Enc] [ ] SR[Rec] SR[Enc] SR[Rec] SR[Enc] [ ] SR[Rec] SR[Enc]

Func3 has 2 call sites
FLT is size is 4!

SLIDE 30

Path Explosion Solution: Segmentation

State register segmentation
Functions only use the bits in their assigned segment.

30

Recursion counter (Higher N bits) Encoded value (Lower 32-N bits) Segment 1

…

Segment K Segment M … Segment 2 Segment 1

SLIDE 31

Path Explosion Solution: Segmentation

31

Func3 Func1 Func2 main

SR[Rec] SR[Enc2] SR[Enc1] [ SR[Rec] SR[Enc2] SR[Enc1] SR[Rec] SR[Enc2] SR[Enc1] SR[Rec] SR[Enc2] SR[Enc1] SR[Rec] SR[Enc2] SR[Enc1] [ ] SR[Rec] SR[Enc2] SR[Enc1] SR[Rec] SR[Enc2] SR[Enc1] [ ] Not used SR[Rec] SR[Enc2] SR[Enc1] Not used

Segmentation reduces

FLT from 4 to 2

SLIDE 32

μRAI: Scalability

What if no more values can be found for the SR?
Solution:
Partition the call graph if no solution is found
Entering a new partition

Save and reset the SR to a privileged safe region

Returning to a previous partition

 Restore the SR

32

Func1 Func2 Func3 Func5 Func4 main Exception Handler Func6

Safe Region Privileged

SLIDE 33

Memory results

Moderate overhead for large applications

33

Average 15.2% Average FLT + Instrmnt. 34.6% EH-SFI 9.5% Type-CFI 10%

SLIDE 34

μRAI vs. backward edge Type-based CFI

[1] N. Carlini, A. Barresi, M. Payer, D. Wagner, and T. R. Gross, “Controlflow bending: On the effectiveness of control-flow

integrity,” in USENIX SEC15

161–176

34

App Type-based CFI Target Set Max. Ave. PinLock 8 3 FatFs_uSD 94 21 FatFs_RAM 94 27 LCD_uSD 49 11 Animation 49 11 CoreMark 52 12

Overall Average 58 14

μRAI eliminates the remaining attack surface for control-flow bending attacks[1]

SLIDE 35

Store Instructions Protected with EH-SFI

35

App # of Store instruction

Static Total (Static/Total)% Dynamic

PinLock 56 516 10.9 7 FatFs_uSD 99 1,802 5.5 906K FatFs_RAM 7 1,116 0.6 7 LCD_uSD 99 2,814 3.5 48K Animation 99 2,760 3.6 66K CoreMark 56 1,024 5.5 7

SLIDE 36

SR Layout

The SR has two parts:
ENC: Encoded value
REC: Recursion counter

36

SR[Rec] SR[Enc] SR[Rec] SR[Enc] SR[Rec] SR[Enc] SR[Rec] SR[Enc]

Func3 main

Cannot use XOR with recursion
Collision occurs with existing values Func1

before the call after return If  recursion

SLIDE 37

μRAI: Transformation

37

Address <Func1>: … SR[Enc] = SR[Enc] key1 … Call Func2 Func1_1 SR[Enc] = SR[Enc] key1 … … … SR[Enc] = SR[Enc] key2 … Call Func2 Func1_2 SR[Enc] = SR[Enc] key2 … … Function ID (FID) Return Target C Jump return_location1 ELSE Jump ERROR Address <Func2>: … SR[Rec]++ … Call Func2 Func2_1 SR[Rec]-- … … … IF SR[Rec] > 0 … Jump Func2_1 … ELSE … … Function ID (FID) Return Target C key1 ⊕ Jump Func1_1 C key2 ⊕ Jump Func1_2 ELSE Jump ERROR

If recursive  use a counter (recursion is discouraged in MCUS)

SR[Rec] SR[Enc] C

SLIDE 38

SR Encoding Illustration

Consider the following call graph with the SR initialized to a value = C
Each edge  call
XOR before the call and after returning with hardcoded keys
An edge is walked  XOR the SR

38

SR SR SR C SR SR SR SR

Func2 main Func3

XORing again after returning  restores the previous SR

SLIDE 39

μRAI’s Overview

39

LLVM Source code

μRAI

Call Graph Analyzer Generates caller/callees for each function Encoder Generates function keys and encodes SR Instrumentation μRAI binary LLVM IR

SLIDE 40

μRAI: Workflow

Generates caller/callee list.
Sets the minimum possible FLT.
Example: Func5 is called from

4 locations → Min. FLT >= 4

40

Func1 Func2 Func3 Func5 Func4

2 2 4 3 Function

Min. FLT

DFS FLT Segmented FLT Func1

Func2
Func3

4 Func4 3 Func5 4

Call Graph Analyzer Encoder Instrumentation

SLIDE 41

μRAI: Workflow

Performs Depth First Search (DFS) on

the call graph to generate initial FLT

41

Call Graph Analyzer Encoder Instrumentation

Function

Min. FLT

DFS FLT Segmented FLT Func1

Func2
Func3

4 4 Func4 3 12 Func5 4 16

Func1 Func2 Func3 Func5 Func4

2 2 4 3

SLIDE 42

μRAI: Workflow

Performs Depth First Search (DFS) on

the call graph to generate initial FLT

Configures the SR segment size to

reduce memory overhead

Generates FKs/FIDs

42

Call Graph Analyzer Encoder Instrumentation

Function

Min. FLT

DFS FLT Segmented FLT Func1

Func2
Func3

4 4 4 Func4 3 12 3 Func5 4 16 4

Func1 Func2 Func3 Func5 Func4

2 2 4 3 Use first SR segment Use second SR segment

SLIDE 43

μRAI: Workflow

Instruments call sites with

encoding/decoding instructions

Remove any return instruction or uses
f the SR
Example: POP{PC}, PUSH{SR}
Instruments Target Lookup Routine (TLR) and FLT

43

Call Graph Analyzer Encoder Instrumentation Address <Func1>: … SR = SR function_key … Call Func2 … SR = SR function_key … TLR: Execute the instruction where the FID = SR FID Return Target 1 Jump location1 2 Jump location2 … …

SLIDE 44

Microcontroller Systems (MCUS)

Embedded systems and IoT run on Microcontroller systems (MCUS)
MCUS:
Run a single static binary application directly on hardware
Can be with/without an lightweight OS (bare-metal)
Direct access to peripherals and processor
Can be standalone device or part of larger system
Advanced hardware features are not commonly available
Example: Trusted Execution Environment (TEE)
Examples:
WiFi System on Chip
Cyber-physical systems
UAVs

44

SLIDE 45

Security Evaluation Using PinLock

Attacker tries to unlock the lock using a vulnerability in rx_from_uart
Attacker can read, write to anywhere in memory
Attacker knows the entire code layout
Even the current instance of the firmware

45

Attack Prevented Buffer overflow  Arbitrary write  Stack pivot 

μRAI prevents all control-flow hijacking attack scenarios targeting return addresses

SLIDE 46

MCUS Challenges

46

Desktop MCUS

… … … … …

Flash (code)

… … … … …

RAM (Data)

… Stack … … … Heap … … Data … Code

Memory

Stack Heap Code Data

0x08055555 0x08022222 0x08011111 0x08000000 0x08999555 0x08777222 0x08555111 0x08111000 0x08000000 0x02000000 0x02050000

 Virtual memory (MMU)  Large Memory (GB)  ASLR  Stack cookies  DEP  Special HW features (e.g., TEE)  Physical Memory (MPU)  Small Memory (MBs Flash, KBs RAM)  ASLR  Stack cookies (Inapplicable, or have limited security) DEP (Disabled  Fixable)  Smaller Code  Special HW features (Not commonly available)

SLIDE 47

Control-Flow Hijacking

Attacker gains arbitrary execution
Originates from memory corruption vulnerability
Code pointers:
Forward edges
Backward edges

47

Normal application

… … … … … … …

Data (RW)

Code Pointer ptr … Func1 Func2 Func3 Func4 Func5 …

Code (RX)

SLIDE 48

Forward edges:
Function pointers
Virtual calls (C++)
Control-Flow Integrity (CFI):
Calculates target set statically
Reduces target set significantly
Backward edges:
Return addresses
Current mechanisms:
Limited security guarantees
Example: Large target set for CFI
High runtime overhead
Require special hardware

48

Control-Flow Hijacking

f_ptr() Func1 Calls to Func1

Effective for MCUS 

SLIDE 49

Forward edges:
Function pointers
Virtual calls (C++)
Control-Flow Integrity (CFI):
Calculates target set statically
Reduces target set significantly
Backward edges:
Return addresses
Current techniques:
Limited security guarantees
Example: Large target set for CFI
High runtime overhead
Require special hardware

49

Control-Flow Hijacking

f_ptr() Func1 Calls to Func1

Control-flow hijacking attacks on

backward-edges remain a threat.

Example: Return Oriented

Programming (ROP)

Effective for MCUS 

SLIDE 50

Control-flow hijacking defenses

Great effort has been done by research community to protect the IoT.
TyTan[DAC15], TrustLite[EurSys14], C-FLAT [CCS16], nesCheck[AsiaCCS17],

SCFP[EuroS&P18], LiteHAX[ICCAD18], CFI CaRE [RAID17], ACES[SEC18], MINION [NDSS18], EPOXY [S&P17]

Unfortunately, current defenses suffer from one of the following:

50

Limitation Example of a Defense Mechanism Information disclosure Randomization Only limit the attack surface CFI (large target set) Require extra hardware Shadow stack High overhead Memory safety

SLIDE 51

Normal Application

51

foo Func1 Func2 Func4 Func3 Func5 main … … … … buff … … …

Stack (RW Memory)

Return address *ptr_at_foo … Func1 Func2 Func3 Func4 Func5 system

Code (RX Memory)

system

Sample call graph

Func6

SLIDE 52

Usage Defenses: Control-Flow Integrity (CFI)

52

foo Func1 Func2 Func4 Func3 Func5 main … … … … buff … … …

Stack (RW Memory)

Return address *ptr_at_foo … Func1 Func2 Func3 Func4 Func5 system

Code (RX Memory)

system

Sample call graph

Func6

Defense:

SLIDE 53

Location Defense: Randomization

53

foo Func1 Func2 Func4 Func3 Func5 main … … … … buff … … …

Stack (RW Memory)

Return address *ptr_at_foo Func1 Func2 Func3 Func4 Func5 Func6 system

Code (RX Memory)

system

Sample call graph

Func6

Defense:

CFI

Return address Return address

??? Disclose the layout

Func5 Func2 Func4 system Func3 Func1 Func6

SLIDE 54

Integrity Defenses: Shadow Stack

54

foo Func1 Func2 Func4 Func3 Func5 main … … … … buff … … …

Stack (RW Memory)

Return address *ptr_at_foo … Func1 Func2 Func3 Func4 Func5 system

Code (RX Memory)

system

Sample call graph

Func6

Defense:

CFI Randomizatjon

… Return address …

Shadow Stack (Hardware Isolation)

System keeps 2 copies
f return address
Attacker cannot corrupt

shadow stack

Different return

addresses  Attack detected

SLIDE 55

Integrity Defenses: Shadow Stack

55

foo Func1 Func2 Func4 Func3 Func5 main … … … … buff … … …

Stack (RW Memory)

Return address *ptr_at_foo … Func1 Func2 Func3 Func4 Func5 system

Code (RX Memory)

system

Sample call graph

Func6

Defense:

CFI Randomizatjon Shadow stack

… Return address …

Shadow Stack (Hardware Isolation)

TEE not available
High overhead

SLIDE 56

State Register Layout

SR layout:

56

Recursion counter (Higher N bits) Encoded value (Lower 32-N bits)

SLIDE 57

μRAI Protection

Attacker:
Has arbitrary write and read vulnerability
Knows the code layout, even the current instance of the firmware
Targets backward edges.
μRAI is complemented with DEP and type-based CFI for forward edge.

57

Normal application μRAI

… … … … … … … … …

Stack

Return address ptr … … … … … … … … …

Stack

ptr SR = C (some value) ????

SLIDE 58

TLR with Segmentation

58

Address Func1: … … … Genral_Register = SR[Segment2] … Jump PC+General_Register

FID Return Target 1 Jump location1 2 Jump location2 3 Jump ERROR 4 Jump location4 5 Jump location5 Func1 uses segment 1 Let SR = 0x00005FFF

Recursion counter (Higher 8 bits) Encoded value (Lower 32-N bits) Segment 2 (12 bits) Segment 1 (12 bits)

Shift by segmentation

SLIDE 59

SR Encoding

59

Func3 Func1 Func2 main

SR SR SR SR SR C SR SR SR SR

Xor again after returning Xor is the inverse of itself
