5 4 3 2 1 rag & bone new york D 425 WEST 13TH STREET NEW YORK, NEW YORK 10014 DATE REVISION SIGNAGE 01.24.19 LOCATION PLAN PERMIT SET ARCHITECTURAL ISSUE PUBLIC HEARING 06.24.19 425 WEST 13TH STREET PRESENTATION SCOPE OF

slide-1
SLIDE 1

11 PROJECT DIRECTORY

ARCHITECTURAL ISSUE

SHEET SHEET TITLE DESCRIPTION SUBMISSION A-000.00 COVER SHEET NOTES X A-100.00 BUILDING PHOTOGRAPHS OVERALL BUILDING PHOTOGRAPHS X A-101.00 PROPOSED SIGNAGE PHOTOGRAPHS CLOSE-UP PHOTOGRAPHS X A-102.00 SIGN DRAWINGS & PHOTOGRAPHS SIGNAGE ELEVATION, SECTION,DETAILS, AND PHOTOS X A-103.00 SIGN PRECEDENTS SIGN PRECEDENTS IN GANSEVOORT HISTORIC DISTRICT X TOTAL ARCH PAGES 5

rag & bone

new york

425 WEST 13TH STREET NEW YORK, NEW YORK 10014

OWNER: JUSTIN SMITH RAG & BONE 416 W 13TH STREET NEW YORK, NY 10014 T: 646 564 5301 EMAIL: justin.smith@rag-bone.com ARCHITECT: ALEXANDER ZILBERMAN PROJECT ARCHITECT AZ ARCHITECTURE 111 JOHN STREET SUITE 2500 NEW YORK, NY 10038 T: 212 217 9007 EMAIL: alex@azarchdesign.com EXPEDITOR: STEPHANIE ROSADO PROJECT MANAGER WILLIAM DAILEY NYCCODE 125 W 43RD STREET NEW YORK, NY 10036 T: 212 586 2114 EMAIL: srosado@nyccode.com GOVERNING CODES: ALL WORK SHALL BE IN CONFORMANCE WITH, BUT NOT LIMITED TO THE REQUIREMENTS OF THE FOLLOWING AND ANY OTHER STATE AND LOCAL CODES HAVING JURISDICTION ADDRESS: 425 WEST 13TH ST. NEW YORK, NY, 10014 PROPERTY TYPE: LOFT OCCUPANCY TYPE: COMMERCIAL APPLICABLE BUILDING CODE: 2014 NEW YORK CITY BUILDING CODE ZONING: COMMERCIAL, M1-5 HISTORICAL DISTRICT: GANSEVOORT MARKET

5 LOCATION MAP

2014 BUILDING CODE - TENANT PROTECTION PLAN NOTES ALL CONSTRUCTION WORK TO COMPLY WITH SECTION 28-104.8.4 OF THE 2014 BUILDING CODE, AS FOLLOWS:
  • 1. EGRESS: AT ALL TIMES IN THE COURSE OF CONSTRUCTION
PROVISIONS SHALL BE MADE FOR ADEQUATE EGRESS AS REQUIRED BY THIS CODE AND THE TENANT PROTECTION PLAN SHALL IDENTIFY THE EGRESS THAT WILL BE PROVIDED. REQUIRED EGRESS SHALL NOT BE OBSTRUCTED AT ANY TIME EXCEPT WHERE APPROVED BY THE COMMISSIONER.
  • 2. FIRE SAFETY: ALL NECESSARY LAWS AND CONTROLS, INCLUDING
THOSE WITH RESPECT TO OCCUPIED DWELLINGS, AS WELL AS ADDITIONAL FIRE SAFETY MEASURES NECESSITATED BY CONSTRUCTION SHALL BE STRICTLY ENFORCED.
  • 3. HEALTH REQUIREMENTS: SPECIFICATION OF METHODS TO BE USED FOR
CONTROL OF DUST, DISPOSAL OF CONSTRUCTION DEBRIS, PEST CONTROL AND MAINTENANCE OF SANITARY FACILITIES, AND LIMITATION OF NOISE TO ACCEPTABLE LEVELS SHALL BE INCLUDED. 3.1 THERE SHALL BE INCLUDED A STATEMENT OF COMPLIANCE WITH APPLICABLE PROVISIONS OF LAW RELATING TO LEAD AND ASBESTOS.
  • 4. COMPLIANCE WITH HOUSING STANDARDS: THE REQUIREMENTS OF NEW
YORK CITY HOUSING AND MAINTENANCE CODE, AND WHERE APPLICABLE, THE NEW YORK STATE MULTIPLE DWELLING LAW SHALL BE STRICTLY ENFORCED.
  • 5. STRUCTURAL SAFETY: NO STRUCTURAL WORK SHALL BE DONE THAT MAY
ENDANGER THE OCCUPANTS.
  • 6. NOISE RESTRICTIONS: WHERE HOURS OF THE DAY OR DAYS OF THE
WEEK IN WHICH CONSTRUCTION MAY BE UNDERTAKEN ARE LIMITED PURSUANT TO THE NEW YORK CITY NOISE CONTROL CODE, SUCH LIMITATIONS SHALL BE STATED.
  • 7. ALL DWELLING UNITS WILL REMAIN OCCUPIED DURING CONSTRUCTION
WORK.

9 NOT USED

SCOPE OF WORK: EXTERIOR SIGNAGE INSTALLATION AT WESTERNMOST STOREFRONT, NO CHANGE OF USE, OCCUPANCY OR EGRESS.

8 GENERAL NOTES

LOCATION PLAN 425 WEST 13TH STREET NEW YORK , NY 10014 BLOCK: 646 LOT: 57 ZONING DISTRICT: M1-5 SECTION: H101.1 GENERAL: H105 DESIGN AND CONSTRUCTION: H106 ELECTRICAL: REQUIREMENT: AN OUTDOOR SIGN SHALL NOT BE ERECTED IN A MANNER THAT WOULD CONFUSE OR OBSTRUCT THE VIEW OF OR INTERFERE WITH EXIT SIGNS REQUIRED BY CHAPTER 10 OF THIS CODE OR WITH OFFICIAL TRAFFIC SIGNS, SIGNALS OR DEVICES. SIGNS AND SIGN SUPPORT STRUCTURES, TOGETHER WITH THEIR SUPPORTS, BRACES, GUYS AND ANCHORS, SHALL BE KEPT IN REPAIR AND IN PROPER STATE OF PRESERVATION. THE DISPLAY SURFACES OF SIGNS SHALL BE KEPT NEATLY PAINTED OR POSTED AT ALL
  • TIMES. NO SIGN SHALL PROJECT BEYOND THE STREET LINE EXCEPT AS PERMITTED BY CHAPTER 32 OF THIS CODE.
105.1 GENERAL REQUIREMENTS. SIGNS SHALL BE DESIGNED AND CONSTRUCTED TO COMPLY WITH THE PROVISIONS OF THIS CODE FOR USE OF MATERIALS, LOADS AND STRESSES. 105.2 PERMITS, DRAWINGS AND SPECIFICATIONS. WHERE A PERMIT IS REQUIRED, AS PROVIDED IN CHAPTER 1, CONSTRUCTION DOCUMENTS SHALL BE REQUIRED. THESE DOCUMENTS SHALL SHOW THE DIMENSIONS, MATERIAL AND REQUIRED DETAILS OF CONSTRUCTION, INCLUDING LOADS, STRESSES AND ANCHORS. IT IS THE RESPONSIBILITY OF THE PROPERTY OWNER TO HAVE EVERY SIGN FOR WHICH A PERMIT IS REQUIRED INSPECTED AND LEAST ONCE EVERY CALENDAR YEAR. 105.6 ATTACHMENT. SIGNS ATTACHED TO MASONRY, CONCRETE OR STEEL SHALL BE SAFELY AND SECURELY FASTENED BY MEANS OF METAL ANCHORS, BOLTS OR APPROVED EXPANSION SCREWS OF SUFFICIENT SIZE AND ANCHORAGE T SAFELY SUPPORT THE LOADS APPLIED. 106.1 ILLUMINATION. A SIGN SHALL NOT BE ILLUMINATED BY OTHER THAN ELECTRICAL MEANS, AND ELECTRICAL DEVICES AND WIRING SHALL BE INSTALLED IN ACCORDANCE WITH THE REQUIREMENTS OF THE NYCEC. ANY OPEN SPARK OR FLAME SHALL NOT BE USED FOR DISPLAY PURPOSES UNLESS SPECIFICALLY APPROVED. 106.1.1 INTERNALLY ILLUMINATED SIGNS. WIRING FOR ELECTRIC LIGHTING SHALL BE ENTIRELY ENCLOSED IN THE SIGN CABINET WITH A CLEARANCE OF NOT LESS THAN 2 INCHES FROM THE FACING MATERIAL.
  • 1. ALL WORK SHALL CONFORM TO THE BUILDING CODE OF NEW YORK TO
  • DATE. THE CONTRACTOR SHALL SUPPLY ALL LABOR, MATERIALS AND
EQUIPMENT TO COMPLETE ALL WORK AS CALLED FOR IN THE DRAWINGS.
  • 2. THE OWNER MUST OBTAIN ALL PERMITS AND FINAL APPROVAL OF
COMPLETION OF WORK FROM LANDMARKS PRESERVATION COMMISSION.
  • 3. MINOR DETAILS NOT USUALLY SHOWN OR SPECIFIED, BUT REQUIRED FOR
PROPER CONSTRUCTION OF ANY PART OF THE WORK SHALL BE INCLUDED AS IF THEY WERE INDICATED IN THE DRAWINGS.
  • 4. ALL EXISTING AREAS OF THE BUILDING THAT ARE DAMAGED BY THE
CONTRACTOR SHALL BE RESTORED TO MATCH EXISTING AT NO ADDITIONAL COSTS TO THE OWNER.
  • 5. ALL REMOVED MATERIAL AND DEBRIS SHALL BE LEGALLY DISPOSED OF
AWAY FROM THE PREMISES.
  • 6. THE CONTRACTOR SHALL GUARANTEE ALL WORK PERFORMED UNDER THIS
CONTRACT FOR A PERIOD OF ONE (1) YEAR AFTER COMPLETION AND FINAL ACCEPTANCE BY THE OWNER.
  • 7. THE CONTRACTOR SHALL CHECK AND VERIFY ALL DIMENSIONS AND
CONDITIONS AT THE SITE BEFORE BIDDING AND PROCEEDING INTO CONSTRUCTION AND SHALL BE RESPONSIBLE FOR SAME.
  • 8. THE CONTRACTOR SHALL COORDINATE ALL OPERATIONS WITH THE OWNER,
SUCH AS WORK AREAS USED FOR MATERIALS STORAGE, ACCESS TO AND FROM WORK AREAS, TIMING OF WORK, SPECIAL CONSIDERATION OF NOISY OPERATIONS, INTERRUPTIONS FOR MECHANICAL AND ELECTRICAL SERVICES, ETC. THE CONTRACTOR SHALL NOT INTERRUPT THE ONGOING OPERATION OF THE PREMISES AT ANY TIME.
  • 9. THE SCOPE OF DEMOLITION AND REMOVAL TO BE PERFORMED SHALL NOT
BE LIMITED BY THE DRAWINGS OR SPECIFICATIONS BUT SHALL INCLUDE ANY AND ALL WORK THAT SHALL BE REQUIRED OR DIRECTED BY THE OWNERS REPRESENTATIVE IN ORDER TO FACILITATE THE NEW WORK. 10.ALL WORK PERFORMED BY THE CONTRACTOR SHALL BE DONE IN A GOOD, WORKMANLIKE MANNER AND TO THE APPROVAL AND ACCEPTANCE OF THE OWNER AND THE ARCHITECT. 11.THE CONTRACTOR SHALL BE HELD RESPONSIBLE FOR HIS WORK AND FOR COORDINATION BETWEEN HIS RESPECTIVE SUBCONTRACTORS AND THEIR PORTION OF THE WORK. 12.THE CONTRACTOR SHALL CHECK DETAILS FOR LOCATIONS OF ALL ITEMS NOT DIMENSIONED ON THE PLANS. 13.THE CONTRACTOR SHALL PROVIDE AND MAINTAIN TEMPORARY FACILITIES FOR PROTECTION AND/OR ENCLOSURE OF AREAS OF WORK AND PROTECTION OF AREAS WHERE THERE IS NO FURTHER WORK. REMOVE TEMPORARY FACILITIES WHEN NO LONGER REQUIRED. 14.THE CONTRACTOR SHALL LAY OUT HIS OWN WORK, AND SHALL PROVIDE ALL DIMENSIONS REQUIRED FOR OTHER TRADES: PLUMBING, ELECTRICAL, ETC. 15.THE CONTRACTOR SHALL DO ALL CUTTING, PATCHING, REPARING AS REQUIRED TO PERFORM ALL OF THE WORK INDICATED ON THE DRAWINGS, AND ALL OTHER WORK THAT MAY BE REQUIRED TO COMPLETE THE JOB. 16.DESIGN STRENGTHS OF MATERIALS SHALL BE IN CONFORMANCE WITH ACCEPTED ENGINEERING PRACTICE, TO THE SATISFACTION OF THE BUILDING OFFICIAL, OR THE APPROVED RULES IN THE ABSENCE OF APPLICABLE STANDARDS. N O R T H WEST 13TH ST. TENANT SPACE E L E V A T I O N S Y M B O L S E C T I O N C U T DETAIL BUBBLE DATUM X XXX X'-X" LOCATION X XXX X XXX W A S H I N G T O N S T . 9 T H A V E WEST 14TH ST.

10 FEMA STATEMENT

FEDERAL EMERGENCY MANAGEMENT AGENCY LOT:57 BLOCK: 646 ZONING: M1-5 STREET: 425 WEST 13TH STREET FLOOD ZONE:EVAC ZONE 3 0.2% ANNUAL CHANCE FLOOD HAZARD BASE FLOOD ELEVATION: -9,999 SPECIAL FLOOD HAZARD AREA (SFHA) - THE SFA IS AN AREA THAT WOULD BE INUNDATED BY THE FLOOD HAVING A -1% CHANCE OF BEING EQUALED OR EXCEEDED IN ANY GIVEN YEAR (BASE FLOOD). NYC ENERGY CONSERVATION CODE EXEMPTION: NYCECC SECTION, C501.6, THE PROPERTY IS A CONTRIBUTING BUILDING IN THE GANSEVOORT MARKET HISTORICAL DISTRICT.

6 NYCECC EXEMPTION 1 BUILDING CODE REGULATIONS 2 SYMBOLS LEGEND 4 BUILDING DATA 3 DRAWING INDEX 7 TENANT SAFETY PLAN

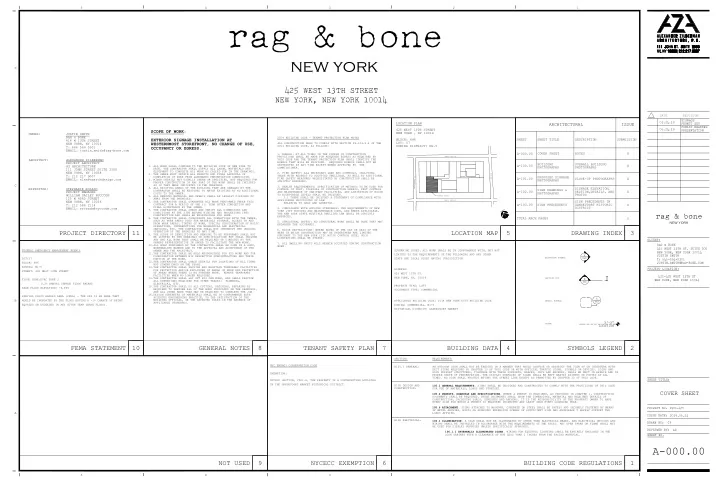

COVER SHEET

A-000.00

REVIEWED BY: DRAWN BY: ISSUE DATE: PROJECT NO. 1901-470 REVISION DATE 2019.06.24 CP 421-425 WEST 13TH ST NEW YORK, NEW YORK 10014 AZ 5 4 3 2 1 D C B A 5 4 3 2 1 PROJECT LOCATION: SHEET TITLE: SHEET NO.

rag & bone

new york

RAG & BONE 416 WEST 13TH ST. SUITE 305 NEW YORK, NEW YORK 10014 JUSTIN SMITH T: 646-564-5301 JUSTIN.SMITH@RAG-BONE.COM CLIENT: 01.24.19 SIGNAGE PERMIT SET 06.24.19 PUBLIC HEARING PRESENTATION
slide-2
SLIDE 2

1 DESIGNATION PHOTO

  • 2

OVERALL BUILDING PHOTO

  • 3

1940s TAX PHOTO

  • BUILDING

PHOTOGRAPHS

A-100.00

REVIEWED BY: DRAWN BY: ISSUE DATE: PROJECT NO. 1901-470 REVISION DATE 2019.06.24 CP 421-425 WEST 13TH ST NEW YORK, NEW YORK 10014 AZ 5 4 3 2 1 D C B A 5 4 3 2 1 PROJECT LOCATION: SHEET TITLE: SHEET NO.

rag & bone

new york

RAG & BONE 416 WEST 13TH ST. SUITE 305 NEW YORK, NEW YORK 10014 JUSTIN SMITH T: 646-564-5301 JUSTIN.SMITH@RAG-BONE.COM CLIENT: 01.24.19 SIGNAGE PERMIT SET 06.24.19 PUBLIC HEARING PRESENTATION
slide-3
SLIDE 3

EXISTING COLUMN EXISTING BEAM

1 PHOTOS OF PROPOSED SIGNAGE

NTS

PROPOSED SIGNAGE PHOTOGRAPHS

A-101.00

REVIEWED BY: DRAWN BY: ISSUE DATE: PROJECT NO. 1901-470 REVISION DATE 2019.06.24 CP 421-425 WEST 13TH ST NEW YORK, NEW YORK 10014 AZ 5 4 3 2 1 D C B A 5 4 3 2 1 PROJECT LOCATION: SHEET TITLE: SHEET NO.

rag & bone

new york

RAG & BONE 416 WEST 13TH ST. SUITE 305 NEW YORK, NEW YORK 10014 JUSTIN SMITH T: 646-564-5301 JUSTIN.SMITH@RAG-BONE.COM CLIENT: 01.24.19 SIGNAGE PERMIT SET 06.24.19 PUBLIC HEARING PRESENTATION
slide-4
SLIDE 4

3 ILLUMINATED BLADE SIGN ELEVATION

SCALE: 3" = 1'0"

rag & bone

new york

4'-0" 1'-5" 3'-4" EYE HOOK FOR HANGING FROM STAINLESS STEEL CHAIN MATTE BLACK ALUMINUM FACE WITH PUSH THROUGH WHITE ACRYLIC COPY - BOTH SIDES. WARM LED LIGHTS INSIDE - DOUBLE SIDED ILLUMINATION. (E) BEAM TO REMAIN 218" 538" 11" STAINLESS STEEL CHAIN

4 ILLUMINATED BLADE SIGN SECTION

SCALE: 6" = 1'0" 1'-5" 538" 2" 2" 1/2" THICK MILK WHITE PLEXI PUSH THRU LETTERS WITH 1/4" REVEAL REMOVABLE FACE FOR SERVICE ALUMINUM FACE AND RETURN PAINTED MATTE BLACK ALUMINUM RETURN EYE HOOK FOR HANGING FROM CHAIN 3000K WARM WHITE LEDS MOUNTED TO 1/8" CLEAR PLEXI PANEL IN CENTER OR CABINET (EXACT LED MOUNTING METHOD SUBJECT TO CHANGE TO ACCOMMODATE ALL DETAILS/FACETS OF SIGN)

5 TOP CONNECTION DETAIL

SCALE: 6" = 1'0" EYE HOOK FOR HANGING FROM CHAIN 11" STAINLESS STEEL CHAIN STAINLESS STEEL CHAIN SCREW-HOOK FOR HANGING FROM CHAIN

rag & bone

new york NEW BLADE SIGN: ALUMINUM FACE , RETURN PAINTED MATTE BLACK AND MILK WHITE PLEXI PUSH THRU LETTERS PRINTED WITH LOGO, HUNG FROM S.S CHAINS EXISTING COLUMN BEYOND

1 ILLUMINATED BLADE SIGN ELEVATION

SCALE: 1/2" = 1'0" 0'-0" A.F.F. SIDEWALK LEVEL 12'-9" A.F.F. B.O. (E) BEAM 11'-0" A.F.F. B.O. BLADE SIGN EXISTING STOREFRONT 4'-0" 1'-5" 11" EXISTING BEAM EXISTING RAFTER EXISTING AWNING BEAM 4,5 A102 3 A102 EXISTING STOREFRONT DOOR 7'-938"

2 NOT USED

  • SIGN DRAWINGS &

PHOTOGRAPHS

A-102.00

REVIEWED BY: DRAWN BY: ISSUE DATE: PROJECT NO. 1901-470 REVISION DATE 2019.06.24 CP 421-425 WEST 13TH ST NEW YORK, NEW YORK 10014 AZ 5 4 3 2 1 D C B A 5 4 3 2 1 PROJECT LOCATION: SHEET TITLE: SHEET NO.

rag & bone

new york

RAG & BONE 416 WEST 13TH ST. SUITE 305 NEW YORK, NEW YORK 10014 JUSTIN SMITH T: 646-564-5301 JUSTIN.SMITH@RAG-BONE.COM CLIENT: 01.24.19 SIGNAGE PERMIT SET 06.24.19 PUBLIC HEARING PRESENTATION
slide-5
SLIDE 5

1 412 WEST 13TH ST

  • 3

875 WASHINGTON ST

  • 2

415 WEST 13TH ST

  • 4

NOT USED

  • 6

874 WASHINGTON ST

  • 5

415 W 13TH ST

  • SIGN PRECEDENTS

IN GANSEVOORT DISTRICT

A-103.00
