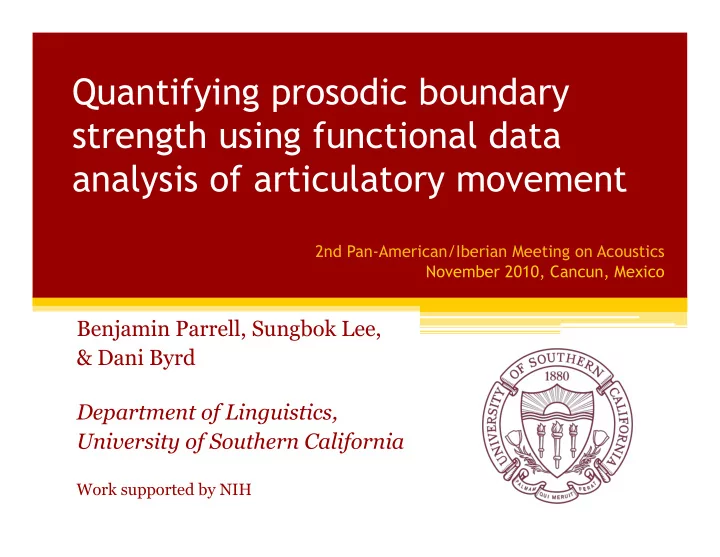

Quantifying prosodic boundary strength using functional data analysis of articulatory movement

Benjamin Parrell, Sungbok Lee, & Dani Byrd Department of Linguistics, University of Southern California

Work supported by NIH 2nd Pan-American/Iberian Meeting on Acoustics November 2010, Cancun, Mexico

Effects of Prosodic Boundaries

• Prosodic boundaries have been shown to have

effects on both the duration and magnitude of articulatory gestures

▫ boundary adjacent lengthening: gestures near a boundary are longer (e.g. Byrd et al. 2000, Byrd et al. 2006) ▫ “initial strengthening”: gestures near a boundary have a larger magnitude (e.g. Fougeron & Keating 1997, Cho 2005)

2 Parrell, Lee, & Byrd, ASA 2010, Cancun

• These effects are gradient

▫ Gestures at higher level boundaries (e.g. a phrase boundary) show more slowing and greater magnitude than those at lower level boundaries (e.g. a word boundary)

• Is it possible to measure the degree of these

effects as a measure of boundary strength?

▫ Could give insight into how many boundaries a language/speaker of a language has, and how they are different from one another

3 Parrell, Lee, & Byrd, ASA 2010, Cancun

Past Analyses of Boundary Effects

• Quantifying differences in strength of prosodic

boundary is difficult

▫ what to measure? ▫ where to define boundary?

• Rely on drastic data reduction

▫ measurements at only a few points in time

4 Parrell, Lee, & Byrd, ASA 2010, Cancun

5 Parrell, Lee, & Byrd, ASA 2010, Cancun

acoustic articulatory

tongue ¡(p ¡

[t a t a # t a t a ] [t a t a # t a t a ]

Standard Approach

Functional Data Analysis (FDA)

• FDA analyzes entire, continuous trajectories and

captures non-linear warping in time and space

(Ramsey et al. 2005)

• FDA has been used on time functions of speech

articulators to examine both gestural coordination and boundary effects

▫ Reveals slowing of articulator movement in the presence of a phrase boundary as the speech stream approaches and recedes from the phrase edge (Koening et al 2008, Lee et al. 2006)

6 Parrell, Lee, & Byrd, ASA 2010, Cancun

• Recent work has shown that using FDA on

synthetic articulatory data can both distinguish and quantify different types of prosodic boundaries

(Parrell et al. 2010) ▫ Prosodic boundaries were instantiated using π-gesture model of Byrd & Saltzman 2000.

• FDA alignment was conducted on spatial

position measurements of the synthesized trajectories

7 Parrell, Lee, & Byrd, ASA 2010, Cancun

Purpose of the study

• Goal: To determine the ability of FDA analysis

to capture boundary strength differences

• Explore how choice of kinematic variable—e.g.

position vs. velocity—affects FDA measurement

• Can FDA capture differences in boundary

strength in non-synthetic articulatory speech data?

8 Parrell, Lee, & Byrd, ASA 2010, Cancun

Materials

• Stimuli (taken from Byrd & Saltzman 1998):

▫ Target sequence: [mamə (#) mimi] ▫ Four prosodic conditions:

Boundary Sentence none Poppa-Pikt and Momma-Mimi tapped Cody. list Poppa, Pikt, Momma, Mimi, and Bibi tapped Cody. vocative Quick Momma, Mimi tapped Cody. utterance Poppa picked Momma. Mimi tapped Cody.

 4 new subjects  Lip Aperture measured using electromagnetic articulometry (EMA)  Position and velocity curves used for FDA

9 Parrell, Lee, & Byrd, ASA 2010, Cancun

FDA Method

Raw trajectories of all repetitions of each boundary condition

duration: max. closure for [m] in [mama] to max. closure for m in [mimi] example: vocative condition for subject TC

10 Parrell, Lee, & Byrd, ASA 2010, Cancun

First, signals are linearly time-normalized to 300 equally-spaced samples

11 Parrell, Lee, & Byrd, ASA 2010, Cancun

12 Parrell, Lee, & Byrd, ASA 2010, Cancun

[m a m əӚ m i m]

Then, time-normalized trajectories are aligned to kinematic landmarks in a control signal using FDA non-linear time warping

control = mean of time-normalized no-boundary tokens

The time-deformation function: local advancing or local slowing of the system time of a test signal with respect to clock time of the control signal

13 Parrell, Lee, & Byrd, ASA 2010, Cancun

FDA Deformation Function

The area under the curve of the time-deformation function calculated as a measure of the strength

• f the boundary (Deformation Index)

14 Parrell, Lee, & Byrd, ASA 2010, Cancun

Deformation Index

Deformation Index= area under curve

• Deformation Index distinguishes between at least

utterance and no-boundary for all subjects

• Other differences among boundaries were also

found, with different patterns across subjects

• mirrors results in previous work of Byrd & Saltzman 1998
• FDA results from velocity curves match those for

position curves

Results

15 Parrell, Lee, & Byrd, ASA 2010, Cancun

16 Parrell, Lee, & Byrd, ASA 2010, Cancun

Position Velocity

F(3,36) = 61.6, p < 0.0001 none < list < voc., utt. (p < 0.05) F(3,36) = 114.8, p < 0.0001 none < list < voc., utt. (p < 0.05)

Subject TA Deformation Index Results

17 Parrell, Lee, & Byrd, ASA 2010, Cancun

Position Velocity

F(3,34) = 71.4, p < 0.0001 none, list < voc. < utt. (p < 0.05) F(3,34) = 174.0, p < 0.0001 none < list < voc. < utt. (p < 0.05)

Subject TB

18 Parrell, Lee, & Byrd, ASA 2010, Cancun

Position Velocity

F(3,36) = 54.4, p < 0.0001 none, list, voc. < utt. (p < 0.05) F(3,36) = 42.5, p < 0.0001 none, list, voc. < utt. (p < 0.05)

Subject TC

19 Parrell, Lee, & Byrd, ASA 2010, Cancun

Position Velocity

F(3,36) = 5.9, p < 0.005 none < list, utt. (p < 0.05) F(3,36) = 2.9, p < 0.05 none < utt. (p < 0.05)

Subject TD

Conclusions

• Deformation Index, a measurement derived

from applying FDA to kinematic articulatory data, can detect and quantify differences in the strength of prosodic boundaries in experimental articulatory data

• Using either position or velocity curves gives

similar results

▫ Though there are a few slight differences for some subjects

20 Parrell, Lee, & Byrd, ASA 2010, Cancun

Conclusions

21 Parrell, Lee, & Byrd, ASA 2010, Cancun

• Deformation

Index results compare well with piecewise analysis

• f similar

sentences with a different set of subjects in Byrd & Saltzman 1998

Advantages of Deformation Index

• Captures effects of boundary on entire kinematic

trajectory, not just a few points in time

• Can capture effects that occur in non-boundary-

adjacent syllables

▫ Given correct stimuli design

• Provides a simple quantification of boundary

strength

▫ past work has relied on a mutiplicity of derived variables in a single dataset to provide a holistic picture of boundary-adjacent lengthening

22 Parrell, Lee, & Byrd, ASA 2010, Cancun
