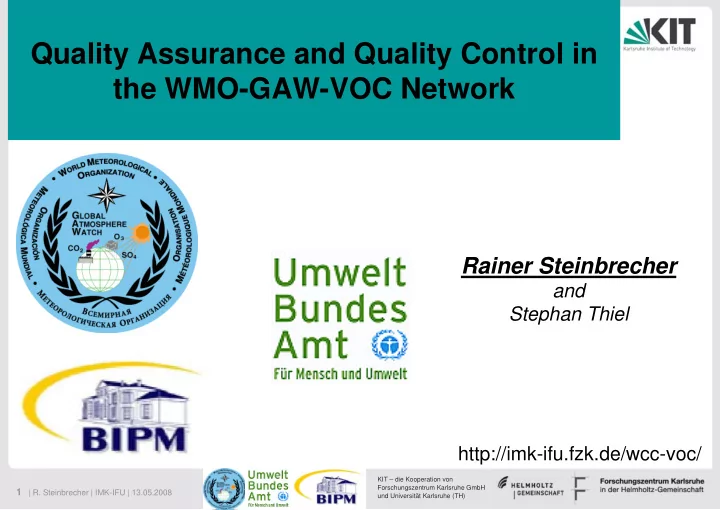

Quality Assurance and Quality Control in the WMO-GAW-VOC Network Rainer Steinbrecher and Stephan Thiel http://imk-ifu.fzk.de/wcc-voc/ KIT die Kooperation von Forschungszentrum Karlsruhe GmbH 1 | R. Steinbrecher | IMK-IFU | 13.05.2008


slide-1
SLIDE 1

1

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

Quality Assurance and Quality Control in the WMO-GAW-VOC Network

Rainer Steinbrecher

and Stephan Thiel http://imk-ifu.fzk.de/wcc-voc/

slide-2
SLIDE 2

2

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

GAW Network for VOC

Provides a framework for the next generation GAW program 2008-2015

WCC-VOC

WMO Report 172; 2007

slide-3
SLIDE 3

3

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

Operation of the WCC-VOC Quality assurance of the WCC-VOC Round-Robin Exercises and Audits Central Calibration Laboratories (CCLs) Training in WCC-VOC and GAWTEC Workshops and international co-operations Interactions WCC-VOC and GAW institutions Outreach

The WCC-VOC Activities

slide-4
SLIDE 4

4

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

The GAW-VOC QA/QC Strategy

slide-5
SLIDE 5

5

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

The GAW-VOC QA/QC Control of Success

Evaluate Results on the basis of data quality objectives Report findings to the participants Enquire reasons for deviations in bilateral meetings Suggest joint measures to improve quality Check progress by repeating QC/QA experiments

Round robin Exercises Audits

Report discovered discrepancies to station staff Take possibilities to solve detected problems on-site Set up an action priority list with deadlines to solve encountered problems together with station personal in the final audit meeting Check progress by repeating audit

slide-6
SLIDE 6

6

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

The GAW-VOC Target Compounds

Realisation of QA/QC Stage approach

  • hydrocarbons
  • other compounds

WMO Report 171; 2007

Full suite in 2011

slide-7
SLIDE 7

7

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

Current WCC-VOC Standards

high precision VOC standard NPL_D296263

slide-8
SLIDE 8

8

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

Current WCC-VOC Standards

Recalibrated laboraory/working/travelling standard Apel/Riemer 2006

slide-9
SLIDE 9

9

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

slide-10
SLIDE 10

10

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

Station Audits CAL Audits

INSTAAR York MPI

slide-11
SLIDE 11

11

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

The GAW-VOC Audits

slide-12
SLIDE 12

12

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

Audit Results

Reported Values /ppb Reported uncertainty 2σ /%

slide-13
SLIDE 13

13

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

Audit Results

Reported Values /ppb Reported uncertainty 2σ /%

n-butane ethine

slide-14
SLIDE 14

14

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

Audit Results Summary

GAW Station R GAW Station H GAW Station J

No major flaws All reported GAW target compounds within DQO Uncertainty < 6% No monoterpenes No major flaws All reported GAW target compounds within DQO Uncertainty < 1% No ethine, n-butane, monoterpenes No major flaws All reported GAW target compounds within DQO Uncertainty < 9%, except i-butane and n-pentane No ethane, ethine, propane, isoprene, monoterpenes

slide-15
SLIDE 15

15

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

Audit Results Summary

GAW Station Y GAW Station B GAW Station i

No major flaws All reported GAW target compounds within DQO, except ethane Uncertainty < 10% No monoterpenes No major flaws All reported GAW target compounds within DQO Uncertainty < 2% No monoterpenes No major flaws All reported GAW target compounds within DQO except ethane and isoprene, Uncertainty < 10% No monoterpenes

slide-16
SLIDE 16

16

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

What comes next in 2008?

Further promotion for CCLs for VOC in co-operation with NMIs and GAW-VOC. A CCQM-GAWG-GAW-VOC expert workshop in July at EMPA. Inter-comparisons, audits and re-audits are going to be performed at GAW central laboratories at UC, Irvine, CA, AQRDE, Toronto, MPI, Mainz, and at the global GAW station Cap Verde.

slide-17
SLIDE 17

17

| R. Steinbrecher | IMK-IFU | 13.05.2008

KIT – die Kooperation von Forschungszentrum Karlsruhe GmbH und Universität Karlsruhe (TH)

Thank You for Your Attention

and we appreciate the Excellent Co-operation of the GAW Stations in Audits and Inter comparison experiments
