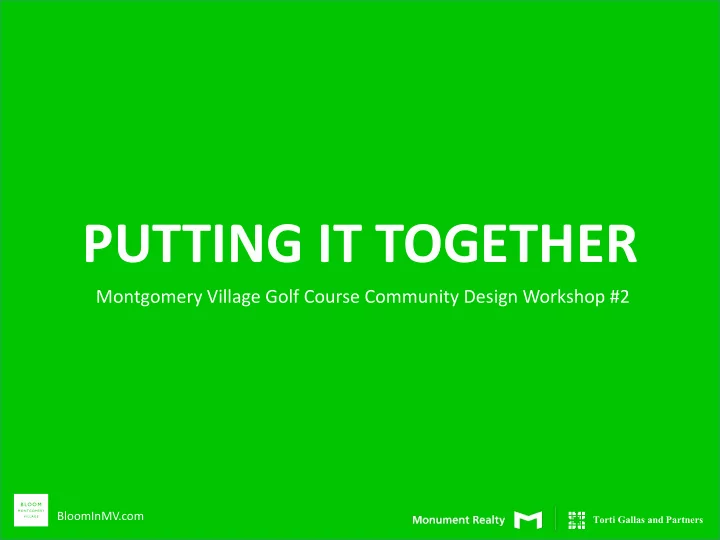

PUTTING IT TOGETHER

Montgomery Village Golf Course Community Design Workshop #2

BloomInMV.com

Torti Gallas and Partners

slide-2
SLIDE 2

Torti Gallas and Partners

BloomInMV.com

Introduction

Torti Gallas and Partners

slide-3
SLIDE 3

Torti Gallas and Partners

BloomInMV.com

Overall Schedule

Torti Gallas and Partners

  • Kalamazoowildones.org

Community Meeting May 30, 2013 Community Workshop 1 July 27, 2013 Listen and Learn Community Workshop 2 Sept 19, 2013 Review Alternatives Community Meeting October 2013 Draft Concept Plan On-going Meetings

slide-4
SLIDE 4

Torti Gallas and Partners

BloomInMV.com

What We’ve Been Doing

Torti Gallas and Partners

  • Kalamazoowildones.org
  • Compiled Intake From First Workshop
  • Placed Workshop Info. On-Line
  • Presented Summary of First Workshop to

MVF Committee Meeting

  • Met with Parks Department
  • Developed Preliminary Plans and

Alternates

slide-5
SLIDE 5

Torti Gallas and Partners

BloomInMV.com

Overview of Today

Goal: Recap, Present Design Alternatives, Listen

  • Recap
  • Tell You What We’ve Heard
  • Present Framework and Standards
  • Rotating Breakout Sessions – Plan

Alternatives

  • Initial Concepts and Questions

Torti Gallas and Partners

slide-6
SLIDE 6

Torti Gallas and Partners

BloomInMV.com

Today’s Workshop Schedule

Introduction 6:30 - 6:35 pm Workshop 1 Pres. Recap 6:35 - 6:50 pm Workshop 1 Intake Recap 6:50 - 7:00 pm Framework Pres. 7:00 - 7:10 pm Breakout Rotations

  • Station 1

7:10 - 7:45 am

  • Station 2

7:50 - 8:25 am

  • Station 3

8:30 - 9:05 pm Recap 9:10 - 9:30 pm

Torti Gallas and Partners

rochesterradishmagazine
slide-7
SLIDE 7

Torti Gallas and Partners

BloomInMV.com

Placemaking

Torti Gallas and Partners

slide-8
SLIDE 8

Torti Gallas and Partners

BloomInMV.com

Creating a Sustainable Community

Enhance the Quality of Life for All Montgomery Village Improve the Environmental Quality

Water Quality Energy Efficiency Enhance Natural Habitat

MVGC Reimagined Natural Systems People Built Environment

Juan jolostium - flickr
slide-9
SLIDE 9

Torti Gallas and Partners

BloomInMV.com

Why Design Matters

Sum is Greater than the Parts Can Create and Define a Public Realm Can Create a Pedestrian-Friendly Environment Can Create a Beloved Place Can Create Added Value To Be Avoided

slide-10
SLIDE 10

Torti Gallas and Partners

BloomInMV.com

The Natural Environment

Topography Hydrologic Patterns Water Biomes and Ecotones

mark tweedale - flickr chudsonsoul - flickr cpilechkco - flickr cchampbass2 - flickr
slide-11
SLIDE 11

Torti Gallas and Partners

BloomInMV.com

A Community Wed to the Natural Environment

bing maps Cfullmoonimage - flickr claresuffolkweb
slide-12
SLIDE 12

Torti Gallas and Partners

BloomInMV.com

Public Realm: Parks, Commons, Greens, & Squares

slide-13
SLIDE 13

Torti Gallas and Partners

BloomInMV.com

Blocks and Streets

slide-14
SLIDE 14

Torti Gallas and Partners

BloomInMV.com

Architecture Contextual Response to Scale and Cultural Character

City Contemporary ~10+ Stories Town & Village Traditional ~3-5 Stories Hamlet Vernacular ~2-3 Stories

Torti Gallas and Partners Torti Gallas and Partners Torti Gallas and Partners

Architecture Appropriate to Context

slide-15
SLIDE 15

Torti Gallas and Partners

BloomInMV.com

What Do You Do With the Car?

Avoid Parking as the Front Door Screen Parking Behind Buildings Avoid a Streetscape Dominated by Garages and Driveways Create a Streetscape for the Pedestrian

Bing maps google earth
slide-16
SLIDE 16

Torti Gallas and Partners

BloomInMV.com

Site Analysis

Torti Gallas and Partners

slide-17
SLIDE 17

Torti Gallas and Partners

BloomInMV.com

N

slide-18
SLIDE 18

Torti Gallas and Partners

BloomInMV.com

The Site within Montgomery Village

CEN CENTE TERWA RWAY Y PARK PARK

N

slide-19
SLIDE 19

Torti Gallas and Partners

BloomInMV.com

Elevation Analysis

N

Low High

slide-20
SLIDE 20

Torti Gallas and Partners

BloomInMV.com

Slope Analysis

N

slide-21
SLIDE 21

Torti Gallas and Partners

BloomInMV.com

Stream Buffers

N

Floodplain & Type 1 Buffer

Type 2 Buffer Type 2 Buffer

Floodplain & Type 1 Buffer

slide-22
SLIDE 22

Torti Gallas and Partners

BloomInMV.com

Stream Valley: View from East – Area 6

slide-23
SLIDE 23

Torti Gallas and Partners

BloomInMV.com

Stream Valley: View West from Montgomery Village Blvd. – Area 1 & 2

slide-24
SLIDE 24

Torti Gallas and Partners

BloomInMV.com

Stream Valley: View East from Watkins Mill Road – Area 2 & 1

slide-25
SLIDE 25

Torti Gallas and Partners

BloomInMV.com

What We’re Thinking About: The Stream Valley

Torti Gallas and Partners

slide-26
SLIDE 26

Torti Gallas and Partners

BloomInMV.com

Conventional Stream Buffer

slide-27
SLIDE 27

Torti Gallas and Partners

BloomInMV.com

Stream Valley Framework

To Potomac River & Seneca Creek Greenway Trail

  • Restored Riparian Corridor for Terrestrial, Aquatic, and Avian

Species

  • Riparian Habitat Linked to Potomac River
  • Varied Habitat Types Provide Increased Bio-diversity
  • Wild Organic Food Production
  • Interpretive Trail System
  • Restored Upland Forest Wherever Possible with Under, Mid, &

Upper-Story

  • Central Commons for Community

To Cabin Branch Stream Valley Park and Putuxent River System

slide-28
SLIDE 28

Torti Gallas and Partners

BloomInMV.com

The Heart of Bloom

The Lowland Meadow Edible Landscape Central Commons Forested Riparian Corridor Preserved Trail System Forested Riparian Corridor Upland Forest Upland Forest Upland Forest Edible Landscape Forested Intermittent Stream The Upland Meadow

Pond Pond Pond Pond Pond Pond Pond Pond Pond

Community Gardens

slide-29
SLIDE 29

Torti Gallas and Partners

BloomInMV.com

Bio-Diverse Stream Buffer

slide-30
SLIDE 30

Torti Gallas and Partners

BloomInMV.com

Bio-Diverse Stream Buffer with Park

slide-31
SLIDE 31

Torti Gallas and Partners

BloomInMV.com

Wooded Stream

slide-32
SLIDE 32

Torti Gallas and Partners

BloomInMV.com

Ponds

slide-33
SLIDE 33

Torti Gallas and Partners

BloomInMV.com

Lowland Meadow

  • nicksnaturepics.wordpress.com
slide-34
SLIDE 34

Torti Gallas and Partners

BloomInMV.com

Upland Meadow

slide-35
SLIDE 35

Torti Gallas and Partners

BloomInMV.com

Trails

Usfws
slide-36
SLIDE 36

Torti Gallas and Partners

BloomInMV.com

Central Commons

J stephen conn infomatique
slide-37
SLIDE 37

Torti Gallas and Partners

BloomInMV.com

Community Gardens

biketrouble mgifford Anna radix
slide-38
SLIDE 38

Torti Gallas and Partners

BloomInMV.com

Edible Landscape

muffet thegirl mulewings crooked hill M sarahan
slide-39
SLIDE 39

Torti Gallas and Partners

BloomInMV.com

Other Opportunities

Us fish and wildlife service - flickr Johns creek ga gov - flickr Fitrail.com Alwithacamera - flickr
slide-40
SLIDE 40

Torti Gallas and Partners

BloomInMV.com

What We’re Thinking About: Uplands

Torti Gallas and Partners

slide-41
SLIDE 41

Torti Gallas and Partners

BloomInMV.com

What We’re Thinking About: Multi-Family

hellosanfrancisco
slide-42
SLIDE 42

Torti Gallas and Partners

BloomInMV.com

What We’re Thinking About: Townhomes

slide-43
SLIDE 43

Torti Gallas and Partners

BloomInMV.com

Creating Openness: A Mews and Green Strategy

Mews Orientation to Street

  • Facades Define Spaces Perp. To Street
  • Provides Visual Permeability
  • Provides Physical Permeability

Conventional Orientation to Street

  • Facades Create Street Wall
  • Street Wall Has Little Visual Permeability
slide-44
SLIDE 44

Torti Gallas and Partners

BloomInMV.com

The Mews

The Open Mews as Neighborhood Square The Mews as Passageway The Mews as Plaza The Closed Mews The Gated Mews

slide-45
SLIDE 45

Torti Gallas and Partners

BloomInMV.com

What We’re Thinking About: Duplexes

slide-46
SLIDE 46

Torti Gallas and Partners

BloomInMV.com

What We’re Thinking About: Single-Family

slide-47
SLIDE 47

Torti Gallas and Partners

BloomInMV.com

Building Types We Will Be Investigating

Townhomes &/or Duplexes Townhomes &/or Single-Family Townhomes &/or Duplexes Townhomes &/or Duplexes Multi-Family Multi-Family Townhomes &/or Duplexes

Area 1 Area 2 Area 3 Area 4 Area 5 Area 6

slide-48
SLIDE 48

Torti Gallas and Partners

BloomInMV.com

Workshop #1 Intake

Torti Gallas and Partners

slide-49
SLIDE 49

Torti Gallas and Partners

BloomInMV.com

Key Issues

Torti Gallas and Partners

  • Kalamazoowildones.org
  • Views/Buffers/Tree Preservation
  • Traffic
  • Maintenance Costs
  • Street Connections
  • Multi-Family
  • Schools
  • Building Types
  • Building Heights
  • Number of Units
  • Course Fence
  • Setbacks
  • Parking
  • Connections
  • Amenities – Commercial and Stream
  • Storm Water Management
slide-50
SLIDE 50

Torti Gallas and Partners

BloomInMV.com

General Issues

Torti Gallas and Partners

  • Kalamazoowildones.org
  • Traffic
  • Maintenance Costs
  • Schools
slide-51
SLIDE 51

Torti Gallas and Partners

BloomInMV.com

Views/Tree Preservation/Buffers

  • Existing Trees Provide Screening and

Should be Preserved as Much as Possible

  • Where There are Few/No Trees, New

Tree Buffers Should be Planted

  • Better to Minimize Long Strings of Units

and Use Mews, Greens, etc. to Maximize Views Through Site

Preservation of Existing Trees Planting of New Evergreen Buffers

slide-52
SLIDE 52

Torti Gallas and Partners

BloomInMV.com

Connections

  • Questions About Appropriateness of

Connecting to Existing Neighborhoods:

  • No Street Connections are Proposed
  • Need to Control Pedestrian Connections so

There are No Yard Cut-Throughs

  • Existing Fence Will be Retained and Pedestrian

Path Connections Will be Provided

slide-53
SLIDE 53

Torti Gallas and Partners

BloomInMV.com

Multi-Family

  • Questions About Appropriateness of Multi-

Family

  • Multi-Family Not Appropriate in Areas 2,3,4,5,6
  • Multi-Family Can Increase Vibrancy of Village

Center with Minimal Impact on Surrounding Neighborhoods

  • Multi-Family Could Provide Opportunity for a

Small Amount of Retail

slide-54
SLIDE 54

Torti Gallas and Partners

BloomInMV.com

Building Types/Building Heights

Towhomes

  • r

Multi-Family Area 1 Multi-Family Area 2 Townhomes Area 3 Single-Family And/or Duplex Area 4 Townhomes Area 5 Townhomes Area 6 Townhomes

3-story 2-story 2-story 2-story and 3-story 2-story and 3-story 3-story 3-story

4-5-story

3-story
  • r
4-story
  • Homes Should be Compatible with

Existing Homes

  • Existing Townhomes are 2 and 3-story
  • Existing Single-Family are 2 -story
slide-55
SLIDE 55

Torti Gallas and Partners

BloomInMV.com

Course Fence

  • Retain in Place
slide-56
SLIDE 56

Torti Gallas and Partners

BloomInMV.com

Setbacks

  • Maximize Dimension Between

Existing Homes and New Homes

  • Proposed Distances are a minimum
  • f 80’ Between Existing Homes

and New Homes

slide-57
SLIDE 57

Torti Gallas and Partners

BloomInMV.com

Parking

  • Existing Townhomes Have a Shortage of

Parking

  • Each Single-Family and Townhome will

Have 2 - Garage Parking Spaces

  • Additional Visitor Parking Will be

Provided for Townhomes and Multi- Family

  • Parking Will Be Provided at the Central

Open Space

slide-58
SLIDE 58

Torti Gallas and Partners

BloomInMV.com

Amenities

Will Need to Continue to Work With Montgomery Village, Parks Department, Other Agencies – Initial Thoughts Include:

  • Reforestation
  • Are Investigating if Meadows are Needed

and Will be Permitted

  • Soft Path Walking Trails
  • Community Gardens
  • Dog Park
  • Picnic Shelter and Informal Lawn
  • Passive Spaces Adjacent to Existing

Homes

  • Looking Into Mountain Bike Trails in

Pepco Easement

  • No Active Rec. Fields Permitted in

Floodplain

slide-59
SLIDE 59

Torti Gallas and Partners

BloomInMV.com

Storm Water Management

  • Pursuing Retention of Existing Ponds
  • New Homes will Handle Storm Water

On-Site Following New Montgomery County Storm Water Regulations

slide-60
SLIDE 60

Torti Gallas and Partners

BloomInMV.com

What Does It Look Like? Concept Plan Studies/Alternatives

  • Break-Out Groups Will Provide

Forum to Look at Multiple Alternatives and Details

slide-61
SLIDE 61

Torti Gallas and Partners

BloomInMV.com

Number of Units

  • Approximately 250 - 330 Multi-Family
  • Approximately 300 - 350 Single-Family

and Townhomes

biketrouble
slide-62
SLIDE 62

Torti Gallas and Partners

BloomInMV.com

Breakout Sessions

Torti Gallas and Partners

slide-63
SLIDE 63

Torti Gallas and Partners

BloomInMV.com

Simultaneous Breakout Sessions

I. 35-Minutes per Session Breakout Sessions

  • Session 1

7:10 - 7:45 am

  • Session 2

7:50 - 8:25 am

  • Session 3

8:30 - 9:05 pm Stations

  • Station A: Area 2 & 3
  • Station B: Area 4 & 5
  • Station C: Area 1, 6, & Stream Valley
  • II. Recap

9:10 - 9:30 pm

Torti Gallas and Partners

  • Rawcliffemeadows.wordpress.com
slide-64
SLIDE 64

Torti Gallas and Partners

BloomInMV.com

Looking For:

  • Opinions About Design Alts.
  • Thoughts About Dev. Principles
  • 1. Development Character

– Architecture – Siting of Buildings

  • 2. Streets and Sidewalks

– Character

  • 3. Buffers and Views
  • 4. Open Space and Amenities
  • 5. Other

Torti Gallas and Partners

biketrouble
slide-65
SLIDE 65

Torti Gallas and Partners

BloomInMV.com

Thank You!

Torti Gallas and Partners

  • Kalamazoowildones.org

Workshop Schedule

Community Meeting May 30, 2013 Community Workshop 1 July 27, 2013 Listen and Learn Community Workshop 2 Sept 19, 2013 Review Alternatives Community Meeting October 2013 Draft Concept Plan On-going Meetings

slide-66
SLIDE 66

Torti Gallas and Partners

BloomInMV.com

Torti Gallas and Partners

BloomInMV.com

  • BloomInMV.com

Torti Gallas and Partners
