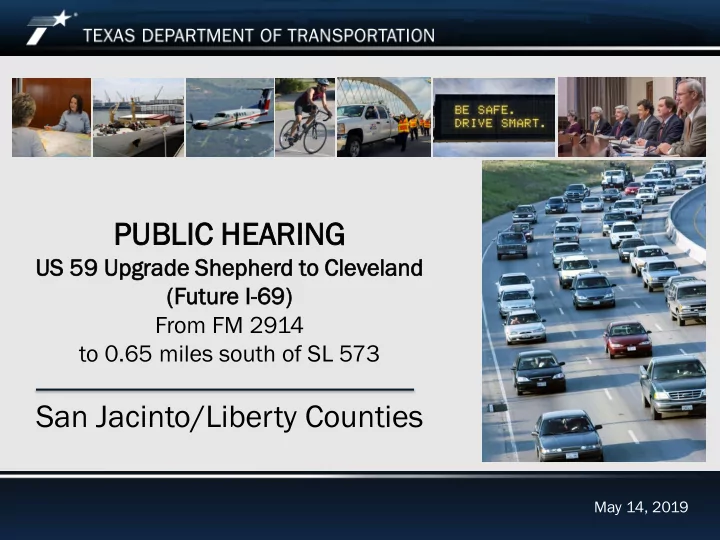

PUBLIC LIC H HEARI RING

US 5 S 59 Upg pgrad ade Sh Sheph pherd t to Cl Cleveland (Future I e I-69) 69) From FM 2914 to 0.65 miles south of SL 573

San Jacinto/Liberty Counties

slide-2
SLIDE 2

Introductions

Elected Officials

US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69) 2

slide-3
SLIDE 3

The environmental review, consultation, and

  • ther actions required by applicable Federal

environmental laws for this project are being, or have been, carried-out by TxDOT pursuant to 23 U.S.C. 327 and a Memorandum of Understanding dated December 16, 2014, and executed by FHWA and TxDOT.

3 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-4
SLIDE 4

Public Hearing Notice Advertisement

  • TxDOT Website – Online Notice: April 25, 2019
  • http://www.txdot.g

.gov/ v/inside-tx txdot/ t/get-involved/about/hearing ngs- meeti etings/lufkin/051419.html tml

  • Cleveland Advocate and La Lengua: April 24, 2019
  • San Jacinto News: April 25, 2019
  • El Perico: April 28, 2019
  • Letters (adjacent properties) – April 29, 2019
  • Twitter – May 8, 2019

4 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-5
SLIDE 5

Agenda for Tonight’s Public Hearing

  • Exhibit Viewing and Registration
  • Public Hearing Presentation
  • Public Comment Session
  • Adjourn Public Hearing

5 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-6
SLIDE 6

Proposed Project Location

6 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-7
SLIDE 7

Project Need and Purpose

Existing US 59 within the project area does not meet criteria for an Interstate. The criteria includes:

  • Controlled access – access to main lanes only allowed via ramps
  • Roadway Geometrics - horizontal curvature and grades to meet 70mph

design speed

  • Main lane shoulders - minimum 4-foot inside shoulder and 10-foot
  • utside width
  • 30-foot horizontal clear zone requirements

Projec ect N Need eed Projec ect P Purpo pose

Bring US 59 between Shepherd and Cleveland up to current interstate design standards providing system connectivity, enhanced safety, increased mobility and a more efficient hurricane evacuation route.

7 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-8
SLIDE 8

Proposed Project Overview

  • Major Design Features
  • Controlled access section with two-lane northbound and southbound

frontage roads and two-lane northbound and southbound US 59 main lanes with center barrier

  • Overpasses with u-turns at Red Road and just south of the San

Jacinto and Liberty County Line

  • Sidewalks along the southbound frontage road in the Cleveland area

and safety lighting on entrance and exit ramps

  • Anticipated Right of Way
  • Proposed right-of-way (ROW) width varies from 321 feet to 544 feet
  • Approximately 120 acres from 38 parcels
  • Construction cost is estimated at $116 million

US 5 59 Upgrade de S Shep epher erd d to Clevela eland P Project

8 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-9
SLIDE 9

Proposed

  • sed Typica

cal Se Sect ction

  • Four 12-foot wide main lanes (two in each direction) with center barrier,

10-foot wide inside shoulders and 12-foot wide outside shoulders

  • Northbound and southbound frontage roads with two 12-foot wide lanes,

4-foot inside shoulders and 8-foot outside shoulders

  • 6-foot wide sidewalks would be provided along the southbound frontage

road in the Cleveland area

  • Proposed right-of-way width varies from 321 feet to 544 feet

9 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-10
SLIDE 10

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Non-

Archeological Properties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

10 10 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-11
SLIDE 11

Environmental Considerations

  • Land Use
  • Farmlands
  • Commu
  • mmunity Im

Impa pacts

  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Non-

Archeological Properties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

11 11 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-12
SLIDE 12

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Nois

ise

  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Non-

Archeological Properties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

12 12 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-13
SLIDE 13

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetat

atio ion a n and nd Wi Wild ldlife

  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Non-

Archeological Properties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

13 13 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-14
SLIDE 14

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality and Permits
  • Vegetation and Wildlife
  • Floodplains
  • Waters of t

s of the he U.S .S.

  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Non-

Archeological Properties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

14 14 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-15
SLIDE 15

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Arch

cheologica ical Resou sources s

  • Historical Properties
  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

15 15 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-16
SLIDE 16

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historica

ical Propertie ies

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

16 16 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-17
SLIDE 17

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Properties
  • Section 4(f)/6(f)

Properties

  • Haza

zardou

  • us M

Materi rials ls

  • Indirect and Cumulative

Effects

17 17 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-18
SLIDE 18

Right of Way Acquisition and Relocation

Hand ndout uts for

  • r R

Right of

  • f W

Way y Acqui uisition a

  • n and

Reloc

  • cation
  • n:
  • State Purchase of Right of Way - information about the right
  • f way acquisition process
  • Relocation Assistance - information about the relocation

assistance program for residences, tenants, businesses and personal property relocations

  • Landowner’s Bill of Rights - information prepared by the

Office of the Attorney General explaining a property owner’s rights in the State of Texas

18 18 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-19
SLIDE 19

Project Development Schedule*

  • May 2019 – July 2019: Compile and consider public input from

tonight’s hearing and the public comment period and finalize schematic and environmental documentation.

  • Spring 2019 – Summer 2021: Complete right of way (ROW) map

and parcel descriptions; obtain ROW appraisals; acquire ROW and conduct relocations; and demolish acquired structures.

  • Summer 2019 – Early 2023: Prepare detailed engineering plans,

relocate utilities and obtain necessary environmental permits.

  • Spring 2023 – Spring 2027: Take bids on the proposed project and

begin construction. Construction is anticipated to take approximately 4 years.

19 19 *Subject to change. US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-20
SLIDE 20

Public Hearing Comments

All c commen ments ts m must b t be s submi mitt tted ed by M May 29, 29, 20 2019

Comments may be provided tonight at this Public Hearing, by mail, or by email. 1. 1. Provide verbal comme

  • mments during f

for

  • rmal comm
  • mment period
  • d:
  • Fill out a speaker registration card or raise your hand if you need one
  • Once you’ve completed a speaker registration card – hand to a staff member or raise your

hand if you need assistance

  • When your name is called, proceed to the microphone to speak your comment or raise your

hand if you need assistance

  • Please speak your name clearly for the court reporter
  • Comments will be limited to 3 minutes

2. . Le Leave written com

  • mme

ment f for

  • rms in com
  • mme

ment b boxes or

  • r give t

to

  • TxDOT staff t

f tonight ht 3. M Mail l written c com

  • mme

ments to to: TxDOT Lufkin District Attn: Jennifer H. Adams 1805 N. Timberland Dr. Lufkin, Texas 75901 4. . Submit e electron

  • nic c

comm

  • mments on
  • nline using the ema

mail link a at: : https://www.txdot.gov/inside-txdot/get-involved/about/hearings-meetings/lufkin/051419.html 20 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-21
SLIDE 21

Elect cted O d Official cials C Comment nt Session ion

21 21 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)

slide-22
SLIDE 22

Footer Text

3:00 2:59 2:58 2:57 2:56 2:55 2:54 2:53 2:52 2:51 2:50 2:49 2:48 2:47 2:46 2:45 2:44 2:43 2:42 2:41 2:40 2:39 2:38 2:37 2:36 2:35 2:34 2:33 2:32 2:31 2:30 2:29 2:28 2:27 2:26 2:25 2:24 2:23 2:22 2:21 2:20 2:19 2:18 2:17 2:16 2:15 2:14 2:13 2:12 2:11 2:10 2:09 2:08 2:07 2:06 2:05 2:04 2:03 2:02 2:01 2:00 1:59 1:58 1:57 1:56 1:55 1:54 1:53 1:52 1:51 1:50 1:49 1:48 1:47 1:46 1:45 1:44 1:43 1:42 1:41 1:40 1:39 1:38 1:37 1:36 1:35 1:34 1:33 1:32 1:31 1:30 1:29 1:28 1:27 1:26 1:25 1:24 1:23 1:22 1:21 1:20 1:19 1:18 1:17 1:16 1:15 1:14 1:13 1:12 1:11 1:10 1:09 1:08 1:07 1:06 1:05 1:04 1:03 1:02 1:01 1:00 0:59 0:58 0:57 0:56 0:55 0:54 0:53 0:52 0:51 0:50 0:49 0:48 0:47 0:46 0:45 0:44 0:43 0:42 0:41 0:40 0:39 0:38 0:37 0:36 0:35 0:34 0:33 0:32 0:31 0:30 0:29 0:28 0:27 0:26 0:25 0:24 0:23 0:22 0:21 0:20 0:19 0:18 0:17 0:16 0:15 0:14 0:13 0:12 0:11 0:10 0:09 0:08 0:07 0:06 0:05 0:04 0:03 0:02 0:01 0:00

  • Submit a Speaker Registration

Card

  • Limit your comments to 3

minutes

  • Use microphone and face court

reporter

  • State your name and whom you

represent (if applicable)

  • Unused time may not be given to

another speaker

Public ic Comm mment S t Sessio ion

22 US 59 Upgrade Shepherd to Cleveland (Future I-69)

slide-23
SLIDE 23

Th Than ank Y You

  • u

23 23 US 59 Up Upgrade S Shepherd to Clevela land ( (Future I I-69) 69)
