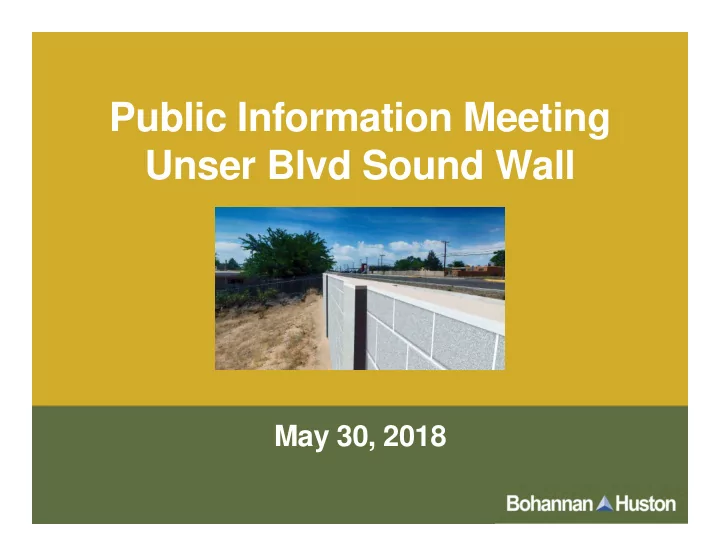

Public Information Meeting Unser Blvd Sound Wall May 30, 2018 - - PowerPoint PPT Presentation
Public Information Meeting Unser Blvd Sound Wall May 30, 2018 - - PowerPoint PPT Presentation
Public Information Meeting Unser Blvd Sound Wall May 30, 2018 Agenda Status of Project Sound Walls Recommended Sample Renderings of Wall Concept Construction Considerations Design Schedule and Process Noise Analysis Noise
SLIDE 2
SLIDE 3
Noise Analysis
▲Noise analysis warrants sound walls ▲Meets Feasible and Reasonable criteria
under FHWA
▲Results indicate walls reduce noise levels of
at least 5 dBA
SLIDE 4
Noise Analysis Process
▲Noise levels are modeled
– Calibrated with noise measurements
▲2016 traffic count data used in the model
– Average Daily Traffic – 24,000
▲Actual speed limit of 40 MPH ▲Truck mix based on field data
SLIDE 5
Recommendations
▲Combination of 9-foot and 6-foot walls ▲Replace existing backyard walls
SLIDE 6
Sound Walls Recommended
SLIDE 7
Rendering of Wall Concept 9’ Backyard Wall
SLIDE 8
Rendering of Wall Concept 6’ Backyard Wall
SLIDE 9
Rendering of Wall Concept Northbound Unser
9’ Wall 6’ Wall
SLIDE 10
Rendering of Wall Concept Southbound Unser
6’ Wall 9’ Wall
SLIDE 11
Potential Construction Considerations
▲Landscaping
– In-kind replacement of soil, rocks, ground cover
▲Protect Structures near existing walls
– Identify and work with land owners
▲Tie-in of fencing and walls
SLIDE 12
Potential Construction Considerations
▲Pets
– Temporary fencing and Communication
▲Security
– Temporary fencing
▲Access control concerns
– Driveways are not permitted off of an arterial roadway
SLIDE 13
Design Schedule and Process
▲Property owner meetings – Summer 2018 ▲Design completion – Fall 2018 ▲Public meeting – Winter 2018
– Potential opportunity for aesthetic input
▲Construction funding and update
– Potential for construction of additional 6-ft Eastside wall
