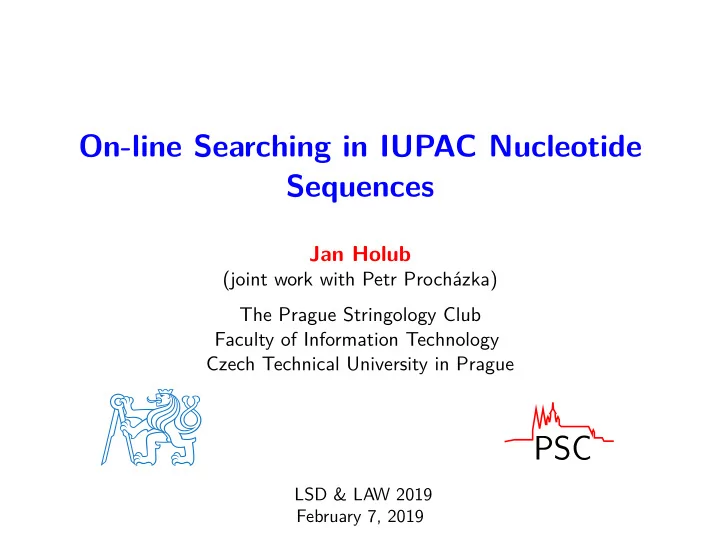

On-line Searching in IUPAC Nucleotide Sequences

Jan Holub

(joint work with Petr Procházka) The Prague Stringology Club Faculty of Information Technology Czech Technical University in Prague

PSC

LSD & LAW 2019 February 7, 2019

Outline

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 2 / 21

1. Motivation 2. Basic Concepts 3. BADPM data structures 4. BADPM pattern preprocessing 5. BADPM searching 6. BADPM complexities 7. Experiments

Motivation

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 3 / 21

■

DNA sequencing the population of many individuals.

■

1000 Genomes Projects, UK10K project.

■

Pan-genomics: a consensus sequences is a way of representing the sequenced population.

■

Consensus sequence can be expressed as so-called degenerate string.

■

Need for fast on-line algorithms searching for different patterns in the consensus sequence.

Basic Concepts: IUPAC alphabet

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 4 / 21

IUPAC symbol Subset Bit coding

A {A} 0001 C {C} 0010 G {G} 0100 T {T} 1000 R {A, G} 0101 Y {C, T} 1010 S {C, G} 0110 W {A, T} 1001 K {G, T} 1100 M {A, C} 0011 B {C, G, T} 1110 D {A, G, T} 1101 H {A, C, T} 1011 V {A, C, G} 0111 N {A, C, G, T} 1111

Basic Concepts: DNA Consensus Sequence

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 5 / 21

T C C A G C G C T T A C T C T A T A C C T A A T C C A G C A C T T A C T C T G T G C C C G C T C C A G C A C T T A C T C T G T G C C C A C T C C A G C A C T T A C T C T G T G C C C A C T C C A G C A C T T A C T C T G T G C C C G C T C T A G C A C T T A C T C T A T G C C T G C T C T A G C A C T T A C T C T A T G C C T G C

homo sapiens: pan paniscus: chlorocebus sabaeus: macaca fascicularis: macaca mulatta: papio anubis: callithrix jacchus: CONSENSUS:

T C Y A G C R C T T A C T C T R T R C C Y R M

Figure 1: Consensus sequence over IUPAC alphabet for different species (chro- mosome 7: 55 187 593 – 55 187 615).

Basic Concepts: Degenerate Pattern Matching

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 6 / 21

Problem Given a degenerate text T and a degenerate pattern P. The problem is to find all the occurrences of P in T , i.e., to find all i such that for all j in [1, m], Ti+j−1 ∩ Pj = ∅.

BADPM: Basic Properties

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 7 / 21

■

Byte-Aligned Degenerate Pattern Matching (BADPM).

■

Sublinear average time complexity in searching over consensus DNA sequences.

■

Extremely fast for long patterns because of long shifts.

■

Simple pattern preprocessing: tabulating all pattern factors.

■

Processing at the byte level (omitting most of the bitwise operations).

■

Easy cooperating with n-gram inverted index.

BADPM: Data Structures

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 8 / 21

00 01 00 11 00 00 11 11 00 00 11 01 A C V T A A T ...

4 879 5 903 6 927

dictionary

A → 00 C → 01 G → 10 T → 11 Source sequence T A R T ... ... ...

Bi Bi+1 Bi+2

Encoded sequence B 00 01 01 11 00 01 10 11 ... ... 00 00 11 10 00 00 11 11 ... ... 00 10 11 01 00 10 11 10 00 10 11 11

variants variants

i i + 2 3 6

variantPos variantNum

... ... ... ...

j j + 1

baseSeq

Preprocessed pattern

BADPM: Data structures (2)

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 9 / 21

■

Consensus sequence divided into:

◆

Base sequence. Consisting of only solid symbols.

◆

• Variants. Encoded variants (given by the degenerate symbols) in

terms of a whole byte.

■

Base sequence and variants encoded using bytes substituting 4-grams of symbols/bases.

■

Auxiliary array variantPos storing positions of “degenerate bytes” in base sequence.

■

Auxiliary array variantNum storing number of “byte variants” for a given byte.

BADPM: Data structures (3)

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 10 / 21

■

Dictionary of all possible two-byte values (2562 = 65 536 values).

■

Dictionary entries point to lists of occurrences (of a two-byte values) in the encoded pattern PC.

■

List elements:

◆

Byte offset in terms of the encoded pattern PC.

◆

Alignment to the encoded pattern PC.

BADPM: Pattern Preprocessing

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 11 / 21

... C 00 01 10 11 00 00 11 11 00 00 11... ... 01 11 11 11 00 11 11 11 00 00 01 A C G T A A T ... T T A A C T

alignment = 0 alignment = 1 alignment = 2 alignment = 3

6 927 27 708 32 575 50 115 53 185 62 448 64 764 45 296

dictionary

• ffset

alignment

nB − 2 1

A → 00 C → 01 G → 10 T → 11

1 2 3 nB − 1 0 nB − 2 3 nB − 2 2

... ... ... ... ... ... ... ... Preprocessing process Preprocessed pattern T A A T T T A T A C G T A A T ... T A A T A C G T A A T ... T A A T A C G T A A T ... T A A T 00 01 10 11 00 00 11 11 00 00 11... 00 01 10 11 00 00 11 11 00 00 11... 00 01 10 11 00 00 11 11 00 00 11... ... C ... 01 11 11 11 00 11 11 11 00 00 01 T T A A C T T T A T ... C ... 01 11 11 11 00 11 11 11 00 00 01 T T A A C T T T A T ... C ... 01 11 11 11 00 11 11 11 00 00 01 T T A A C T T T A T

BADPM: Pattern Preprocessing (2)

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 12 / 21

For different alignments a ∈ {0, 1, 2, 3}: 1. Scan all relevant double-byte values. 2. Store byte offset (in terms of the encoded pattern PE) and alignment a to the corresponding list (a dictionary entry corresponding to the double-byte value).

BADPM: Pattern Preprocessing Space

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 13 / 21

i 65 535

dictionary

• ffset

alignment

• li

ali

• 1

a1

... Preprocessed pattern

li

O(mα2 log m)

BADPM: Pattern Preprocessing Space

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 13 / 21

i 65 535

dictionary

• ffset

alignment

• li

ali

• 1

a1

... Preprocessed pattern

li

O(mα2 log m)

O(α2)

BADPM: Pattern Preprocessing Space

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 13 / 21

i 65 535

dictionary

• ffset

alignment

• li

ali

• 1

a1

... Preprocessed pattern

li

O(mα2 log m)

O(α2) O(m)

BADPM: Pattern Preprocessing Space

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 13 / 21

i 65 535

dictionary

• ffset

alignment

• li

ali

• 1

a1

... Preprocessed pattern

li

O(mα2 log m)

O(α2) O(m) O(log m)

BADPM: Pattern Preprocessing Time

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 14 / 21

O(mα2)

■

Scan O(m) bytes of the encoded pattern PE.

■

Check O(α2) double-byte values at each position (pathological patterns . . . NNNNNNNN . . .).

■

Store offset and alignment for each double-byte value to the corresponding list (O(1) time).

BADPM Searching

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 15 / 21 ... ... baseSeq dictionary

• ffset, alignment
• 1. Read short value and check the dictionary.
• 2. Byte-level check according to the offset.
• 3. Prefix and suffix check according to the alignment.

...

Figure 2: BADPM: Conceptual schema of searching.

BADPM Searching: Example

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 16 / 21 baseSeq dictionary i

A C A A G T T A

4 284

A C G A

variants ... ... ... ... ... ... variantPos variantNum

i 1

pattern

A C A A G T T A G G C T A T A T T A G G C T A T A T A A A C T

BADPM Searching: Example

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 16 / 21 baseSeq dictionary i

A C A A G T T A T A T A

4 284

A C G A

variants ... ... ... ... ... ... variantPos variantNum

i 1

pattern

A C A A G T T A T A T A G G C T T A G G C T A A A C T

1

BADPM Searching: Example

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 16 / 21 baseSeq dictionary i

A C A A G T T A T A T A

4 284

A C G A

variants ... ... ... ... ... ... variantPos variantNum

i 1

1

G G C T

pattern

A C A A G T T A T A T A G G C T T A A A A C T

BADPM Searching: Example

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 16 / 21 baseSeq dictionary i

A C A A

6 332

A C G A

variants ... ... ... ... ... ... variantPos variantNum

i 1

pattern

A C A A G T T A G G C T A T A T T A G G C T A T A T A A A C T G T T A

BADPM Searching: Time Complexity

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 17 / 21

O(nm2α4)

■

Scan O(n) bytes of the base sequence.

■

Check O(α2) double-byte values at each position (pathological sequences ...NNNNNNNN...).

■

Check up to O(m) offsets for each double-byte value.

■

Sequential byte-by-byte comparison with the encoded pattern PE (O(m) bytes).

■

Considering O(α) variants for each byte of the sequence and O(α) variants for each byte of the encoded pattern PE (pathological sequences and patterns ...NNNNNNNN...).

Experiments: Locate time

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 18 / 21 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 200 400 600 800 1000 Locate time [sec] Pattern length BADPM PNS BMH BNDM

Figure 3: Human chromosome 7: Locate time depending on the length of the searched pattern m.

Experiments: Locate time for chromosomes

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 19 / 21

0.1 0.2 0.3 0.4 0.5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 X Y 50 100 150 200 250 Locate time [sec] File size [MiB] Chromosome BADPM PNS BMH BNDM File size

Figure 4: Locate time for different human chromosomes for m = 16. The second vertical axis represents the chromosome file size.

Experiments: Inverted index

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 20 / 21 0.0001 0.001 0.01 0.1 200 400 600 800 1000 Locate time [sec] Pattern length BADPM PNS BMH BNDM

Figure 5: Human chromosome 7: Locate time using inverted index, block size = 102 400 bases.

Thank you!

LSD & LAW 2019: J. Holub: On-line Searching in IUPAC Nucleotide Sequences – 21 / 21

■

Any questions?

■
