More Energy from Hydropower Provider for entire electromechanical equipment for small hydroelectric power plants since 1896 GEPPERT GmbH, Breitweg 8-10b, 6060 Hall in Tirol, Austria 1 www.geppert.at We realize your desire for -

slide-1
SLIDE 1

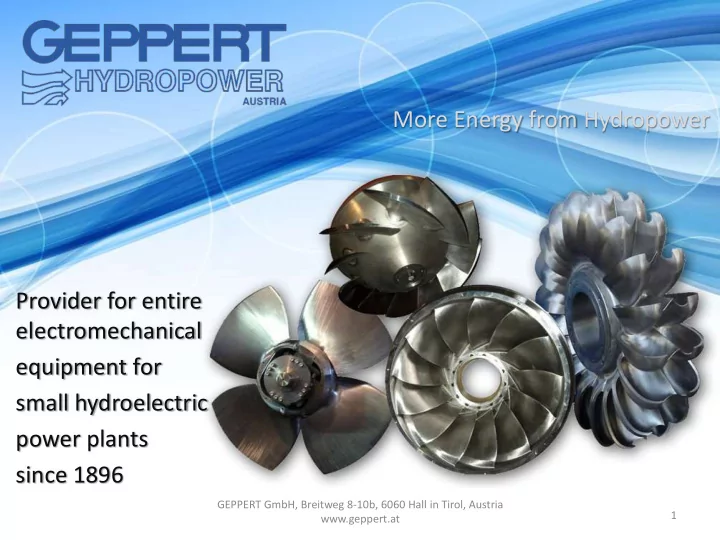

Provider for entire electromechanical equipment for small hydroelectric power plants since 1896

1 GEPPERT GmbH, Breitweg 8-10b, 6060 Hall in Tirol, Austria www.geppert.at

More Energy from Hydropower

slide-2
SLIDE 2
  • Consultancy
  • Design and development
  • New development
  • Modernization and refurbishment
  • Maintenance and service
  • Repair and overhaul

2 www.geppert.at

We realize your desire for… …of your Hydroelectric Power plant

slide-3
SLIDE 3
  • Quality of workmanship and implementation
  • Head start in experience and innovation
  • Guaranteed efficiency (model test) and
  • ptimised fluid mechanics (simulation)
  • On your request – full range supplier –

turn key

3 www.geppert.at

We guarantee you…

slide-4
SLIDE 4
  • Guaranteed earning power and cost

effectiveness with yield stability and stable value

  • Ease of maintenance and servicing
  • High grade of availability and reliance

also after decades in permanent operation

  • Intellectual and easy operability and logic

remote control

  • Observance of environmental protection

4 www.geppert.at

Your benefit with us as your partner is…

slide-5
SLIDE 5

High quality is the precondition for the high earning power of our hydroelectric power plants. Since 1896 the Geppert family has been standing for long range hedging and rooted to the soil management of their company, supplying innovative power station equipment with innovative technology in sound construction

5 www.geppert.at

Your reliable partner

Guntram Geppert Wilfried Geppert

slide-6
SLIDE 6

Ownership: Geppert family Legal form: limited liability company (Gesellschaft mit beschränkter Haftung) Number of employees: 56 Number of trainees: 4 Annual turnover: € 18.500.000 Export rate: 60-85 %

6 www.geppert.at

Efficient structure

Management Guntram Geppert Accountancy Jelica Maros Head of Engineering, Sales, Development Thomas Marthe Proxy Head of Engineering Ulrich Ruggenthaler Electric and Automation Engineering Oliver Gritscher Project Manager Ulrich Ruggenthaler Christian Moriel Thomas Gruber Hans Peter Nißl Gabriel Schöpf Efficiency measurement and non distructive material testing Ulrich Ruggenthaler Head of Design Branka Jereb Purchasing Engineer Florian Seelos Work master Walter Moser Lathes Michael Pedevilla CNC boring machines Thomas Siller Grinding Hannes Stöckl Fitter‘s shop Wolfgang Hotter Workshop assembling Gerhard Rampl Assembling Dietmar Flörl QM Guntram Geppert Operations scheduling Helmut Rampl Designers Clemens Schmidt Günter Schranz Zorica Rajic Dilber Uzun-Röttger Quality Assurance
slide-7
SLIDE 7

EN ISO 9001:2008

7 www.geppert.at

Certified…

slide-8
SLIDE 8

We are a well established turbine supplier for private companies and utilities in Austria and its neighbouring alpine countries. In the last years new projects have been realised also in Greece, Turkey, South America, Africa and Southeast-Asia.

8 www.geppert.at

Geppert - your international Partner

slide-9
SLIDE 9

9 www.geppert.at

International Transportation logistics

  • We deliver the Turbine equipment

directly to your Power house

  • Transportation per Truck,
  • in special cases per Ship or Helicopter
slide-10
SLIDE 10

Also you should benefit as client from the excellent quality of our products. Highly qualified Austrian technicians and most modern machine tools facilitate a precise and first class machining of the components Efficient project management facilitates a continuous monitoring of the project implementation progress

10 www.geppert.at

Solutions for small hydroelectric power plants from one source

slide-11
SLIDE 11

Geppert has been building small hydro power plants for more than a century, following the device:

11 www.geppert.at

Power plants solutions In line with the nature

“Traditionally more renewable energy from Hydropower” – in line with the nature.

slide-12
SLIDE 12
  • Design in 3D and 2D
  • FE calculation
  • Flow simulation
  • top modern CNC machines
  • milling freeform surface by CAM
  • trained specialists

12 www.geppert.at

Modern manufacturing

slide-13
SLIDE 13
  • Pelton Turbines
  • Francis Turbines
  • Diagonal Turbines
  • Kaplan Turbines
  • Guaranteed
  • efficiencies
  • runaway speed
  • Cavitation

based on model tests

13 www.geppert.at

Production Range of Turbines…

slide-14
SLIDE 14
  • up to 10MW
  • up to 1000 m Head
  • vertical or horizontal shaft
  • 1 to 6 nozzles
  • inside or outside regulated nozzles
  • conducted with Jet deflector
  • hydraulically or electrically operated
  • special condition for drinking water solutions

14 www.geppert.at

Pelton Turbines

slide-15
SLIDE 15
  • up to 10MW
  • up to 200m Head
  • vertical or horizontal shaft
  • open flume or Spiral Units
  • Outside regulated guide vanes

hydraulically or electrically operated

15 www.geppert.at

Francis Turbines

slide-16
SLIDE 16
  • up to 5MW
  • up to 80m Head
  • double regulated reaction Turbine
  • vertical or horizontal shaft
  • adjustable guide vanes and runner blades
  • High partial-load efficiencies and increased

annual production

16 www.geppert.at

Diagonal Turbines

slide-17
SLIDE 17
  • up to 5MW
  • up to 30m Head
  • as chamber, bulb or spiral Turbine
  • vertical or horizontal shaft
  • adjustable guide vanes and runner blades
  • Special Type „Kaplanaggregat“ complete placed in the water

17 www.geppert.at

Kaplan Turbines

slide-18
SLIDE 18
  • up to 1200 mm nominal diameter
  • up to 120 bar nominal pressure
  • as ball valve or spherical valve
  • elastic or metallic operation seal
  • emergency shut-down with drop weight
  • Optional with revision sealing

18 www.geppert.at

Ball Valves

slide-19
SLIDE 19
  • up to 1200 mm nominal diameter
  • up to 40 bar nominal pressure
  • excentric beared shaft
  • low pressure losses
  • hydraulically efficient design
  • short installation length

19 www.geppert.at

Butterfly Valves

slide-20
SLIDE 20

Automation by utilisation of PLCs for new and existing plants. These automations can manage a fully automated unmanned operation with remote enquiry and SMS- message alarming according to the clients‘ requirement

20 www.geppert.at

Turbine Governor / Automation

slide-21
SLIDE 21

Our trained team of technicians combined with many spare parts in store minimise eventual periods of disruption of energy generation. By refurbishment of your older plants you can achieve increase of efficiencies and more economical operation

21 www.geppert.at

After – Sales - Service

slide-22
SLIDE 22
  • Handycraft
  • Experience
  • precision

22 www.geppert.at

Refurbishment and upgrading

slide-23
SLIDE 23
  • Pressure Test
  • non destructive material testing
  • factory acceptance Test

23 www.geppert.at

Testing

slide-24
SLIDE 24

Our trained team of technicians have many experience in installation of our Turbine Equipment on site. Equipped with special tools, they give their best to make sure that your plant reaches a long lifetime.

24 www.geppert.at

Installation on site

slide-25
SLIDE 25

Geppert GmbH Breitweg 8-10b A-6060 Hall in Tirol Austria Telephone: +43(5223) 57788 Fax: +43(5223) 57788 2 Email: office@geppert.at Internet: www.geppert.at

25 www.geppert.at

We are at your service

slide-26
SLIDE 26

Production square: 6.000 m² Inside storage: 3.000 m² Office square: 700 m² Ideal access - industrial area Building can be extended Modern tool machines, welding hall, sand blasting room, corrosion protection, assembling hall with 32t-crane, testing facilities etc.

26 www.geppert.at

Investing in the future – new production facility

Completion: until 2014 Location: Hall West

slide-27
SLIDE 27

27 www.geppert.at

Thanks for your attention
