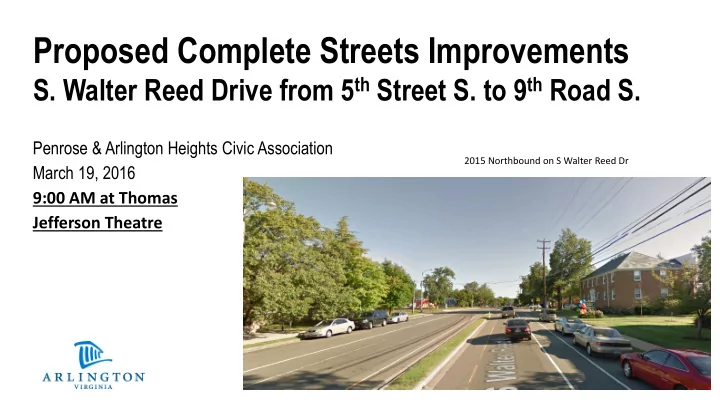

SLIDE 1
Proposed Complete Streets Improvements
- S. Walter Reed Drive from 5th Street S. to 9th Road S.
2015 Northbound on S Walter Reed Dr
Proposed Complete Streets Improvements S. Walter Reed Drive from 5 th - - PowerPoint PPT Presentation
Proposed Complete Streets Improvements S. Walter Reed Drive from 5 th - - PowerPoint PPT Presentation
Proposed Complete Streets Improvements S. Walter Reed Drive from 5 th Street S. to 9 th Road S. Penrose & Arlington Heights Civic Association 2015 Northbound on S Walter Reed Dr March 19, 2016 9:00 AM at Thomas Jefferson Theatre Project
SLIDE 2
SLIDE 3
Where we are in the process…
Scope & Concept Development Engineering Design Construction
Project Phases
- Plans are at 60% complete
- Working on obtaining real estate easements
- Working through 60% design comment resolution
SLIDE 4
Project Purpose & Objectives
- Create permanent improvements to painted road diet and to address
existing speeding issues
- Full complete streets project
- Our intention is to move forward to construction as soon as possible
- To implement as many of the scope elements as possible
- If we are unable to obtain easements, the improvements that require
those easements will be removed from the project
SLIDE 5
Major Scope Elements & Improvements
- Major intersection redesign at 5th St and 9th St.
- Driveway and access redesign at 8th St S
- Intersection nubs and drainage improvements
- New bus stops
- Landscaping in the raised medians and possibly large curb extensions
- Paving the section needed for widening
- Install new pavement markings and signage
- Replacing cracked sections of sidewalk
SLIDE 6
SLIDE 7
SLIDE 8
SLIDE 9
SLIDE 10
Critical Easements
- 12 Temporary Construction
- Working with Engineering and Real Estate
- Will be notifying and speaking with property owners very soon
SLIDE 11
Other Adjacent Projects
- Separate from S. Walter Reed Complete Street Project
- Bikeshare station in front of Patrick Henry at 8th Street
- Bioretention at 5th Street (NW) and 9th Street (SE)
- Traffic signal at 7th Street
- Traffic signal at 9th Street
SLIDE 12
Next Steps & Milestones –
- Civic engagement of 60% plans – March 2016
- Utility relocation coordination – ongoing. throughout 2016
- Easement acquisition – ongoing. throughout 2016
- 90% design plans – August 2016
- Informational presentation of 90% plans – September 2016
- 100% design plans – November 2016
- County construction permits – January 2017
- Procurement & Advertisement – December to March 2017
- Construction award – May 2017
- Construction completion – June 2017 to March 2018
SLIDE 13
