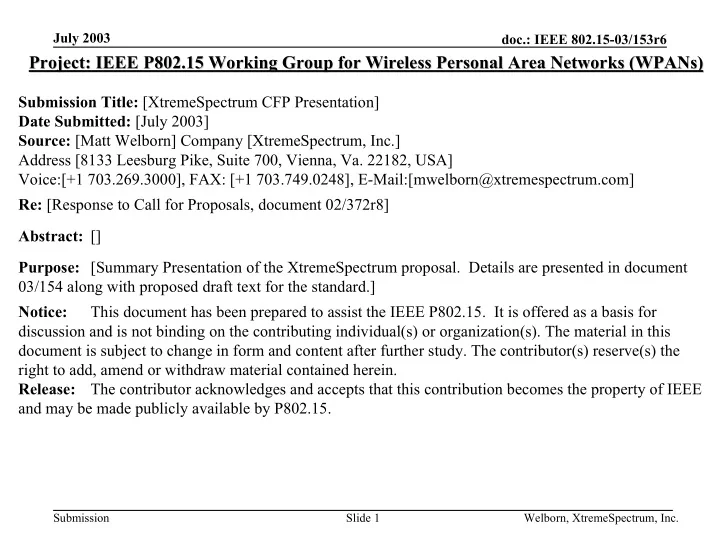

July 2003 doc.: IEEE 802.15-03/153r6 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) etworks (WPANs) Project: IEEE P802.15 Working Group for Wireless Personal Area N Submission Title: [XtremeSpectrum CFP Presentation] Date Submitted: [July 2003] Source: [Matt Welborn] Company [XtremeSpectrum, Inc.] Address [8133 Leesburg Pike, Suite 700, Vienna, Va. 22182, USA] Voice:[+1 703.269.3000], FAX: [+1 703.749.0248], E-Mail:[mwelborn@xtremespectrum.com] Re: [Response to Call for Proposals, document 02/372r8] Abstract: [] Purpose: [Summary Presentation of the XtremeSpectrum proposal. Details are presented in document 03/154 along with proposed draft text for the standard.] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Submission Slide 1 Welborn, XtremeSpectrum, Inc.

Introduction July 2003 doc.: IEEE 802.15-03/153r6 Low Band High Band 3 4 5 6 7 8 9 10 11 3 4 5 6 7 8 9 10 11 � Low Band (3.1 to 5.15 GHz) � High Band (5.825 to 10.6 GHz) � 28.5 Mbps to 400 Mbps � 57 Mbps to 800 Mbps � Supports low rate, longer range services � Supports high rate, short range services Multi-Band 3 Spectral Modes of With an appropriate diplexer, the multi-band mode will support full-duplex operation (RX in Operation one band while TX in the other) 3 4 5 6 7 8 9 10 11 � Multi-Band (3.1 to 5.15 GHz plus 5.825 GHz to 10.6 GHz) � Up to 1.2 Gbps � Supports low rate, longer range and high rate, short range services Submission Slide 2 Welborn, XtremeSpectrum, Inc.

Spectral Flexibility and Scalability July 2003 doc.: IEEE 802.15-03/153r6 • PHY Proposal accommodates alternate spectral allocations • Center frequency and bandwidth are adjustable • Supports future spectral allocations • Maintains UWB advantages (i.e. wide bandwidth for multipath resolution) Example 2: Support for hypothetical • No changes to silicon “above 6 GHz” UWB definition Example 1: Modified Low Band to include protection for 4.9-5.0 GHz WLAN Band 3 4 5 6 7 8 9 10 11 Note 1: Reference doc IEEE802.15-03/211 3 4 5 6 3 4 5 6 Submission Slide 3 Welborn, XtremeSpectrum, Inc.

Multiple Access: A Critical Choice July 2003 doc.: IEEE 802.15-03/153r6 Multi-piconet capability via: • FDM (Frequency) • Choice of one of two operating frequency bands • Alleviates severe near-far problem • CDM (Code) • 4 CDMA code sets available within each frequency band • Provides a selection of logical channels • TDM (Time) • Within each piconet the 802.15.3 TDMA protocol is used Legend: Low Band (FDM) LB Channel X (CDM) Ch. X 802.15.3a piconet (TDM/TDMA) High Band (FDM) HB Channel X (CDM) Ch. X 802.15.3a piconet (TDM/TDMA) An environment depicting multiple collocated piconets Submission Slide 4 Welborn, XtremeSpectrum, Inc.

Overview July 2003 doc.: IEEE 802.15-03/153r6 Why a Multi-Band CDMA PSK Approach? • Support simultaneous full-rate piconets • Low cost, low power • Uses existing 802.15.3 MAC – No PHY layer protocol required • Time to market – Silicon in 2003 Submission Slide 5 Welborn, XtremeSpectrum, Inc.

Proven Technology July 2003 doc.: IEEE 802.15-03/153r6 This PHY proposal is based upon proven and common communication techniques Transmitter High Band RF Scrambler FEC Preamble Symbol Code Set Pulse Data Encoder Prepend Mapper Modulation Shaper Low Band RF . Multi-Band RF • Multiple bits/symbol via MBOK coding • Data rates from 28.5 Mbps to 1.2 Gbps • Multiple access via ternary CDMA coding • Support for CCA by exploiting higher order properties of BPSK/QPSK • Operation with up to 8 simultaneous piconets Submission Slide 6 Welborn, XtremeSpectrum, Inc.

Scrambler and FEC Coding July 2003 doc.: IEEE 802.15-03/153r6 � Scrambler (15.3 scrambler) � Seed passed as part of PHY header g(D)=1+D 14 +D 15 D D D D � Forward error correction options � Convolutional FEC code (<200 Mbps – 2002 technology ) � ½ rate K=7, (171, 133) with 2/3 and 3/4 rate puncturing � Convolutional interleaver � Reed-Solomon FEC code (high rates) � RS(255, 223) with byte convolutional interleaver � Concatenated FEC code (<200 Mbps – 2002 technology ) Submission Slide 7 Welborn, XtremeSpectrum, Inc.

Pulse Shaping and Modulation July 2003 doc.: IEEE 802.15-03/153r6 � Approach uses tested direct-sequence spread spectrum techniques � Pulse filtering/shaping used with BPSK/QPSK modulation � 50% excess bandwidth, root-raised-cosine impulse response � Harmonically related chipping rate, center frequency and symbol rate � Reference frequency is 684 MHz RRC BW Chip Rate Code Length Symbol Rate Low 1.368 GHz 1.368 GHz 24 57 MS/s chips/symbol ( ± 1 MHz, ± 3 MHz) Band High 2.736 GHz 2.736 GHz 24 114 MS/s chips/symbol ( ± 1 MHz, ± 3 MHz) Band Submission Slide 8 Welborn, XtremeSpectrum, Inc.

Code Sets and Multiple Access July 2003 doc.: IEEE 802.15-03/153r6 • CDMA via low cross-correlation ternary code sets ( ± 1, 0) • Four logical piconets per sub-band (8 logical channels over 2 bands) • Up to 16-BOK per piconet (4 bits/symbol bi-phase, 8 bits/symbol quad-phase) • 1 sign bit and 3 bit code selection per modulation dimension • 8 codewords per piconet • Total number of 24-chip codewords (each band): 4x8=32 • RMS cross-correlation < -15 dB in a flat fading channel • CCA via higher order techniques • Squaring circuit for BPSK, fourth-power circuit for QPSK • Operating frequency detection via collapsing to a spectral line • Each piconet uses a unique center frequency offset • Four selectable offset frequencies, one for each piconet • +/- 3 MHz offset, +/- 9 MHz offset Submission Slide 9 Welborn, XtremeSpectrum, Inc.

4x8 Code Set July 2003 doc.: IEEE 802.15-03/153r6 PNC1 = -1 1 -1 -1 1 -1 -1 1 -1 0 -1 0 -1 -1 1 1 1 -1 1 1 1 -1 -1 -1 0 -1 -1 0 1 -1 -1 1 -1 -1 1 1 1 1 -1 -1 1 -1 1 -1 1 1 1 1 -1 -1 -1 -1 1 -1 1 -1 1 -1 -1 1 -1 -1 1 -1 -1 1 1 0 -1 0 1 1 0 -1 1 1 1 -1 -1 -1 -1 -1 -1 -1 1 -1 1 -1 0 1 -1 1 1 -1 -1 1 -1 0 1 -1 -1 -1 1 1 0 1 1 1 1 -1 1 -1 1 1 1 -1 1 -1 -1 1 2-BOK uses code 1 -1 0 -1 1 -1 1 -1 -1 0 1 1 1 1 -1 1 1 -1 -1 -1 1 1 -1 1 1 4-BOK uses codes 1 & 2 -1 -1 -1 -1 -1 -1 1 1 1 0 -1 -1 1 1 -1 1 -1 1 -1 1 1 -1 0 1 8-BOK uses codes 1,2,3 &4 16-BOK uses all codes -1 1 -1 -1 -1 1 -1 -1 0 -1 1 -1 -1 1 -1 0 1 1 1 1 -1 -1 -1 1 PNC2 = -1 -1 1 0 1 1 1 -1 -1 1 -1 1 1 -1 1 0 1 -1 -1 -1 1 -1 -1 -1 -1 -1 -1 1 -1 -1 -1 1 0 1 -1 1 1 -1 1 -1 -1 1 1 1 0 1 -1 -1 -1 1 -1 1 1 -1 1 0 1 1 1 -1 -1 1 1 -1 1 1 1 -1 -1 -1 0 -1 0 -1 1 1 1 1 -1 -1 1 1 1 -1 1 1 -1 1 1 1 -1 1 -1 0 -1 -1 -1 1 -1 1 -1 -1 -1 -1 -1 -1 -1 1 1 1 -1 -1 1 1 -1 0 1 -1 0 1 -1 1 -1 -1 1 0 -1 -1 1 1 -1 -1 0 1 1 1 -1 -1 -1 -1 -1 1 -1 1 -1 0 1 -1 -1 -1 1 -1 1 -1 1 1 1 1 -1 -1 -1 -1 1 -1 0 1 -1 -1 -1 -1 -1 -1 -1 -1 1 1 1 0 -1 1 -1 1 -1 1 1 -1 -1 1 -1 0 1 -1 Submission Slide 10 Welborn, XtremeSpectrum, Inc.
