Project CONCEPT CON ne C ting District E nergy and P ower Systems in Future Singaporean New T owns Sebastian Troitzsch, Sreepathi Bhargava Krishna - 13 March 2019 What is CONCEPT? CONCEPT stands for: Connecting District Energy and Power

slide-1

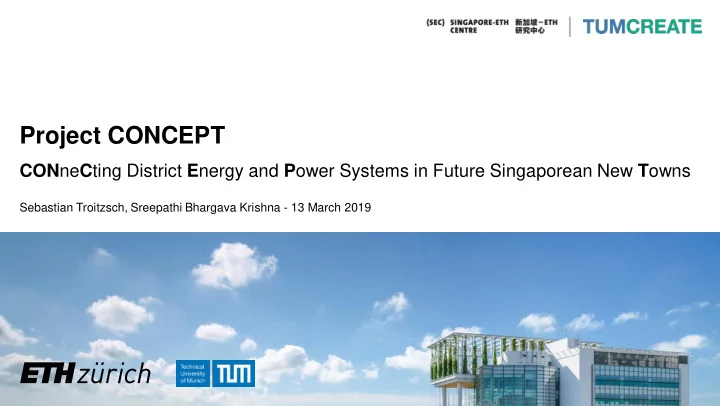

SLIDE 1

CONneCting District Energy and Power Systems in Future Singaporean New Towns

Sebastian Troitzsch, Sreepathi Bhargava Krishna - 13 March 2019

Project CONCEPT

slide-2
SLIDE 2

What is CONCEPT?

  • CONCEPT stands for:

− Connecting District Energy and Power Systems in Future Singaporean New Towns

3

slide-3
SLIDE 3

What is CONCEPT?

  • CONCEPT stands for:

− Connecting District Energy and Power Systems in Future Singaporean New Towns

  • Goals:
  • 1. Integrate planning and operation of electric and

thermal systems on a district scale

Status Quo:

4

Electric Grid Thermal System

Planning goal: Peak load satisfaction Planning goal: Demand satisfaction Operation goal: Stay within safe

  • peration limits

Operation goal:

  • Max. comfort,
  • Min. cost

No Framework or Tools for Interaction

slide-4
SLIDE 4

What is CONCEPT?

  • CONCEPT stands for:

− Connecting District Energy and Power Systems in Future Singaporean New Towns

  • Goals:
  • 1. Integrate planning and operation of electric and

thermal systems on a district scale

Proposal:

5

Electric Grid Thermal System

Planning goal: Peak load satisfaction Planning goal: Demand satisfaction Operation goal: Stay within safe

  • peration limits

Operation goal:

  • Max. comfort,
  • Min. cost

CONCEPT

Integrated planning Price-based dispatch

slide-5
SLIDE 5

What is CONCEPT?

  • CONCEPT stands for:

− Connecting District Energy and Power Systems in Future Singaporean New Towns

  • Goals:
  • 1. Integrate planning and operation of electric and

thermal systems on a district scale

  • 2. Consider flexible resources in the planning phase of

New Town districts

6

Flexible resources Building A/C systems without storage Building with thermal storage Vehicle-to-grid (V2G) District cooling & thermal storage Combined heat and power plant

slide-6
SLIDE 6

What is CONCEPT?

  • CONCEPT stands for:

− Connecting District Energy and Power Systems in Future Singaporean New Towns

  • Goals:
  • 1. Integrate planning and operation of electric and

thermal systems on a district scale

  • 2. Consider flexible resources in the planning phase of

New Town districts

7

Today: Fixed loads Future: Flexible loads

slide-7
SLIDE 7

What is CONCEPT?

  • CONCEPT stands for:

− Connecting District Energy and Power Systems in Future Singaporean New Towns

  • Goals:
  • 1. Integrate planning and operation of electric and

thermal systems on a district scale

  • 2. Consider flexible resources in the planning phase of

New Town districts

  • 3. Creating a computational framework integrated in

City Energy Analyst (CEA)

8

+

slide-8
SLIDE 8

What is CONCEPT?

CONCEPT is set up as 13-month pilot project between the Singapore-ETH Centre (SEC) and TUMCREATE under the “Intra-CREATE Seed Collaboration Grant” of the National Research Foundation (NRF)

9

slide-9
SLIDE 9

Who is CONCEPT?

Sebastian Troitzsch Researcher (TUMCREATE) Sreepathi B. Krishna Researcher (SEC) Sarmad Hanif Co-PI (TUMCREATE) Jimeno A. Fonseca PI (SEC)

10

Arno Schlueter Adviser (SEC) Tobias Massier Adviser (TUMCREATE)

slide-10
SLIDE 10

Methodology

11

Electric grid planning Output: electric grid layout Thermal grid & supply system planning Output: thermal grid layout, supply system config.

slide-11
SLIDE 11

Methodology

12

Electric grid planning Output: electric grid layout Thermal grid & supply system planning Output: thermal grid layout, supply system config.

slide-12
SLIDE 12

Methodology: Electric Grid Planning

13

Electric grid planning considering flexible resource operation Numerical optimization (linear program) Flexible resource models (linear models) Building A/C systems without storage Building with thermal storage Vehicle-to-grid (V2G) District cooling & thermal storage Combined heat and power plant

Minimize: Investment costs for the electric lines, substation + Operation costs for flexible resources Constraints: Capacity limit

  • f the electric grid

& Comfort constraints for flexible resources

slide-13
SLIDE 13

Methodology: Electric Grid Planning

14

Electric grid planning considering flexible resource operation Numerical optimization (linear program)

Minimize: Investment costs for the electric lines, substation + Operation costs for flexible resources Constraints: Capacity limit

  • f the electric grid

& Comfort constraints for flexible resources

slide-14
SLIDE 14

Methodology: Electric Grid Planning

15

Electric grid planning considering flexible resource operation Numerical optimization (linear program)

Minimize: Investment costs for the electric lines, substation + Operation costs for flexible resources Constraints: Capacity limit

  • f the electric grid

& Comfort constraints for flexible resources

slide-15
SLIDE 15

Methodology

16

Electric grid planning Output: electric grid layout Thermal grid & supply system planning Output: thermal grid layout, supply system config.

slide-16
SLIDE 16

Optimal thermal grid planning (Genetic algorithm)

Methodology: Thermal Grid and Supply System Planning

17

Supply system config. Electric grid layout Generate graph model of thermal network Supply system sizing Cost calculation for thermal network & supply system Optimal electric grid planning Thermal grid layout Updated thermal demand

slide-17
SLIDE 17

Optimal thermal grid planning (Genetic algorithm)

Methodology: Thermal Grid and Supply System Planning

18

Electric grid layout Generate graph model of thermal network Optimal electric grid planning Thermal grid layout Updated thermal demand Supply system sizing Cost calculation for thermal network & supply system Supply system config.

slide-18
SLIDE 18

Optimal thermal grid planning (Genetic algorithm)

Methodology: Thermal Grid and Supply System Planning

19

Electric grid layout Generate graph model of thermal network Optimal electric grid planning Thermal grid layout Updated thermal demand Supply system sizing Cost calculation for thermal network & supply system Supply system config.

slide-19
SLIDE 19

Case Study: New Town – Tanjong Pagar Water Front

20

slide-20
SLIDE 20

Case Study: New Town – Tanjong Pagar Water Front

21

MIXed-use GFA = 374, 237 sqm FAR = 4.62 People = 34,513 Buildings = 10

slide-21
SLIDE 21

Case Study: Scenarios

22

Fixed loads Flexible loads Fixed loads Flexible loads Fixed loads Flexible loads Fixed loads Flexible loads

Residential

  • ccupancy

Office

  • ccupancy

Retail

  • ccupancy

Mixed use

  • ccupancy
slide-22
SLIDE 22

Results

  • 1. Cost distribution for fixed building loads
  • 2. Cost implications of integrated planning and operation (Fixed vs. Flexible building loads)
  • 3. Energy implications of integrated planning and operation (Fixed vs. Flexible building loads)
  • 4. Occupancy type dependency of costs (Mixed, Office, Residential & Retail)

23

slide-23
SLIDE 23

Electricity costs, 88.6% 0.6% 8.8% 1.1% 0.9% 11.4%

Annualized costs [SGD]*

Electricity costs Investment (electric lines) Investment (substation & transformers) Investment (compression chiller) Investment (cooling tower & pumps)

Results: Cost Distribution (Fixed Building Loads)

24 *(Preliminary results)

slide-24
SLIDE 24

10 20 30 40 50 60 70 80 90 100 Fixed building loads Flexible building loads

Peak load [MW]*

4.8 5 5.2 5.4 5.6 5.8 6 6.2 6.4 6.6 Fixed building loads Flexible building loads Millions

Annualized costs [SGD]*

Electricity costs Investment costs

Results: Cost implications (Fixed vs. Flexible building loads)

25

+ 0.2 %

  • 28.9 %

Total:

  • 2.7 %
  • 20.7 %

*(Preliminary results)

slide-25
SLIDE 25

10,000 20,000 30,000 40,000 50,000 60,000 70,000 Fixed building loads Flexible building loads

Annualized electricity consumption [MWh]*

Hot water Appliances Space cooling

Results: Energy Implications (Fixed vs . Flexible Building Loads)

26

Total: + 0.2 %

*(Preliminary results)

10 20 30 40 50 60 70 80 90 100 Fixed building loads Flexible building loads

Peak load [MW]*

  • 20.7 %
slide-26
SLIDE 26

Results: Occupancy Type Dependency

27

Mixed

  • ccupancy

Office

  • ccupancy

Residential

  • ccupancy

Retail

  • ccupancy

Annualized Total Costs

  • 2.7 %
  • 3.8 %
  • 2.6 %
  • 2.1 %

Investment Costs

  • 28 %
  • 31 %
  • 21 %
  • 19 %
slide-27
SLIDE 27

Results: Occupancy Type Dependency

28

  • 10.00

20.00 30.00 40.00 50.00 00:00 03:00 06:00 09:00 12:00 15:00 18:00 21:00

Office electricity demand [W/sqm]

Fixed building loads Flexible building loads

  • 10.00

20.00 30.00 40.00 50.00 00:00 03:00 06:00 09:00 12:00 15:00 18:00 21:00

Retail electricity demand [W/sqm]

Fixed building loads Flexible building loads

slide-28
SLIDE 28

Conclusions

29

  • 1. The impact of flexible resources on the district energy system planning is tested by using flexible

building models at a pilot scale.

  • 2. A detailed computational framework for generating district energy systems for neighbourhoods with

flexible buildings has been developed and presented

  • 3. Flexible building loads could decrease the investment cost (- 28 %)* of the energy systems by

decreasing the peak load. This comes at the cost of increased electricity consumption (+ 0.2 %)*.

  • 4. Of all occupancy types, offices allow for the biggest decrease in investment costs (- 31 %)*.

*(Preliminary results)

slide-29
SLIDE 29

What about Implementation & Operation?

  • Electric grid operation:

− Distribution grid market, with a bid and clearing structure similar to the transmission level

  • Building operation:

− Model predictive control (MPC) for air-condition system control − Allows for consideration of dynamic electricity prices − MPC is actively being distributed by start-ups ( e.g. Meteoviva ) & trialed by BMS providers ( e.g. Siemens )

30

  • Build. Operator

Building

  • Elec. Grid Operator

Price Schedule Demand Bid

Model Predictive Control

slide-30
SLIDE 30

What is the Future of CONCEPT?

31

Size Extension Feedback

slide-31
SLIDE 31

32

Electric Grid Thermal System Planning goal: Peak load satisfaction Planning goal: Demand satisfaction Operation goal: Stay within safe

  • peration limits

Operation goal:

  • Max. comfort,
  • Min. cost

Project CONCEPT

Integrated planning Price-based dispatch
