Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe Presentation of Tim Brunst in the context of his Masters Thesis Institute for

slide-1
SLIDE 1

KIT – University of the State of Baden-Wuerttemberg and National Research Center of the Helmholtz Association Institute for Technical Physics – Tritium Laboratory Karlsruhe

www.kit.edu

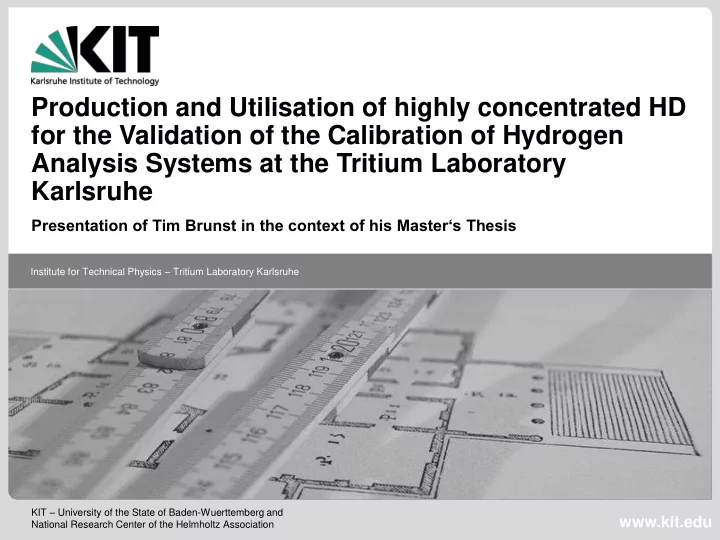

Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Presentation of Tim Brunst in the context of his Master‘s Thesis

slide-2
SLIDE 2

Institute for Technical Physics Tritium Laboratory Karlsruhe 2 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Closed tritium cycle of fusion reactors

Brunst, Tim:

Storage / Delivery Torus Torus D + T 4He + n + 17,6 MeV D2,T2

slide-3
SLIDE 3

Institute for Technical Physics Tritium Laboratory Karlsruhe 3 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Closed tritium cycle of fusion reactors

Brunst, Tim:

Detriitiation / exhaust treatment Storage / Delivery Torus Torus

4He, T2, D2, …

D + T 4He + n + 17,6 MeV D2,T2

slide-4
SLIDE 4

Institute for Technical Physics Tritium Laboratory Karlsruhe 4 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Closed tritium cycle of fusion reactors

Brunst, Tim:

Isotopologue separation Storage / Delivery Torus Torus D2,T2 H2, D2, T2, HD, HT, DT

4He, T2, D2, …

D + T 4He + n + 17,6 MeV H2 D2,T2 Exhaust Detriitiation / exhaust treatment Large amounts (~kg/h) of hydrogen (H, D, T) must be recycled continuously.

slide-5
SLIDE 5

Institute for Technical Physics Tritium Laboratory Karlsruhe 5 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

How do we separate hydrogen isotopologues?

Brunst, Tim:

slide-6
SLIDE 6

Institute for Technical Physics Tritium Laboratory Karlsruhe 6 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

How do we separate hydrogen isotopologues?

Brunst, Tim:

Cryogenic distillation.

slide-7
SLIDE 7

Institute for Technical Physics Tritium Laboratory Karlsruhe 7 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

How do we separate hydrogen isotopologues?

Brunst, Tim:

Cryogenic distillation. Tritium Enrichment Test Assembly (TRENTA)

slide-8
SLIDE 8

Institute for Technical Physics Tritium Laboratory Karlsruhe 8 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

TRENTA and cryogenic distillation

Brunst, Tim:

hot cold

slide-9
SLIDE 9

Institute for Technical Physics Tritium Laboratory Karlsruhe 9 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

TRENTA and cryogenic distillation

Brunst, Tim:

Input Improved separation through several distillation steps Condenser Column Reboiler

slide-10
SLIDE 10

Institute for Technical Physics Tritium Laboratory Karlsruhe 10 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

TRENTA and cryogenic distillation

Brunst, Tim:

Isot. TB /K

(1 bar)

H2 20.3 HD 22.1 HT 22.9 D2 23.6 DT 24.4 T2 25.0

slide-11
SLIDE 11

Institute for Technical Physics Tritium Laboratory Karlsruhe 11 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

TRENTA and cryogenic distillation

Brunst, Tim:

Continuous, real-time monitoring of column content necessary Isot. TB /K

(1 bar)

H2 20.3 HD 22.1 HT 22.9 D2 23.6 DT 24.4 T2 25.0

Every isotopologue can occur highly concentrated

slide-12
SLIDE 12

Institute for Technical Physics Tritium Laboratory Karlsruhe 12 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe Brunst, Tim:

How do we monitor the column content?

slide-13
SLIDE 13

Institute for Technical Physics Tritium Laboratory Karlsruhe 13 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe Brunst, Tim:

How do we monitor the column content? Infrared spectroscopy.

slide-14
SLIDE 14

Institute for Technical Physics Tritium Laboratory Karlsruhe 14 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe Brunst, Tim:

How do we monitor the column content? Infrared spectroscopy. Tritium Absorption Infrared Experiment (TApIR)

slide-15
SLIDE 15

Institute for Technical Physics Tritium Laboratory Karlsruhe 15 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Monitoring with TApIR

Brunst, Tim:

IR source Analyser „white“ light Total spectrum

slide-16
SLIDE 16

Institute for Technical Physics Tritium Laboratory Karlsruhe 16 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Monitoring with TApIR

Brunst, Tim:

IR source Sample Detector Analyser „white“ light Total spectrum Absorption spectrum Absorption length

slide-17
SLIDE 17

Institute for Technical Physics Tritium Laboratory Karlsruhe 17 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Monitoring with TApIR

Brunst, Tim:

peak position

concentration of isotopologues type of isotopologues

slide-18
SLIDE 18

Institute for Technical Physics Tritium Laboratory Karlsruhe 18 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Non-linear calibration functions

Brunst, Tim:

Trend unpredictable

slide-19
SLIDE 19

Institute for Technical Physics Tritium Laboratory Karlsruhe 19 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Non-linear calibration functions

Brunst, Tim:

Calibration spectra of the entire phase space of concentrations Trend unpredictable

slide-20
SLIDE 20

Institute for Technical Physics Tritium Laboratory Karlsruhe 20 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Calibration with reference samples

Brunst, Tim:

slide-21
SLIDE 21

Institute for Technical Physics Tritium Laboratory Karlsruhe 21 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Calibration with reference samples

Brunst, Tim:

slide-22
SLIDE 22

Institute for Technical Physics Tritium Laboratory Karlsruhe 22 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Calibration with reference samples

Brunst, Tim:

Calibration through extrapolation to highly concentrated HD

slide-23
SLIDE 23

Institute for Technical Physics Tritium Laboratory Karlsruhe 23 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Objectives

Production of highly concentrated HD (>50%) Cryogenic distillation with TRENTA

Brunst, Tim:

slide-24
SLIDE 24

Institute for Technical Physics Tritium Laboratory Karlsruhe 24 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Objectives

Production of highly concentrated HD (>50%) Cryogenic distillation with TRENTA Verification of extrapolated calibration of TApIR Comparison with other spectroscopic systems

Brunst, Tim:

slide-25
SLIDE 25

Institute for Technical Physics Tritium Laboratory Karlsruhe 25 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Objectives

Production of highly concentrated HD (>50%) Cryogenic distillation with TRENTA Verification of extrapolated calibration of TApIR Comparison with other spectroscopic systems Stability analysis of highly concentrated HD Long-term measurements in gaseous and liquid phase

Brunst, Tim:

slide-26
SLIDE 26

Institute for Technical Physics Tritium Laboratory Karlsruhe 26 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Production of highly concentrated HD

Brunst, Tim:

slide-27
SLIDE 27

Institute for Technical Physics Tritium Laboratory Karlsruhe 27 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Production of highly concentrated HD

Brunst, Tim:

Extraction

slide-28
SLIDE 28

Institute for Technical Physics Tritium Laboratory Karlsruhe 28 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Production of highly concentrated HD

Brunst, Tim:

Extraction Simulation to determine operating parameters

slide-29
SLIDE 29

Institute for Technical Physics Tritium Laboratory Karlsruhe 29 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Production of highly concentrated HD

Brunst, Tim:

Input preparation Catalysis Distillation HD Extraction RUN A

slide-30
SLIDE 30

Institute for Technical Physics Tritium Laboratory Karlsruhe 30 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Production of highly concentrated HD

Brunst, Tim:

Input preparation Catalysis Distillation HD Extraction RUN A RUN Amount (ls) HD concentration (%) A 138 80.1 B 150 85.8 Goal achieved: HD concentration >50%

slide-31
SLIDE 31

Institute for Technical Physics Tritium Laboratory Karlsruhe 31 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Objectives

Production of highly concentrated HD (>50%) Cryogenic distillation with TRENTA Verification of extrapolated calibration of TApIR Comparison with other spectroscopic systems Stability analysis of highly concentrated HD Long-term measurements in gaseous and liquid phase

Brunst, Tim:

slide-32
SLIDE 32

Institute for Technical Physics Tritium Laboratory Karlsruhe 32 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Comparison of spectroscopic methods

Brunst, Tim:

Gaseous sample in Raman cell Raman scattering of the laser photons Spectroscopic investigation of scattered light Extraction of 3 l/h from the sample Ionisation of isotopologues Mass-to-charge ratio selection in an electrical field

Raman System Quadrupole Mass Spectrometer

slide-33
SLIDE 33

Institute for Technical Physics Tritium Laboratory Karlsruhe 33 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Comparison of spectroscopic methods

Brunst, Tim:

RUN A

slide-34
SLIDE 34

Institute for Technical Physics Tritium Laboratory Karlsruhe 34 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Comparison of spectroscopic methods

Brunst, Tim:

RUN A Usage of extrapolated calibration leads to deviations. IR calibration has to be expanded for highly concentrated HD.

slide-35
SLIDE 35

Institute for Technical Physics Tritium Laboratory Karlsruhe 35 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Summary

Simulation of TRENTA cryogenic distillation performance with non-radioactive isotopologues developed

Brunst, Tim:

slide-36
SLIDE 36

Institute for Technical Physics Tritium Laboratory Karlsruhe 36 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Summary

Simulation of TRENTA cryogenic distillation performance with non-radioactive isotopologues developed Method for the production of large amounts of highly concentrated HD with TRENTA developed

Brunst, Tim:

slide-37
SLIDE 37

Institute for Technical Physics Tritium Laboratory Karlsruhe 37 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Summary

Simulation of TRENTA cryogenic distillation performance with non-radioactive isotopologues developed Method for the production of large amounts of highly concentrated HD with TRENTA developed Three relevant spectroscopic methods at TLK compared and necessity for expansion of IR calibration identified

Brunst, Tim:

slide-38
SLIDE 38

Institute for Technical Physics Tritium Laboratory Karlsruhe 38 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Summary

Simulation of TRENTA cryogenic distillation performance with non-radioactive isotopologues developed Method for the production of large amounts of highly concentrated HD with TRENTA developed Three relevant spectroscopic methods at TLK compared and necessity for expansion of IR calibration identified Worldwide first two data points of highly concentrated HD in liquid phase for IR calibration measured

Brunst, Tim:

slide-39
SLIDE 39

Institute for Technical Physics Tritium Laboratory Karlsruhe 39 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Thank you for your attention. Questions?

Brunst, Tim:

slide-40
SLIDE 40

Institute for Technical Physics Tritium Laboratory Karlsruhe 40 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe

Appendix

Brunst, Tim:

slide-41
SLIDE 41

Institute for Technical Physics Tritium Laboratory Karlsruhe 41 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe Brunst, Tim:

Exemplary IR spectrum

slide-42
SLIDE 42

Institute for Technical Physics Tritium Laboratory Karlsruhe 42 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe Brunst, Tim:

Exemplary Raman spectrum

slide-43
SLIDE 43

Institute for Technical Physics Tritium Laboratory Karlsruhe 43 16-06-27 Production and Utilisation of highly concentrated HD for the Validation of the Calibration of Hydrogen Analysis Systems at the Tritium Laboratory Karlsruhe Brunst, Tim:

Exemplary QMS spectrum
