Product presentation EASINESS 3 Hike & Fly & More The - PowerPoint PPT Presentation

Product presentation EASINESS 3 Hike & Fly & More The EASINESS 2 Hike & Fly harness has retained its important position in our harness palette for a long time. In the third genera- tion the Airbag-Protector is now fully

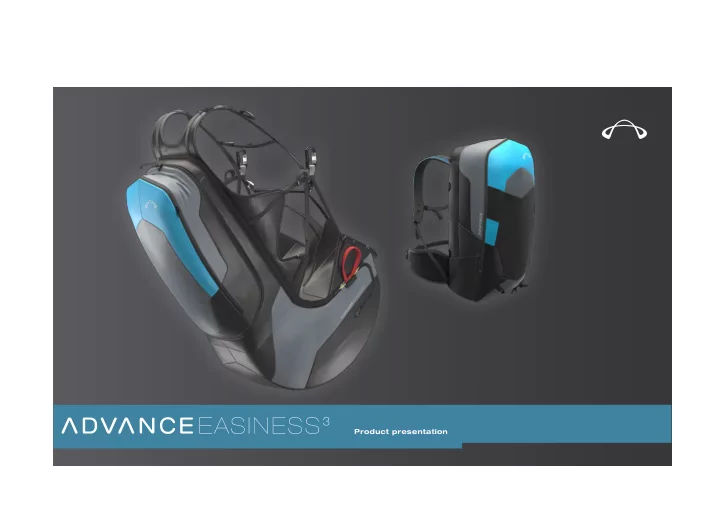

  1. Product presentation

  2. EASINESS 3 – Hike & Fly & More The EASINESS 2 Hike & Fly harness has retained its important position in our harness palette for a long time. In the third genera- tion the Airbag-Protector is now fully integrated in the harness by means of a zip. As before, the Airbag is very easy to remove, and the reserve compartment is embedded in the Airbag-Protector. Lengthened Legpads and revised speedloop foot-force gradient put the EASINESS 3 among the most comfortable of the light reversible harness class, and therefore suitable for everyday use: especially so because it inherits the EASINESS 2’s high carrying comfort in rucksack mode. This quality combination opens up a wide area of use - from Hike und Fly, and traveling with a light paraglider rucksack, to general fmying. The EASINESS 3 is now produced in three sizes and therefore better suits a variety of pilot heights. In the product presentation we present the EASINESS 3 and all its refjnements. 2 ADVANCE EASINESS 3 – Hike & Fly & More

  3. NEW: Delivery with Airbag Fitted This third EASINESS version will now be delivered with its Airbag-Protector, already fjtted in the harness. Because the majority of EASINESS 2s were ordered with the Airbag-Protector we have reversed this option. The EASINESS 3 price includes the Airbag-Protector so its normal price should not be compared directly with the Easiness 2 (delivered without Airbag). „No Airbag“ is now the Option If an Airbag-Protector is defjnitely not required this fact must be specifjed at the ordering stage. The “No Airbag” option earns a reduction of the offjcial price as a result. In this case a Backside-Cover will be supplied. This protects the zip and underneath of the harness. The Backside Cover can also be ordered as an option for those pilots who sometimes want to use their EASINESS 3 without its protector. 3 ADVANCE EASINESS 3 – Hike & Fly & More

  4. EASINESS 3 compared with EASINESS 2 + + more volume + in the rucksack better speedbar now force gradient double-sided pockets 3 reachable when flying and carrying sizes Fully integrated Airbag-Protector FORAS more Carabiner with comfort antitwist + new Edelrid adjusters lengthened Legpads 4 ADVANCE EASINESS 3 – Hike & Fly & More

  5. 5 EASINESS 3 Compared ADVANCE EASINESS 3 – Hike & Fly & More very good excellent good EASINESS 3 AXESS 4 Weight PROGRESS 3 SUCCESS 4 EASINESS 3 AXESS 4 Pack volume PROGRESS 3 SUCCESS 4 EASINESS 3 AXESS 4 Protection PROGRESS 3 SUCCESS 4 EASINESS 3 AXESS 4 Comfort PROGRESS 3 SUCCESS 4 EASINESS 3 AXESS 4 Aerodynamics PROGRESS 3 SUCCESS 4

  6. A Comfort Plus The EASINESS 3 Legpads have been lengthened and are lightly padded. This makes our popular Hike & Fly harness much more comfortable. 3D treatment of the ergonomic EASINESS 3 seat surface fjts the pilot’s body shape as if tailor- made. The detailed lumbar support design also provides good sitting comfort. This general high level of fmying comfort also makes the EASINESS 3 very useful as an everyday harness. 6 ADVANCE EASINESS 3 – Hike & Fly & More

  7. Clean Silhouette With its Airbag-Protector in place the EASINESS 3 shows par- ticularly clean lines for a Hike & Fly harness. It is principally the fully integrated nature of the protector and its zip that makes this possible. Without the protector, but with Backside-Cover attached, the harness weight can be reduced when required. 7 ADVANCE EASINESS 3 – Hike & Fly & More

  8. 3 Sizes – Perfect fit S M L Pilot height Pilot height Pilot height 155 to 172 cm 165 to 183 cm 178 to 202 cm Three harness sizes mean that different pilot shapes and sizes can be ideally suited – pilot heights between 155 and 202 cm accommodated - whatever the relationship of back/leg lengths. An overlap of 8cm for S and M, and 5cm for M and L harnesses, guarantee a custom fjt for everyone. 8 ADVANCE EASINESS 3 – Hike & Fly & More

  9. Backside Cover as an Option The optional Backside Cover is zipped in place for EASINESS 3 use without Airbag-Protector. It protects the zip track. 9 ADVANCE EASINESS 3 – Hike & Fly & More

  10. Harness Features Wide comfortable shoulder straps FORAS Carabiner Shoulder supports for reserve EASY CONNECT SYSTEM with V-connection channel Cord for volume reduction Ronstan ball-bearing speed system pulleys Longer Legpads for more Double-sided pockets you can comfort reach when fmying or carrying Reserve compartment Integrated zip-on Airbag in Airbag (detachable) 10 ADVANCE EASINESS 3 – Hike & Fly & More

  11. Rucksack Features Adjustable, Drink tube opening stretchy helmet holder Comfortable mesh More packing Volume: air-breathing shoulder straps S: 46 l M: 50 l L: 58 l Ergonomically shaped Elastic pocket on back back support of rucksack Same double-sided pockets you can reach when fmying or carrying Ice axe and hiking pole stowage Chest strap – adjustable in height and width Removable waist strap Zip-up side pocket 11 ADVANCE EASINESS 3 – Hike & Fly & More

  12. Routine Delivery Contents § Ready-mounted, EN/LTF certifjed Airbag-Protector (detachable) with integrated reserve compartment § Soft-Speed system § 2 Edelrid FORAS Anti-twist carabiners § Ball-bearing Ronstan speed pulleys § Sewn-in reserve connection § Reserve handle with connected four fmap inner container § Getting Started booklet Optional § Backside Cover for fmying without Airbag-Protector § ZIP Light front reserve container § Radio pocket for shoulder strap 12 ADVANCE EASINESS 3 – Hike & Fly & More

  13. Technical Data EASINESS 3 S M L Pilot heigtht cm 155 –172 165 –183 178 – 202 Weight with protector kg 2.25 2.30 2.40 Weight without protector kg 1.75 1.80 1.90 Rucksack volume l 46 50 58 Harness certification EN 1651 & LTF 91/09, 120 kg 13 ADVANCE EASINESS 3 – Hike & Fly & More

  14. 14 ADVANCE EASINESS 3 – Hike & Fly & More
