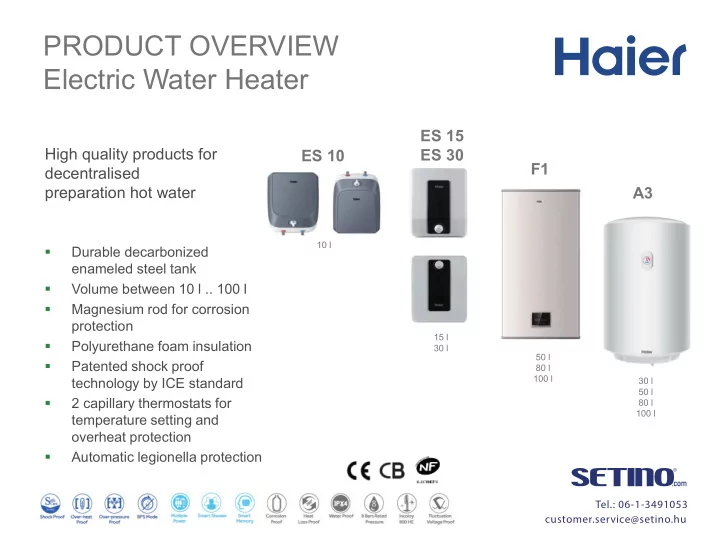

PRODUCT OVERVIEW Electric Water Heater ES 15 High quality products for ES 10 ES 30 F1 decentralised preparation hot water A3 10 l § Durable decarbonized enameled steel tank § Volume between 10 l .. 100 l § Magnesium rod for corrosion protection 15 l § Polyurethane foam insulation 30 l 50 l § Patented shock proof 80 l 100 l technology by ICE standard 30 l 50 l § 2 capillary thermostats for 80 l 100 l temperature setting and overheat protection § Automatic legionella protection Tel.: 06-1-3491053 customer.service@setino.hu

ES 10 - SERIES Model ES10V Q1/ Q2 (Q1) Above sink version Energy class A / B Energy consump tj on per year, kWh 496 (XS) / 559 (XXS) In stallatj on type Above sink / Under sink Control method Mechanical Capacity, l 10 Rated power, kW 1,5 / 2,0 Rated temperature, ° C 75 (Q2) Rated pressure, bar 7,5 Under sink version Tap water pressure ≥ 0,5 Waterproof grade IPX 4 Net weight, kg 8 Gross weight, kg 10 Loading QTY 40HQ, units 1053 dimensions A B C D E [mm] Tel.: 06-1-3491053 ES10V 100 350 270 350 160 customer.service@setino.hu

ES 15/ES 30 - SERIES 15 / 30 Liter Version Q1 Model ES15V-Q1/Q2 ES30V-Q1 Above sink version Energy class B / A D Energy consump tj on / year, kWh 527 (XS) / 552 (XXS) 593 (S) Installa tjo n type Above / Under sink Above sink Control method Mechanical Mechanical Capacity, l 15 30 Rated power, kW 2 2 Rated temperature, ° C 75 75 Rated pressure, bar 8 8 Tap water pressure ≥ 0,5 ≥ 0,5 Waterproof grade IPX 4 IPX 4 15 Liter Version Q2 Net weight, kg 11 14 under sink Gross weight, kg 13 17 Loading QTY 40HQ, units 970 607 dimensions [mm] A B C ES15V-Q1/Q2 327 403 330 ES30V-Q2 383 477 388 Tel.: 06-1-3491053 customer.service@setino.hu

F1 SERIES Model ES-F1 Energy class C Energy consump tj on / year, kWh 1421 (M) / 2710 (L) / 2693 (L) Control method Electronic Capacity, l 50 / 80 / 100 Rated power, kW 3 Rated temperature, ° C 75 Rated pressure, bar 8 Tap water pressure ≥ 0,5 Waterproof grade IPX 4 Net weight, kg 25 / 35,5 / 39 Gross weight, kg 28 / 39 / 42 Loading QTY 40HQ, units 372 / 282 / 252 dimensions A B C D E [mm] ES50V-F1 530 305 720 285 170 ES80V-F1 530 305 1046 608 170 ES100V-F1 530 305 1265 823 170 Tel.: 06-1-3491053 customer.service@setino.hu

A3 SERIES Model ES-A3 Energy class B/C Energy consump tj on / year, kWh 552 (S) / 1371 (M) / 1386 (M) / 2619 (L) Control method Mechanical Capacity, l 30 / 50 / 80 / 100 Rated power, kW 1,5 Rated temperature, ° C 75 Rated pressure, bar 8 Tap water pressure ≥ 0,5 Waterproof grade IPX 4 Net weight, kg 12 / 18 / 24 / 30 Gross weight, kg 14 / 21 / 27 / 33 Loading QTY 40HQ, units 610 / 473 / 314 / 266 dimensions A B C D [mm] ES30V-A3 390 400 447 100 ES50V-A3 390 400 650 100 ES80V-A3 390 400 930 100 ES100V-A3 390 400 1160 100 Tel.: 06-1-3491053 customer.service@setino.hu

PRODUCT CHARACTERISTIC Electrical Water Heaters ES ES A3 F1 LD (10L) (15L, 30L) digital • Control method analog • • • • Smart Shower • Eco-Smart Smart Memory • Mu ltj ple Power • Corrosin Proof • • • • • Heatloss Proof • • • • • Durable & Wasserschutz IPX4 • • • • • Reliable Fluctua tjon Voltage Proof • High E ffic iency Stainless • • • • • steel Shock Proof • • • • • Überhitzungsschutz • • • • • Safe Care Over-pressure proof • • • • • BPS • Tel.: 06-1-3491053 customer.service@setino.hu
