IT & PH DEPT.

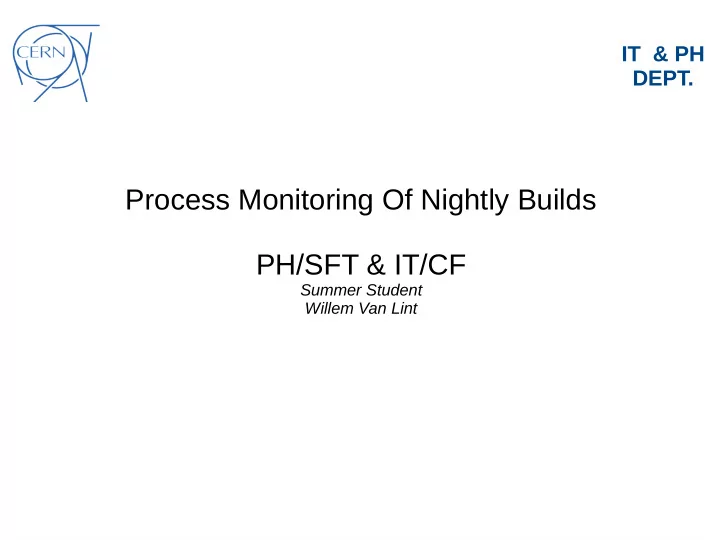

Process Monitoring Of Nightly Builds PH/SFT & IT/CF

Summer Student Willem Van Lint

IT & PH DEPT.

Overview

• Nightly builds & problem statement
• Lemon monitoring framework
• Design of the process monitoring tool
• Use in the nightly builds

IT & PH DEPT.

Overview

• Nightly builds & problem statement
• Lemon monitoring framework
• Design of the process monitoring tool
• Use in the nightly builds

IT & PH DEPT.

Nightly builds: Introduction

• Nightly builds compile and test projects like ROOT, GAUDI,

CORAL, …

• Different platforms and slots ( = build environment) →

Server – Client build system

IT & PH DEPT.

Nightly builds: Architecture

• Nightly builds use a server-client architecture through

RPC to distribute the architectures to be built.

Server Linux Client Get work unit DoBuild.py runs Compile ROOT Install ... Test ... Compile ... Install … Test ... ... Windows Client ... MySQL Mac Client ... Stores Web interface

IT & PH DEPT.

Nightly builds: Problems

Problems Solutions

Processes hanging → high CPU time → large log files Detect and terminate processes and write reason in log files Low on disk usage A: Clean up old builds B: Stop building​

IT & PH DEPT.

Nightly builds: Problem example

• Sometimes hanging processes in tests or make
• Example of process tree:
• Client → doBuild.py → compile ROOT → subprocesses

PID TTY STAT TIME COMMAND 19485 ? Ss 0:00 /bin/sh 19486 ? S 0:00 \_ /bin/sh /afs/cern.ch/sw/lcg/app/nightlies/scripts/launch_client.sh lxbuild147 8002 19594 ? S 0:00 | \_ python /afs/cern.ch/sw/lcg/app/nightlies/scripts/client.py --machine lxbuild147 19600 ? Z 0:00 | \_ [uptime] <defunct> 15940 ? S 0:00 | \_ python /afs/cern.ch/sw/lcg/app/nightlies/scripts/doBuild.py --slots dev1 15947 ? S 0:00 | | \_ /bin/sh -c source{SITEROOT}/sw/contrib/ 21661 ? S 0:00 | | \_ cmt pkg_make 4 21683 ? S 0:00 | | \_ sh -c mkdir -p logs; 21690 ? S 0:00 | | \_ sh -x /build/nightlies/dev1/Fri/LCGCMT/LCGCMT_59 21695 ? R 5781:25 | | | \_ make -k -j4 21691 ? S 0:00 | | \_ tee -a logs/ROOT_x86_64-slc5-gcc43-dbg_make.log 8628 ? Z 0:00 | \_ [python] <defunct> 19487 ? S 0:00 \_ tee /afs/cern.ch/sw/lcg/app/nightlies/nightlies-logs/crncli64148.txt

IT & PH DEPT.

Overview

• Nightly builds & problem statement
• Lemon monitoring framework
• Design of the process monitoring tool
• Use in the nightly builds

IT & PH DEPT.

Lemon monitoring framework

• Monitoring of sensor

values

• 3 interactions:
• Sensor – Agent
• Agent – Server
• UI - User

IT & PH DEPT.

Lemon architecture

Web browser

Lemon CLI

User

Oracle Database

Repository backend SQL

Nodes

Monitoring Agent

Sensor Sensor Sensor

RRDT

• ol

/ PHP apache

HTTP

Lemon-host-check

Applicati

• n Server

TCP/UDP

IT & PH DEPT.

Lemon agent & sensors

Nodes

Monitoring Agent

Sensor Sensor Sensor

• Sensor = executable
• Agent ↔ sensors:
• Few simple commands.
• Interaction: supported API for Perl,

C++

• Sensors provide metric classes

that can be instantiated (e.g. with different parameters).

IT & PH DEPT.

Lemon exceptions & actuators

• Exceptions can be defined in the Lemon Agent

based on values of the sensors.

• An actuator can be called to resolve the

exception.

30010 MetricName exception.hangingcpu MetricClass alarm.exception Timing 20 5 Parameters Correlation (33:2 > 1000) && (33:1 > 0) Actuator /usr/bin/lemon-actuator-kill cputime $act_value_02 MaxRuns 3 900 Timeout 100

IT & PH DEPT.

Overview

• Nightly builds & problem statement
• Lemon monitoring framework
• Design of the process monitoring tool
• Use in the nightly builds

IT & PH DEPT.

Monitoring the nightly builds system

• Reuse and enhancement of Lemon sensor wrapper

in Python

• Implementation of new metric classes
• Implementation of an actuator

Monitoring Agent Sensor Sensor wrapper Metric module Actuator Exception Metric module

IT & PH DEPT.

Lemon sensor wrapper

• Normal case: sensor delivers metric values to

agent

IT & PH DEPT.

Lemon sensor wrapper

• Wrapper acts as a sensor but asks metric

values from other modules

IT & PH DEPT.

Metrics

• Searching the

process tree:

• Select branches
• Extract specific

information

• Modular: other select

and extract functions can be used

IT & PH DEPT.

Metrics

• Cputime metric:
• Returns the total cpu time, project name of a project build

branch and the PID of the root process of the branch

• Example:

Machi ne Metric nr Time PID Total cpu time Project name lxbuild 148 5380 12825 52613 2912 9 Project0 lxbuild 148 5380 12825 52613 3813 5 Project1

IT & PH DEPT.

Metrics

• Files metric:
• For each open log file in a project branch,

returns the PID of the process with the handle, file path, amount written by that process and project name

• Example:

Machine Metric nr Time PID Path Amount written Project lxbuild148 5381 Mon Aug 23 04:03:54 2010 16231 .../x86_64- slc5- gcc43-

• pt.log

12028 GAUDI lxbuild148 5381 Mon Aug 23 04:03:54 2010 17053 …/x86_64- slc5-icc11- dbg- tests.log COOL

IT & PH DEPT.

Actuator

• Different actions for when limits are exceeded:
• Total cpu time > 2h:

Search the process with the largest cputime in the branch and terminate the branch from that process down.

• Log files > 2Mb:

Terminate the branch from the responsible process down.

• Partition usage > 85%:

Delete builds from the previous day.

• Partition usage > 95%:

Terminate all the builds.

• Always write an error in log files from terminated

processes

IT & PH DEPT.

Code optimalization

• Unittests: goal = attaining full code coverage
• Documentation generated from docstrings by

Doxygen

• Static code analysing by pylint, checks for:
• Errors and warnings
• Refactoring possibilities e.g. too many attributes
• Coding conventions e.g. indentation

IT & PH DEPT.

Overview

• Nightly builds & problem statement
• Lemon monitoring framework
• Design of the process monitoring tool
• Use in the nightly builds

IT & PH DEPT.

Use in the nightly builds system

• Project builds will be followed.
• Hanging builds will be detected by the actuator limit.
• Reason for termination in the logs.

IT & PH DEPT.

Outlook

• A Windows and Mac version of the Lemon

sensor wrapper to report sensor values through RPC to a Linux agent

Monitoring Agent Sensor Sensor wrapper client (repeater) Metric module Sensor wrapper server RPC Linux machine Windows/Mac machine(s) Sensor wrapper client (repeater) ...

IT & PH DEPT.

Conclusion

• Modular system for process monitoring based
• n cputime and open file size
• Used in production
• Reuse and enhancement of Lemon sensor

wrapper for Python.
