NIGHTLY BUILD SCRIPT FOR THE LEVEL- 1 TRIGGER ONLINE SOFTWARE 14th October 2010 Wolfgang Schlichtner CMS L1 Trigger Supervisor Nightly Builds Introduction Aim: Build and test all the source code together Execute automatically every

slide-1
SLIDE 1

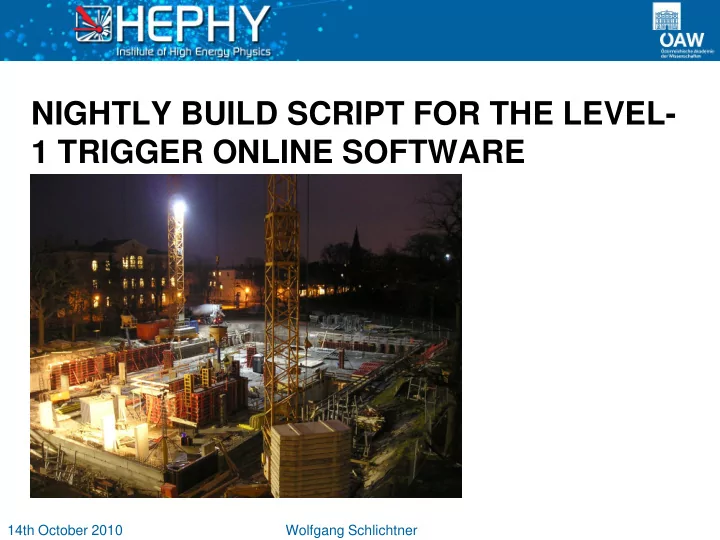

NIGHTLY BUILD SCRIPT FOR THE LEVEL- 1 TRIGGER ONLINE SOFTWARE

Wolfgang Schlichtner 14th October 2010

slide-2
SLIDE 2

CMS L1 Trigger Supervisor Nightly Builds

Introduction

  • Aim:

– Build and test all the source code together – Execute automatically every night – Show the results via web interface > So the developers can take a look at the build results of the whole system every morning

Wolfgang Schlichtner 14th October 2010

slide-3
SLIDE 3

CMS L1 Trigger Supervisor Nightly Builds

Conditions

  • Based on LCG Nightly Builds
  • Runs on SLC4 32bit, gcc-3.4
  • Language: Python

Wolfgang Schlichtner 14th October 2010

slide-4
SLIDE 4

CMS L1 Trigger Supervisor Nightly Builds

Steps of the nightly script

  • Setup of the environment for build and installation
  • Checkout of the source code from the CVS Repository
  • Installation of XDAQ
  • Compilation of the source codes
  • Generation of RPMs (Red Hat Package Manager

software packages)

  • Installation of the RPMs
  • Execution of SOAP-tests
  • Uninstallation of everything

Wolfgang Schlichtner 14th October 2010

slide-5
SLIDE 5

CMS L1 Trigger Supervisor Nightly Builds

Incorporate other L1TS subsystems

– Requirements:

  • makefile to compile code and make RPMs
  • test scripts (e.g. SOAP-Tests)

Wolfgang Schlichtner 14th October 2010

slide-6
SLIDE 6

CMS L1 Trigger Supervisor Nightly Builds

Wolfgang Schlichtner 14th October 2010

How LCG nightlies work ...

  • Client / Server structure
  • One configuration.xml file
  • Clients send their capabilities (architecture,

OS, …) to the server, server starts the build jobs according to the configuration …

slide-7
SLIDE 7

CMS L1 Trigger Supervisor Nightly Builds

Wolfgang Schlichtner 14th October 2010

: <slot name="CMS-l1ts" description="CMS L1 Online Software"> <paths> <path name="builddir" value="/build/nightlies/%SLOT%/%DAY%" /> <path name="buildersdir" value="/build/nightlies/%SLOT%/%DAY%/LCGCMT..." /> <path name="releasedir" value="/afs/cern.ch/sw/lcg..." /> <path name="wwwdir" value="/afs/cern.ch/sw/lcg/app/nightlies/www..." /> </paths> <platforms> <platform name="slc4_ia32_gcc34" priority="1"/> </platforms> <days mon="true" tue="true" wed="true" thu="true" fri="true" ... /> <projects> <project name="CMS-l1ts" tag="CMS-l1ts-HEAD" /> </projects> </slot> :

configuration.xml

  • specify projects, platforms,… to build
slide-8
SLIDE 8

CMS L1 Trigger Supervisor Nightly Builds

Wolfgang Schlichtner 14th October 2010

<ignore> <warning value="PUT HERE WARNING MESSAGES IF YOU WANT TO IGNORE THEM"/> <error value="PUT HERE ERROR MESSAGES IF YOU WANT TO IGNORE THEM"/> </ignore>

Ignore warnings/errors

slide-9
SLIDE 9

CMS L1 Trigger Supervisor Nightly Builds

Wolfgang Schlichtner 14th October 2010

Implementation to the LCG scripts

  • There is just one main Builder class for all the

LCG projects

  • Therefore Karol from LHCb changed the

scripts, so that external Builder classes can be used, this work is still in progress

  • No documentation!  try & error
slide-10
SLIDE 10

CMS L1 Trigger Supervisor Nightly Builds

Wolfgang Schlichtner 14th October 2010

How to get our builder loaded by the server...

  • export NIGHTLIES_EXTENSIONS=L1TS_Nightlies (name of the

builder-module)

  • export PYTHON_PATH=/path/to/the/builder/module:$PYTHON_PATH
  • add line: __lcgnightlies_extenions__ = {“builder”}: [Name-of-

builder-class]} at the bottom of the builder file

  • method canBuild is needed to specify which projects the

builder class can build

  • to start the build-process, the server starts the

buildProject() method of the builder class

slide-11
SLIDE 11

CMS L1 Trigger Supervisor Nightly Builds

Wolfgang Schlichtner 14th October 2010

after the build steps finished:

  • checkLogFiles.checkBuildLogs: creates the build-html

file and a summary file with the numbers of warnings/errors for the website

  • WebUpdater.updateWeb: copies the html, summary and

test-log file to the afs-dir for the webpage

  • WebUpdater.updateDB: sends the results to the DB of

the webpage, also checkLogFiles.checkTestLogs is called from within here

  • checkTestLogs: had to be changed for our needs
  • checkBuildLogs: I rewrote and simplified this html

generator

slide-12
SLIDE 12

CMS L1 Trigger Supervisor Nightly Builds

Wolfgang Schlichtner 14th October 2010

How to start the nightly builds ...

  • by acrontab:

0 0 * * * machine exec /afs-path/check_server.sh <machine> <port> /afs-path/configuration.xml 0 2 * * * machine exec /afs-path/resetServer.py –-machine=<machine> –-port=<port> 0 5 * * * machine exec /afs-path/launch_client.sh <machine> <port>

  • the build-user (which defined the acron-jobs) needs rights for all of the

used afs-dirs, the build-dir on the build-machine and a sudo without password request

slide-13
SLIDE 13

CMS L1 Trigger Supervisor Nightly Builds

Wolfgang Schlichtner 14th October 2010

The results of the nightly build ...

  • are sent to the developers by email:

2010-08-26 15:23:30,400 INFO (WebUpdater.py:122) Errors found in log file for CMS-l1ts-HEAD slot CMS-l1ts while building for slc4_ia32_gcc34 Number of Warnings 0 Number of Errors 0 Number of Make Errors 0 Number of CMT Errors 0

  • are shown on the nightly webpage
slide-14
SLIDE 14

CMS L1 Trigger Supervisor Nightly Builds

Wolfgang Schlichtner 14th October 2010

Thanks for your attention!
