USolids Project : Status and Plans 17/11/2014 SFT group meeting, Tatiana Nikitina 1 Outline v Current status of developments v First USolids shapes were included in Geant4 release 10.0 v Revised shapes: UPolycone, UMultiUnion v Extended

slide-1
SLIDE 1

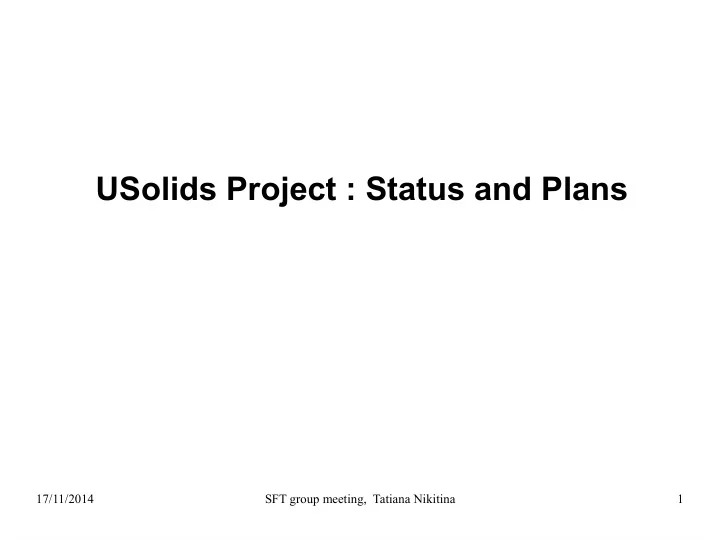

17/11/2014 SFT group meeting, Tatiana Nikitina 1

USolids Project : Status and Plans

slide-2
SLIDE 2

17/11/2014 SFT group meeting, Tatiana Nikitina 2

Outline

v Current status of developments

v

First USolids shapes were included in Geant4 release 10.0

v

Revised shapes: UPolycone, UMultiUnion

v

Extended testing suite v Plans for inclusion in Geant4 release 10.1

v

New shapes & USolids as independent library v USolids and VecGeom vectorised primitives

v

Including first VecGeom shape v Ongoing developments and plans

slide-3
SLIDE 3

17/11/2014 SFT group meeting, Tatiana Nikitina 3

USolids shapes in Geant4 release 10.0(December 2013)

v

Box, Tube, Cone, Orb, Sphere, Trd, Tet, Polycone, GenericPolycone, Polyhedra

v

In order to use USolids in Geant4, wrappers are created for each solid, based on ‘bridge’ pattern

v

Cmake configuration: G4GEOM_USE_USOLIDS replaces Geant4 original solids by USolids ones

5 0 0 1 0 0 0 5 0 0 1 0 0 0 2 0 0 4 0 0 6 0 0 8 0 0 1 0 0 0
  • 1 0 0 0
  • 5 0 0
5 0 0 1 0 0 0
  • 1 0 0 0
  • 5 0 0
5 0 0 1 0 0 0
  • 1 0 0 0
  • 5 0 0
5 0 0 1 0 0 0
  • 1 0 0 0
  • 5 0 0
5 0 0 1 0 0 0
  • 1 0 0 0
  • 5 0 0
5 0 0 1 0 0 0
  • 1 0 0 0
  • 5 0 0
5 0 0 1 0 0 0
slide-4
SLIDE 4

17/11/2014 SFT group meeting, Tatiana Nikitina 4

UPolycone

Revised implementation

v UPolycone (or ordinary Polycone): composite shape

constructed from sections of Tubs and Cons

v Added missing methods:

v

GetPointOnSurface, Capacity, SurfaceArea

v

Visualization in Geant4 wrappers v Reviewed implementation of

main methods:

v

Corrected treatment of Convexity and Safety

slide-5
SLIDE 5

17/11/2014 SFT group meeting, Tatiana Nikitina 5

Revised UPolycone:

Differences in SafetyFromInside() USolids - Geant4

slide-6
SLIDE 6

17/11/2014 SFT group meeting, Tatiana Nikitina 6

Revised UPolycone:

Scalability for DistanceToOut(p,v)

Polycone in Geant4 has not spacial optimisations(internal voxelisation)

slide-7
SLIDE 7

17/11/2014 SFT group meeting, Tatiana Nikitina 7

UMultiUnion

Revised implementation

( will be included in release 10.1, December 2014)

v

UMultiUnion structure: represents a union of many [displaced] solids, adopting voxelisation technique for optimisation on location

  • f components

v

Added missing methods:

v

GetPointOnSurface, Capacity, SurfaceArea

v

Visualization in Geant4 wrappers v

Corrected treatment of transformations

v

Integration in GDML

v

Ability to import/export as GDML (3.1.1) in Geant4

slide-8
SLIDE 8

17/11/2014 SFT group meeting, Tatiana Nikitina 8

UMultiUnion structure:

Visualization in Geant4

Intersection of ray with surfaces

slide-9
SLIDE 9

17/11/2014 SFT group meeting, Tatiana Nikitina 9

UMultiUnion structure:

Voxelisation studies

Time for 125 solids(sec) Time for 1000 solids(sec) Ratio G4UMultiUnion 10.9 13.25 1.22 Loop of Placements 12.43 17.58 1.41 Ratio 1.14 1.33

v

Test case: a regular structure of boxes as UMultiUnion or as loop of simple placements

v

Transportation of ‘geantinos’

slide-10
SLIDE 10

17/11/2014 SFT group meeting, Tatiana Nikitina 10

Extended testing suite

Geant4 tests

  • Unit tests
  • SBT(solid batch test)
  • SurfaceChecker
  • OpticalEscape
  • SurfaceVisTest
  • testDistanceAccuracy.cc

… Extensive Testing Suite USolids tests

  • SBT
  • OpticalEscape
  • SBTperformance (Comparison

Usolids, Root, Geant4) Root tests CheckShape:

  • ShapesDistances()
  • ShapesSafety()
  • ShapeNormal()

Possibility to test shape on Run Time

Shape Tester

Geant4+USolids+Root tests New 'X-Ray Scan' Test

SBTperformance Unit tests New Testing Suite for USolids and VecGeom

slide-11
SLIDE 11

17/11/2014 SFT group meeting, Tatiana Nikitina 11

Extended testing suite

Status

Shape Tester

Geant4+USolids+Root tests New 'X-Ray Scan' Test

SBTperformance Unit tests v

Unit tests for USolids and VecGeom Solids

v

Done for Box, Tubs, Cons, Trd, Trap, Tet, Polycone, Polyhedra, Orb,Sphere,Paraboloid

v

Missing tests for GenericTrap, ExtrudedSolid, TessellatedSolid (ongoing) v

ShapeTester is ready

v

Option for visualisation of results

v

Debugging possibility : errors are stored with information needed for debugging

v

Missing test for convexity

slide-12
SLIDE 12

17/11/2014 SFT group meeting, Tatiana Nikitina 12

Extended testing suite

X-Ray Scan

v Estimated Volume = ∑(distance × cell-area) v Error = Analytic Volume − Estimated Volume

Scan can be done for different angles in Theta and Phi Crossed_distance Rays Grid Grid

slide-13
SLIDE 13

17/11/2014 SFT group meeting, Tatiana Nikitina 13

Extended testing suite

X-Ray Scan, examples for Box and Tubs

v Lego plot option from ROOT

slide-14
SLIDE 14

17/11/2014 SFT group meeting, Tatiana Nikitina 14

Extended testing suite

X-Ray Scan, Estimated Volume for Tubs

slide-15
SLIDE 15

17/11/2014 SFT group meeting, Tatiana Nikitina 15

Extended testing suite

Optical Escape or Shape Normals

point

v Improved original “Optical Escape”

test to use random reflection on surface

v

Better distribution of points

UBox(Rays) UBox(Created points) UTubs(Rays)

slide-16
SLIDE 16

17/11/2014 SFT group meeting, Tatiana Nikitina 16

Extended testing suite

DistanceToIn() accuracy

a b dir

v Point ‘b’ located on surface v Accuracy = DistanceToIn(a,dir) − a – b

∣ ∣ ∣∣

v Derived from Geant4 test : SurfaceChecker

slide-17
SLIDE 17

17/11/2014 SFT group meeting, Tatiana Nikitina 17

Extended testing suite

DistanceToIn() accuracy test: UTubs

Order of magnitude

slide-18
SLIDE 18

17/11/2014 SFT group meeting, Tatiana Nikitina 18

Extended testing suite

DistanceToIn accuracy test: UBox and VecGeom Box

Order of magnitude Order of magnitude

UBox VecGeom Box(Scalar version)

slide-19
SLIDE 19

17/11/2014 SFT group meeting, Tatiana Nikitina 19

Extended testing suite

DistanceToIn()/DistanceToOut() accuracy

v Difference = max (|dmove – d1 – d2|) v Derived from ROOT test : ShapeDistances()

(point,dir) (point1,- dir) dmove d2 d1

slide-20
SLIDE 20

17/11/2014 SFT group meeting, Tatiana Nikitina 20

Extended testing suite

DistanceToIn/ToOut accuracy test: UBox and VecGeom Box

Order of magnitude Order of magnitude

UBox VecGeom Box(Scalar version)

slide-21
SLIDE 21

17/11/2014 SFT group meeting, Tatiana Nikitina 21

Extended testing suite Consistency tests, example test SurfacePoints

v

Test consistency between Inside() and GetPointOnSurface() Inside(GetPointOnSurface())== kSurface

v

Check consistency between of DistanceToIn() and DistanceToOut() (can not be both zero)

v

Check accuracy of DistanceToIn() and DistanceToOut()

GetPointOnSurface() UBox GetPointOnSurface() UTubs epsilon

slide-22
SLIDE 22

17/11/2014 SFT group meeting, Tatiana Nikitina 22

Extended USolids set for Geant4.10.1

v More USolids shapes: Trap, GenericTrap, MultiUnion, ExtrudedSolid v USolids module as

standalone external library

  • 1 0
  • 5
5 x 1 0 4
  • 5
5 x 1 0 4
  • 6
  • 4
  • 2
2 4 6 x 1 0 4
slide-23
SLIDE 23

17/11/2014 SFT group meeting, Tatiana Nikitina 23

First shape from VecGeom in USolids

v

First shape from VecGeom included in USolids library

v

Paraboloid: shape developed in VecGeom with both vector and scalar implementations

slide-24
SLIDE 24

17/11/2014 SFT group meeting, Tatiana Nikitina 24

UParaboloid

slide-25
SLIDE 25

17/11/2014 SFT group meeting, Tatiana Nikitina 25

Ongoing developments and plans

v Implementation of missing shapes:

v

CutTubs, Hyperboloid, Ellipsoid, EllipticalTube, EllipticalCone, Torus

v

Many developers working on shapes with vectorized and scalar implementation

v

Vectorised implementation of existing shapes

v

Orb, Sphere, Trap, Polyhedra, Tubs, Cons v New Boolean shapes (union, subtraction, intersection)

with templated signature

v Integration of VecGeom shapes in USolids library v Creation of Comparison Solid for comparison of methods

  • f two shapes during run-time
slide-26
SLIDE 26

17/11/2014 SFT group meeting, Tatiana Nikitina 26

Evolution of USolids library project

Started as project

  • f common

library for Solids primitives

~2010 December 2013

First UShapes included in Geant4.10.0 (easy testing)

May-June 2014 December 2014

Fast Tessellated Solid for Geant4.9.6 (voxelisation)

2012

MultiUnion Common TestingSuite With VecGeom First vectorised Shape from VecGeom External lib in Geant4

slide-27
SLIDE 27

17/11/2014 SFT group meeting, Tatiana Nikitina 27

Conclusions

v First set of USolids shapes introduced in release 10.0

v

Activation optional at configuration time v Extended set will be introduced in release 10.1

v

USolids as external library

v

VecGeom shapes will progressively replace the current primitives

v

Many developers are working on shapes

v

Already first shape with vector and scalar implementation included

v

A lot developments and testing ahead !!! And fun!

slide-28
SLIDE 28

Thanks!

A special thanks to G.Cosmo, J.Apostalakis, A.Gheata, S.Wenzel and J.de Fine Licht for help and advises!

slide-29
SLIDE 29
  • UMultiUnion. Performance.
