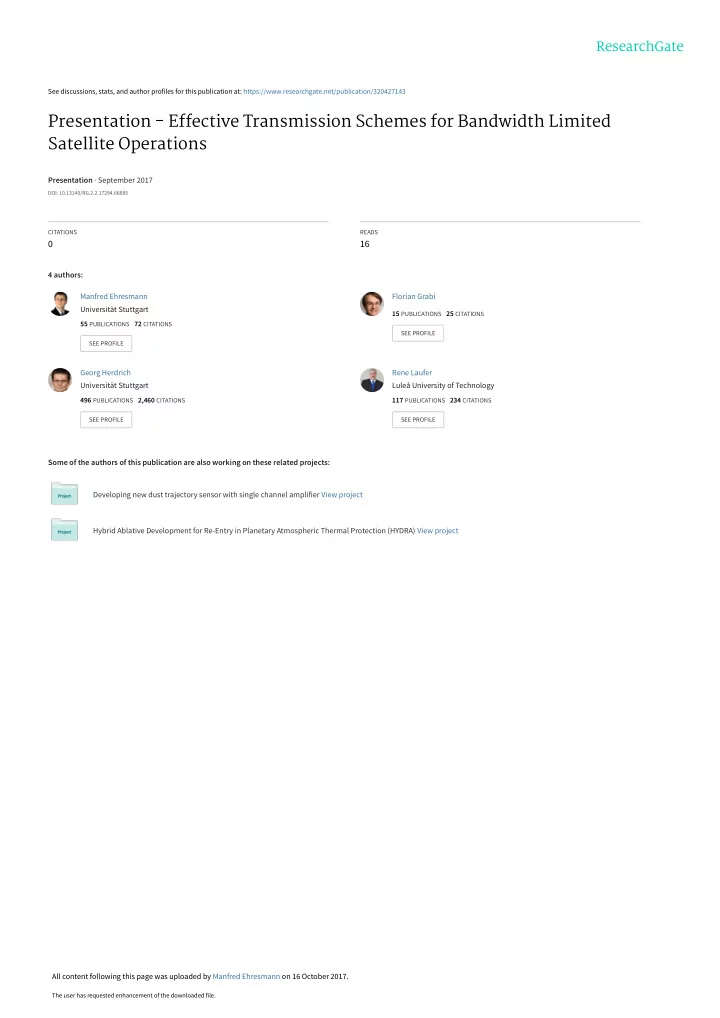

slide-1
SLIDE 1

See discussions, stats, and author profiles for this publication at: https://www.researchgate.net/publication/320427143

Presentation - Effective Transmission Schemes for Bandwidth Limited Satellite Operations

Presentation · September 2017

DOI: 10.13140/RG.2.2.17294.66885

CITATIONS READS

16

4 authors: Some of the authors of this publication are also working on these related projects: Developing new dust trajectory sensor with single channel amplifier View project Hybrid Ablative Development for Re-Entry in Planetary Atmospheric Thermal Protection (HYDRA) View project Manfred Ehresmann Universität Stuttgart

55 PUBLICATIONS 72 CITATIONS

SEE PROFILE

Florian Grabi

15 PUBLICATIONS 25 CITATIONS

SEE PROFILE

Georg Herdrich Universität Stuttgart

496 PUBLICATIONS 2,460 CITATIONS

SEE PROFILE

Rene Laufer Luleå University of Technology

117 PUBLICATIONS 234 CITATIONS

SEE PROFILE

All content following this page was uploaded by Manfred Ehresmann on 16 October 2017.

The user has requested enhancement of the downloaded file.

slide-2
SLIDE 2

www.uni-stuttgart.de

1

IAC-17-IAC-17,B4,3,6,x39641 Effective Transmission Schemes for Bandwidth Limited Satellite Operations

  • M. Ehresmann, Florian Grabi, Georg Herdrich, René Laufer

68th International Astronautical Congress Adelaide, Australia 26.08.2017 26/8/2017

slide-3
SLIDE 3

www.uni-stuttgart.de

2

Effective Transmission Schemes for Bandwidth Limited Satellite Operations

Introduction and technical context Part 1: Block data transmission

  • Bisection scheme
  • Gradient selective scheme
  • Performance evaluation

Part 2: Continuous data transmission

  • Predictive corridor scheme
  • Performance evaluation

Summary and Conclusions

26/8/2017 68th International Astronautical Congress Adelaide, Australia

slide-4
SLIDE 4

www.uni-stuttgart.de

3

Introduction and technical context: MIRKA2 / CAPE

26/8/2017 68th International Astronautical Congress Adelaide, Australia

CAPE – CubeSat Atmospheric probe for education

Limited power for transmission Limited visibility for ground stations

MIRKA2 – Micro re-entry capsule 2

Uncertain window for transmission Limited data rate (Iridum –SDB)

MIRKA2-RX Capsule data rate

Maximum data rate 42.5 b/s Average data rate 12.1 b/s Minimum data rate 4.8 b/s

MIRKA2-RX Transmission tests after flight

  • n REXUS19 sounding rocket
slide-5
SLIDE 5

www.uni-stuttgart.de

4

Part 1: Block data transmission

Transmitting a data set is a common case for satellite operations

  • Limited access to a ground station
  • Limited transmission capability of satellite (power)
  • Constraints on antenna pointing (attitude)

Conventional case:  Chronological transmission of data Data set is transmitted by a First In First Out (FIFO) scheme or similar. In case of link break data is lost Potential reasons: Atmospheric conditions, bad pointing, power system overstrain  Reliability problem

26/8/2017 68th International Astronautical Congress Adelaide, Australia

slide-6
SLIDE 6

www.uni-stuttgart.de

5

Part 1: Block data transmission – Bisection scheme

Solution 1: Bisection scheme

Change of order of transmitted data points Successive bisecting of the data set  Does converge to the full set

 Global view is obtained quickly, resolution increases with time

 Is deterministic: Can be hardcoded

26/8/2017 68th International Astronautical Congress Adelaide, Australia

  • Fig. 1. Bisection scheme for an arbitrary signal and corresponding set of data points. Numbers indicate order
  • f transmission of the measured data points.
slide-7
SLIDE 7

www.uni-stuttgart.de

6

Part 1: Block data transmission – Bisection scheme

Solution 2: Gradient selective scheme

Change of order of transmitted data points by local gradient:

𝑕𝑗 = 𝑒𝑧𝑗+1 𝑒𝑦𝑗+1 − 𝑒𝑧𝑗−1 𝑒𝑦𝑗−1 = 𝑧𝑗+1 − 𝑧𝑗 𝑦𝑗+1 − 𝑦𝑗 − 𝑧𝑗 − 𝑧𝑗−1 𝑦𝑗 − 𝑦𝑗−1 .

 Does converge to the full set

 Global view of extremes is obtained quickly, resolution increases with time

 Not deterministic: Index/time stamp of transmitted data point relevant

26/8/2017 68th International Astronautical Congress Adelaide, Australia

Figure 2: Gradient selective scheme for an arbitrary signal and corresponding set of data points. Numbers indicate order of transmission of the measured data points.

slide-8
SLIDE 8

www.uni-stuttgart.de

7

Part 1: Block data transmission – Performance Evaluation

Case: Random linear concatenated functions

26/8/2017 68th International Astronautical Congress Adelaide, Australia

FIFO: Significant loss of data when link is prematurely terminated Bisection:

  • Quick global view
  • Reasonable

convergence at 25%

  • Good convergence at

50 % Gradient selective:

  • Very quick global view
  • Full convergence at

25% Not always (!)

slide-9
SLIDE 9

www.uni-stuttgart.de

8

Part 1: Block data transmission – Performance Evaluation

Case: Random quadratic concatenated functions

26/8/2017 68th International Astronautical Congress Adelaide, Australia

FIFO: Significant loss of data when link is prematurely terminated Bisection:

  • Quick global view
  • Reasonable

convergence at 25%

  • Good convergence at

50 % Gradient selective:

  • Very quick global

extrema view

  • Good convergence at

25%

slide-10
SLIDE 10

www.uni-stuttgart.de

9

Part 1: Block data transmission – Performance Evaluation

Other : Concatenated exponential functions:

  • Not well handled by bisection scheme, due to indifference to extrema

Interesting parts might be skipped.

  • Well handled by gradient selective schemes, extrema covered first

Concatenated sine functions – similar to noisy signals:

  • Well handled by bisection scheme, due to indifference to signal shape.
  • Not well handled by gradient selective scheme, too many sharp gradient

changes.  Signal smoothing recommended.

26/8/2017 68th International Astronautical Congress Adelaide, Australia

slide-11
SLIDE 11

www.uni-stuttgart.de

10

Part 2: Continuous data transmission

For most satellite applications the overall transmission data rate is limited. The potential output data rate of all on-board sensors is much greater. Conventional solution: Reduce overall or sensor specific data rates to accommodate the available bandwidth

  • Potential undersampling of some sensors
  • Potential missing of some effects
  • Potential collection and transmission of uninteresting/irrelevant data

“Uninteresting”  Monotonous / similar data to already known data.

26/8/2017 68th International Astronautical Congress Adelaide, Australia

slide-12
SLIDE 12

www.uni-stuttgart.de

11

Part 2: Continuous data transmission

Solution: Corridor predictive scheme

  • Minimization of individual sensor data rate
  • Selection for interesting data points
  • Calculate data prediction corridor

 Data inside the corridor is “uninteresting” Coding scheme is known for ground operator  Implicit knowledge about not-transmitted data  Data outside the corridor is “interesting” and is transmitted  Follow-up recalculation of prediction corridor

  • Calculation scheme needs to be light-weight for OBC

26/8/2017 68th International Astronautical Congress Adelaide, Australia

slide-13
SLIDE 13

www.uni-stuttgart.de

12

Part 2: Corridor predictive scheme – Linear regression

Simple example: Linear corridors. Calculate linear regression function from initial data set. Slope a: 𝑏 =

σ𝑗=1

𝑜𝑇𝑏𝑛𝑞𝑚𝑓(𝑦𝑗− Ӗ

𝑦) 𝑧𝑗 − ധ 𝑧

σ𝑗=1

𝑜𝑇𝑏𝑛𝑞𝑚𝑓(𝑦𝑗− Ӗ

𝑦)² y-Intersection: 𝑧0 = ധ 𝑧 − 𝑏ന 𝑦 Spine of the prediction corridor: 𝑧𝑇𝑞𝑗𝑜𝑓 = 𝑏 𝑦 + 𝑧0

26/8/2017 68th International Astronautical Congress Adelaide, Australia

Corridor boundaries: 𝑧𝐷𝑝𝑠𝑠,𝑉𝑞/𝑀𝑝𝑥 = 𝑏 𝑦 + 𝑧0 ± 𝑐𝐷𝑝𝑠𝑠 Losses defined by corridor width 𝑐𝐷𝑝𝑠𝑠 Violation condition: 𝑦 > 𝑧𝐷𝑝𝑠𝑠,𝑉𝑞 𝑦 ˅ 𝑦 < 𝑧𝐷𝑝𝑠𝑠,𝑀𝑝𝑥 𝑦 Add robustness with trigger threshold: 𝑜𝐷𝑝𝑠𝑠𝑗𝑒𝑝𝑠𝑊𝑗𝑝𝑚𝑏𝑢𝑗𝑝𝑡 > 𝑜𝑈𝑠𝑗𝑕𝑕𝑓𝑠𝑈ℎ𝑠𝑓𝑡ℎ𝑝𝑚𝑒 Add reliability by defining a maximum interval between selected data points:

𝑒𝑛𝑏𝑦

 Important to determine whether a sensor is broken or nominal “uninteresting”

slide-14
SLIDE 14

www.uni-stuttgart.de

13

Part 2: Corridor predictive scheme – Performance

26/8/2017 68th International Astronautical Congress Adelaide, Australia

Figure 14: Concatenated randomized noisy linear functions input signal with predictive corridor scheme at low sampling rate.

  • Red points are selected for

transmission.

  • Sample size 20
  • Selection and recalculation

after 2nd corridor violation

  • Max distance between points

is 30 300 data points polled 19 selected for transmission  Reduction rate: 15.8 !

slide-15
SLIDE 15

www.uni-stuttgart.de

14

Part 2: Corridor predictive scheme – Performance

26/8/2017 68th International Astronautical Congress Adelaide, Australia

  • Red points are selected for

transmission.

  • Sample size 20
  • Selection and recalculation

after 2nd corridor violation

  • Max distance between points

is 30 3160 data points polled 235 selected for transmission  Reduction rate: 13.4 Higher reduction possible, by increasing gap distance.

Figure 15: Concatenated randomized noisy linear functions input signal with predictive corridor scheme at high sampling rate.

slide-16
SLIDE 16

www.uni-stuttgart.de

15

Summary & Conclusions

Part 1: Block data transmission Bisection scheme: Lossless, signal shape indifferent scheme, deterministic, data reduction of 4 and more possible Gradient selective scheme: Lossless, signal shape selective scheme, not deterministic, noise prone data reduction of 10 and more possible Part 2: Continuous data transmission Predictive corridor scheme: Lossy, signal shape dependent scheme, not deterministic, noise resistant data reduction of 10-25 has been observed, much greater possible

26/8/2017 68th International Astronautical Congress Adelaide, Australia

slide-17
SLIDE 17

www.uni-stuttgart.de

16

Other Work, Contact

Effective Transmission Schemes for Bandwidth Limited Satellite Operations

More on MIRKA/CAPE:

  • Communication architecture and operation strategies for the electrically propelled CubeSat and

re-entry capsule system CAPE, 68th IAC, 2017

  • Micro Return Capsule 2 – REXUS Experiment results, Small Satellites Systems and Services

Symposium, 2016

  • Micro Reentry Capsule 2 REXUS, 1st Symposium on Space Educational Activities, 2015

CubeSat-sized Re-entry Capsule MIRKA2, 10th IAA Symposium on Small Satellites for Earth Observation, 2015

  • CubeSat Atmospheric Probe for Education (CAPE), 10th IAA Symposium on Small Satellites for

Earth Observation, 2015 Contact:

  • M. Ehresmann

ehresmann@irs.uni-stuttgart.de Institut für Raumfahrtsysteme Pfaffenwaldring 29 70569 Stuttgart

26/8/2017 68th International Astronautical Congress Adelaide, Australia

  • G. Herdrich

herdrich@irs.uni-stuttgart.de Institut für Raumfahrtsysteme Pfaffenwaldring 29 70569 Stuttgart
