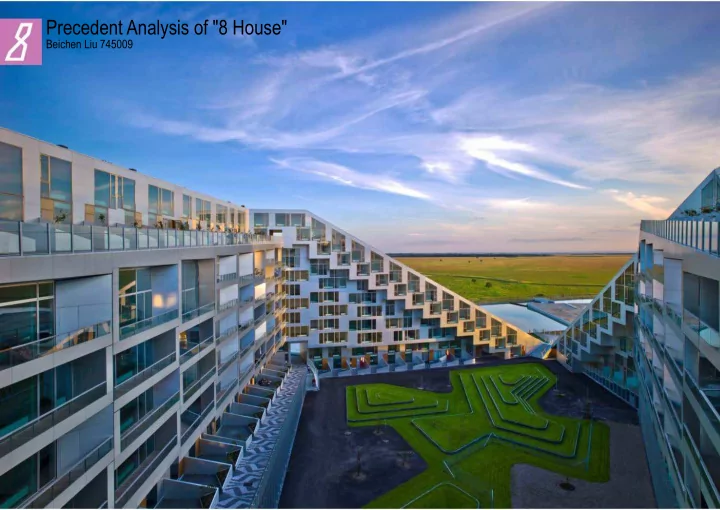

Precedent Analysis of "8 House"

Beichen Liu 745009

Key Information about the "8 House"

Type of the Project: Comission Project in Charge: Bjarke Ingels, Thomas Christoffersen Location: Copenhagen, Denmark GFA: 62000m

2

Apartment Units: 475 (Rowhouse, Townhouse, Penthouse) Communal Facilities: 500m

2

Slope Green Roof: 1700m

2

Design Process Diagrams

Option1:

Only "Cosmetic variation" is not acceptable in this design. Design starts from stacking "pancake" layer that represents different functions, and then an intersection occurs, which consists communal space as well as common stairs. Then, some parts of the building are pushed to the ground while some other parts are lifted up, optimizing and providing each function with maximum view, daylight, and sunlight.

Step1 Step2 Step3

Option2:

Step1 Step10 Step2 Step9 Step3 Step8 Step4 Step7 Step5 Step6

Site Plan Ground Floor

Atrium Atrium

Site Plan & Floor Plan

Circulation

Legend

Commercial Stairs and Lifts Communal Residential Gardens

First Floor Fourth Floor

Floor Plan

Atrium Atrium Atrium Atrium Circulation

Legend

Commercial Stairs and Lifts Communal Residential Gardens

Tenth Floor

Floor Plan & Sections

A-A Section B-B Section C-C Section

A A C C B B

Atrium Atrium Circulation

Legend

Commercial Stairs and Lifts Communal Residential Gardens
