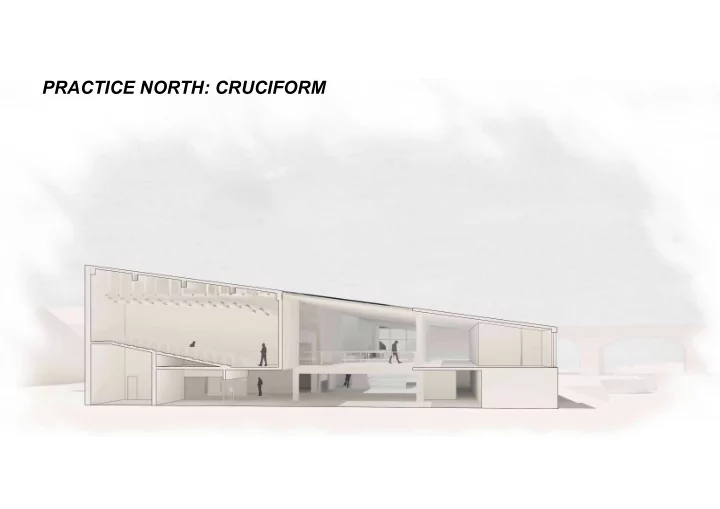

PRACTICE NORTH: CRUCIFORM

Site Analysis

Building Function Building Height Green & Water Noise History: 1920s & 1950s Traffjc nosie from the Great Howard Street Traffjc noise from the back bridge Occasional noise from the Light Body Street The canal facing side have a good view of the landscape 1920's canal has a part extend into the site IDEA 2: Recall the old canal. Make a pool in that place and thus response to the

• ld form.

STRATEGY 3: Place the building in the green area. Use the purple area as sound attenuation space. STRATEGY 2: Activities/Rooms needs natural light can be put in the yellow part. Activities/Rooms has no need for natural light can be put it the orange part. STRATEGY 1: Make the purposed building height 2-3 stories. Put the main social space in the middle to have a better sunshine. IDEA 1: Make the building west-east. Therefore it becomes 'connection' of residential part and commerical part. Residential Building Commercial Building Indurstrial Building 0~5m 5~10m 10~20m >20m

Precedents Developed Massing

BBC Scotland headquarters, David Chipperfjeld The stairs is a characteristic and worth learning: make it not only for circulation but for social activities as well. Rivington Place, Adjaye Associates The facade is interesting. In night the building itself can become a landscape. Massing 1: Blocks The massing is consist of difgerent size of blocks. When forming the blocks the activities type and space is taken into consideration. From west to east basically they are: ENTRANCE & ACADEMIC, ADMINISTRATIVE, SOCIAL SPACE, TECHNICAL *Massing 2: Connection The massing is come from the idea 1 and strategy 2. Two long west-east cuboid, bigger

• ne is the place mainly for rooms do not need natural light, like cinema, fjlm studio; the

smaller one is the place for rooms need natural light, like classroom, offjce, meeting room. *This massing is chosen to developed. Massing 3: Response Besides the pool responds to the old canal, the massing is formed as a result of make a response to the shape of the canal.

Massing Option

The massing is developed from the option 2

• 1. The in-between space naturally forms an atrium.
• 2. Rooms need/do not need light: the simple classifjcation is evolved into the idea of 'zone'

———— the building can be divided into blocks

• 3. Need a social space facing the canal: another atrium in the middle
• 4. Cruciform atrium: serves as both social space and circulation
• 5. The roof becoms a slope

Ground Floor Plan 1:200

Light Body Street

Upstairs Upstairs Upstairs Side Entrance F i r e e s c a p e Side Entrance Side Entrance Main Entrance

Car Park

Bicycle Storage Bin Store Film Studio Classroom Classroom Classroom Classroom Classroom Classroom Lobby Film Studio Store Workshop Workshop Store Plant Room

V e c h i l e L

• a

d i n g B a y

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 17 16 18 19 20 21

Canal

• 1. Reception desk
• 2. Reception offjce

3-4. Meeting room 5-11. Offjce

• 12. Creative writing suite
• 13. Film exhibition area: with curtain surrounded
• 14. Film library and archive
• 15. Green room & Make up
• 16. Male changing room & Shower
• 17. Female changing room & Shower
• 18. Workshop technicians offjce
• 19. Water pool: recall for history and soundscape deisgn
• 20. Resting bench
• 21. Leisure Deck

N

Function Zone

Orange: Academic Purple: Technical Bule: Adminstrative Beige: Social/Circulation

First Floor Plan 1:200 Second Floor Plan 1:200

Lobby Open plan offjce space Cinema Kitchen Lecture Theater Classroom Classroom Classroom Classroom Classroom Sound Studio Refectory-1 Refectory-2 Sound Studio Classroom

23 22 24 25 26 27 28 29 30 31 32 33 34 35

22-29. Offjce

• 30. Bridge/Terrace: can have a view of the ground fmoor
• 31. Viewing area: people in the lobby can look down upon

the exhibits 32-33. Control Room

• 34. Studio control room
• 35. Studio sound control room
• 36. Fire escape: an additional fmoor have access to the

back of the theater and cinema

Upstairs Upstairs Upstairs 36 Upstairs

Lobby

Function Zone

Orange: Academic Purple: Technical Bule: Adminstrative Beige: Social/Circulation

1 2 3 4 1 3 2 4

• 1. Skylight: Workshop
• 2. Photovoltaic panel: make use of the south facing facade---sustainable design
• 3. Ceramic Facade: painted with wine red
• 4. French window for Creative writing suite

Great Howard Street Elevstion 1:200

• 1. Photovoltaic panel: make use of the south facing facade---sustainable design
• 2. Roof: an extension of the external wall, the roof and the wall together form the 'facade'
• 3. Skylight: Workshop
• 4. Leisure Space: with long benches

Elevstion: Facing the canal 1:200

1 2 3 4 5 6 7 8 9 10 11 13 12 14

Longitudinal Section 1:200

• 1. Lecture theatre
• 2. Creative writing suite
• 3. Lobby for theatre and cinema
• 4. Film exhibition area
• 5. Cinema
• 6. Film library and archive
• 7. Lift
• 8. Refectory
• 9. Lobby for fjlm studio
• 10. Film Studio
• 11. Studio control room
• 12. Studio sound control room
• 13. Workshop technicians offjce
• 14. Workshop
• 15. Geothermal heat pump: make use of

the water in the canal

15

Interior view: Lecture theatre, Lobby & Cinema

450mm*450mm reinforce concrete column Exit/Fire escape Ceiling panel 450mm*500mm reinforce concrete beam Ceramic roof panel Suspended steel frame structure: hollow section Suspended timber sound refmector/difguser

Technical Section 1:20

60mm concrete panel 60mm concrete panel 300mm*300mm beam 50mm thermal insulation 30mm sound insulation & waterproof layer 20mm plaster 30mm timber panel 40mm sound insulation & waterproof layer 150mm concrete slab 150mm concrete wall waterproof layer 40mm ceramic panel 50mm double glazed window steel frame steel structure 50mm carpet 30mm plaster 150mm thermal insulation 200mm concrete slab concrete footing
