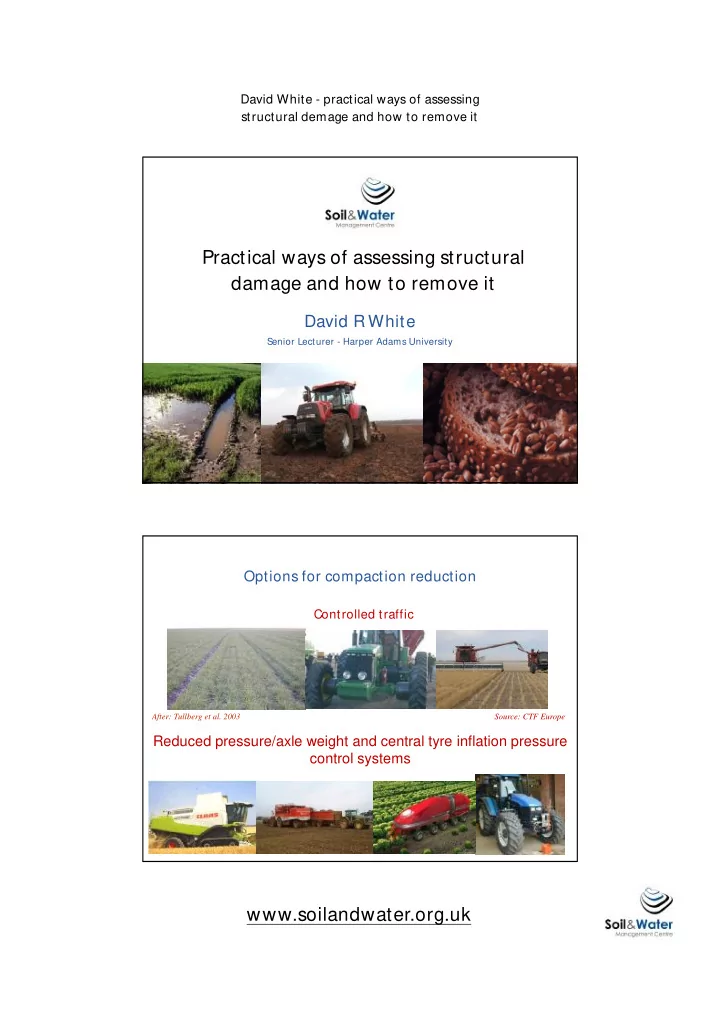

David White - practical ways of assessing structural demage and how to remove it Practical ways of assessing structural damage and how to remove it David R White Senior Lecturer - Harper Adams University Options for compaction reduction

slide-1
SLIDE 1

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

David R White

Senior Lecturer - Harper Adams University

Practical ways of assessing structural damage and how to remove it

After: Tullberg et al. 2003

Reduced pressure/axle weight and central tyre inflation pressure control systems Options for compaction reduction

Controlled traffic

Source: CTF Europe

slide-2
SLIDE 2

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Outline Traction Tillage Planting a crop this year Concluding remarks

Wheels

slide-3
SLIDE 3

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Tracks Our ancestors knew something - keep off the soil.

slide-4
SLIDE 4

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Traction

  • Thrust is a force which arises from the

interaction between a track or wheel and the soil.

Drawbar Pull Thrust Rolling Resistance

slide-5
SLIDE 5

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

The bigger the drawbar pull, the bigger the wheel/ track thrust needed.

Thrust depends on:

  • The weight on the wheel or track
  • Soil cohesion
  • Soil friction
  • Tyre track contact area
  • Slip
slide-6
SLIDE 6

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

M ost agricultural soils in the UK have both cohesion and soil/soil friction and, therefore, benefits can be gained in traction terms from increasing both weight and contact area

Ways of increasing tyre contact area

  • Tracks
  • Dual tyres
  • Wide tyres
  • Large diameter tyres
  • Extra axle
  • Lower tyre pressure
  • Radial tyres
slide-7
SLIDE 7

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Ballast

  • Wheel weights
  • Front end weights
  • Partly fill tyres with water
  • Dynamic weight transfer – attach the

implement to the tractor as per the instruction manual.

Note

  • Y
  • u can over ballast tractors.
  • Aim for correct wheel slip i.e. between 8 and

15 %.

slide-8
SLIDE 8

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Drawbar Power = Pull X Speed

Conclusion

  • Slow and high drawbar force (very wide

implement) requires large wheel thrusts.

slide-9
SLIDE 9

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Heavy loads

M aximum gross weight of vehicles:

10 20 30 40 50 60 D r i l l s S p r a y e r S p r e a d e r T r a c t

  • r

C

  • m

b i n e T r a i l e r T a n k e r T r u c k B e e t H a r v e s t e r Gross weight (tonne)

After: Erickson et al 1974 Updated by Godwin 2007

slide-10
SLIDE 10

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

M aximum tyre inflation pressure

  • f vehicles:

1 2 3 4 5 6 7 8 Drills Sprayer Spreader Tractor Combine Trailer Tanker Truck Beet Harvester Inflation pressure (bar)

After: Erickson et al 1974 Updated by Godwin 2007

Tyre load and inflation pressure

W

Pi

A

Pc Pcs

Pc= Pi+Pcs

Pi – inflation pressure Pcs – tyre carcass stiffness

Pc= W / A

Pc – contact pressure W – tyre load A – tyre contact area

  • Large contact area
  • Low load
  • Low tyre stiffness
  • Low contact pressure
  • Uniform contact pressure
slide-11
SLIDE 11

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Compaction issues

25 tonnes 20 + tonnes 7 bar 2 bar (1 bar better)

Conclusion Do not allow vehicles with high inflation pressure tyres in the field

slide-12
SLIDE 12

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Deeper compaction

650mm

Conclusion

Compaction at this depth is difficult to remove, avoid putting it there in the first place.

slide-13
SLIDE 13

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Compaction of soil by repetitive loads

First pass causes the most compaction. Controlled wheeling is better than random wheeling.

Conclusion

  • The first pass of a wheel, or track, does the

most damage. Further passes only add a bit more compaction.

  • M ake as few passes over the field as possible.
slide-14
SLIDE 14

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Contact pressure below tyres

  • Large contact area
  • Low load
  • Low contact pressure
  • Uniform contact pressure

(Sohne, 1958) (Sohne, 1958) IP = 12psi, loads: 660, 1100, 1650, 2200 lbs

Conclusion

  • Reduce tyre pressures to lowest

recommended by manufacture for given load.

slide-15
SLIDE 15

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Normal stress under a track & tyre

After: Reaves and Cooper 1960

Tillage

  • If a tillage operation is not going to be of

benefit do not do it.

slide-16
SLIDE 16

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Aims Of Tillage

  • Prepare a suitable growing medium for a

crop (Germination, emergence, action of herbicides)

  • Bury/ incorporate surface residues/ fym
  • Remove local or general soil compaction

problems (promote drainage).

  • Provide adequate soil strength to support

surface traffic.

After: Godwin, 1974

Tine geometry and soil disturbance

2 key factors: 1.Rake angle 2.Depth/ width ratio

slide-17
SLIDE 17

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Soil failure patterns

Depth/width = < 0.5 > 1 to < 6 >6

Effect of rake angle on soil forces

  • 1

1 2 3 4 5 22.5 45 67.5 90 113 RAKE ANGLE (degrees) FORCE (kN)

HORIZONTAL VERTICAL

UPWARD DOWNWARD

After: Godwin 1974

Rake angle Direction of travel Soil surface Implement face

slide-18
SLIDE 18

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Conclusion

  • Backward inclined tines need more force to

pull them than forward inclined tines at the same depth (therefore, more wheel thrust, more ballast).

  • Consider lifting out backward inclined tines
  • n drills, tillage trains, etc. under adverse

soil conditions Effect of depth of tine on soil forces

1 2 3 4 5 6 7 8 9 50 100 150 200 DEPTH (mm) FORCE (kN) HORIZONTAL VERTICAL

After: Godwin 1974

Rule of thumb: double depth, quadruple draft

slide-19
SLIDE 19

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Effect of depth of work on disc forces

Spherical disc in a sandy loam soil at a sweep angle of 25o

0.2 0.4 0.6 0.8 1 1.2 50 100

Force, kN Depth, mm

From: Godwin et al,1987

Horizontal Vertical

Conclusion

  • Doubling the working depth, approximately

quadruples the drawbar force.

slide-20
SLIDE 20

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

A wheel is a backward inclined tine

motion

Conclusion

  • Wheels cause compaction.
slide-21
SLIDE 21

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk Selection of implement rake angle for tillage operations

Low Vertical High

Direction of travel

Operation: Loosening Sorting Compacting Cutting Disintegrating Disintegrating Inverting Rearranging Smoothing Consolidating e.g.: Chisel tines Harrows - drag Rollers Plough shares - power Scrubber boards Bulldozer blades Pneumatic tyres Soil surface

After: Spoor, 1968

Critical depth

slide-22
SLIDE 22

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

As a general rule of thumb, critical depth occurs at approximately six times the individual loosening tine’s width for friable soils; for example, a tine foot that is 8 cm in width, will have a critical depth of around 48 cm. For plastic soils this can almost come to the soil surface. (Godwin, 1975)

Conclusion

  • Check what the implement is actually doing.
slide-23
SLIDE 23

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Worn components

Conclusion

  • Using worn components is false economy.
  • They will produce a poor job and possibly

need a higher drawbar pull.

slide-24
SLIDE 24

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Subsoiling

After: Spoor and Godwin, 1978

Plain tine Wide point, high lift wing Narrow point, low lift wing

Effects of winged tines Shear planes

After: Spoor and Godwin, 1978

Horizontal cracks

slide-25
SLIDE 25

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Total soil disturbance Tip Wing

After: Spoor and Godwin, 1978

Effect of wings

Draught 20.43 kN 26.58 kN Disturbed area 0.098 m2 0.184 m2 Specific resistance 208 kN/ m 2 144 kN/ m2

After: Spoor and Godwin, 1978

slide-26
SLIDE 26

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Leading shallow tines

After: Spoor & Godwin, 1978

Soil disturbance

After: Spoor & Godwin 1978

Plus shallow leading tines Wings only Draught Force (tonnes) Area of disturbance (m2) Specific resistance (tonnes/m2)

2.39 0.24 9.6 2.35 0.42 5.4

Similar: Almost double: 45% reduction

slide-27
SLIDE 27

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Effects of tine spacing Spacing Too close Optimum Too wide

After: Godwin, Spoor and Soomro, 1984

M ultiple tine spacing

  • Simple tines = 1.5 x depth of work
  • Winged tines = 2.0 x depth of work
  • Winged tines + = 2. 5 x depth of work (of shallow

leading tines deeper tine)

After: Spoor & Godwin, 1978

slide-28
SLIDE 28

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Note

  • If you subsoil plastic soil you will simply

make “square moles” i.e. waste of time

M oisture profiles after 7 days of drying

Undisturbed soil Fine tilth Coarse tilth

After: Spoor and Godwin, 1984 M oisture content, % by weight Depth, mm

Dry Friable/ M oist Plastic

slide-29
SLIDE 29

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Conclusion

Avoid bringing up wet soil e.g. deep tillage

no discs, tines @ 150mm, plus wings, no packer. discs @ 60mm, tines @ 100mm, plus wings, hard packer. discs @ 60mm, tines @ 150m, no wings, no packer. discs @ 60mm, tines @ 100mm, plus wings, no packer.

Implement adjustment –

clod size distribution and residue levels

slide-30
SLIDE 30

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Conclusion

M ake sure no component is “getting a free ride”

M achinery manufactures recommendations General working recommendations :-

  • 1. M ake as few passes over the field as possible.

(although a field that has been laid wet over winter may benefit from a once over with a tined cultivator to get some air in)

  • 2. Work headlands last (or not at all)

(Vaderstad 2012)

slide-31
SLIDE 31

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

M achinery manufactures recommendations

M achine set up :-

  • 1. Read instruction books carefully (none of us ever look at them!)
  • 2. Get the basics right
  • 3. Pay attention to detail
  • 4. Inflate tyre pressures as recommended
  • 5. Soil engaging parts should be replaced or in good condition

...scalloped discs work and drive better if they are not worn down

  • 6. Set wheel scrapers as recommended
  • 7. Set front tools (on cultivator drills) to minimum depth (or out
  • f work) to minimise draft requirement
  • 8. Don't fill seed hopper completely to minimise overall weight

(Vaderstad 2012)

Agronomy views

  • Do not be in too much of a hurry – resist the

temptation to fill up the drill.

  • Do not force seed into poor soil conditions – it might

lead to a costly re-drill.

  • Allow green material to remain there as long as
  • possible. Consider killing with glyphosate as late as

possible

  • Dig a hole with a spade to check cultivation work for

smearing

(Blake et al 2012)

slide-32
SLIDE 32

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Spring 2013 strategies

  • Cultivate to minimum depth
  • Lightest tractor
  • Lowest tyre pressure or tracks
  • Consider reducing machine width
  • Broadcast and harrow
  • Leave it in a cover crop

(Blake et al)

Overall

conclusions/ recommendations

  • We do not have a “ magic solution”
  • Assess your own fields
  • M onitor what your machinery is doing to the soil
  • Read instruction manuals
  • It will take time to repair your soils
  • Speak to your agronomist
slide-33
SLIDE 33

David White - practical ways of assessing structural demage and how to remove it

www.soilandwater.org.uk

Any questions?

Sponsored by
