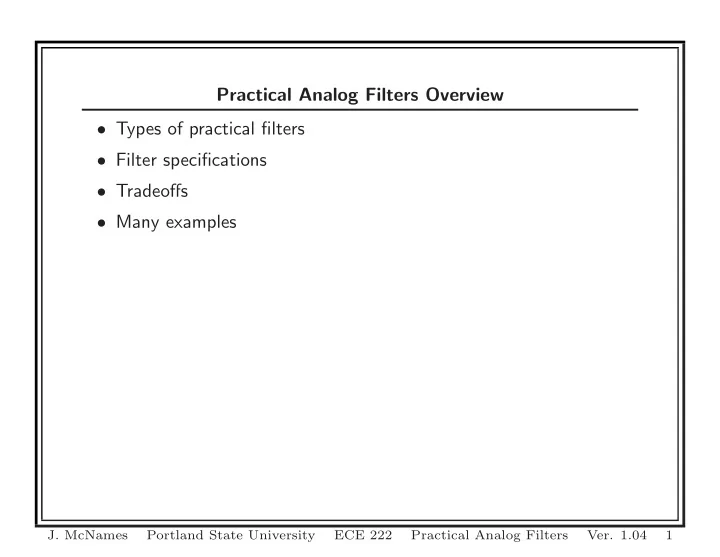

slide-1
SLIDE 1

Practical Analog Filters Overview

  • Types of practical filters
  • Filter specifications
  • Tradeoffs
  • Many examples
  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

1

slide-2
SLIDE 2

Ideal Filters

1 Lowpass 1 Highpass 1 Bandpass 1 Bandstop 1 Notch

ω ω ω ω ω ωc ωc ωc ωc1 ωc1 ωc2 ωc2

  • There are five ideal filters
  • Lowpass filters pass low frequencies: ω < ωc
  • Highpass filters pass high frequencies: ω > ωc
  • Bandpass filters pass a range of frequencies: ωc1 < ω < ωc2
  • Bandstop filters pass two ranges: ω < ωc1 and ω > ωc2
  • Notch filters pass all frequencies except ω ∼

= ωc

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

2

slide-3
SLIDE 3

Ideal Filters Comments

1 Lowpass 1 Highpass 1 Bandpass 1 Bandstop 1 Notch

ω ω ω ω ω ωc ωc ωc ωc1 ωc1 ωc2 ωc2

  • Phase is not shown
  • ωc is called the cutoff frequency
  • Generally, the ideal phase is 0◦ for all frequencies
  • Can not build ideal filters in practice
  • Real filters appear as rounded versions of ideal filters
  • Most LTI systems can be thought of as non-ideal filters
  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

3

slide-4
SLIDE 4

Practical Filters

  • Practical filters are usually designed to meet a set of specifications
  • Lowpass and highpass filters usually have the following

requirements – Passband range – Stopband range – Maximum ripple in the passband – Minimum attenuation in the stopband

  • If we know the specifications, we can ask MATLAB to generate

the filter for us

  • There are four popular types of standard filters

– Butterworth – Chebyshev Type I – Chebyshev Type II – Elliptic

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

4

slide-5
SLIDE 5

Practical Filter Tradeoffs

  • Butterworth
  • Highest order H(s)

+ No passband or stopband ripple

  • Chebyshev Type I

+ No stopband ripple

  • Chebyshev Type II

+ No passband ripple

  • Elliptic

+ Lowest order H(s)

  • Passband and stopband ripple
  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

5

slide-6
SLIDE 6

Example 1: Lowpass Filter Specifications Design a lowpass filter that meets the following specifications:

  • The passband ripple is no more than 0.4455 dB

(0.95 ≤ |H(jω)| ≤ 1)

  • The stopband attenuation is at least 26.02 dB (|H(jω)| ≤ 0.05)
  • The passband ranges from 0–450 rad/s
  • The stopband ranges from 550–∞ rad/s

Plot the magnitude of the resulting transfer function on a linear-linear plot, the Bode magnitude plot, the pole-zero plot, the impulse response, and the step response. Try the Butterworth, Chebyshev I, Chebyshev II, and elliptic filters. The MATLAB code is posted on the course web site.

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

6

slide-7
SLIDE 7

Example 2: Butterworth Lowpass

100 200 300 400 500 600 700 800 900 1000 0.2 0.4 0.6 0.8 1 |H(jω)| Butterworth Lowpass Filter Transfer Function Order: 21 Frequency (rad/sec)

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

7

slide-8
SLIDE 8

Example 2: Butterworth Lowpass

10

2

10

3

−30 −25 −20 −15 −10 −5 |H(jω)| (dB) Butterworth Lowpass Filter Transfer Function Order:21

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

8

slide-9
SLIDE 9

Example 2: Butterworth Lowpass

−1000 −500 500 −400 −300 −200 −100 100 200 300 400 Imaginary Axis Real Axis Butterworth Lowpass Filter Pole−Zero Plot Order:21 Poles

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

9

slide-10
SLIDE 10

Example 2: Butterworth Lowpass

0.05 0.1 0.15 0.2 0.25 −100 −50 50 100 150 h(t) Time (s) Butterworth Lowpass Filter Impulse Response Order:21

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

10

slide-11
SLIDE 11

Example 2: Butterworth Lowpass

0.05 0.1 0.15 0.2 0.25 0.2 0.4 0.6 0.8 1 1.2 1.4 h(t) Time (s) Butterworth Lowpass Filter Step Response Order:21

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

11

slide-12
SLIDE 12

Example 2: Chebyshev-I Lowpass

100 200 300 400 500 600 700 800 900 1000 0.2 0.4 0.6 0.8 1 |H(jω)| Chebyshev−I Lowpass Filter Transfer Function Order: 8 Frequency (rad/sec)

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

12

slide-13
SLIDE 13

Example 2: Chebyshev-I Lowpass

10

2

10

3

−30 −25 −20 −15 −10 −5 |H(jω)| (dB) Chebyshev−I Lowpass Filter Transfer Function Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

13

slide-14
SLIDE 14

Example 2: Chebyshev-I Lowpass

−800 −600 −400 −200 200 400 600 −400 −300 −200 −100 100 200 300 400 Imaginary Axis Real Axis Chebyshev−I Lowpass Filter Pole−Zero Plot Order:8 Poles

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

14

slide-15
SLIDE 15

Example 2: Chebyshev-I Lowpass

0.05 0.1 0.15 0.2 0.25 −100 −50 50 100 150 h(t) Time (s) Chebyshev−I Lowpass Filter Impulse Response Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

15

slide-16
SLIDE 16

Example 2: Chebyshev-I Lowpass

0.05 0.1 0.15 0.2 0.25 0.2 0.4 0.6 0.8 1 1.2 1.4 h(t) Time (s) Chebyshev−I Lowpass Filter Step Response Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

16

slide-17
SLIDE 17

Example 2: Chebyshev-II Lowpass

100 200 300 400 500 600 700 800 900 1000 0.2 0.4 0.6 0.8 1 |H(jω)| Chebyshev−II Lowpass Filter Transfer Function Order: 8 Frequency (rad/sec)

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

17

slide-18
SLIDE 18

Example 2: Chebyshev-II Lowpass

10

2

10

3

−30 −25 −20 −15 −10 −5 |H(jω)| (dB) Chebyshev−II Lowpass Filter Transfer Function Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

18

slide-19
SLIDE 19

Example 2: Chebyshev-II Lowpass

−4000 −3000 −2000 −1000 1000 2000 3000 4000 −2000 −1000 1000 2000 Imaginary Axis Real Axis Chebyshev−II Lowpass Filter Pole−Zero Plot Order:8 Poles Zeros

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

19

slide-20
SLIDE 20

Example 2: Chebyshev-II Lowpass

0.05 0.1 0.15 0.2 0.25 −200 −150 −100 −50 50 100 150 h(t) Time (s) Chebyshev−II Lowpass Filter Impulse Response Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

20

slide-21
SLIDE 21

Example 2: Chebyshev-II Lowpass

0.05 0.1 0.15 0.2 0.25 0.2 0.4 0.6 0.8 1 1.2 1.4 h(t) Time (s) Chebyshev−II Lowpass Filter Step Response Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

21

slide-22
SLIDE 22

Example 2: Elliptic Lowpass

100 200 300 400 500 600 700 800 900 1000 0.2 0.4 0.6 0.8 1 |H(jω)| Elliptic Lowpass Filter Transfer Function Order: 5 Frequency (rad/sec)

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

22

slide-23
SLIDE 23

Example 2: Elliptic Lowpass

10

2

10

3

−30 −25 −20 −15 −10 −5 |H(jω)| (dB) Elliptic Lowpass Filter Transfer Function Order:5

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

23

slide-24
SLIDE 24

Example 2: Elliptic Lowpass

−1200 −1000 −800 −600 −400 −200 200 400 600 800 −600 −400 −200 200 400 600 Imaginary Axis Real Axis Elliptic Lowpass Filter Pole−Zero Plot Order:5 Poles Zeros

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

24

slide-25
SLIDE 25

Example 2: Elliptic Lowpass

0.05 0.1 0.15 0.2 0.25 −100 −50 50 100 150 h(t) Time (s) Elliptic Lowpass Filter Impulse Response Order:5

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

25

slide-26
SLIDE 26

Example 2: Elliptic Lowpass

0.05 0.1 0.15 0.2 0.25 0.2 0.4 0.6 0.8 1 1.2 1.4 h(t) Time (s) Elliptic Lowpass Filter Step Response Order:5

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

26

slide-27
SLIDE 27

Example 3: Highpass Filter Specifications Design an elliptic highpass filter that meets the following specifications:

  • The passband ripple is no more than 0.4455 dB

(0.95 ≤ |H(jω)| ≤ 1)

  • The stopband attenuation is at least 26.02 dB (|H(jω)| ≤ 0.05)
  • The passband ranges from 550–∞ rad/s
  • The stopband ranges from 0–450 rad/s

Plot the magnitude of the resulting transfer function on a linear-linear plot, the Bode magnitude plot, the pole-zero plot, the impulse response, and the step response.

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

27

slide-28
SLIDE 28

Example 3: Elliptic Highpass

100 200 300 400 500 600 700 800 900 1000 0.2 0.4 0.6 0.8 1 |H(jω)| Elliptic Highpass Filter Transfer Function Order: 5 Frequency (rad/sec)

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

28

slide-29
SLIDE 29

Example 3: Elliptic Highpass

10

2

10

3

−30 −25 −20 −15 −10 −5 |H(jω)| (dB) Elliptic Highpass Filter Transfer Function Order:5

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

29

slide-30
SLIDE 30

Example 3: Elliptic Highpass

−1400 −1200 −1000 −800 −600 −400 −200 200 400 −500 500 Imaginary Axis Real Axis Elliptic Highpass Filter Pole−Zero Plot Order:5 Poles Zeros

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

30

slide-31
SLIDE 31

Example 3: Elliptic Highpass

0.05 0.1 0.15 −1400 −1200 −1000 −800 −600 −400 −200 200 h(t) Time (s) Elliptic Highpass Filter Impulse Response Order:5

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

31

slide-32
SLIDE 32

Example 3: Elliptic Highpass

0.05 0.1 0.15 −0.4 −0.2 0.2 0.4 0.6 0.8 1 h(t) Time (s) Elliptic Highpass Filter Step Response Order:5

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

32

slide-33
SLIDE 33

Example 3: Relevant MATLAB Code

Wp = 550; % Passband ends Ws = 450; % Stopband begins Rp = -20*log10(0.95); % Maximum deviation from 1 in the passband (dB) Rs = -20*log10(0.05); % Minimum attenuation in the stopband (dB) [n,wn] = ellipord(Wp,Ws,Rp,Rs,’s’); [B,A] = ellip(n,Rp,Rs,wn,’high’,’s’);

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

33

slide-34
SLIDE 34

Example 4: Bandpass Filter Specifications Design an Chebyshev type I bandpass filter that meets the following specifications:

  • The passband ripple is no more than 0.4455 dB

(0.95 ≤ |H(jω)| ≤ 1)

  • The stopband attenuation is at least 26.02 dB (|H(jω)| ≤ 0.05)
  • The passband ranges from 450–550 rad/s
  • The stopband ranges from 0–400 rad/s and 500–∞ rad/s

Plot the magnitude of the resulting transfer function on a linear-linear plot, the Bode magnitude plot, the pole-zero plot, the impulse response, and the step response.

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

34

slide-35
SLIDE 35

Example 4: Chebyshev-I Bandpass

100 200 300 400 500 600 700 800 900 1000 0.2 0.4 0.6 0.8 1 |H(jω)| Chebyshev−I Bandpass Filter Transfer Function Order: 8 Frequency (rad/sec)

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

35

slide-36
SLIDE 36

Example 4: Chebyshev-I Bandpass

10

2

10

3

−30 −25 −20 −15 −10 −5 |H(jω)| (dB) Chebyshev−I Bandpass Filter Transfer Function Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

36

slide-37
SLIDE 37

Example 4: Chebyshev-I Bandpass

−800 −600 −400 −200 200 400 600 800 −500 500 Imaginary Axis Real Axis Chebyshev−I Bandpass Filter Pole−Zero Plot Order:8 Poles Zeros

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

37

slide-38
SLIDE 38

Example 4: Chebyshev-I Bandpass

0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 −40 −30 −20 −10 10 20 30 40 h(t) Time (s) Chebyshev−I Bandpass Filter Impulse Response Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

38

slide-39
SLIDE 39

Example 4: Chebyshev-I Bandpass

0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 −0.08 −0.06 −0.04 −0.02 0.02 0.04 0.06 0.08 h(t) Time (s) Chebyshev−I Bandpass Filter Step Response Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

39

slide-40
SLIDE 40

Example 4: Relevant MATLAB Code

Wp = [450 550]; % Passband ends Ws = [400 600]; % Stopband begins Rp = -20*log10(0.95); % Maximum deviation from 1 in the passband (dB) Rs = -20*log10(0.05); % Minimum attenuation in the stopband (dB) [n,wn] = cheb1ord(Wp,Ws,Rp,Rs,’s’); [B,A] = cheby1(n,Rp,wn,’s’);

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

40

slide-41
SLIDE 41

Example 5: Bandstop Filter Specifications Design an Chebyshev type II bandstop filter that meets the following specifications:

  • The passband ripple is no more than 0.4455 dB

(0.95 ≤ |H(jω)| ≤ 1)

  • The stopband attenuation is at least 26.02 dB (|H(jω)| ≤ 0.05)
  • The passband ranges from 0–400 rad/s and 500–∞ rad/s
  • The stopband ranges from 450–550 rad/s

Plot the magnitude of the resulting transfer function on a linear-linear plot, the Bode magnitude plot, the pole-zero plot, the impulse response, and the step response.

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

41

slide-42
SLIDE 42

Example 5: Chebyshev-II Bandstop

100 200 300 400 500 600 700 800 900 1000 0.2 0.4 0.6 0.8 1 |H(jω)| Chebyshev−II Bandstop Filter Transfer Function Order: 8 Frequency (rad/sec)

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

42

slide-43
SLIDE 43

Example 5: Chebyshev-II Bandstop

10

2

10

3

−30 −25 −20 −15 −10 −5 |H(jω)| (dB) Chebyshev−II Bandstop Filter Transfer Function Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

43

slide-44
SLIDE 44

Example 5: Chebyshev-II Bandstop

−800 −600 −400 −200 200 400 600 800 −500 500 Imaginary Axis Real Axis Chebyshev−II Bandstop Filter Pole−Zero Plot Order:8 Poles Zeros

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

44

slide-45
SLIDE 45

Example 5: Chebyshev-II Bandstop

0.05 0.1 0.15 0.2 0.25 −300 −200 −100 100 200 h(t) Time (s) Chebyshev−II Bandstop Filter Impulse Response Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

45

slide-46
SLIDE 46

Example 5: Chebyshev-II Bandstop

0.05 0.1 0.15 0.2 0.25 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 h(t) Time (s) Chebyshev−II Bandstop Filter Step Response Order:8

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

46

slide-47
SLIDE 47

Example 5: Relevant MATLAB Code

Wp = [400 600]; % Passband ends Ws = [450 550]; % Stopband begins Rp = -20*log10(0.95); % Maximum deviation from 1 in the passband (dB) Rs = -20*log10(0.05); % Minimum attenuation in the stopband (dB) [n,wn] = cheb2ord(Wp,Ws,Rp,Rs,’s’); [B,A] = cheby2(n,Rs,wn,’stop’,’s’);

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

47

slide-48
SLIDE 48

Practical Filters Summary

  • In most applications, filter design begins with a set of

specifications

  • We can use design tools like MATLAB to solve for the H(s) that

meets a set of frequency specifications

  • We can then use the cascade-form of transfer function synthesis
  • However, there are standard circuits for these types of filters that

are less expensive and more tolerant of errors in component values

  • J. McNames

Portland State University ECE 222 Practical Analog Filters

  • Ver. 1.04

48
