Power management styles Static power management: does not depend on activity. Example: user-activated power-down mode. Dynamic Power Management (DPM): automatic action based on activity. Example: automatically disabling

slide-1
SLIDE 1

CSE 467S 1

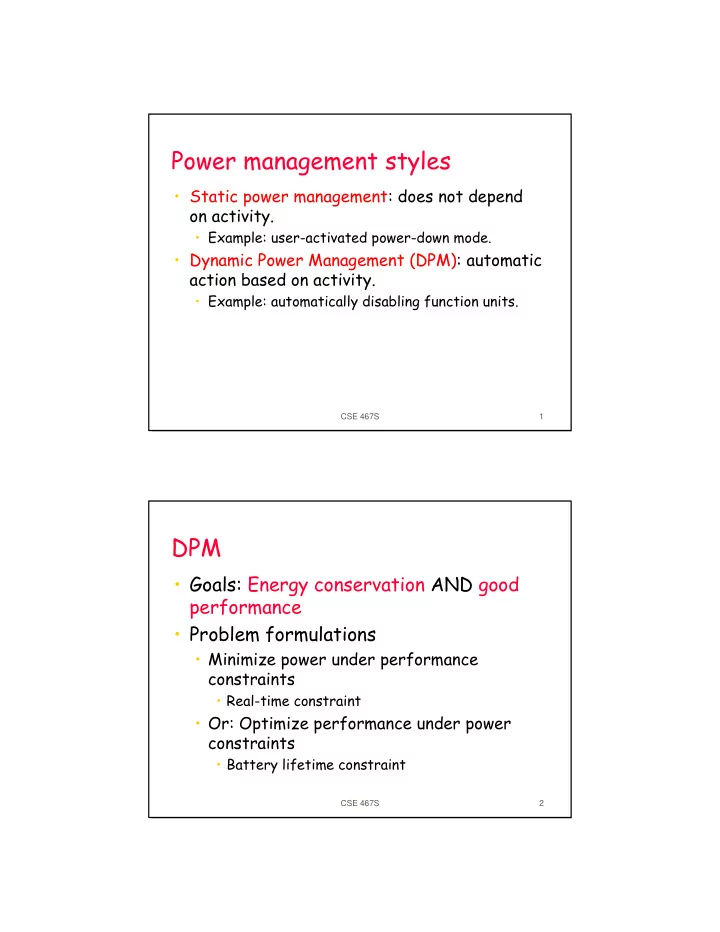

Power management styles

  • Static power management: does not depend
  • n activity.
  • Example: user-activated power-down mode.
  • Dynamic Power Management (DPM): automatic

action based on activity.

  • Example: automatically disabling function units.

CSE 467S 2

DPM

  • Goals: Energy conservation AND good

performance

  • Problem formulations
  • Minimize power under performance

constraints

  • Real-time constraint
  • Or: Optimize performance under power

constraints

  • Battery lifetime constraint
slide-2
SLIDE 2

CSE 467S 3

Premises

  • Systems have non-uniform workloads during
  • peration
  • It is possible to predict the fluctuations of

workload with some degree of accuracy

CSE 467S 4

PowerPC 603 activity

  • Percentage of time units are idle for

SPEC integer/floating-point:

unit Specint92 Specfp92 D cache 29% 28% I cache 29% 17% load/store 35% 17% fixed-point 38% 76% floating-point 99% 30% system register 89% 97%

slide-3
SLIDE 3

CSE 467S 5

Power-down costs

  • Going into/out of a inactive mode costs:
  • time;
  • energy.
  • Must determine if going into mode is

worthwhile.

  • Can model CPU power states with Power

State Machine (PSM)

CSE 467S 6

SA-1100 Power State Machine

run idle sleep Prun = 400 mW Pidle = 50 mW Psleep = 0.16 mW 10 µs 10 µs 90 µs 160 ms 90 µs Power consumption during transition ≈ Prun

slide-4
SLIDE 4

CSE 467S 7

Baseline: Greedy Policy

  • Immediately goes to sleep when system

becomes idle

  • Works when transition time is negligible
  • Ex. between IDLE and RUN in SA-1100
  • Doesn’t work when transition time is

long!

  • Ex. between SLEEP and RUN/IDLE in SA-

1100

  • Need better solutions!

CSE 467S 8

Break-Even Time TBE

  • The minimum idle time required to

compensate the cost of entering an inactive state

  • Enter an inactive state is beneficial only if

idle time is longer than the break-even time

  • Assumptions
  • No performance penalty is tolerated
  • An ideal power manager (PM) that have full

knowledge of workload trace in advance

slide-5
SLIDE 5

CSE 467S 9

Break-Even Time

When PTR ≤ POn

  • PTR: Power consumption during transition
  • POn: Power consumption when active
  • TBE of an inactive state is the total time

for entering and leaving the state

  • TBE = TTR = TOn,Off + TOff,On
  • Ex. TBE = 160 ms + 90 µs for SLEEP in SA-1100

CSE 467S 10

Break-Even Time

When PTR > POn

  • TBE must include additional sleep time to

compensate extraneous power consumption during transition

  • TBE = TTR + TTR(PTR - POn)/(POn - POff)
  • It is easier to save power with a shorter TBE
  • Shorter TTR
  • IDLE in SA-1100
  • Higher power difference between POn – POff
  • SLEEP in SA-1100
  • Lower PTR
slide-6
SLIDE 6

CSE 467S 11

SA-1100 Power State Machine

run idle sleep Prun = 400 mW Pidle = 50 mW Psleep = 0.16 mW 10 µs 10 µs 90 µs 160 ms 90 µs Power consumption during transition ≈ Prun

CSE 467S 12

Energy Saving

  • Given an idle period Tidle > TBE

ES(Tidle) = (Tidle - TTR)(POn - PS) + TTR(POn – PTR)

  • Achievable power saving (inherent

exploitability) depends on workload!

  • Distribution of idle periods
slide-7
SLIDE 7

CSE 467S 13

Inherent Exploitability

based on real workload trace

CSE 467S 14

Time-Power Product

A Workload-independent Metric

  • CS = TBEPS
  • An inactive state with a lower CS may

save more energy

  • May not be representative of real

power savings

slide-8
SLIDE 8

CSE 467S 15

Predictive Techniques

  • Predict when idle time Tidle will be longer than

TBE based on observed history

  • Interested event: p = {Tidle > TBE}
  • Observed event: o

CSE 467S 16

Metrics

  • Safety: conditional probability Prob(p|o)
  • If an observed event happens, what’s the

probability of Tidle > TBE?

  • Ideally, safety = 1.
  • Efficiency: Prob(o|p)
  • If Tidle > TBE, what’s the probability of successfully

predicting it in advance (e.g., o happens)?

  • Overprediction
  • High performance penalty poor safety
  • Underprediction
  • Wastes energy poor efficiency
slide-9
SLIDE 9

CSE 467S 17

Fixed Timeout Policy

  • Enter inactive state when the system

has been idle for TTO sec.

  • o: Tidle > TTO
  • Wake up in response to activity
  • Assumption: If a system has been idle

for TTO sec, it is likely that it will continue to be idle for Tidle > TBE.

CSE 467S 18

How to set TTO???

  • Increasing TTO improves safety, but

reduces efficiency at the same time

  • Highly workload dependent
  • Karlin’s result: TTO = TBE Energy

consumption is at worst twice the energy consumed by an ideal policy

slide-10
SLIDE 10

CSE 467S 19

Impact of Timeout Threshold

CSE 467S 20

Critiques on Fixed Timeout

Simple!

  • How to set timeout threshold?
  • Tradeoff between safety and efficiency
  • Works best when workload trace is

available

Always waste energy before reaching timeout threshold Always cause performance penalty for wake up

slide-11
SLIDE 11

CSE 467S 21

Impact of Workloads

CSE 467S 22

Possible Improvement

  • Predictive shutdown: shutdown as soon as a

new idle period starts based on history

  • Avoid wasting energy before reaching timeout

threshold

  • More efficient, less safe
  • Predictive wakeup: wake up when predicted

idle time expires, even if no new activity has

  • ccurred.
  • Avoid performance penalty for wake up
  • Less efficient, safer
slide-12
SLIDE 12

CSE 467S 23

Predictive shutdown

Regression-based Algorithm

  • Use a regression function to predict the

length of this idle period based on preceding active period and previous n pairs of idle/active periods

  • More complicated than fixed timeout
  • Need to maintain history information
  • Depends on offline analysis and trace collection to

determine the regression function and parameters

CSE 467S 24

Predictive shutdown

Threshold based

  • Observation: short active period tends to be

followed by long idle period in some applications

  • If the preceding active period is less than a

threshold, the idle period is predicted to be longer than TBE.

  • Again, what is the right threshold?
  • Highly workload dependent
  • Require offline analysis
slide-13
SLIDE 13

CSE 467S 25

Threshold-based Predictive Shutdown Measurement

CSE 467S 26

Adaptive Techniques

  • Adapt to workload changes by adjusting prediction parameters
  • Krishnan et al.
  • Grade n timeout thresholds based on history
  • Use the best one for prediction
  • Helmbold et al.
  • Grade n timeout thresholds based on history
  • Use weighted average of n thresholds for prediction
  • Dougli et al.
  • Increase timeout threshold if causing too many shutdowns
  • Decrease timeout threshold if causing too few shut downs
  • Hwang et al.
  • predicted_idle_time

= a*last_idle_time + (1-a)last_prediction

slide-14
SLIDE 14

CSE 467S 27

Critique on History-based Predictors

  • Applicability and quality depends on short-

term correlation between past & future events

  • True in many workloads
  • Predictor fails when correlation is weak
  • Workload in many embedded systems are

much more predictable than PCs

  • Periodic tasks
  • Workload known a priori
  • Specialized application

CSE 467S 28

More

  • Stochastic control: based on statistical

models (e.g., Markov chain)

  • See paper if interested
slide-15
SLIDE 15

CSE 467S 29

Hardware Support

CSE 467S 30

Clock Gating

  • Applicable to clocked digital components
  • Processors, controllers, memories
  • Stop the clock -> stop signal propagation in circuits
  • Pros
  • Simple
  • Very short transition time if
  • Clock generation is not stopped
  • Only clock distribution is stopped
  • Cons
  • Clock itself still consumes energy
  • Cannot prevent power leaking – exist as long as

power supply is connected

slide-16
SLIDE 16

CSE 467S 31

Supply Shutdown

  • Disconnect parts from power supply

when not in use.

  • Pros
  • General
  • Save most power
  • Cons
  • Very long transition

CSE 467S 32

Example: SA-1100 SLEEP

  • RUN SLEEP
  • (30 µs) Flush to memory CPU states (registers)
  • (30 µs) Reset processor state and wakeup event
  • (30 µs) Shut down clock
  • SLEEP RUN
  • (10 ms) Ramp up power supply
  • (150 ms) Stabilize clock
  • (negligible) CPU boot
slide-17
SLIDE 17

CSE 467S 33

Dynamic Voltage Scaling (DVS)

  • Why voltage scaling?
  • Energy/cycle ∝ V2
  • Reduce power supply voltage save energy
  • Lower clock frequency allows lower voltage
  • Tradeoff between performance and battery

lifetime

  • Why dynamic?
  • Peak computing rate is much higher than

average in most systems

CSE 467S 34

DVS (cont.)

  • Changing voltage takes time
  • Need to stabilize power supply and clock
  • Continuous and discrete voltage are both possible
  • AMD K6-2+
  • PowerNow! allows DVS by software
  • 8 frequencies: 200-600 MHz
  • Voltage: 1.4, 2.0 V
  • Transition time: 0.4 ms for voltage change
  • Intel’s SpeedStep technology
  • Transmeta Crusoe
  • Intel XScale
slide-18
SLIDE 18

CSE 467S 35

Reading

  • (Required) Sections I, II, III.A, III.B of
  • L. Benini, A. Bogliolo and G. De Micheli, "A Survey of

Design Techniques for System-Level Dynamic Power Management,” IEEE Transactions on VSLI, pp. 299- 316, June 2000
