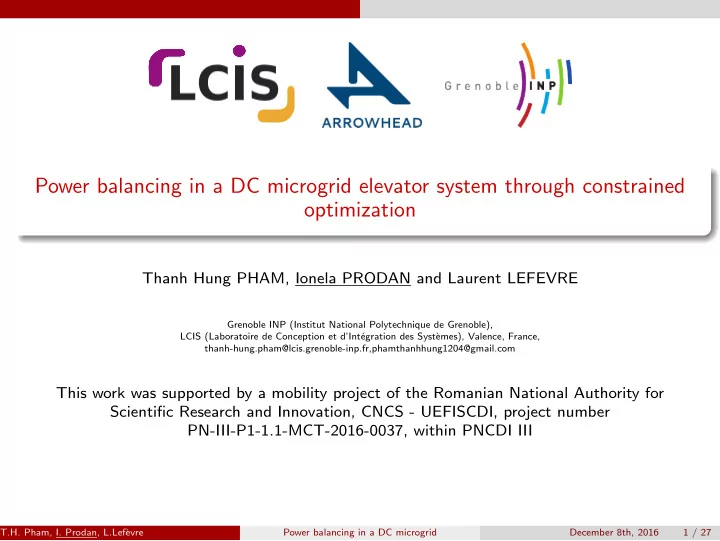

Power balancing in a DC microgrid elevator system through constrained - - PowerPoint PPT Presentation

Power balancing in a DC microgrid elevator system through constrained

• ptimization

Thanh Hung PHAM, Ionela PRODAN and Laurent LEFEVRE

Grenoble INP (Institut National Polytechnique de Grenoble), LCIS (Laboratoire de Conception et d’Int´ egration des Syst` emes), Valence, France, thanh-hung.pham@lcis.grenoble-inp.fr,phamthanhhung1204@gmail.com

This work was supported by a mobility project of the Romanian National Authority for Scientific Research and Innovation, CNCS - UEFISCDI, project number PN-III-P1-1.1-MCT-2016-0037, within PNCDI III

T.H. Pham, I. Prodan, L.Lef` evre (Grenoble INP (Institut National Polytechnique de Grenoble), LCIS (Laboratoire de Conception et d’Int´ egration Power balancing in a DC microgrid December 8th, 2016 1 / 27

Introduction

Outline

1

Introduction

2

DC microgrid modeling Port-Hamiltonian system on graphs DC microgrid elevator system modeling

3

Battery scheduling by optimization-based control Energy-preserving discrete-time model Scheduling formulation

4

Simulation Simulation software and numerical data Nominal scenario Perturbation-affected scenario

5

Conclusions

6

Reference

T.H. Pham, I. Prodan, L.Lef` evre (Grenoble INP (Institut National Polytechnique de Grenoble), LCIS (Laboratoire de Conception et d’Int´ egration Power balancing in a DC microgrid December 8th, 2016 2 / 27

Introduction

DC microgrid elevator system

Battery Three-phase electrical network Solar panel Synschronous machine Mechanical system DC/DC converter DC/DC converter AC/DC converter AC/DC converter DC microgrid elevator system, Pham et al. (2015)

T.H. Pham, I. Prodan, L.Lef` evre (Grenoble INP (Institut National Polytechnique de Grenoble), LCIS (Laboratoire de Conception et d’Int´ egration Power balancing in a DC microgrid December 8th, 2016 3 / 27

Introduction

Introduction

General goal: Constrained optimization control for for efficiently managing the DC microgrid

• peration.

Battery Three-phase electrical network Solar panel Synschronous machine Mechanical system DC/DC converter DC/DC converter AC/DC converter AC/DC converter

DC microgrid elevator system, Pham et al. (2015)

State of the art: bus voltage control (Alamir et al. (2014); Zonetti et al. (2015)) ⇒ do not optimize electricity cost, logic rules (Xu and Chen (2011)) ⇒ high storage capacity and not efficient,

• ffline optimization-based control approach

(Lifshitz and Weiss (2014)) ⇒ lack of the robustness, Economic MPC (Parisio et al. (2016); Touretzky and Baldea (2016)) ⇒ looses relevant details in what regards the physical power-preserving connection, neglects the nonlinear storage dynamic and the system dissipation. Solution: Port-Hamiltonian (PH) formulation for the modeling (van der Schaft and Maschke (2013)), Energy-preserving time discretization model (Talasila et al. (2006)), Centralized economic Model Predictive Control (MPC) design (Rawlings and Mayne (2009)).
