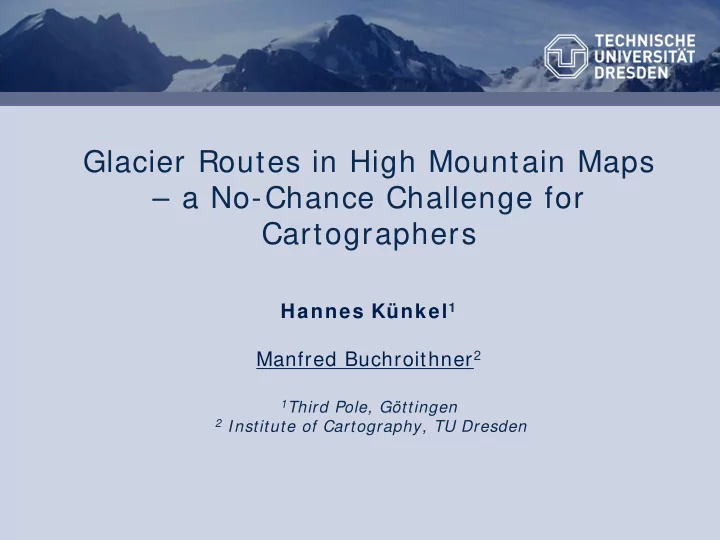

Potentially dangerous glacial lakes in the northern Tien Shan

Manfred Buchroithner, Institut für Kartographie, TU Dresden

Glacier Routes in High Mountain Maps – a No-Chance Challenge for Cartographers

Hannes Künkel1 Manfred Buchroithner2

1Third Pole, Göttingen 2 Institute of Cartography, TU Dresden

slide-2
SLIDE 2

I ntroduction

  • Changing tracks due to extensive trekking tourism,

transport necessities and hazardous geomorphological side- effects

  • Highly dynamic track changes in areas of glacier retreat –

Changes from one day to another

  • Identification of trails by means of remote sensing is difficult

due to resolution limitations

  • Field work is needed for verification.

20/ 09/ 2013 Page 2 20/ 09/ 2013 Glacier Routes in High Mountain Maps

slide-3
SLIDE 3

I ntroduction

  • Trail characteristics in high mountain areas

20/ 09/ 2013 Page 3 20/ 09/ 2013 Glacier Routes in High Mountain Maps

slide-4
SLIDE 4

I ntroduction

20/ 09/ 2013

Lukla 1995 Lukla 2008 Namche 1995 Namche 2006

http: / / menris.icimod.net/ menris/ Photogallery/ default.aspx?PhotoCatID= 4

slide-5
SLIDE 5

Trail Mapping

20/ 09/ 2013 Page 5 Glacier Routes in High Mountain Maps 20/ 09/ 2013

GPS-Tracks 10/ 2008

Destroyed bridge

slide-6
SLIDE 6

Trail Am biguities

20/ 09/ 2013 Page 6 20/ 09/ 2013 Glacier Routes in High Mountain Maps

??? ???

slide-7
SLIDE 7

Trail Mapping

20/ 09/ 2013 Page 7 20/ 09/ 2013 Glacier Routes in High Mountain Maps

  • Trail mapping using high resolution satellite imagery Cartosat-1

Trail Trail Houses Glacier Tongue Lake

slide-8
SLIDE 8

Glacier Changes

  • In glacier free areas trails can be mapped using high

resolution satellite imagery

  • Glacier retreat and glacier meltwater discharge are

influencing paths running along glacier meltwater fed rivers

  • Glacier tongue crossing tracks are heavily influenced by

debris cover and supraglacial ponds How to deal with the problem of dynamic changing routes in glacial environments in topographic maps?

20/ 09/ 2013 Page 8 20/ 09/ 2013 Glacier Routes in High Mountain Maps

slide-9
SLIDE 9

Glacier Changes

20/ 09/ 2013 Page 9 20/ 09/ 2013 Glacier Routes in High Mountain Maps

  • Khumbu-Gletscher 1952
  • (http: / / www.sfar-

evev06.ch/ en/ topics/ bilder.htm l)

  • Khumbu-Gletscher 2008
slide-10
SLIDE 10

Glacier Changes

20/ 09/ 2013 Page 10 20/ 09/ 2013 Glacier Routes in High Mountain Maps

Strong increase Increase No significant change Increase

Bolch et al. 2008

slide-11
SLIDE 11

Glacier Changes and Trail Uncertainties

20/ 09/ 2013 Page 11 20/ 09/ 2013 Glacier Routes in High Mountain Maps

Changing glacier characteristics Crevasses, lakes, debris cover

slide-12
SLIDE 12

Trail Uncertainties

20/ 09/ 2013 Glacier Routes in High Mountain Maps

  • approx. glacier route 2 0 0 8

???

slide-13
SLIDE 13

Trail Mapping

20/ 09/ 2013 Glacier Routes in High Mountain Maps

slide-14
SLIDE 14

20/ 09/ 2013

Trail Mapping

Page 14 20/ 09/ 2013 Glacier Routes in High Mountain Maps

  • GPS: Global Positioning

System

  • Requirements:
  • Stable over time
  • Clearly identifiable in

satellite imagery and reality

slide-15
SLIDE 15

Trail Mapping

20/ 09/ 2013 Page 15 20/ 09/ 2013 Glacier Routes in High Mountain Maps

slide-16
SLIDE 16
