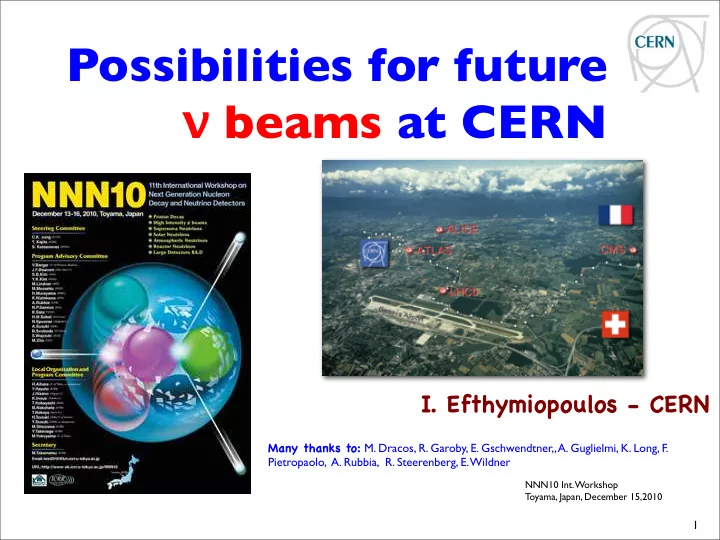

Possibilities for future beams at CERN First event from OPERA/CNGS I. Efthymiopoulos - CERN Many thanks to: M. Dracos, R. Garoby, E. Gschwendtner,, A. Guglielmi, K. Long, F. Pietropaolo, A. Rubbia, R. Steerenberg, E.
NNN10 Int. Workshop Toyama, Japan, December 15,2010
First ¡ντ ¡event ¡from ¡OPERA/CNGS ¡
1 Many thanks to: M. Dracos, R. Garoby, E. Gschwendtner,, A. Guglielmi, K. Long, F. Pietropaolo, A. Rubbia, R. Steerenberg, E. Wildner
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010
2 CERN LNGS 730km
CERN Neutrinos to Grand Sasso, IT - CNGS
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
Proton beam p m parameters Energy 400 GeV /c Cycle length
50ms apart Extraction
Beam power
Approved program:
experiment
3
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010
vacuum 800m 100m 1000m 67m 26m p + C → (interactions) → π+, K+ → (decay) → µ+ + νµ
270cm
11.25cm spacing
❚ 2 ¡× ¡41 ¡fixed ¡monitors ¡ ❚ 2 ¡× ¡1 ¡motorized ¡monitor
❚ C rods ❚ 5(4) mm Ø ❚ 5 in-situ spares MUON DETECTORS TARGET UNIT MAGNETIC HORNS
4
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010
Protons on Target 2006 (commissioning) 0.09 ×1019 2007 (commissioning- HI) 0.08 × 1019 2008 – physics run 1.79 × 1019 2009 – physics run 3.58 × 1019 2010 – physics run 4.04× 1019 Total 9.41 × 1019 2011 – physics run (221d) 4.7 × 1019
First ντ event from OPERA … and first events from ICARUS
Collection view Wire coordinate (8 m) Drift time coordinate (1.4 m) Courtesy: D. Autiero
à OPERA talk by K. Hamada
Courtesy: ICARUS coll.
à ICARUS talk by C.Rubbia
beam
5
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
¨ The ¡design ¡and ¡opera7on ¡of ¡a ¡high-‑intensity, ¡high-‑power ¡(0.3-‑0.5MW ¡of ¡
beam ¡power) ¡facility ¡is ¡always ¡very ¡challenging
¨ Design: ¡
¤ Choice of materials, facility layout, shielding, radiation environment ¤ Technical challenges during construction
¨ Opera3on ¡:
¤ Possibility for early repairs must be included in the design ¤ Radiation effects on proximity electronics should be looked at ¤ Key item: the ventilation system that has a double challenge:
temperature/humidity control, and management of radioactive air
¤ H-3 creation (air, water) should not be forgotten !
¨ Important ¡lessons, ¡in ¡view ¡of ¡future ¡facili7es ¡with ¡(M)MW ¡of ¡beam ¡power ¡!
6
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010
Courtesy: C. Touramanis – CERN Neutrino Strategy Workshop
7
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
¨ Strong ¡par7cipa7on ¡of ¡European ¡Labs ¡in ¡ν ¡physics ¡programs ¡worldwide
¤ T2K neutrino beam ¤ International Design Study
for a Neutrino Factory (IDS-NF)
¨ EC ¡funded ¡design ¡studies
¤ EUROnu – Design Study for Super-beam, β-beam, ν-factory ¤ EUCARD – Neu2012 (network activity) – MICE (transnational access) ¤ LAGUNA – Water Cherenkov, LArgon, Scintillator Detectors ¤ LAGUNA-LBNO(proposal) - Detectors + beams from CERN
¨ R&D ¡Ac7vi7es ¡– ¡prototypes
¤ MERIT@CERN - high-power targetry experiment ¤ MICE@ RAL - muon ionization cooling experiment
Courtesy: T. Hasegawa CERN Neutrino Strategy Workshop
8
Europe 50%
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
Short ¡3mescale ¡(~2015)
¤ Conventional LBL ν-beams from SPS (400 GeV)
n
Exploit the CNGS technology, sub-MW class facility, CNGS+
n Intensity upgrade, new focusing scheme for low ν-beam energies
¤ Conventional SBL ν-beam from PS (20 GeV) - PSNF
n
Dedicated experiment on sterile neutrinos
n
Test bed for detector and targetry R&D, x-section measurements
9
Medium ¡3mescale ¡(~2020)
¤ Conventional LBL ν-beams from SPS (400 GeV)
n CNGS+ beam to a new site (CN2?)
¤ Upgrade using LP-SPL as proton driver, new HPPS (30-50 GeV)
n ~MW class facility (CN2?-HP)
The ¡BIG ¡picture ¡– ¡ul3mate ¡facili3es ¡(~2030)
¤ Super beams, β-beams, Neutrino Factory
n HP-SPL and new accelerators, MMW class facilities
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
assuming 4.7 × 1019 pot/y for 2011, 2013, 2014
10
22.5×1019 ¡pot
# PS batches
cycle 200 days, 100% efficiency, no sharing 200 days, 55% efficiency, no sharing 200 days, 55% efficiency, 60% CNGS sharing [prot./6s cycle] [pot/year] [pot/year] [pot/year] 2.4×1013 - Nominal CNGS 2 4.8×1013 1.38×1020 7.6×1019 4.56×1019 3.5×1013 - Ultimate CNGS 2 7.0×1013 2.02×1020 1.11×1020 6.65×1019
Limitations:
key elements of the secondary beam line: target, horns, beam windows layout and RP considerations, SPS RF and beam extraction system
CNGS upgrade ⇔ SPS upgrade:
Possibilities will be studied within the LHC Injector Upgrade project (LIU) and followed in LAGUNA-LBNO
750kW may be reachable, going beyond would require substantial consolidation of the facility 11
M.Meddahi, E.Schaposnicova - CERN-AB-2007-013 PAF
750kW design limit for the target working hypothesis for RP calculations
Ilias Efthymiopoulos - CERN NNN10 - Japan, December 15, 2010
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
¨ MODULAR ¡proposal ¡APJ ¡29 ¡(2008) ¡174
¨ New ¡10km ¡off-‑axis ¡experiment
¨
20kt(4×5kt) ¡LArgon-‑TPC ¡based ¡on ¡the ¡ ICARUS-‑T600 ¡technology ¡(× ¡2.66 ¡scale-‑up)
¨
MODULAr/CNGS ¡(400 ¡GeV, ¡1.2 ¡1020 ¡pot/yr) ¡~ ¡ NOνA/NUMI ¡(120 ¡GeV, ¡6.5 ¡1020 ¡pot/yr)
12
Event rates in MODULAR
νµ CC e bkg Signal S/√(bkg) 5700 28 250 47
à ICARUS talk by C.Rubbia
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
CNGS (732km)
no beam sharing
CNGS+ (732km) or CN2PY (2300km)
requires SPS and injector upgrade
CN2PY(2300km) CN2FR(130km)
requires LP-SPL+HPPS,
NUMI/MINOS (700km)
NUMI/NOVA (700km off-axis)
(~2013)
LBNE/DUSEL (1300 km)
requires Project-X
T2K (300km)
2010
T2K (300km)
gradually ~2014
T2K (300km) T2O(658km)
13
LAGUNA-LBNO, EUROν FP7 Design Studies
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010 14
3.Fréjus 7.Umbria 6.Slanic 1.Boulby 4.Pyhäsalmi
2.Canfranc
Courtesy: A. Rubbia, LAGUNA
à NNN Detector talk by S. Katsanevas
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
15
CERN-Frejus (130km) & CERN-Pyhasalmi(2300km): Very short/very long baseline combination for unique physics opportunities in Europe
Determine CP-violation by comparison of ν/ anti-ν in absence of competing matter effects Very low energy beam, huge (WC) detector
Determine CP-violation and mass degeneracy by spectrum measurement and resolve degeneracies and so called “π-transit” effect arXiv:0908.3741.v1 for “Magic distance”
... and synnergies:
CERN-Frejus : adequate baseline/ energy for β- beam
CERN-Pyhasalmi : adequate baseline for Neutrino- Factory
Courtesy: A. Rubbia, LAGUNA
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010
16
Near ¡detector Target
0.75-‑2MW
CNGS HPPS CN2PY SPL
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010
17
Courtesy: A. Rubbia, LAGUNA
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
18
CN2PY can’ t be just a “copy” of CNGS Key issues to address:
Target station design: 0.75 - 2 MW Optimized target/horn secondary beam optics for low energy neutrinos SPS extraction system for high-intensity beams maintaining the TI2 extraction for LHC Decay tube and near detector with 10-deg slope
Build up synergies and collaboration with teams working on similar projects in Japan and US
NBI workshop March 2012 @ CERN - NBI2012
19
The Menu:
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010
20
ISS: International Scoping Study Physics Report: Rept.Prog.Phys. 72:106201,2009. Accelerator Report: JINST 4:P07001,2009. Detector Report: JINST 4:T05001,2009
FP7 /EUROnu Design study Super-beam to Frejus Beta-beam (continue EURISOL) Neutrino Factory
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010
21
IMB SOUDAN CANFRANC KAMIOK A BOULBY MINE GRAN SASSO MONT BLANC SUDBURY (FINLANDE) LSM (FREJUS ) (WIPP) ST GOTHARD HOMES TAKE BAKSAN
muon flux/m2/year Depth (meter of water equivalent) Depth (meter)
2000 10 1000 2000 3000 4000 6000 8000 4800
2
103 104 106
Laboratoire Souterrain de Modane
Profit from the excavation of the new safety gallery to prepare the detector caverns
detector with 440kt total fiducial mass
with HP-SPL as the proton driver
Courtesy: M. Dracos, EUROnu
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
22
Technical challenges:
Target design
impact of the 4MW beam
Horn design
high current, mechanical constraints due to physics requirements, radiation, high-current (heating), pulsing
H- linac 2.2 (3.5) GeV, 4 MW Target ~300 MeV νµ beam to far detector decay tunnel Accumulator ring Magnetic horn capture (collector) proton driver
hadrons
ν, µ
p
Solution:
4 × 1 MW = 4 MW !!!! four target/horn assemblies mounted together in a mechanical structure !!!
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
Latest design
single horn with reduced current
Target
solid C(Be?) rod inserted into the horn
23 ~300-400 kA 112 230 cm
Courtesy: M. Dracos, EUROnu
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
SPL - a key component for future ν-beams at CERN
24
PSB SPS Linac4 LP-SPL PS LHC / sLHC
160 MeV 1.4 GeV 4 GeV 26 GeV 50 GeV 450 GeV 7 TeV
Linac2
50 MeV Proton flux / Beam power
PS2 Present Future
1978 1975 1959 2008
SPS ¡& ¡LHC ¡injector ¡upgrade ¡plan:
Ø Linac4 in operation by 2014 Ø Systematic consolidation and
upgrade of PSB, PS, SPS to assure reliable operation and needs of the High Luminosity LHC until ~2030,
Ø Conclude the PS2 and LP-SPL
studies at short term, with the publication of a “light” CDR to allow for resurrecting the option if necessary at a later date,
Ø Continue “generic” R & D for HP-
SPL in view of neutrino physics applications.
Chamonix 2010
Courtesy: R.Garoby, CERN
Manpower?
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
PS2 SPL LINAC4 SPS PS
25
HP-SPL R&D continued:
R & D towards a high duty cycle H- source Study of the optimum high power RF architecture for a high power SPL Design, construction and test of superconducting RF cavities (704 MHz – 5 cells – β=1) Development of high power RF coupler, HOM damper and adaptation of tuner Upgrade of the SM18 test place [2 K cooling + pulsed RF source at 704 MHz (1 MW @ 50 Hz )] Pulsed high power RF tests of contiguous cavities in a single cryostat Design, construction and test a high power klystron modulator Design, construction and test of a prototype cryomodule equipped with 8 β=1 cavities
H- source RFQ chopper DTL CCDTL PIMS 3 MeV 50 MeV 102 MeV
352.2 MHz
β=0.65 β=1.0 643 MeV 5 GeV
704.4 MHz
160 MeV
Linac4 (160 MeV) SC-linac (5 GeV)
Courtesy: R.Garoby, CERN
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
Detector @ Frejus (130 km) Detector @ Canfranc/Gran Sasso (~ 700 km)
Beta Beams: acceleration of beta active isotopes Unique facility for CERN:
Reuse of CERN existing accelerators and infrastructure ⇒ cost reduction Known technologies Ion Production: ISOL technique, ion production ring, molten salt loop
Synergies with Super beam to Frejus for enhanced physics reach
26
Courtesy: E. Wildner , EUROnu
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010
Baseline ¡op?on ¡(6He ¡and ¡18Ne). ¡18Ne ¡produc?on ¡experiments ¡in ¡2011. ¡8Li ¡can ¡be ¡produced ¡in ¡sufficient ¡quan??es ¡with ¡ISOL ¡& ¡n-‑converter
18Ne: ¡Molten ¡Salt ¡Loop ¡ ¡ 6He ¡& ¡8Li ¡: ¡ISOL&n-‑converter 8B ¡& ¡8Li ¡: ¡Produc?on ¡Ring
27
Courtesy: E. Wildner , EUROnu
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010 28
p+ C (int) →μ± (capture, accelerate, store, decay)→νμ,νe
http:/ /www.ids-nf.org/wiki
Courtesy: EUROnu & IDS-NF
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
29
Design and operate MMW facilities is not trivial
¨ Key issues where present R&D effort is concentrated:
¤ Production : ¤ SB: Secondary beam elements : target ¤ NF: Front-end system : target ¤ β-beam : ion production ¤ Beam handling : ¤ SB: horns ¤ NF: capture, cooling channel, RF & absorbers Beam dump ¤ β-beam : collective effects, ion losses & radiation ¤ Beam delivery : ¤ SB: Decay tunnel ¤ NF: Storage ring ¤ β-beam : decay ring ¤ ... and ν-beam monitoring & near detector
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
photo: Hg-jet - beam impact 4×1012 p, 10T field
Key results #2 Disruption threshold: >4×1012 protons@14 GeV , 10T field 115kJ pulse containment demonstrated 8 MW capability demonstrated
30
The MERIT Experiment @ CERN PS High-Power Liquid Hg-jet experiment, proof-
Factory or μ-collider Key results #1 Hg-jet disruption mitigated by magnetic field
20 m/s jet operation allows up to 70Hz
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
31
Courtesy: P. Spampinato, ORNL
Dismantling WANF - 2010: Target & collimator Dismantling WANF - 2010: Target & collimator
Contact ¡: ¡4.4mSv/h 40 ¡cm ¡: ¡1.4mSv/h 1.3mSv/h 6.5 ¡mSv/h Contact ¡: ¡5.0mSv/h 40 ¡cm ¡: ¡1.7mSv/h Contact ¡: ¡18.0mSv/h 40 ¡cm ¡: ¡16mSv/h
10y cool-down
High-intensity (M)MW areas should be treated with respect !!!
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
A search for anomalous neutrino νμ→νe oscillations at the CERN PS with LAr-TPC detectors
32
PS
b.181
near det
b.191
far det
Beam line originally operated in early 80’ s for PS169, PS181, PS180(BEBC) experiments PS beam possibilities (180, 85% efficiency) : 6.13 1019 ÷ 2.02 1020 from zero to max impact to PS users
Courtesy: R. Steerenberg – CERN
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
33
à ICARUS talk by C.Rubbia
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
34
... but with questionable efficiency
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010 35
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
¨
LHC is the new world’ s high-energy machine
¨
The first year of operation was just completed with excellent performance for protons and ions
Begun probing physics at the TeV scale!!
36
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
The ¡opportunity ¡...
¨ New ¡results ¡are ¡expected ¡soon ¡to ¡jus@fy ¡the ¡physics ¡case ¡of ¡a ¡
future ¡ν-‑program ¡in ¡// ¡or ¡as ¡a ¡post-‑LHC ¡project
¤ LHC : is physics beyond the SM? ¤ CNGS: # ντ events to expectations? ¤ T2K: θ13 measurement/new limits ¤ Reactor experiments
n Θ12, θ13 measurement/new limits
...and of course any unexpected physics !!!
LEP’ s contribution to ν- physics ~21 years ago!
37
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
38
EUCARD/Neu2012 workshops:
March 17-18, 2010 : http:/ /indico.cern.ch/ event/87234 September 27-28, 2010 : http:/ /indico.cern.ch/ event/106198
Ilias Efthymiopoulos - CERN NNN10 - Toyama, December 15, 2010
¨ Future ¡ν-‑facili@es ¡will ¡require:
¤ Innovative ideas and new technologies to be developed ¤ Collaboration and coordination for accelerator and
detector R&D at a global scale
¤ Define a prioritized roadmap of facilities to make ν-
physics a valid option for the field and CERN
39
Ilias Efthymiopoulos - CERN NNN10-Toyama, December 15, 2010
40
