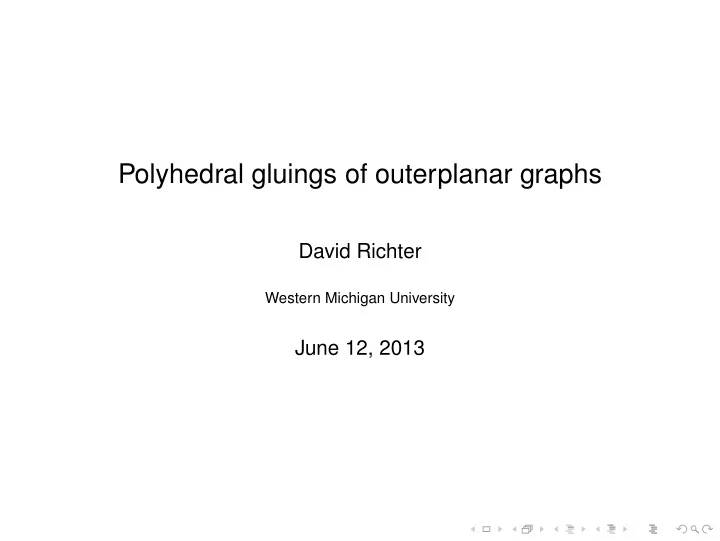

Polyhedral gluings of outerplanar graphs
David Richter
Western Michigan University
June 12, 2013
Polyhedral gluings of outerplanar graphs David Richter Western - - PowerPoint PPT Presentation
Polyhedral gluings of outerplanar graphs David Richter Western - - PowerPoint PPT Presentation
Polyhedral gluings of outerplanar graphs David Richter Western Michigan University June 12, 2013 Nets of Polyhedra The Problem of D urer, Shephard, et al Conjecture Every convex polyhedron has a non-overlapping edge unfolding. Facts about
SLIDE 2
SLIDE 3
The Problem of D¨ urer, Shephard, et al
Conjecture
Every convex polyhedron has a non-overlapping edge unfolding.
SLIDE 4
Facts about Edge Unfoldings
SLIDE 5
Facts about Edge Unfoldings
◮ Every edge unfolding of a polyhedron is obtained by cutting
along a spanning tree of its edge skeleton.
SLIDE 6
Facts about Edge Unfoldings
◮ Every edge unfolding of a polyhedron is obtained by cutting
along a spanning tree of its edge skeleton.
◮ Every edge unfolding yields an outerplanar graph with no cut
vertices.
SLIDE 7
Facts about Edge Unfoldings
◮ Every edge unfolding of a polyhedron is obtained by cutting
along a spanning tree of its edge skeleton.
◮ Every edge unfolding yields an outerplanar graph with no cut
vertices.
◮ If G is an unfolding, then |V(G)| is even.
SLIDE 8
Facts about Edge Unfoldings
◮ Every edge unfolding of a polyhedron is obtained by cutting
along a spanning tree of its edge skeleton.
◮ Every edge unfolding yields an outerplanar graph with no cut
vertices.
◮ If G is an unfolding, then |V(G)| is even. ◮ If G is an unfolding with |V(G)| = 2n, then no vertex has
degree exceeding n + 1.
SLIDE 9
Facts about Edge Unfoldings
◮ Every edge unfolding of a polyhedron is obtained by cutting
along a spanning tree of its edge skeleton.
◮ Every edge unfolding yields an outerplanar graph with no cut
vertices.
◮ If G is an unfolding, then |V(G)| is even. ◮ If G is an unfolding with |V(G)| = 2n, then no vertex has
degree exceeding n + 1. Notation: ∆(G) is the maximum degree of G.
SLIDE 10
Example
SLIDE 11
The Main Problem
Characterize outerplanar graphs which have at least one polyhedral gluing.
SLIDE 12
Polyhedral Gluings
Theorem (Steinitz)
A graph is the edge skeleton of a convex polyhedon iff it is simple, planar, and 3-connected.
SLIDE 13
Polyhedral Gluings
Theorem (Steinitz)
A graph is the edge skeleton of a convex polyhedon iff it is simple, planar, and 3-connected.
Definition
A graph is “polyhedral” if it is simple, planar, and 3-connected.
SLIDE 14
Spherical Gluings
Proposition
If G is an outerplanar graph with |V(G)| = 2n and no cut vertices, then G has precisely Cn =
(2n)!
n!(n + 1)! spherical gluings.
SLIDE 15
Spherical Gluings
Proposition
If G is an outerplanar graph with |V(G)| = 2n and no cut vertices, then G has precisely Cn =
(2n)!
n!(n + 1)! spherical gluings. Draw a picture.
SLIDE 16
The Main Problem (restated)
Find the outerplanar graphs for which the set of spherical gluings contains at least one polyhedral gluing.
SLIDE 17
Does it glue?
SLIDE 18
Does it glue?
Both do.
SLIDE 19
Does it glue?
SLIDE 20
Does it glue?
Yes.
SLIDE 21
Does it glue?
SLIDE 22
Does it glue?
No.
SLIDE 23
Does it glue?
SLIDE 24
Does it glue?
Yes.
SLIDE 25
Does it glue?
SLIDE 26
Does it glue?
No.
SLIDE 27
The most we can say....
Conjecture
Suppose G is a maximal outerplanar graph with |V(G)| = 2n. Then G admits a polyhedral gluing iff ∆(G) ≤ n + 1.
SLIDE 28
Proof by Induction?
Glue adjacent outer edges, then contract an edge. (Use the chalkboard.)
SLIDE 29
Easy case
|V(G)| = 2n, ∆(G) = n + 1.
SLIDE 30
Easy case
G has a “nice” degree-4 vertex.
SLIDE 31
Easy case
G has a degree-5 vertex below a (2,3) flap.
SLIDE 32
The Obstacle to Induction
A polyhedral gluing of a smaller graph may not extend to a polyhedral gluing of the larger graph. (Try it out!)
SLIDE 33
The hard case
Most look like this....
SLIDE 34
Another Problem
Characterize outerplanar graphs which have at most one polyhedral gluing.
