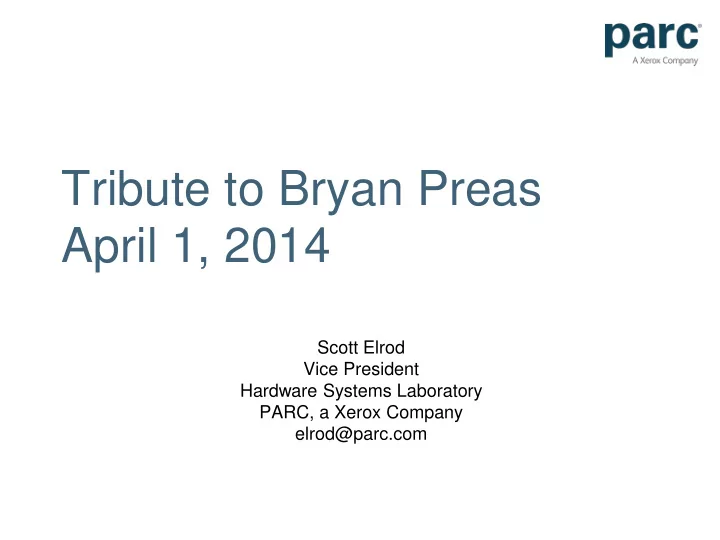

Tribute to Bryan Preas April 1, 2014

Scott Elrod Vice President Hardware Systems Laboratory PARC, a Xerox Company elrod@parc.com

slide-2
SLIDE 2

Time Period from 2000 - 2012

(The Do-Whatever-It-Takes System Engineering Period)

  • Airjet Paper Mover (~ 2000)
  • Hypermodular TIPP (~ 2004)
  • Bioagent Detection (~ 2006)
  • Digital X-Ray System (~ 2010)
slide-3
SLIDE 3

Airjet Actuation

Paper Airjet Velocity Paper Air y Velocity

slide-4
SLIDE 4

Shear Force

Air jet Plenum Flap valve

slide-5
SLIDE 5

Sensor conditioning Selfoc array V low V high Ground Blower Paper CMOS linear sensor array Hi V drivers Adhesive Laser Cut

slide-6
SLIDE 6

PCB Airjet Module

slide-7
SLIDE 7

System Designers

Real time: DSP’s 68 FPGA RAM Hi V drivers Valve Board Sensor Board PC Joystick

D Biegelsen P Cheung L Swartz J Reich B Preas K van Schuylenbergh A Berlin M Fromherz D Goldberg W Jackson JP Lu

slide-8
SLIDE 8

Airjet Video

slide-9
SLIDE 9

Dual Sided with Planned Path

slide-10
SLIDE 10

Hypermodular TIPP (Tightly Integrated Parallel Printing)

slide-11
SLIDE 11

Director assembly (3-way)

Solenoid Baffles Auto-ID Processor PCB Pogo Pins Flipper Shark fin cam Rotary mechanism Slide Idle roller Flipper

slide-12
SLIDE 12

210 ppm with four 55 ppm engines

slide-13
SLIDE 13

Planning and control

slide-14
SLIDE 14

Backplane PWB connector & auto-ID

  • PIC has flash to store board address, or has its own ID
  • PICs communicate with nearest neighbor PICs via IRDA (e.g. PiWest : PjEast, etc.)

then send to system memory the links (no physical location binding necessary)

  • On input requests from DSPs on PIC I/O lines, PIC sends out on same line PIC ID plus

2 bits for orientation. Then DSPs communicate their capabilities, location and orientation to system.

  • PCB can be oriented in any of the 4 directions

DSP

I/O

DSP

I/O 5V 24V

PIC

CAN Grd I/O1 IRDA3 IRDA1 I/O3

slide-15
SLIDE 15

Dry Powder Manipulation Using Traveling Electrostatic Waves (for Printing)

Phases A B C D Projection Field “Hopping ” mode “Surfing ” mode Gas Channel Toner Gating Aperture ATOM Grid

slide-16
SLIDE 16

Field Flow Fractionation + TW

TW moves particles to side edge Sample well

slide-17
SLIDE 17

3-Layer Scalable Traveling Wave (TW) Module

1

2

3

4

Pt TW traces Insulator Glass 4- Contact Pads Vias

Minimize trace voltage drop Minimize power consumption

slide-18
SLIDE 18

System Breadboard

Operation Cycle: Flush/CleanPrimeLoadConcentrateExtract

slide-19
SLIDE 19

TW Concentration: 3um & 10um beads

“Turning the corner” “Into the concentrate ….” Click on images to play movie

slide-20
SLIDE 20

Close-up of Concentration Cell

slide-21
SLIDE 21

Cavity Volume = 2.3 mL; Conc Volume ~ 2x1.5x1 = 3 L Concentration Factor = Cavity Vol/Conc Vol x (1-frac loss) ~ 700 x 0.25 = 175X

Concentration Factor

Pipette tip w/ air bubble

  • Conc. of 3um

& 6um polystyrene beads Before Concentration After Concentration

3 mm

slide-22
SLIDE 22

Portable Prototype BAC Device

slide-23
SLIDE 23

Bulkhead Mounted Electronics

slide-24
SLIDE 24

Electronics Production Line

slide-25
SLIDE 25

BAC Device Production Line

slide-26
SLIDE 26
slide-27
SLIDE 27

Bryan Preas

  • The one person at PARC with complete mastery of

end-to-end system architecture, design, fabrication and test (FPGA, Embedded Software, GUI, PCB design/layout, PC interface)

  • Incredibly versatile
  • Does whatever it takes
  • Selfless contributor
  • A pleasure to work with
  • Sought after by EVERYONE
