The Polyhedral Model Beyond Loops Recursion Optimization and Parallelization Through Polyhedral Modeling Salwa Kobeissi & Philippe Clauss CAMUS team - Inria, University of Strasbourg, ICPS team - ICube Laboratory IMPACT - HIPEAC 2019,

slide-1
SLIDE 1

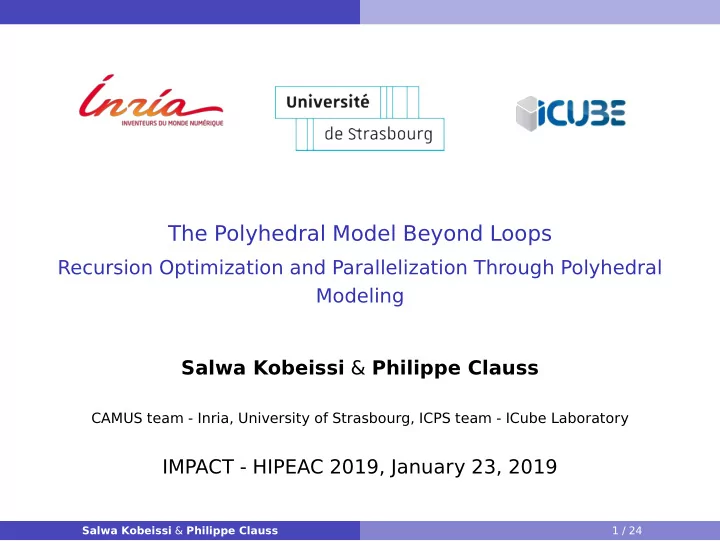

The Polyhedral Model Beyond Loops

Recursion Optimization and Parallelization Through Polyhedral Modeling Salwa Kobeissi & Philippe Clauss

CAMUS team - Inria, University of Strasbourg, ICPS team - ICube Laboratory

IMPACT - HIPEAC 2019, January 23, 2019

Salwa Kobeissi & Philippe Clauss 1 / 24

slide-2
SLIDE 2

Outline

1 Introduction 2 Proposed Solution: From Recursive Functions to Optimized Loops 3 Case Studies 4 Conclusion and Perspectives

Salwa Kobeissi & Philippe Clauss 2 / 24

slide-3
SLIDE 3

Introduction

1 Introduction 2 Proposed Solution: From Recursive Functions to Optimized Loops 3 Case Studies 4 Conclusion and Perspectives

Salwa Kobeissi & Philippe Clauss 3 / 24

slide-4
SLIDE 4

Introduction

Motivation

There may be a huge gap between:

  • the statements in a program source code
  • the instructions actually performed by a given processor

architecture

Salwa Kobeissi & Philippe Clauss 4 / 24

slide-5
SLIDE 5

Introduction

Motivation

There may be a huge gap between:

  • the statements in a program source code
  • the instructions actually performed by a given processor

architecture Efficient optimizations may be applied as soon as the actual runtime behavior has been discovered

  • dedicated to specific control structures & memory access

patterns

Salwa Kobeissi & Philippe Clauss 4 / 24

slide-6
SLIDE 6

Introduction

Inspiration

Apollo

  • Captures a polyhedral

behavior of loops at runtime

  • Applies the polyhedral model

Memory Accesses Behavior at Runtime from statically non-polyhedral loops!

Salwa Kobeissi & Philippe Clauss 5 / 24

slide-7
SLIDE 7

Introduction

Inspiration

Apollo

  • Captures a polyhedral

behavior of loops at runtime

  • Applies the polyhedral model

We apply the Apollo Approach for codes that are originally not loops! => recursions

Memory Accesses Behavior at Runtime from statically non-polyhedral loops!

Salwa Kobeissi & Philippe Clauss 5 / 24

slide-8
SLIDE 8

Introduction

Objectives

We are interested in recursive functions:

1 whose runtime behavior can be modeled as polyhedral loops 2 where the structure of their modeling loops is constant regarding

the input

Salwa Kobeissi & Philippe Clauss 6 / 24

slide-9
SLIDE 9

Introduction

Objectives

We are interested in recursive functions:

1 whose runtime behavior can be modeled as polyhedral loops 2 where the structure of their modeling loops is constant regarding

the input Objectives

1 optimizing recursive functions through transformation into affine

loops

2 extending the scope of polyhedral optimizations to cover

recursive functions

Salwa Kobeissi & Philippe Clauss 6 / 24

slide-10
SLIDE 10

Proposed Solution: From Recursive Functions to Optimized Loops

1 Introduction 2 Proposed Solution: From Recursive Functions to Optimized Loops 3 Case Studies 4 Conclusion and Perspectives

Salwa Kobeissi & Philippe Clauss 7 / 24

slide-11
SLIDE 11

Proposed Solution: From Recursive Functions to Optimized Loops

Implementation

Recursive Code Clang/LLVM Compiler Recursion Analysis Reachability Analysis & Impacting Instructions Execution Nested Loop Recognition (NLR) Code Generation Compiler & Polyhedral Optimization Optimized Recursive Code

Optimized LLVM IR & Call Graph Direct & Indirect Recursions Instrumented Recursive Code Trace of Basic Block IDs & Memory Adresses New Input Affine Loop Model Iterative Code with Affine Loops

The implementation consists of 3 main steps:

1

Recursive Control and Memory Behavior Analysis

Salwa Kobeissi & Philippe Clauss 8 / 24

slide-12
SLIDE 12

Proposed Solution: From Recursive Functions to Optimized Loops

Implementation

Recursive Code Clang/LLVM Compiler Recursion Analysis Reachability Analysis & Impacting Instructions Execution Nested Loop Recognition (NLR) Code Generation Compiler & Polyhedral Optimization Optimized Recursive Code

Optimized LLVM IR & Call Graph Direct & Indirect Recursions Instrumented Recursive Code Trace of Basic Block IDs & Memory Adresses New Input Affine Loop Model Iterative Code with Affine Loops

The implementation consists of 3 main steps:

1

Recursive Control and Memory Behavior Analysis

2

Recursion to Affine Loop Nest Transformation

Salwa Kobeissi & Philippe Clauss 8 / 24

slide-13
SLIDE 13

Proposed Solution: From Recursive Functions to Optimized Loops

Implementation

Recursive Code Clang/LLVM Compiler Recursion Analysis Reachability Analysis & Impacting Instructions Execution Nested Loop Recognition (NLR) Code Generation Compiler & Polyhedral Optimization Optimized Recursive Code

Optimized LLVM IR & Call Graph Direct & Indirect Recursions Instrumented Recursive Code Trace of Basic Block IDs & Memory Adresses New Input Affine Loop Model Iterative Code with Affine Loops

The implementation consists of 3 main steps:

1

Recursive Control and Memory Behavior Analysis

2

Recursion to Affine Loop Nest Transformation

3

Polyhedral Optimizations

Salwa Kobeissi & Philippe Clauss 8 / 24

slide-14
SLIDE 14

Proposed Solution: From Recursive Functions to Optimized Loops

Recursive Control and Memory Behavior Analysis

Recursive Code Clang/LLVM Compiler Recursion Analysis Reachability Analysis & Impacting Inst. Execution Nested Loop Recognition Code Generation Compiler & Polyhedral Optimization Optimized Recursive Code Optimized LLVM IR & Call Graph Direct & Indirect Recursions Instrumented Recursive Code Trace of BB IDs & Memory Adresses New Input Affine Loop Model Iterative Code with Affine Loops

Input: recursive code Apply classical LLVM optimization passes

  • promote memory to register
  • simplify CFG
  • dead code elimination

Output: optimized LLVM IR & call graph

Salwa Kobeissi & Philippe Clauss 9 / 24

slide-15
SLIDE 15

Proposed Solution: From Recursive Functions to Optimized Loops

Recursive Control and Memory Behavior Analysis

Recursive Code Clang/LLVM Compiler Recursion Analysis Reachability Analysis & Impacting Inst. Execution Nested Loop Recognition Code Generation Compiler & Polyhedral Optimization Optimized Recursive Code Optimized LLVM IR & Call Graph Direct & Indirect Recursions Instrumented Recursive Code Trace of BB IDs & Memory Adresses New Input Affine Loop Model Iterative Code with Affine Loops

Input: optimized IR & call graph

main f g h i j k

Output: direct & indirect recursions

Salwa Kobeissi & Philippe Clauss 9 / 24

slide-16
SLIDE 16

Proposed Solution: From Recursive Functions to Optimized Loops

Recursive Control and Memory Behavior Analysis

Recursive Code Clang/LLVM Compiler Recursion Analysis Reachability Analysis & Impacting Inst. Execution Nested Loop Recognition Code Generation Compiler & Polyhedral Optimization Optimized Recursive Code Optimized LLVM IR & Call Graph Direct & Indirect Recursions Instrumented Recursive Code Trace of BB IDs & Memory Adresses New Input Affine Loop Model Iterative Code with Affine Loops

Input: direct & indirect recursions

main f g h i j k

Output: instrumented recursive code

Salwa Kobeissi & Philippe Clauss 9 / 24

slide-17
SLIDE 17

Proposed Solution: From Recursive Functions to Optimized Loops

Recursive Control and Memory Behavior Analysis

Recursive Code Clang/LLVM Compiler Recursion Analysis Reachability Analysis & Impacting Inst. Execution Nested Loop Recognition (NLR) Code Generation Compiler & Polyhedral Optimization Optimized Recursive Code Optimized LLVM IR & Call Graph Direct & Indirect Recursions Instrumented Recursive Code Trace of BB IDs & Memory Adresses New Input Affine Loop Model Iterative Code with Affine Loops

Input: Trace of the program execution :

Basic Block IDs & Memory Addresses

Nested Loop Reconginition (NLR) algorithm applications:

1 program behavior modeling

for any measured quantity such as memory accesses

2 execution trace compressing 3 value prediction

(ketterlin & Clauss, GGO 2008) Output: Affine Loop Model Salwa Kobeissi & Philippe Clauss 9 / 24

slide-18
SLIDE 18

Proposed Solution: From Recursive Functions to Optimized Loops

Recursion to Affine Loop Nest Transformation

Recursive Code Clang/LLVM Compiler Recursion Analysis Reachability Analysis & Impacting Inst. Execution Nested Loop Recognition Code Generation Compiler & Polyhedral Optimization Optimized Recursive Code Optimized LLVM IR & Call Graph Direct & Indirect Recursions Direct & Indirect Recursions Instrumented Recursive Code Trace of BB IDs & Memory Adresses New Input Affine Loop Model Iterative Code with Affine Loops

Input: Affine loop model

1 Extract NLR resulting loop

nests structures

2 Construct loops in the LLVM IR

using:

  • Instrumented basic blocks
  • Interpolated memory

addresses

Output: Iterative code with affine loops

Salwa Kobeissi & Philippe Clauss 10 / 24

slide-19
SLIDE 19

Proposed Solution: From Recursive Functions to Optimized Loops

Polyhedral Optimizations

Recursive Code Clang/LLVM Compiler Recursion Analysis Reachability Analysis & Impacting Inst. Execution Nested Loop Recognition Code Generation Compiler & Polyhedral Optimization Optimized Recursive Code Optimized LLVM IR & Call Graph Direct & Indirect Recursions Direct & Indirect Recursions Instrumented Recursive Code Trace of BB IDs & Memory Adresses New Input Affine Loop Model Iterative Code with Affine Loops

Input: Iterative code with affine loops

  • Apply LLVM optimization

passes

  • Use polly LLVM polyhedral
  • ptimizer (Grosser et al., PPL 2012)

Output: Optimized recursive code

Salwa Kobeissi & Philippe Clauss 11 / 24

slide-20
SLIDE 20

Case Studies

1 Introduction 2 Proposed Solution: From Recursive Functions to Optimized Loops 3 Case Studies 4 Conclusion and Perspectives

Salwa Kobeissi & Philippe Clauss 12 / 24

slide-21
SLIDE 21

Case Studies

Recursive Matrix Multiplication

void MatrixMultiplication(int A[N][N], int B[N][N]){ static int row=0, column=0, index=0; if (row >= N) return; if(column < N){ if(index < N){ C[row][column]+= A[row][index]*B[index][column]; index++; MatrixMultiplication(A, B); } index=0; column++; MatrixMultiplication(A, B); } column=0; row++; MatrixMultiplication(A, B); } Salwa Kobeissi & Philippe Clauss 13 / 24

slide-22
SLIDE 22

Case Studies

Recursive Matrix Multiplication Analysis Results

for i0 = 0 to N-1 for i1 = 0 to N-1 for i2 = 0 to N-1 val MatrixMultiplication::if.then4 //IR basic block ... load // memory read val MEM1 + 4*N*i0 + 4*i2 //memory address in terms of loops indices ... //repetitive memory access patterns load val MEM2 + 4*i1 + 4*N*i2 //4 is the size of an integer ... val load val MEM3 + 4*N*i0 + 4*i1 val store // memory write val MEM3 + 4*N*i0 + 4*i1 ... val MatrixMultiplication::if.end15 ... val MatrixMultiplication::if.end17 ... for i0 = 0 to N*N-1 for i1 = 0 to N-1 val MatrixMultiplication::if.end17 ... val MatrixMultiplication::if.end15 ... val MatrixMultiplication::if.end15 ... Salwa Kobeissi & Philippe Clauss 14 / 24

slide-23
SLIDE 23

Case Studies

Recursive Matrix Multiplication Experimental Results

Serial execution (gcc -O3)

Salwa Kobeissi & Philippe Clauss 15 / 24

slide-24
SLIDE 24

Case Studies

Heat - REAPAR Benchmarks

Salwa Kobeissi & Philippe Clauss 16 / 24

slide-25
SLIDE 25

Case Studies

Heat - REAPAR Benchmarks

Salwa Kobeissi & Philippe Clauss 16 / 24

slide-26
SLIDE 26

Case Studies

Heat - REAPAR Benchmarks

Salwa Kobeissi & Philippe Clauss 16 / 24

slide-27
SLIDE 27

Case Studies

Heat - REAPAR Benchmarks

Salwa Kobeissi & Philippe Clauss 16 / 24

slide-28
SLIDE 28

Case Studies

Heat

The function compstripe involves interesting linear loops

void compstripe(register double **new, register double **old, int lb, int ub) { register int a, b, llb, lub; llb = (lb == 0) ? 1 : lb; lub = (ub == nx) ? nx - 1 : ub; for (a=llb; a < lub; a++) { for (b=1; b < ny-1; b++) { new[a][b] = dtdxsq * (old[a+1][b] - 2 * old[a][b] + old[a-1][b]) + dtdysq * (old[a][b+1] - 2 * old[a][b] + old[a][b-1]) + old[a][b]; } } for (a=llb; a < lub; a++) new[a][ny-1] = randb(xu + a * dx, t); for (a=llb; a < lub; a++) new[a][0] = randa(xu + a * dx, t); if (lb == 0) { for (b=0; b < ny; b++) new[0][b] = randc(yu + b * dy, t); } if (ub == nx) { for (b=0; b < ny; b++) new[nx-1][b] = randd(yu + b * dy, t); } } Salwa Kobeissi & Philippe Clauss 17 / 24

slide-29
SLIDE 29

Case Studies

Heat Analysis Results

for i0 = 0 to Number_of_Steps-1 for i1 = 0 to 14 for i2 = 0 to 509 val compstripe::for.body10, MEM1 + 8224*i1 + 8*i2, MEM2 + 8224*i1 + 8*i2, MEM3 + 8224*i1 + 8*i2 , MEM4 + 8224*i1 + 8*i2 , MEM5 + 8224*i1 + 8*i2, MEM6 + 8224*i1 + 8*i2 for i1 = 0 to 14 val compstripe::for.body63, MEM7 + 8224*i1 for i1 = 0 to 14 val compstripe::for.body81, MEM8 + 8224*i1 for i1 = 0 to 511 val compstripe::for.body97, MEM9 + 8*i1 for i1 = 0 to 61 for i2 = 0 to 15 for i3 = 0 to 509 val compstripe::for.body10, MEM10 + 131584*i1 + 8224*i2 + 8*i3, MEM11 + 131584*i1 + 8224*i2 + 8*i3, MEM12 + 131584*i1 + 8224*i2 + 8*i3 , MEM13 + 131584*i1 + 8224*i2 + 8*i3, MEM14 + 131584*i1 + 8224*i2 + 8*i3, MEM15 + 131584*i1 + 8224*i2 + 8*i3 for i2 = 0 to 15 val compstripe::for.body63 , MEM16 + 131584*i1 + 8224*i2 for i2 = 0 to 15 val compstripe::for.body81 , MEM17 + 131584*i1 + 8224*i2 for i1 = 0 to 14 for i2 = 0 to 509 val compstripe::for.body10, MEM18 + 8224*i1 + 8*i2, MEM19 + 8224*i1 + 8*i2, MEM20 + 8224*i1 + 8*i2 , MEM21 + 8224*i1 + 8*i2, MEM22 + 8224*i1 + 8*i2, MEM23 + 8224*i1 + 8*i2 for i1 = 0 to 14 val compstripe::for.body63 , MEM24 + 8224*i1 for i1 = 0 to 14 val compstripe::for.body81 , MEM25 + 8224*i1 for i1 = 0 to 511 val compstripe::for.body115 , MEM26 + 8*i1 ............ ............ ............ ............

Salwa Kobeissi & Philippe Clauss 18 / 24

slide-30
SLIDE 30

Case Studies

Heat Experimental Results

The codes have been parallelized by Pluto using OpenMP 24 threads (AMD Opteron 6172 2x12-cores - gcc -O3 -fopenmp)

Salwa Kobeissi & Philippe Clauss 19 / 24

slide-31
SLIDE 31

Case Studies

Heat Experimental Results

The codes have been parallelized by Pluto using OpenMP 24 threads (AMD Opteron 6172 2x12-cores - gcc -O3 -fopenmp)

Salwa Kobeissi & Philippe Clauss 20 / 24

slide-32
SLIDE 32

Conclusion and Perspectives

1 Introduction 2 Proposed Solution: From Recursive Functions to Optimized Loops 3 Case Studies 4 Conclusion and Perspectives

Salwa Kobeissi & Philippe Clauss 21 / 24

slide-33
SLIDE 33

Conclusion and Perspectives

Conclusion

A proof of concept for an automatic recursion-to-affine-loop transformation:

  • involving static and dynamic analysis
  • transformation passes
  • polyhedral optimizers

Achievements

1 extends the polyhedral model applicability to non-loop control

structures

2 brings the handled recursive functions to a higher level of

  • ptimizations

Salwa Kobeissi & Philippe Clauss 22 / 24

slide-34
SLIDE 34

Conclusion and Perspectives

Future Works

Our future works include:

1 Performing dynamic analysis for recursive behavior at runtime 2 Inducing verification features to obtain a predictive model 3 Tackling input dependent recursive codes

Salwa Kobeissi & Philippe Clauss 23 / 24

slide-35
SLIDE 35

Conclusion and Perspectives

Thank you Questions ?
