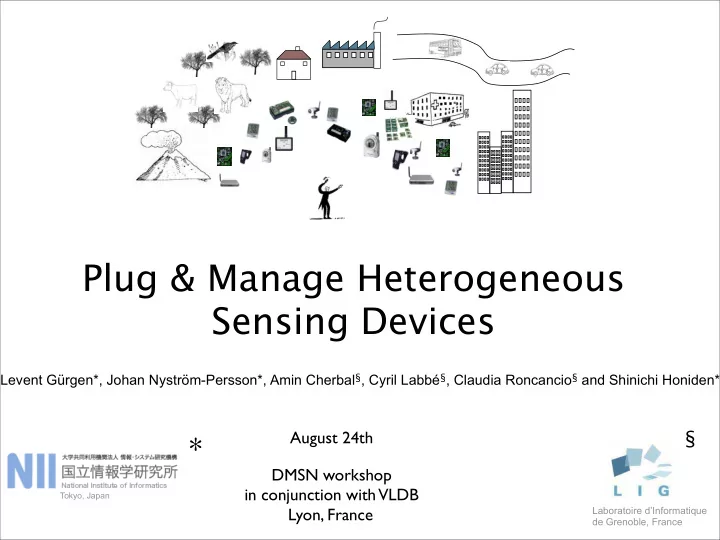

Plug & Manage Heterogeneous Sensing Devices

August 24th Lyon, France DMSN workshop in conjunction with VLDB

Levent Gürgen*, Johan Nyström-Persson*, Amin Cherbal§, Cyril Labbé§, Claudia Roncancio§ and Shinichi Honiden*

Tokyo, Japan

Laboratoire d’Informatique de Grenoble, France

*

§

slide-2
SLIDE 2

Outline

  • Context and motivation
  • Related Work
  • Device Management
  • Management of Sensor Networks
  • Management of Sensing Devices
  • Integrated management framework
  • Implementation
  • Conclusion and future work
slide-3
SLIDE 3

Extensive research on processing sensor data

urban medical environmental industrial

Sensor data processing

SELECT … FROM … WHERE …

slide-4
SLIDE 4

urban environmental medical industrial

Management of Sensing Devices

UPDATE … SET … FROM ... WHERE …

What about managing sensors ?

SELECT … FROM … WHERE …

slide-5
SLIDE 5

urban environmental medical industrial

Management of Sensing Devices

UPDATE … SET … FROM ... WHERE …

Software management install, uninstall, start, stop Configuration management getting/setting network, system, application parameters Performance management monitoring performance metrics, diagnostic operations

What about managing sensors ?

slide-6
SLIDE 6

Related Work

slide-7
SLIDE 7

Home security

Network management System management

Intelligent Building

Application management

Automation Health, urban, environment monitoring

Device Management

  • Remote management of end-user devices (e.g. domotic).
  • Integrated management of network, system and application related functions
  • Emerging standards: TR-069 of Broadband Forum, DM of OMA, DM of UPnP, ...

Device Management

slide-8
SLIDE 8
  • Network management
  • Energy efficient topology management [1], adaptive routing [2] and reconfiguration [3]
  • System management
  • System software update on sensors [4], dynamic reconfiguration[5], performance monitoring [6]
  • Application management
  • scripts on virtual machines [7], software bundles on modular environment [8] and mobile agents
  • n middleware [9].

Management in Sensor Networks

slide-9
SLIDE 9
  • Network management
  • Energy efficient topology management [1], adaptive routing [2] and reconfiguration [3]
  • System management
  • System software update on sensors [4], dynamic reconfiguration[5], performance monitoring [6]
  • Application management
  • scripts on virtual machines [7], software bundles on modular environment [8] and mobile agents
  • n middleware [9].

Management in Sensor Networks

Solutions are sensor and domain specific No generic integrated management mechanism

slide-10
SLIDE 10

Management of Sensing Devices

slide-11
SLIDE 11

Management in sensors’ context

  • Sensors more and more present in critical applications (e.g., industrial,

domotic, medical)

  • Effjcient management necessary for better quality of service, reliability,

security and integrity.

  • Existing work deals with either network, system or application management.

We propose a management mechanism having

  • 3 main functions: software management, configuration and performance

monitoring

  • a hierarchical architecture based on the manager-agent model
  • a simple and extensible data model, and a set of generic management
  • perations
slide-12
SLIDE 12

Data model and management operations

  • A simple Management Information Base (MIB)
  • Hierarchical extensible data model
  • Generic Management Operations
  • get, set, act, notify
slide-13
SLIDE 13

Implementation

 Prototype implemented on the top of SStreaMWare [10], a service oriented

middleware for sensor data management middleware:

13

control site gateway adapters proxies

Query GUI

sensing devices

Region A

SStreaMWare

SELECT ... FROM ... WHERE ...

SQS GQS GQS

PQS PQS PQS PQS PQS PQS PQS PQS gateway

Region B

SQS : Sensor Query Service GQS : Gateway Query Service PQS : Proxy Query Service

slide-14
SLIDE 14

manager/control site

sub-manager/ gateway

adapter agents proxy agents

Management GUI

sensing devices Region A

XSStreaMWare

SQS

GMS GMS

PMS PMS PMS PMS PMS PMS PMS PMS Region B

SMS

GQS sub-manager/ gateway GQS

PQS PQS PQS PQS PQS PQS PQS PQS

get, set, act, notify

XSStreaMWare: eXtending SStreaMWare for management

SMS : Sensor Management Service GMS : Gateway Management Service PMS : Proxy Management Service

slide-15
SLIDE 15

Conclusion

  • Sensors more and more numerous and heterogenous in

various applications requiring quality of service

  • They should be effjciently managed
  • A simple, extensible, scalable management mechanism

is needed

  • XSStreaMWare: eXtending SStreaMWare for management
slide-16
SLIDE 16

Conclusion and Future work

  • Sensors more and more numerous and heterogenous in

various applications requiring quality of service

  • They should be effjciently managed
  • A simple, extensible, scalable management mechanism

is needed

  • XSStreaMWare: eXtending SStreaMWare for management
  • Integrating more sensing devices
  • Dealing with non-functional properties

 security, reliability, transactional integrity…?

  • Autonomic management
slide-17
SLIDE 17

Questions? Thanks!

manager

sub-manager

adapter agents proxy agents Management GUI sensing devices

Region A

XSStreaMWare

GMS GMS

PMS PMS PMS PMS PMS PMS PMS PMS

Region B

SMS

sub-manager SMS : Sensor Management Service GMS : Gateway Management Service PMS : Proxy Management Service

get, set, act, notify
