Health and Safety Health and Safety Executive Executive PLANT SAFETY An overview Gareth Langston HM Inspector of Health and Safety - Construction Statistics Mobile Plant Small Tools and Equipment Health Fatal injuries to

slide-1

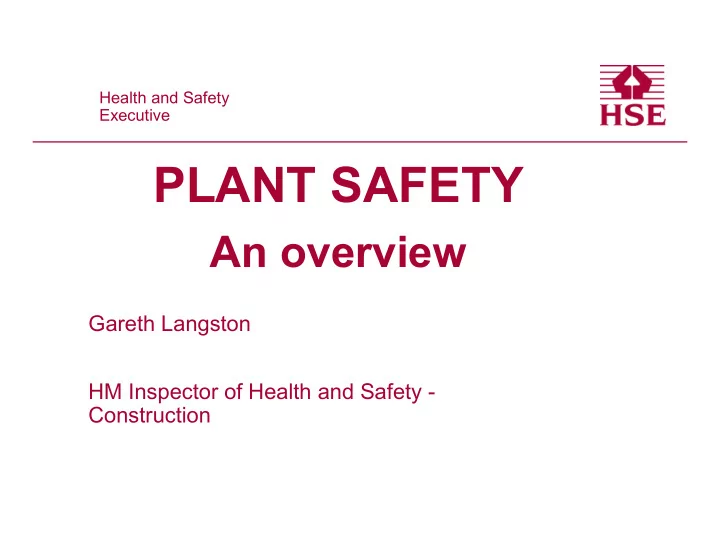

SLIDE 1

Health and Safety Executive Health and Safety Executive

PLANT SAFETY

An overview

Gareth Langston HM Inspector of Health and Safety - Construction

slide-2
SLIDE 2
  • Statistics
  • Mobile Plant
  • Small Tools and

Equipment

  • Health
slide-3
SLIDE 3

Fatal injuries to workers in the Construction sector by injury kind – 2010/11 to 2014/15

slide-4
SLIDE 4

Statistics (all construction plant)

  • RIDDOR reported 2005 – 2010

Plant type Fatal Major Over 3 day Excavator 27 384 435 Dumper 6 191 144 Dump truck 4 114 134 Bulldozer 4 20 33 Load shovel 5 21 39 Crusher 2 5 7

slide-5
SLIDE 5

Excavator incidents (2005 – 10)

Fatal Major Over 3 day Struck by 14 155 178 Falling objects 5 74 69 Crushed / trapped / overturned 7 33 57 Fall from height 1 5 5

slide-6
SLIDE 6

HSE Guidance Available

Guidance available from HSE website –

  • Traffic Management
  • Mobile Plant & Vehicles
  • Excavators
  • Telehandlers
  • MEWPs
  • Dumpers

HSG144 www.hse.gov.uk/construction/safetytopics

slide-7
SLIDE 7

Other Guidance

HSE – Information Sheets CIS No.52 Safe Use of Site Dumpers GIS No.6 The Selection Management and Use of MEWPs Construction Plant-hire Association (CPA) website

slide-8
SLIDE 8

HSG144 - The objectives

  • Safe Site
  • Safe Vehicle
  • Safe People
slide-9
SLIDE 9

The hierarchy

  • Avoid / Reduce

– Plan to reduce vehicle movements sfarp (delivery planning) – Eliminate / reduce reversing using one way systems – Selection of plant/equipment

  • Segregate

– Design of site entrances – Provision of barriers to walkways – Exclusion zones

  • Control

– Trained and competent operators – Maintenance – Signs and warnings – Trained vehicle marshals (banksmen)

slide-10
SLIDE 10

Safe site

  • SSoW
  • Risks from machinery movements considered in RAMS
  • Risks include machine movement around site and moving

parts of the machine – Safe entrances – Traffic routes – Exclusion zones

  • Pedestrian segregation implemented

– Barriers, briefings, plans, warning signs

  • Vehicle marshallers and “Banksmen” competent at control

and self preservation

  • Environmental and ground conditions
slide-11
SLIDE 11

Safe entrances – larger site

slide-12
SLIDE 12

Safe entrances – smaller site

slide-13
SLIDE 13

What we tend to see

slide-14
SLIDE 14

Communicate

slide-15
SLIDE 15

Communicate

slide-16
SLIDE 16

Segregation (large site)

slide-17
SLIDE 17

Segregation (smaller site)

slide-18
SLIDE 18

Demarcated walkways

slide-19
SLIDE 19

Segregation, protection

Barrier off or use stop blocks

  • Embankment edges
  • Excavation edges
  • Water
  • Sensitive structures
slide-20
SLIDE 20

No protection

slide-21
SLIDE 21

Protection to traffic route

slide-22
SLIDE 22
slide-23
SLIDE 23

Preventing overrun

slide-24
SLIDE 24

Not a good idea

slide-25
SLIDE 25

No stop blocks (baulks)

slide-26
SLIDE 26

Effective stop block (baulk)?

slide-27
SLIDE 27

Effective stop block (baulk)?

slide-28
SLIDE 28

Deliveries

  • Designated loading bays
  • Designated storage areas
  • Protected / warnings (segregation)
  • Proximity to point of use
  • Safe work at height
  • Safe lifting practices
  • Safe vehicle marshalling
slide-29
SLIDE 29

Segregated delivery point

slide-30
SLIDE 30

Falls during deliveries

slide-31
SLIDE 31

Site loading bay (collective prevention)

slide-32
SLIDE 32

Personal fall prevention

slide-33
SLIDE 33

Fall mitigation, loading bay (collective)

slide-34
SLIDE 34

Safe Machines

  • Selection – correct tool for the job e.g.
  • Tracked vehicles on soft ground
  • Demolition machine not 360 excavator
  • Lifting attachments
  • Size – neither too big nor too small
  • Design e.g.
  • Tail swing .v. Zero tail swing
  • Driver’s Visibility

– Direct – Indirect (mirrors) – Vision aids (CCTV and radar

slide-35
SLIDE 35

Safe Machines (Cont.)

  • Safe access, including for maintenance
  • Driver protection

– ROPS – Seat restraint – FOPS – Environmental (noise, dust, vibration)

  • Inspection, Maintenance and Thorough

Examination

  • Risks from machinery breakdown and repair

adequately assessed

slide-36
SLIDE 36

Mobile Plant Hazards

  • Most injuries occur when:
  • Moving – Pedestrian strikes, particularly while reversing

– Dumper overturns

  • Slewing – trapping a person between the excavator and a

fixed structure or vehicle

  • Working – moving bucket or other attachment strikes a

pedestrian or when a bucket inadvertently falls from the excavator.

  • Lifting –

Overturns trapping operator or persons nearby – Operators fall from MEWP basket – Entrapment of MEWP operators between fixed structures

slide-37
SLIDE 37

Controlling the risks

  • Exclusion
  • Clearance: When slewing in a confined space

select plant with minimal tail swing. Clearance of

  • ver 0.5m needs to be maintained.
slide-38
SLIDE 38

Controlling the risk - Safe access

slide-39
SLIDE 39

Controlling the risks - Visibility

Sightlines and reversing

slide-40
SLIDE 40

Limited direct vision

slide-41
SLIDE 41

Indirect vision and vision aids

slide-42
SLIDE 42

Problems with vision aids

  • Active not passive
  • Activate
  • Look at it
  • Perceive and assess [distortion]
  • React
  • Unreliable
  • Damage or mal-adjustment
  • Weather…..sun, rain
  • Dirt
slide-43
SLIDE 43

Poor sightlines, even with proper adjustment

slide-44
SLIDE 44

What can go wrong ?

slide-45
SLIDE 45

It had mirrors and a camera

slide-46
SLIDE 46

But the mirrors didn’t help

slide-47
SLIDE 47

And neither did the camera

slide-48
SLIDE 48

Stability - Telehandlers, the site workhorse

slide-49
SLIDE 49

But not always stable

slide-50
SLIDE 50
slide-51
SLIDE 51

Controlling the risks

  • Ground conditions: Work on sloping, uneven or

unstable ground. Manholes? Telehandlers normally require prepared, flat, graded surfaces to operate safely. Even rough-terrain lift trucks have limitations.

  • Loading: Prevent overloading. Select correct

vehicle and attachments. Lifting plans. Moving with a raised load is dangerous and should be avoided at all times.

  • Speed: site speed limit
slide-52
SLIDE 52

Offloading in an exclusion zone

slide-53
SLIDE 53

Or is it ? (any other problems ?)

slide-54
SLIDE 54

Use the right attachments

slide-55
SLIDE 55

Load swing and CoG

slide-56
SLIDE 56

What can go wrong

slide-57
SLIDE 57

Use MEWPs instead for lifting persons

slide-58
SLIDE 58

Dumpers - Stability

slide-59
SLIDE 59

Quick hitches

Deaths have occurred where bucket has fallen from the machine.

  • Manual systems do not feature in the statistics
  • Semi-automatic systems are by far the majority,

and occur where the operator has failed to insert the safety pin

  • Incidents with automatic systems do occur,

usually due to the operating not engaging the bucket fully, or due to component failure (maintenance?)

  • Lifting only with lifting eye on the QH or other

attachment

slide-60
SLIDE 60

Quick Hitches - Maintenance

slide-61
SLIDE 61

Vehicle maintenance

  • Must be maintained in safe condition
  • Daily pre use checks

– Steering – Brakes – Lights, visibility aids – Warning systems, interlocks and CCTV

  • Reporting of defects
  • Formal periodic inspections (LOLER)
slide-62
SLIDE 62

Poor maintenance

slide-63
SLIDE 63

Poor maintenance

slide-64
SLIDE 64

Safe People - Competent operatives

  • Safe driver

– Trained for tasks

  • Driving on road
  • Driving on site
  • Lifting operations
  • Appreciation of ground conditions
  • Daily checks
  • Defect reporting
  • Avoiding distractions

– Fit for work

slide-65
SLIDE 65

The main problems

  • Lack of driver training
  • Lack of banksman training
  • Lack of lifting operations training
  • Lack of planning
  • One off “do me a favour”
  • Distractions
  • Lack of awareness of risk
  • “I’ve always done it this way”
slide-66
SLIDE 66

Banksmen, right and wrong

slide-67
SLIDE 67

Training and guidance

  • CPCS (Administered by CITB)

– Pant operators

  • Dumpers
  • Telehandlers
  • Lorry loaders
  • Banksmen
  • ALLMI (association of lorry loader manufacturers

and importers)

  • NPORS (National plant operator’s registration

scheme)

slide-68
SLIDE 68

Training and guidance

  • CPA (Construction plant hire association)

– Safe use of telehandlers – Excavators used for lifting – Medical fitness – Ground conditions – Competence – Safe use of lorry loaders (jointly badged with CPA) – Safe use of remote controls (jointly badged with CPA)

  • CPA website www.cpa.uk.net
slide-69
SLIDE 69

Think Health

slide-70
SLIDE 70

Accident v Ill Health Fatalities

slide-71
SLIDE 71

Construction health headlines

  • 98% work place deaths caused by
  • ccupational disease
  • 10 people every week die from silica
  • Noise induced hearing loss for construction

3x industry average

  • Hand arm vibration for construction 4.5x

industry average

  • 50 000 reported manual handing injuries
  • Average time off per incident is 19 days
slide-72
SLIDE 72

Selection of plant and equipment

slide-73
SLIDE 73

Selection - Control risk

slide-74
SLIDE 74

Small Equipment - Maintenance

  • Maintain guards
  • Maintain extraction
slide-75
SLIDE 75

Select and Maintain To reduce:

  • Noise
  • Vibration
  • Dust
slide-76
SLIDE 76

Thank you

Any questions ?
